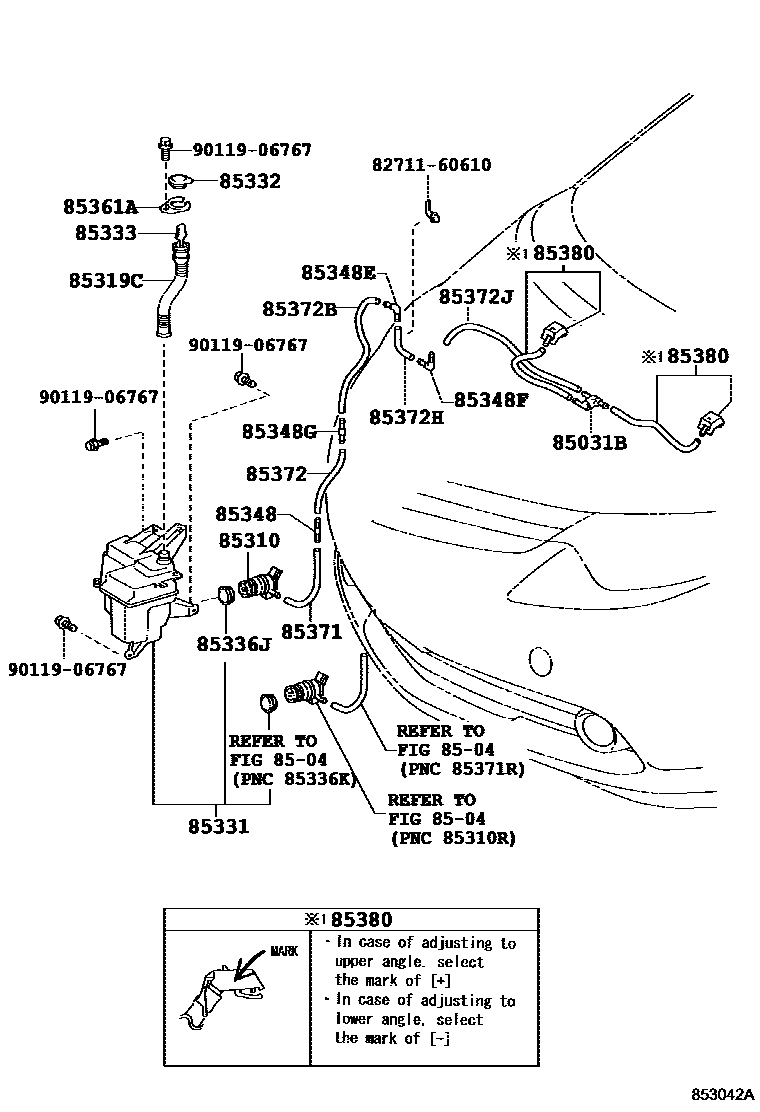

Toyota PREVIA — WINDSHIELD WASHER

85031BVALVE SUB-ASSY, WASHER

main85321-28020iAHR20201304

8504

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-21010iAHR20201304

sub85330-0D100

85319CHOSE, WASHER

main85319-28230iAHR20201304

85331JAR SUB-ASSY, WINDSHIELD WASHER

main85315-28230iAHR20201304

85332CAP, WINDSHIELD WASHER JAR

main85316-48060iAHR20201304

85333FILTER, WINDSHIELD WASHER JAR

main85312-30080iAHR20201304

85336JPROTECTOR, WASHER JAR

main85336-60300iAHR20201304

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85349-89122iAHR20201304

85348EJOINT, WINDSHIELD WASHER ELBOW, NO.2

main85355-20200iAHR20201304

85348FJOINT, WINDSHIELD WASHER ELBOW, NO.3

main85355-20200iAHR20201304

85348GJOINT, WINDSHIELD WASHER HOSE, NO.2

main85349-89122iAHR20201304

85361ABRACKET, WINDSHIELD WASHER, NO.1

main85337-30380iAHR20201304

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90099-33080iAHR20201304

L=1450(*H,L=150)

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90099-33080iAHR20201304

L=1450(*H,L=50)

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90446-07001iAHR20201304

L=1800(*H,L=720)

85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3

main90099-33080iAHR20201304

L=1450(*H,L=150)

85372JHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.4

main90099-33080iAHR20201304

L=1450(*H,L=740)

85380NOZZLE & HOSE ASSY, FR WASHER

main85380-28160×2iAHR20201304-201605

MARK +1

main85380-28170×2iAHR20201304-201605

MARK +3

main85380-28180×2iAHR20201304-201605

MARK -1

8271160610WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-60610

9011906767

main90119-06767

21 parts on this diagram · 1 diagram in section
