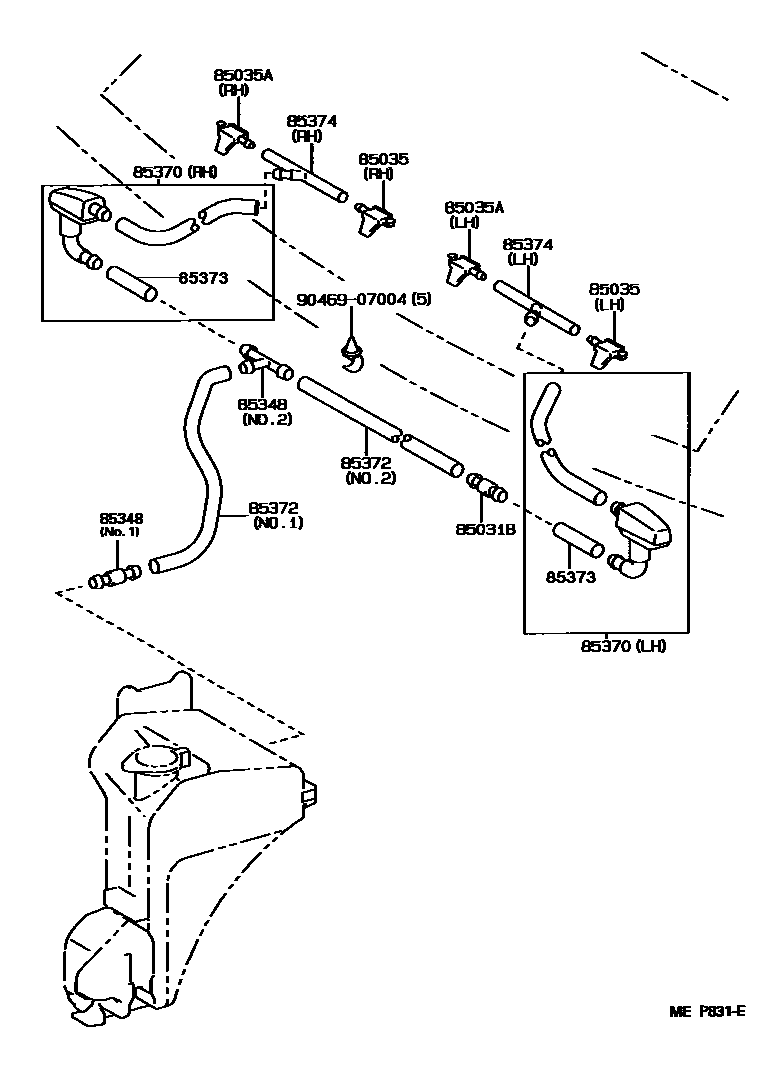

Toyota PREVIA — WINDSHIELD WASHER

0001 1NOZZLE & HOSE 0002 1NOZZLE & HOSE 0003 1JAR & HOSE

85031BVALVE SUB-ASSY, WASHER

main85031-12250×2iTCR1#,2#199005-199308

85035NOZZLE SUB-ASSY, WASHER

main85382-28010iTCR1#,2#199005-199208

RH

main85382-28011iTCR1#,2#199208-199308

RH

main85382-28020iTCR1#,2#199005-199308

LH

main85382-28050×2iTCR1#,2#199308-199912

85035ANOZZLE, FR WASHER, RH

main85381-28010iTCR1#,2#199005-199308

RH

main85381-28020iTCR1#,2#199005-199208

LH

main85381-28021iTCR1#,2#199208-199308

LH

main85381-28080iTCR1#..ARL199809-199912

RH

main85381-28090iTCR1#,2#..GEN,V,W199809-199912

LH

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85348-12250iTCR11,21..LHD199108-199210

SWEDEN SPEC OR NORWAY SPEC OR FINLAND SPEC

main85349-89122iTCR1#,2#199308-199912

NO.1

main85355-20200iTCR1#,2#199108-199308

NO.3

85370HOSE ASSY, WINDSHIELD WASHER

main85370-28040iTCR1#,2#..RHD199005-199308

LH

main85370-28060iTCR1#,2#..LHD199005-199308

LH

main85370-28270iTCR1#,2#..LHD199701-199912

RH

main85370-28280iTCR1#,2#..LHD199701-199810

LH

main85370-28290iTCR1#..RHD199701-199912

RH

main85370-28300iTCR1#..RHD199701-199912

LH

main85370-95D06iTCR1#,2#..LHD199005-199308

RH

main85370-95D07iTCR1#,2#..RHD199005-199308

RH

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90099-33080iTCR1#,2#199308-199912

L=1450(*H,L=870),NO.1,NO.3,NO.2

main90099-33299iTCR1#,2#199005-199308

L=1000(*H,L=370),NO.2

main90099-33382iTCR1#,2#199005-199308

L=1080,NO.3

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90099-33080×2iTCR1#,2#199005-199308

L=1450(*H,L=40)

main90099-33834iTCR1#,2#199005-199308

L=745

85374HOSE, WINDSHIELD WASHER (FROM NOZZLE TO NOZZLE)

main85374-28010iTCR1#,2#..RHD199005-199308

RH

main85374-28020iTCR1#,2#..RHD199005-199308

RH

main85374-28050×2iTCR1#,2#199308-199912

9046907004

main90469-07004

9 parts on this diagram · 3 diagrams in section
