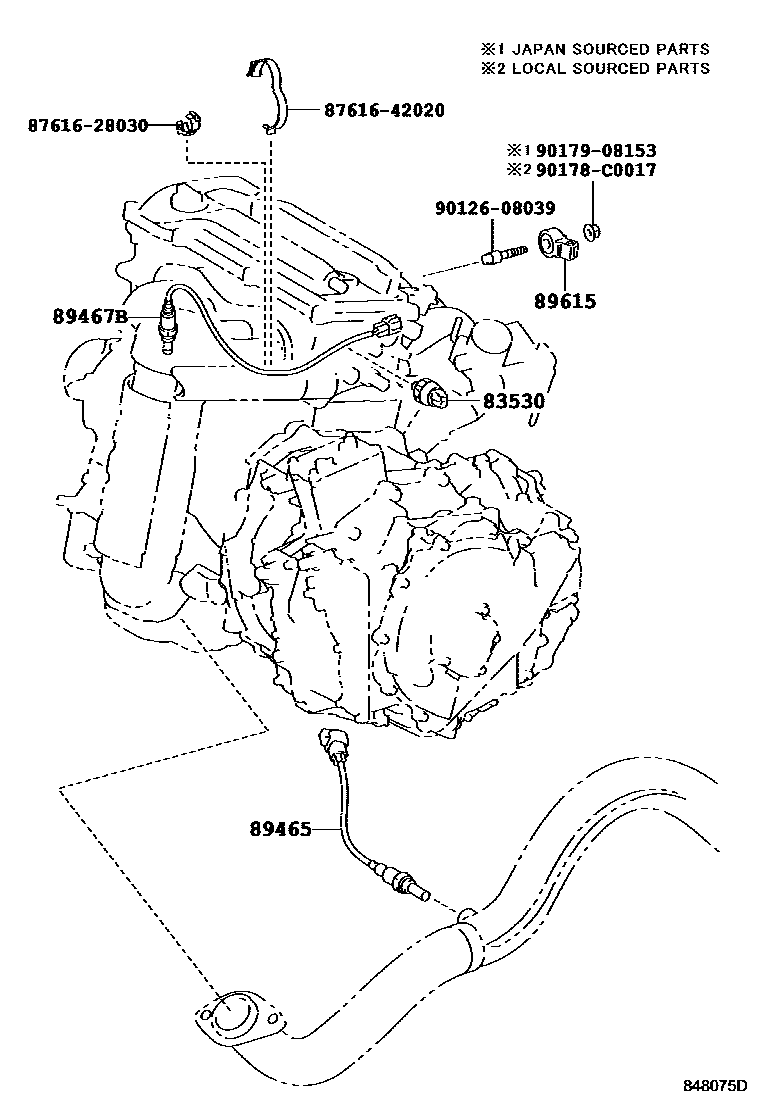

Toyota PREVIA — SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE ROOM 0003 1ENGINE ROOM RELAY BLOCK 0004 1COWL 0005 1INSTRUMENT PANEL 0006 1STEERING 0007 1DOOR,ROOF,FLOOR & BACK DOOR

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28020iAHR20201304

DENSO

main83530-60020iAHR20201304

YAZAKI

89465SENSOR, OXYGEN

main89465-28370iAHR20201304

89467BSENSOR, AIR FUEL RATIO

main89467-28070iAHR20201304

89615SENSOR, KNOCK CONTROL

main89615-20090iAHR20201304

8761628030CLAMP, COOLING UNIT CASE

main87616-28030

8761642020CLAMP, COOLING UNIT CASE

main87616-42020

9012608039

main90126-08039

90178C0017

main90178-C0017

9017908153

main90179-08153

9 parts on this diagram · 7 diagrams in section
