Toyota PREVIA — SPOILER & SIDE MUDGUARD

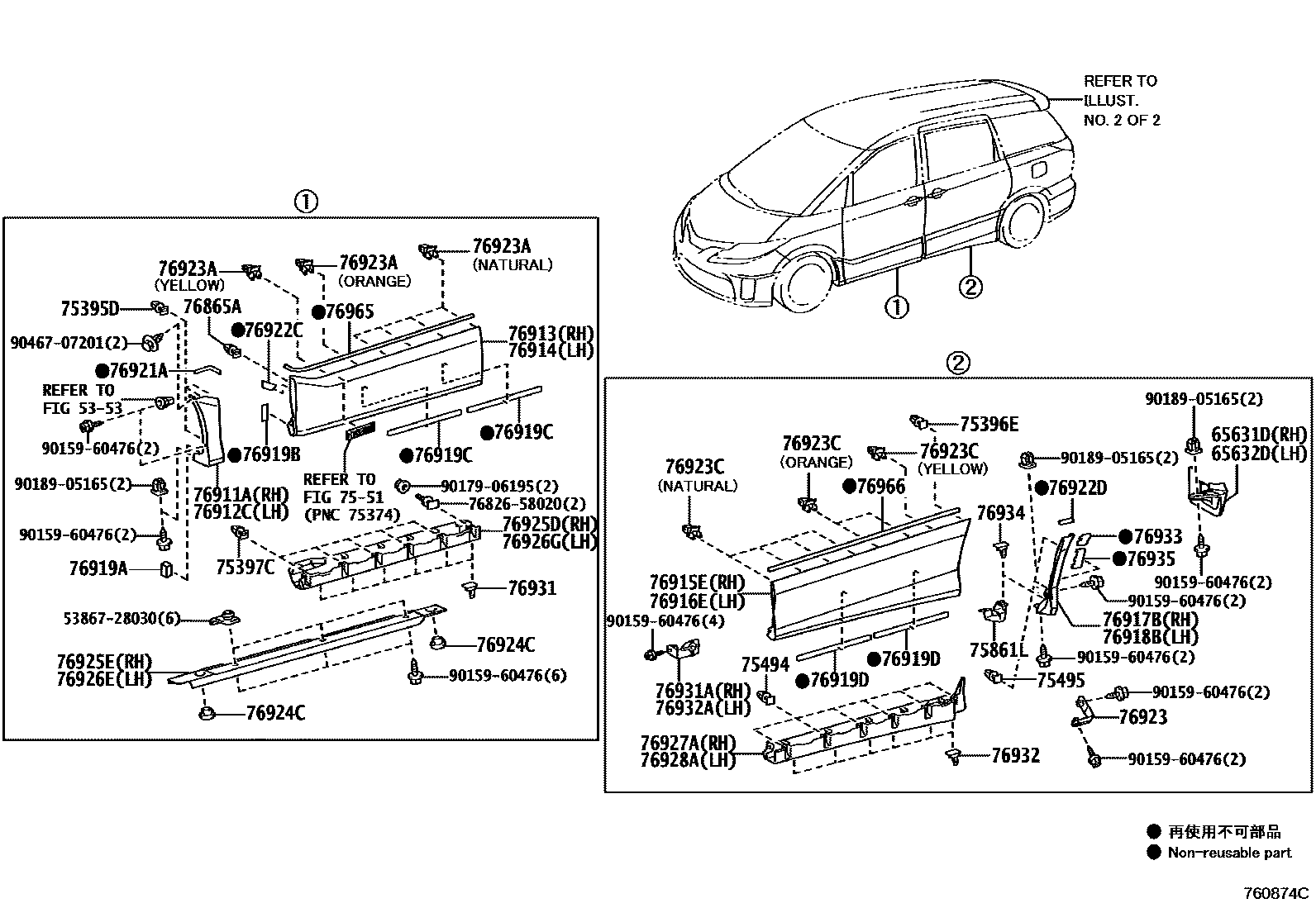

Parts diagram
5353HOOD & FRONT FENDER
→ Go to FIG 53-53
65631DPLATE, REAR WHEEL HOUSE, FRONT RH
main65631-28010i201304-201605
65632DPLATE, REAR WHEEL HOUSE, FRONT LH
main65632-28010i201304-201605
75395DCLIP, OUTSIDE MOULDING, NO.1
main76932-28030×6i201304-201605
75396ECLIP, OUTSIDE MOULDING, NO.2
main76932-28030×2i201304-201605
75397CCLIP, OUTSIDE MOULDING, NO.3
main76932-28030×10i201304-201605
75494CLIP, OUTSIDE MOULDING, NO.3
main76932-28030×12i201304-201605
75495CLIP, OUTSIDE MOULDING, NO.4
main76932-28030×4i201304-201605
7551EMBLEM & NAME PLATE
→ Go to FIG 75-51
75861LRETAINER, ROCKER PANEL MOULDING, NO.1
main75394-28150i201304-201605
RH
main75395-28150i201304-201605
LH
76865ARETAINER, SIDE MUDGUARD
main76932-28030×2i201304-201605
76911AMUDGUARD, FENDER PANEL, RH
main76911-28905i201304-201605
76912CMUDGUARD, FENDER PANEL, LH
main76912-28903i201304-201605
76913MUDGUARD, FRONT DOOR, RH
main76913-28903i201304-201605
76914MUDGUARD, FRONT DOOR, LH
main76914-28903i201304-201605
76915EMUDGUARD, SLIDE DOOR, RH
main76915-28903i201304-201605
PAINT REQ.
76916EMUDGUARD, SLIDE DOOR, LH
main76916-28906i201304-201605
PAINT REQ.
76917BMUDGUARD, QUARTER PANEL, RH
main76917-28903i201304-201605
76918BMUDGUARD, QUARTER PANEL, LH
main76918-28903i201304-201605
76919APAD, SIDE MUDGUARD
main76919-28200×2i201304-201605
76919BPAD, SIDE MUDGUARD
main76919-28280×2i201304-201605
76919CPAD, SIDE MUDGUARD
main76919-28290×4i201304-201605
76919DPAD, SIDE MUDGUARD
main76919-28290×4i201304-201605
76921APROTECTOR, SIDE MUDGUARD, NO.1
main76921-28100-B1×2i201304-201605
LT. GRAY,070
main76921-28100-B2×2i201304-201605
MEDIUM GRAY,1F7
main76921-28100-C0×2i201304-201605
BLACK,1H4 ,202 ,3R9
76922CPROTECTOR, SIDE MUDGUARD, NO.2
main76919-28270×2i201304-201605
76922DPROTECTOR, SIDE MUDGUARD, NO.2
main76922-28100-B1×2i201304-201605
LT. GRAY,070
main76922-28100-B2×2i201304-201605
MEDIUM GRAY,1F7
main76922-28100-C0×2i201304-201605
BLACK,1H4 ,202 ,3R9
76923RETAINER, SIDE MUDGUARD
main76923-28090×2i201304-201605
76923ARETAINER, SIDE MUDGUARD
main75397-28020×2i201304-201605
ORANGE
main75397-28040×2i201304-201605
YELLOW
main75397-28060×8i201304-201605
NATURAL
76923CRETAINER, SIDE MUDGUARD
main75397-28020×4i201304-201605
ORANGE
main75397-28040×2i201304-201605
YELLOW
main75397-28060×8i201304-201605
NATURAL
76924CRETAINER, SIDE MUDGUARD, NO.2
main76924-52021×4i201304-201605
76925DPROTECTOR, SIDE MUDGUARD, RH
main76925-28140i201304-201605
76925EPROTECTOR, SIDE MUDGUARD, FRONT RH
main53821-28060i201304-201605
76926EPROTECTOR, SIDE MUDGUARD, FRONT LH
main53822-28060i201304-201605
76926GPROTECTOR, SIDE MUDGUARD, LH
main76926-28140i201304-201605
76927APROTECTOR, SIDE MUDGUARD, REAR RH
main76927-28090i201304-201605
76928APROTECTOR, SIDE MUDGUARD, REAR LH
main76928-28090i201304-201605
76931RETAINER, SIDE MUDGUARD, NO.3
main75392-35220×12i201304-201605
76931ABRACKET, SIDE MUDGUARD, NO.1 RH
main76931-28040i201304-201605
76932RETAINER, SIDE MUDGUARD, NO.4
main75392-35220×12i201304-201605
76932ABRACKET, SIDE MUDGUARD, NO.1 LH
main76932-28070i201304-201605
76933RETAINER, SIDE MUDGUARD, NO.5
main75394-28160i201304-201605
RH
main75395-28160i201304-201605
LH
76934RETAINER, SIDE MUDGUARD, NO.6
main75392-35220×2i201304-201605
76935RETAINER, SIDE MUDGUARD, NO.7
main75394-28170i201304-201605
RH
main75395-28170i201304-201605
LH
76965PROTECTOR, FRONT DOOR LOWER MUDGUARD
main76965-28090-B1×2i201304-201605
LT. GRAY,070
main76965-28090-B2×2i201304-201605
MEDIUM GRAY,1F7
main76965-28090-C0×2i201304-201605
BLACK,1H4 ,202 ,3R9
76966PROTECTOR, SLIDE DOOR LOWER MUDGUARD
main76966-28090-B1×2i201304-201605
LT. GRAY,070
main76966-28090-B2×2i201304-201605
MEDIUM GRAY,1F7
main76966-28090-C0×2i201304-201605
BLACK,1H4 ,202 ,3R9
5386728030SEAL, FRONT FENDER TO COWL SIDE, LH
main53867-28030
7682658020RETAINER, BACK DOOR GARNISH, NO.1
main76826-58020
9015960476
main90159-60476
9017906195
main90179-06195
9018905165
main90189-05165
9046707201
main90467-07201

51 parts on this diagram · 2 diagrams in section

SPOILER & SIDE MUDGUARD for Toyota PREVIA

This section contains 60 genuine Toyota parts for the SPOILER & SIDE MUDGUARD system of the Toyota PREVIA. Key components include: HOOD & FRONT FENDER, PLATE, REAR WHEEL HOUSE, FRONT RH, PLATE, REAR WHEEL HOUSE, FRONT LH, CLIP, OUTSIDE MOULDING, NO.1, CLIP, OUTSIDE MOULDING, NO.2.
