Toyota PREVIA — SPEAKER

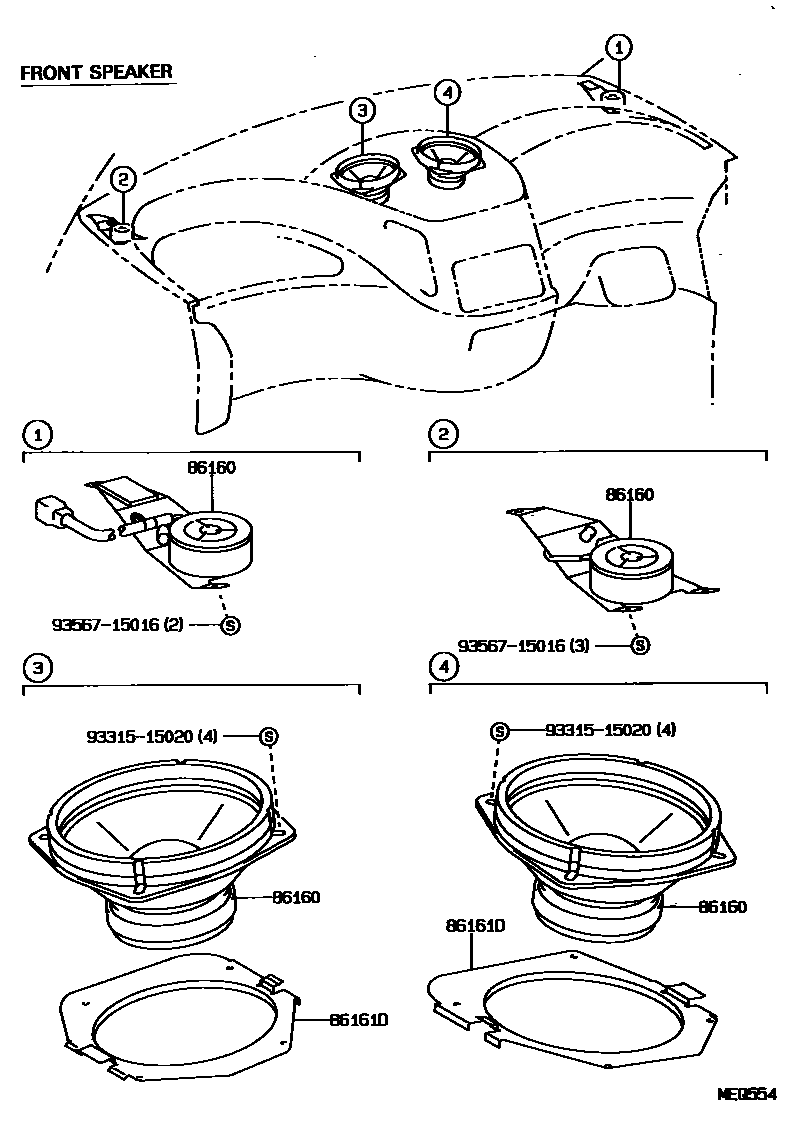

0001 1FRONT SPEAKER 0002 1REAR SPEAKER 0003 1REAR SPEAKER 0004 1ROOF TWEETER

86160SPEAKER ASSY, FRONT NO.1

main86160-28140iTCR1#,2#199308-199608

FR DOOR,RH

main86160-28150iTCR1#,2#199308-199608

FR DOOR,LH

main86160-28270iTCR1#,2#..LHD199308-199912

TWEETER RH

main86160-28280iTCR1#,2#..LHD199108-199308

LH

main86160-28290iTCR1#,21..RHD199108-199308

RH

main86160-28300iTCR1#,21..RHD199108-199308

LH

main86160-28440iTCR1#,2#199608-199912

FR DOOR,RH

main86160-28450iTCR1#,2#199608-199912

FR DOOR,LH

main86160-95D01×2iTCR1#,2#199005-199108

CENTER

main86160-95D02iTCR1#,2#..LHD199005-199108

RH

main86160-95D03iTCR1#,2#..LHD199005-199108

LH

main86160-95D08iTCR1#,2#..RHD199005-199108

LH

main86160-95D09iTCR1#,2#..RHD199005-199108

RH

86161DBRACKET, SPEAKER MOUNTING, NO.1

main86161-95D00iTCR1#,2#199005-199108

RH

main86161-95D01iTCR1#,2#199005-199108

LH

9331515020

main93315-15020

9356715016

main93567-15016

4 parts on this diagram · 4 diagrams in section
