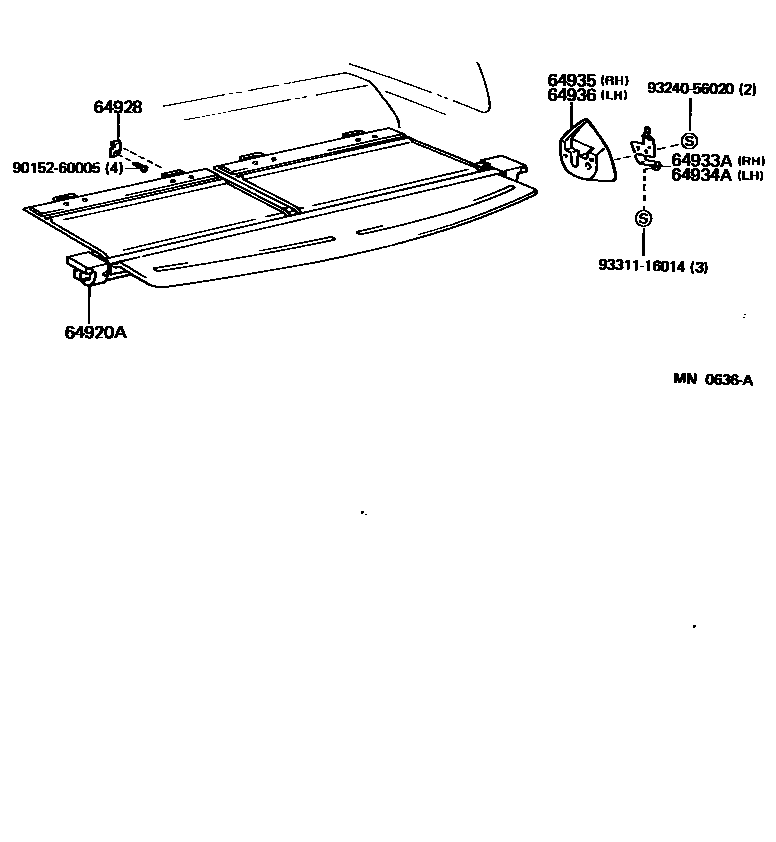

Toyota PREVIA — PACKAGE TRAY PANEL

64920ARETRACTOR ASSY, TONNEAU COVER

main64910-28010iTCR11..ATM..W;TCR11,21..LHD..MTM199108-199208

main64910-28010-03iTCR1#,2#..W199005-199208

GRAY,TRIM1#

main64910-28010-05iTCR11,21..W199005-199208

GREIGE,TRIM4#

main64910-28010-B0iTCR11..ARL;TCR1#,2#..LHD..W199308-199608

GRAY,TRIM1#

main64910-28010-E1iTCR11..ARL199608-199801

GREIGE,TRIM4#

main64910-28020-03iTCR1#,2#..ARL199005-199108

GRAY,TRIM1#

main64910-28020-05iTCR11,21..ARL199005-199308

GREIGE,TRIM4#

main64910-28020-B0iTCR10..V199408-199608

GRAY,TRIM1#

64928HOLDER, TONNEAU COVER HOOK

main64928-28010×4iTCR11..ATM..W;TCR11,21..LHD..MTM199108-199208

main64928-28010-03×4iTCR1#,2#..GL,XL199108-199208

GRAY,TRIM1#

main64928-28010-05×4iTCR21;TCR11..ARL;TCR11..LHD199208-199308

GREIGE,TRIM4#

main64928-28010-B0×4iTCR11..ARL;TCR1#,2#..LHD..(V,W)199308-199912

GRAY,TRIM1#

main64928-28010-E2×4iTCR11..ARL;TCR11,21..LHD199308-199608

GREIGE,TRIM4#

64933ABRACKET, TONNEAU COVER HOLDER, RH

main64933-28010iTCR1#,2#199005-199108

64934ABRACKET, TONNEAU COVER HOLDER, LH

main64934-28010iTCR1#,2#199005-199108

64935HOLDER, TONNEAU COVER, RH

main64935-28010iTCR11..ATM..W;TCR11,21..LHD..MTM199108-199208

main64935-28010-03iTCR1#,2#..GL,XL199108-199208

GRAY,TRIM1#

main64935-28010-05iTCR21;TCR11..ARL;TCR11..LHD199208-199308

GREIGE,TRIM4#

main64935-28010-B0iTCR11..ARL;TCR1#,2#..LHD..(V,W)199308-199912

GRAY,TRIM1#

main64935-28010-E2iTCR11..ARL199608-199801

GREIGE,TRIM4#

64936HOLDER, TONNEAU COVER, LH

main64936-28010iTCR11..ATM..W;TCR11,21..LHD..MTM199108-199208

main64936-28010-03iTCR1#,2#199005-199108

GRAY,TRIM1#

main64936-28010-05iTCR21;TCR11..ARL;TCR11..LHD199208-199308

GREIGE,TRIM4#

main64936-28010-B0iTCR11..ARL;TCR1#,2#..LHD..(V,W)199308-199912

GRAY,TRIM1#

main64936-28010-E2iTCR11..ARL;TCR11,21..LHD199308-199608

GREIGE,TRIM4#

9015260005

main90152-60005

9324056020

main93240-56020

9331116014

main93311-16014

9 parts on this diagram · 1 diagram in section
