Toyota PREVIA — MOUNTING

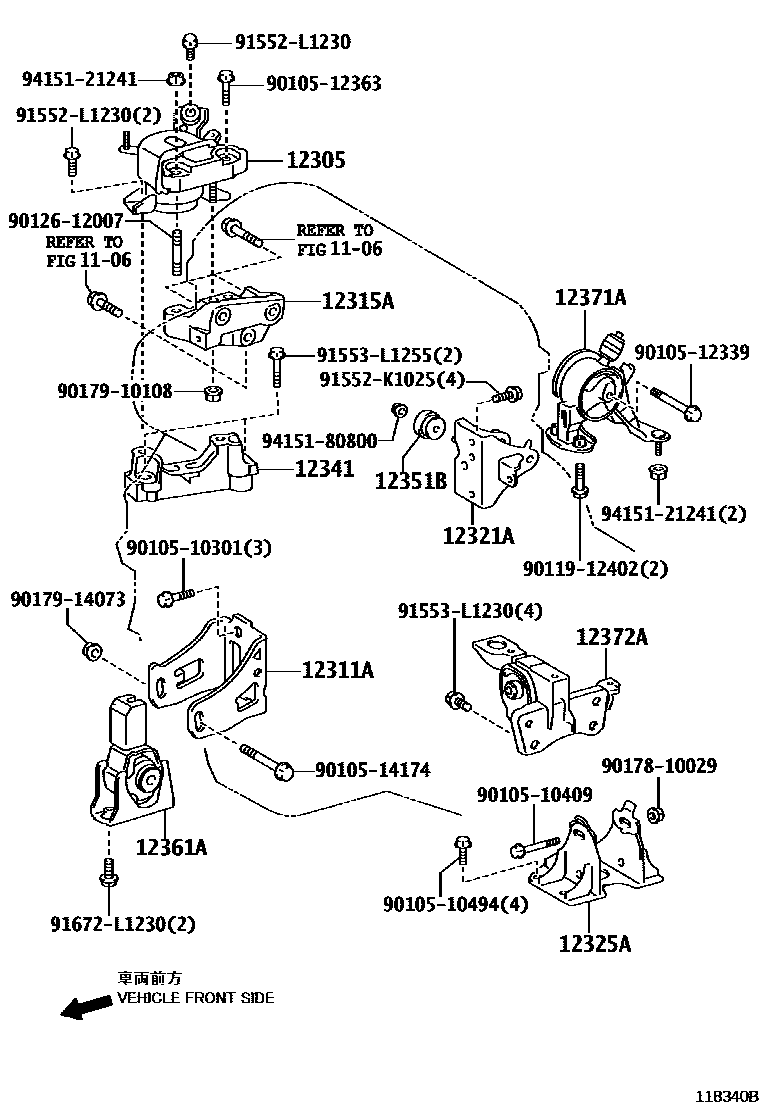

Parts diagram

1106TIMING GEAR COVER & REAR END PLATE

→ Go to FIG 11-06

12305INSULATOR SUB-ASSY, ENGINE MOUNTING, RH

main12305-28250i201304-201309

main12305-28251i201310

12311ABRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)

main12311-28251i201304

12315ABRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)

main12315-28090i201304

12321ABRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)

main12321-28230i201304

12325ABRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12325-28320i201304

12341SPACER, ENGINE MOUNTING

main12341-26011i201304

12351BDAMPER, ENGINE MOUNTING

main12351-23010i201304

12361AINSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)

main12361-28271i201304

12371AINSULATOR, ENGINE MOUNTING, REAR

main12371-28230i201304

12372AINSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12372-28260i201304

9010510301

main90105-10301

9010510409

main90105-10409

9010510494

main90105-10494

9010512339

main90105-12339

9010512363

main90105-12363

9010514174

main90105-14174

9011912402

main90119-12402

9012612007

main90126-12007

9017810029

main90178-10029

9017910108

main90179-10108

9017914073

main90179-14073

91552K1025

main91552-K1025

91552L1230

main91552-L1230

91553L1230

main91553-L1230

91553L1255

main91553-L1255

91672L1230

main91672-L1230

9415121241

main94151-21241

9415180800

main94151-80800

29 parts on this diagram · 1 diagram in section

MOUNTING for Toyota PREVIA

This section contains 29 genuine Toyota parts for the MOUNTING system of the Toyota PREVIA. Key components include: TIMING GEAR COVER & REAR END PLATE, INSULATOR SUB-ASSY, ENGINE MOUNTING, RH, BRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE), BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE), BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE).
