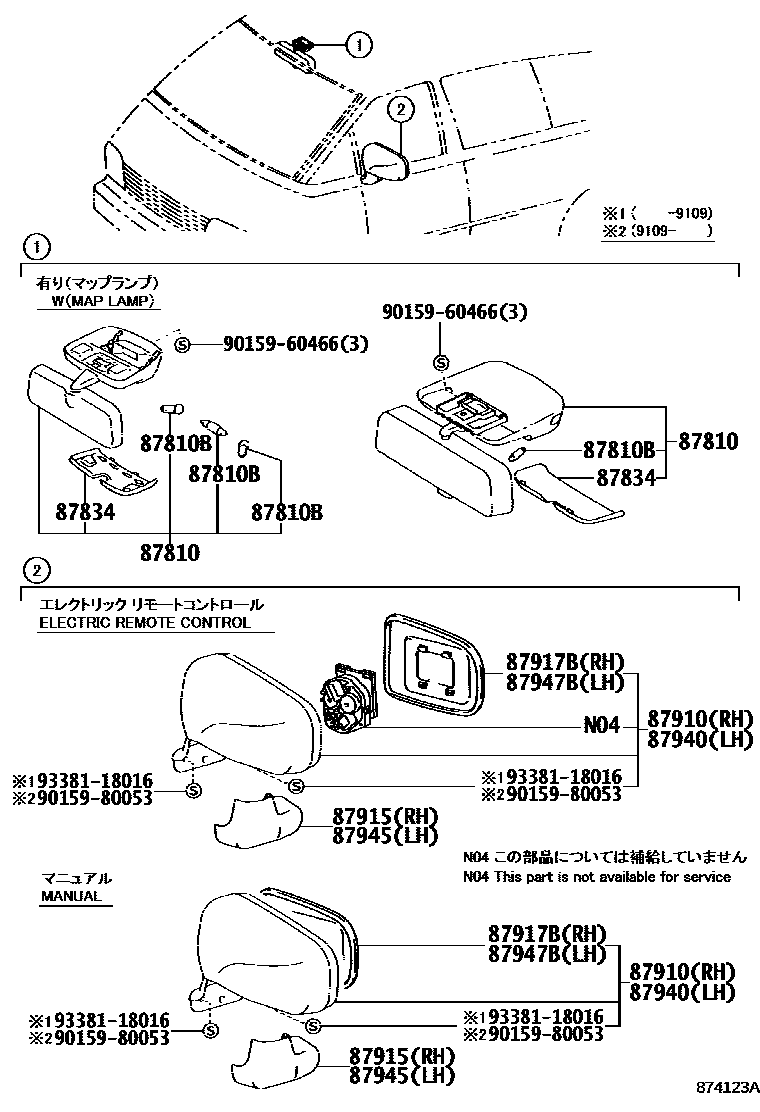

Toyota PREVIA — MIRROR
87810MIRROR ASSY, INNER REAR VIEW
W(MAP LAMP),LT.GRAY,TRIM1#
W(MAP LAMP),LIGHT GRAY,TRIM1#
W(MAP LAMP),LIGHT GRAIGE,TRIM4#
W(MAP LAMP),LT.GRAY,TRIM1#
W(MAP LAMP),LT.GREIGE,TRIM4#
BLUE GRAY,TRIM1#
LIGHT GRAY,TRIM1#
W(CLOCK),LIGHT GRAY,TRIM1#
LIGHT TAN,TRIM4#
BLUISH GRAY,TRIM1#
W(CLOCK),LIGHT GREIGE,TRIM4#
MD.GREIGE,TRIM4#
87810BBULB, INNER REAR VIEW MIRROR LAMP
12V 8W,NO.1
12V 8W,NO.2
12V 10W
87834COVER, INNER REAR VIEW MIRROR STAY HOLDER
W(CLOCK)
W(MAP LAMP)
87910MIRROR ASSY, OUTER REAR VIEW, RH
ELECTRIC REMOTE CONTROL,BLACK,041 ,3H8 ,3J7 ,4K9 ,6L3 ,8G2 ,8H4 ,8H5
BLACK,041 ,191 ,3H8 ,3J7 ,4K9 ,750 ,751 ,8K0
BLACK,041 ,191 ,193 ,3J7 ,6P9 ,751 ,936
BLACK,041 ,3H8 ,3J7 ,4K9 ,6L3 ,8G2 ,8H4 ,8H5
BLACK,041 ,191 ,3H8 ,3J7 ,4K9 ,750 ,751 ,8K0
FRANCE SPEC,BLACK,041 ,042 ,191 ,199 ,3J7 ,6P9 ,751 ,936
W(MIRROR HEATER OR FRONT SEAT HEATER)
NORWAY SPEC OR W(MIRROR HEATER);W(FRONT SEAT HEATER),BLACK,041 ,3H8 ,3J7 ,4K9 ,6L3,751 ,8H4 ,8H5 ,8K2
HEATER MIRROR,BLACK,041 ,191 ,193 ,3J7 ,6P9 ,751 ,936
NORWAY SPEC OR W(FRONT SEAT HEATER)
BLACK,041 ,3H8 ,6L3 ,751 ,8H4 ,8H5 ,8K2
BLACK,041 ,191 ,193 ,3J7 ,4K9 ,6P9 ,751 ,936
NORWAY SPEC OR W(FRONT SEAT HEATER)
W(HEATER MIRROR),BLACK,041 ,042 ,191 ,199 ,3J7 ,6P9 ,751 ,936
BLACK,041 ,191 ,3J7 ,4K9 ,6P9 ,751 ,936
BLACK,041 ,191 ,193 ,3J7 ,6P9 ,751 ,936
BLACK,041 ,3H8 ,3J7 ,4K9 ,4L6 ,6L3 ,8G2 ,8H3 ,8H4 ,8H5
BLACK,041 ,3H8 ,3J7 ,4K9 ,6L3 ,8G2 ,8H4 ,8H5
BLACK,041 ,3H8 ,3J7 ,4K9 ,4L6 ,6L3 ,8G2 ,8H3 ,8H4 ,8H5
BLACK,041 ,3H8 ,3J7 ,4K9 ,4L6 ,6L3 ,8G2 ,8H3 ,8H4 ,8H5
87915COVER, OUTER MIRROR, RH
BLACK,041 ,3H8 ,3J7 ,4K9 ,6L3 ,8G2 ,8H4 ,8H5
BLACK,041 ,191 ,3H8 ,750 ,751 ,8K2
NORWAY SPEC,BLACK,041 ,3H8 ,3J7 ,4K9 ,6L3 ,8G2 ,8H4 ,8H5
NORWAY SPEC OR DENMARK SPEC & N1 CATEGORY,BLACK,041 ,191 ,3H8 ,3J7 ,4K9 ,750 ,751,8K2
BLACK,041 ,3H8 ,3J7 ,4K9 ,4L6 ,6L3 ,8G2 ,8H3 ,8H4 ,8H5
BLACK,041 ,191 ,193 ,3J7 ,6P9 ,751 ,936
ELECTRIC REMOTE CONTROL,BLACK,041 ,3H8 ,3J7 ,4K9 ,4L6 ,6L3 ,8G2 ,8H3 ,8H4 ,8H5
BLACK,041 ,191 ,3J7 ,4K9 ,6P9 ,751 ,936
87917BMIRROR, OUTER REAR VIEW, RH
FRANCE SPEC
NORWAY SPEC OR W(HEATER MIRROR) OR SWEDEN SPEC & W(*SH) OR DENMARK SPEC & W(*SH)
NORWAY SPEC OR DENMARK SPEC & W(*SH) OR W(*SH)
87940MIRROR ASSY, OUTER REAR VIEW, LH
ELECTRIC REMOTE CONTROL,BLACK,041 ,3H8 ,3J7 ,4K9 ,4L6 ,6L3 ,8G2 ,8H3 ,8H4 ,8H5
BLACK,041 ,191 ,3H8 ,3J7 ,4K9 ,750 ,751 ,8K0
BLACK,041 ,191 ,193 ,6P9 ,751 ,936
ELECTRIC REMOTE CONTROL,BLACK,041 ,3H8 ,3J7 ,4K9 ,4L6 ,6L3 ,8G2 ,8H3 ,8H4 ,8H5
BLACK,041 ,191 ,3H8 ,3J7 ,4K9 ,750 ,751 ,8K2
FRANCE SPEC,BLACK,041 ,191 ,193 ,3J7 ,4K9 ,6P9 ,751 ,936
NORWAY SPEC OR W(MIRROR HEATER);W(FRONT SEAT HEATER)
ELECTRIC REMOTE CONTROL HEATER MIRROR,BLACK,041 ,3H8 ,3J7 ,4K9 ,6L3 ,751 ,8H4 ,8H5,8K2
ELECTRIC REMOTE CONTROL HEATER MIRROR,BLACK,041 ,042 ,191 ,199 ,3J7 ,6P9 ,751 ,936
W(FRONT SEAT HEATER) OR AUSTRALIA SPEC
ELECTRIC REMOTE CONTROL
BLACK,041 ,191 ,193 ,3H8 ,3J7 ,4K9 ,750 ,751 ,8K0
BLACK,041 ,191 ,193 ,6P9 ,751 ,936
W(FRONT SEAT HEATER) OR AUSTRALIA SPEC
W(HEATER MIRROR),BLACK,041 ,042 ,191 ,199 ,3J7 ,6P9 ,751 ,936
BLACK,041 ,191 ,3J7 ,4K9 ,6P9 ,751 ,936
BLACK,041 ,042 ,191 ,199 ,3J7 ,6P9 ,751 ,936
BLACK,041 ,3H8 ,3J7 ,4K9 ,4L6 ,6L3 ,8G2 ,8H3 ,8H4 ,8H5
BLACK,041 ,3H8 ,3J7 ,4K9 ,6L3 ,8G2 ,8H4 ,8H5
BLACK,041 ,3H8 ,3J7 ,4K9 ,4L6 ,6L3 ,8G2 ,8H3 ,8H4 ,8H5
BLACK,041 ,3H8 ,3J7 ,4K9 ,4L6 ,6L3 ,8G2 ,8H3 ,8H4 ,8H5
87945COVER, OUTER MIRROR, LH
ELECTRIC REMOTE CONTROL,BLACK,041 ,3H8 ,3J7 ,4K9 ,4L6 ,6L3 ,8G2 ,8H3 ,8H4 ,8H5
BLACK,041 ,191 ,3H8 ,3J7 ,4K9 ,750 ,751 ,8K0
W(FRONT SEAT HEATER),BLACK,041 ,3H8 ,3J7 ,4K9 ,6L3 ,8G2 ,8H4 ,8H5
W(HEATER MIRROR),BLACK,041 ,191 ,3H8 ,3J7 ,4K9 ,750 ,751 ,8K0
BLACK,041 ,3H8 ,3J7 ,4K9 ,4L6 ,6L3 ,8G2 ,8H3 ,8H4 ,8H5
BLACK,041 ,191 ,193 ,3H8 ,3J7 ,4K9 ,750 ,751 ,8K2
BLACK,041 ,3H8 ,3J7 ,4K9 ,6L3 ,8G2 ,8H4 ,8H5
BLACK,041 ,191 ,3J7 ,4K9 ,6P9 ,751 ,936
87947BMIRROR, OUTER REAR VIEW, LH
W(HEATER MIRROR) OR SWEDEN SPEC & W(*SH) OR NORWAY SPEC & W(*SH)
W(*SH) OR AUSTRALIA SPEC
9015960466
main90159-60466
9015980053
main90159-80053
9338118016
main93381-18016
12 parts on this diagram · 2 diagrams in section
