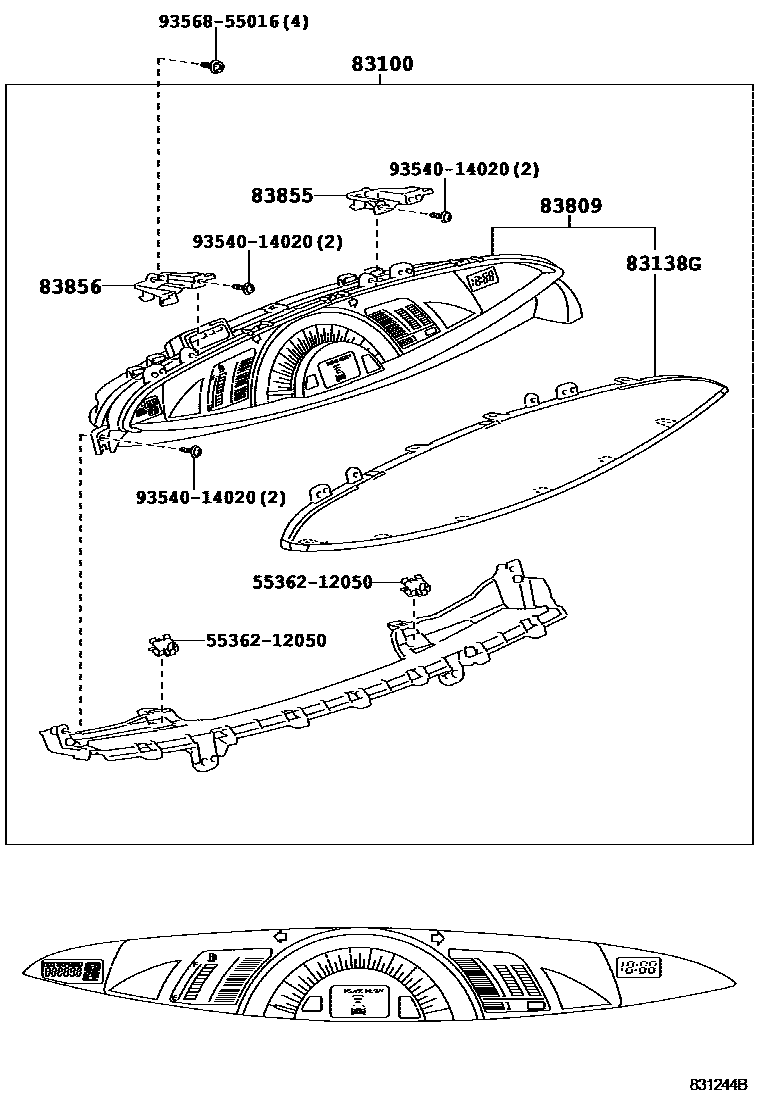

Toyota PREVIA — METER

83100METER ASSY, COMBINATION

main83800-28J40iAHR20201304-201409

main83800-28J41iAHR20201409-201605

83138GGLASS, COMBINATION METER

main83852-28F21iAHR20201304-201605

83809METER SUB-ASSY, COMBINATION

main83809-28500iAHR20201304-201409

main83809-28501iAHR20201409-201605

83855BRACKET, COMBINATION METER, NO.1

main83855-28B80iAHR20201304-201605

83856BRACKET, COMBINATION METER, NO.2

main83856-28B80iAHR20201304-201605

5536212050BRACKET, INSTRUMENT PANEL LOWER REGISTER MOUNTING

main55362-12050

9354014020

main93540-14020

9356855016

main93568-55016

8 parts on this diagram · 1 diagram in section
