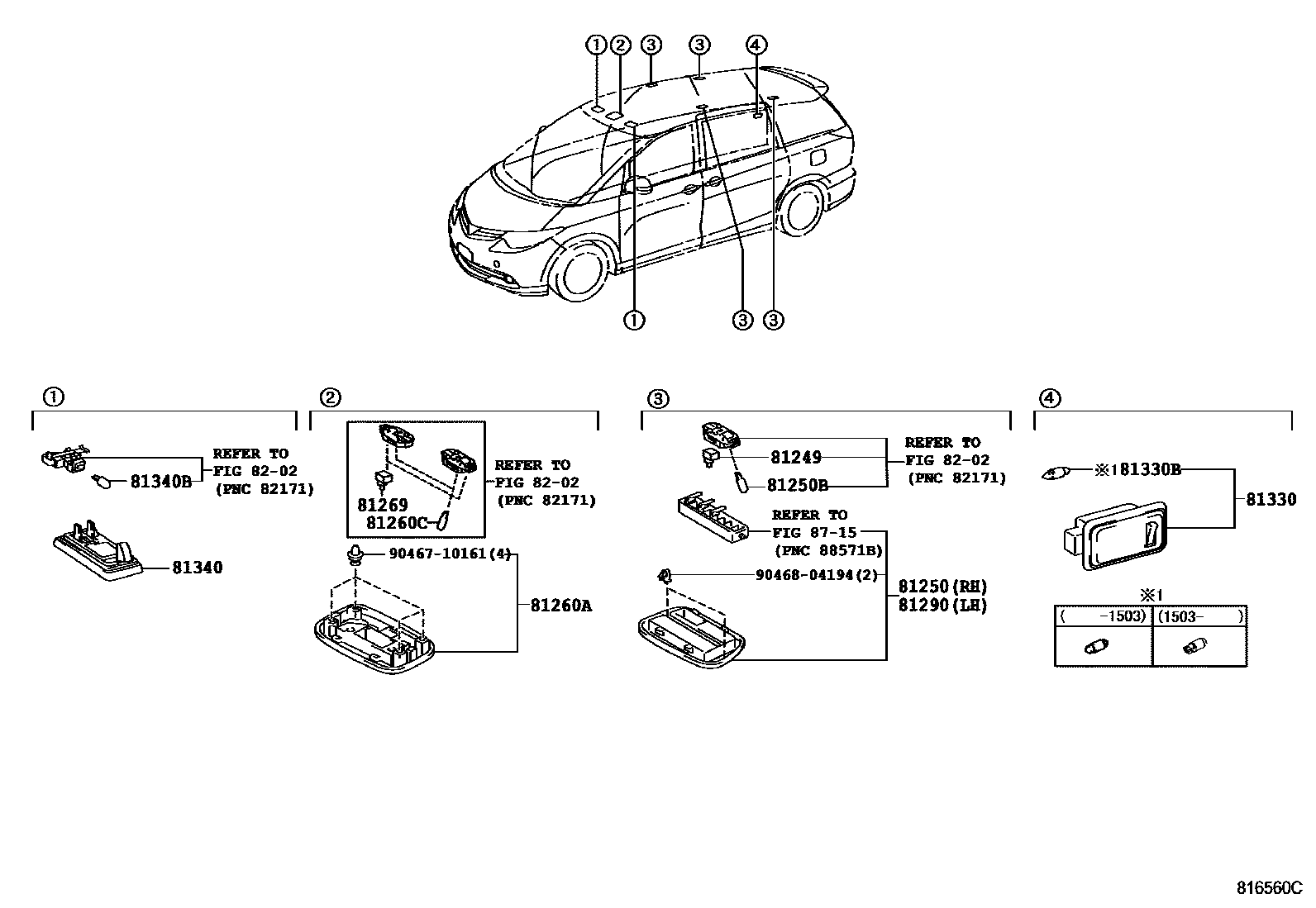

Toyota PREVIA — INTERIOR LAMP

81249SWITCH, ROOM LAMP

main84532-58010×4i201304

81250LAMP ASSY, ROOM, NO.2

main81250-28080-A0×2i201304-201409

SHELL,TRIM0#

main81360-28080-A0×2i201409-201605

SHELL,TRIM0#

81250BBULB, ROOM LAMP, NO.2

main99132-12050×4i201304

12V 5W

81260ALAMP ASSY, MAP

main81260-28020-A0i201304-201409

SHELL,TRIM0#

main81260-28021-A0i201409-201605

SHELL,TRIM0#

81260CBULB(FOR MAP LAMP)

main99132-12050×2i201304

12V 5W

81269SWITCH, MAP LAMP

main84532-58010×2i201304

81290LAMP ASSY, ROOM, NO.3

main81290-28030-A0×2i201304-201409

SHELL,TRIM0#

main81390-28080-A0×2i201409-201605

SHELL,TRIM0#

81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1

main81250-48010i201304-201502

main81330-58010i201503

81330BBULB, LUGGAGE COMPARTMENT LAMP

main99132-12050i201503

12V 5W

main99132-13050i201304-201503

12V 5W

81340LAMP ASSY, VANITY

main81340-30110×2i201304

81340BBULB (FOR VANITY LAMP)

main90981-11062×2i201304

12V 8W

8202WIRING & CLAMP

→ Go to FIG 82-02

8715HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

→ Go to FIG 87-15

9046710161

main90467-10161

9046804194

main90468-04194

15 parts on this diagram · 1 diagram in section

INTERIOR LAMP for Toyota PREVIA

This section contains 15 genuine Toyota parts for the INTERIOR LAMP system of the Toyota PREVIA. Key components include: SWITCH, ROOM LAMP, LAMP ASSY, ROOM, NO.2, BULB, ROOM LAMP, NO.2, LAMP ASSY, MAP, BULB(FOR MAP LAMP).
