Toyota PREVIA — INSIDE TRIM BOARD

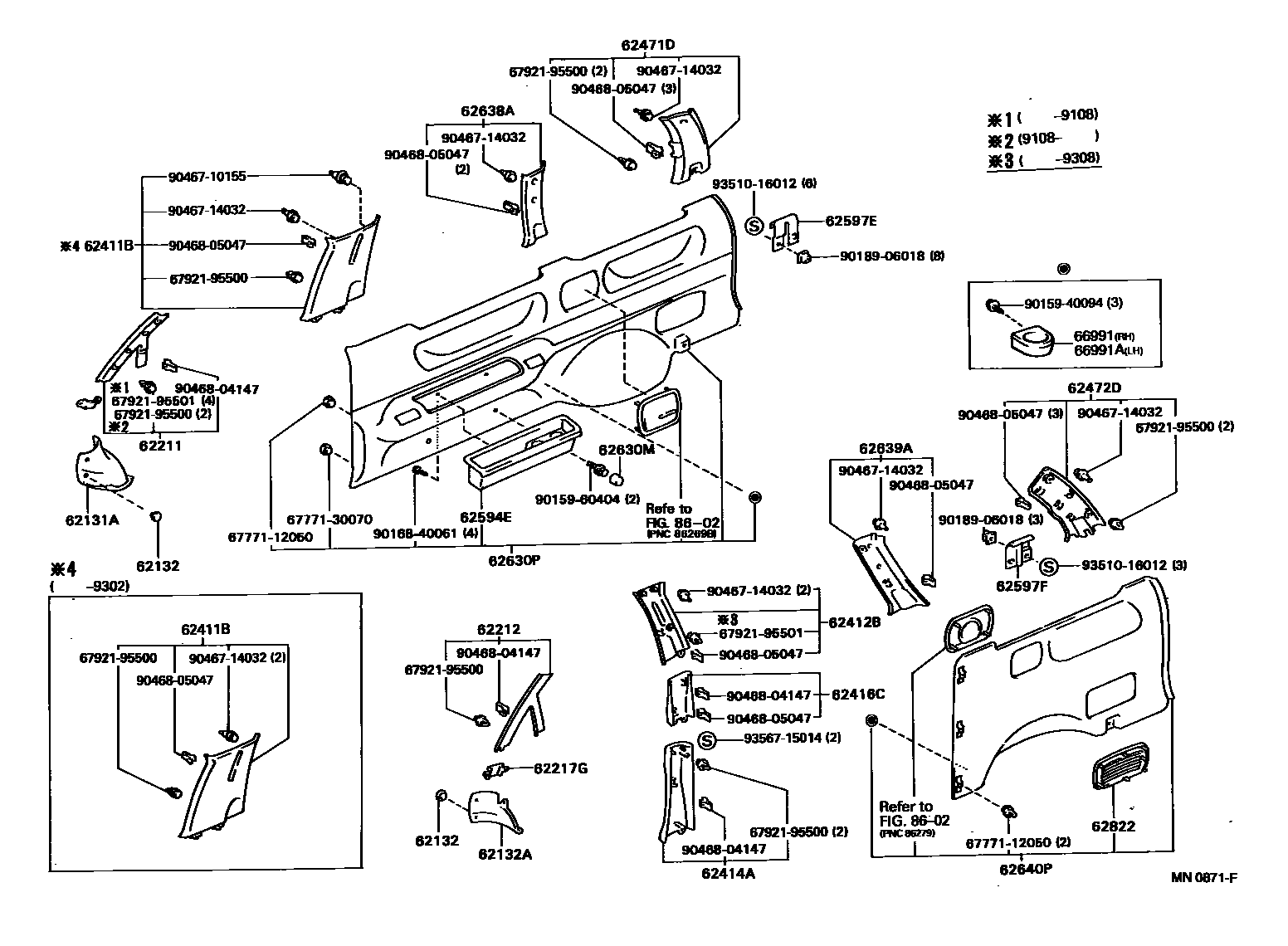

Parts diagram
62131ACARPET, COWL SIDE, RH
main62131-28010-03i199005-199101
LIGHT GRAY,TRIM1#
main62131-28010-05i199005-199101
LIGHT GREIGE,TRIM4#
main62131-28020-03i199005-199101
LIGHT GRAY,TRIM1#
main62131-28040-03i199101-199108
LIGHT GRAY,TRIM1#
main62131-28040-05i199101-199108
LIGHT GRAIGE,TRIM4#
main62131-28041-14i199108-199308
LIGHT GRAY,TRIM1#
main62131-28041-48i199108-199308
LIGHT GREIGE,TRIM4#
main62131-28041-B1i199308-199603
GRAY,TRIM1#
main62131-28041-B2i199608-199912
GRAY,TRIM1#
main62131-28041-E0i199308-199603
GREIGE,TRIM4#
main62131-28041-E1i199603-199608
GREIGE,TRIM4#
main62131-28050-03i199101-199106
LIGHT GRAY,TRIM1#
main62131-28051-15i199108-199308
LIGHT GRAY,TRIM1#
main62131-28051-B0i199308-199603
GRAY,TRIM1#
main62131-28051-B1i199603-199912
GRAY,TRIM1#
main62131-28052-B0i199408-199608
W(CRUISE CONTROL),BLUISH GRAY,TRIM1#
main62131-28052-B1i199608-199912
W(CRUISE CONTROL),BLUISH GRAY,TRIM1#
main62131-28090-B0i199308-199912
LIGHT GRAY,TRIM1#
main62131-28090-E0i199308-199801
LIGHT GREIGE,TRIM4#
main62131-28100-B0i199108-199912
LIGHT GRAY,TRIM1#
main62131-28100-E0i199108-199608
LIGHT GREIGE,TRIM4#
main62131-28110-B0i199108-199912
LIGHT GRAY,TRIM1#
main62131-28170-B0i199308-199603
W(CRUISE CONTROL),GRAY,TRIM1#
main62131-28170-B1i199603-199912
W(CRUISE CONTROL),GRAY,TRIM1#
main62131-28170-E0i199308-199603
W(CRUISE CONTROL),GREIGE,TRIM4#
main62131-28170-E1i199608-199801
W(CRUISE CONTROL),GREIGE,TRIM4#
main62131-95D00-03i199005-199108
LIGHT GRAY,TRIM1#
main62131-95D02-03i199005-199108
LIGHT GRAY,TRIM1#
main62131-95D02-05i199005-199108
LIGHT GREIGE,TRIM4#
62132CLIP(FOR COWL SIDE CARPET)
main90467-05077-03×8i199005-199106
LIGHT GRAY,TRIM1#
main90467-05077-05×8i199005-199308
LIGHT GREIGE,TRIM4#
main90467-05077-B1×8i199308-199912
GRAY,TRIM1#
main90467-05077-E2×8i199308-199608
GREIGE,TRIM4#
62132ACARPET, COWL SIDE, LH
main62132-28011-16i199308-199912
LIGHT GRAY,TRIM1#
main62132-28011-E0i199308-199801
LIGHT GREIGE,TRIM4#
main62132-28020-03i199102-199108
LIGHT GRAY,TRIM1#
main62132-28020-05i199102-199108
LIGHT GREIGE,TRIM4#
main62132-28021-14i199108-199912
LIGHT GRAY,TRIM1#
main62132-28021-48i199108-199608
LIGHT GREIGE,TRIM4#
main62132-28030-03i199102-199108
LIGHT GRAY,TRIM1#
main62132-28031-15i199108-199912
LIGHT GRAY,TRIM1#
main62132-28060-B0i199108-199912
LIGHT GRAY,TRIM1#
main62132-28060-E0i199108-199608
LIGHT GREIGE,TRIM4#
main62132-28070-B0i199108-199912
LIGHT GRAY,TRIM1#
main62132-95D00-03i199106-199108
LIGHT GRAY,TRIM1#
main62132-95D02-03i199102-199108
LIGHT GRAY,TRIM1#
main62132-95D02-05i199102-199108
LIGHT GREIGE,TRIM4#
62211GARNISH, FRONT PILLAR, RH
main62210-28010-B0i199108-199801
LIGHT GRAY,TRIM1#
main62210-28010-B1i199801-199912
LT. BLUISH GRAY,TRIM1#
main62210-28010-E0i199108-199608
LIGHT GREIGE,TRIM4#
main62210-95D00-03i199005-199108
LIGHT GRAY,TRIM1#
main62210-95D00-05i199005-199108
LIGHT GREIGE,TRIM4#
main62211-28060-B0i199108-199801
LIGHT GRAY,TRIM1#
main62211-28060-B1i199801-199912
CHINA SPEC,LT.GRAY,TRIM1#; LT.GRAY,TRIM1#
main62211-28060-E1i199705-199801
CHINA SPEC,LIGHT GREIGE,TRIM4#
main62211-95D01-03i199005-199108
LIGHT GRAY,TRIM1#
62212GARNISH, FRONT PILLAR, LH
main62212-28060-B0i199705-199801
CHINA SPEC,LIGHT GRAY,TRIM1#
main62212-28060-B1i199801-199912
CHINA SPEC,LT.GRAY,TRIM1#; LT.GRAY,TRIM1#
main62212-28060-E1i199705-199801
CHINA SPEC,LIGHT GREIGE,TRIM4#
main62212-95D01-03i199005-199108
LIGHT GRAY,TRIM1#
main62220-28010-B0i199108-199801
LIGHT GRAY,TRIM1#
main62220-28010-B1i199801-199912
LT. BLUISH GRAY,TRIM1#
main62220-28010-E0i199608-199801
LIGHT GREIGE,TRIM4#
main62220-95D00-03i199005-199108
LIGHT GRAY,TRIM1#
main62220-95D00-05i199005-199108
LIGHT GREIGE,TRIM4#
62217GCLIP, FRONT PILLAR GARNISH
main62217-95D00i199005-199108
62411BGARNISH, CENTER PILLAR, UPPER RH
main62411-28210-B0i199203-199801
LIGHT GRAY,TRIM1#
main62411-28210-B2i199801-199912
LT. BLUISH GRAY,TRIM1#
main62411-28210-E0i199608-199801
LIGHT GREIGE,TRIM4#
main62411-28220-B0i199203-199801
LIGHT GRAY,TRIM1#
main62411-28220-B1i199801-199912
LT.GRAY,TRIM1#
main62411-28240-B0i199308-199801
GRAY,TRIM1#
main62411-28240-B1i199801-199912
LT. BLUISH GRAY,TRIM1#
main62411-28240-E0i199608-199801
GREIGE,TRIM4#
main62411-28250-B0i199705-199801
CHINA SPEC,GRAY,TRIM1#
main62411-28250-B1i199801-199912
CHINA SPEC,LT.GRAY,TRIM1#; LT.GRAY,TRIM1#
main62411-28250-E0i199705-199801
CHINA SPEC,GREIGE,TRIM4#
main62411-95D00-03i199005-199308
LIGHT GRAY,TRIM1#
main62411-95D00-05i199005-199308
LIGHT GREIGE,TRIM4#
main62411-95D01-03i199005-199308
LIGHT GRAY,TRIM1#
main62411-95D02-03i199005-199203
LIGHT GRAY,TRIM1#
main62411-95D02-05i199005-199203
LIGHT GREIGE,TRIM4#
main62411-95D03-03i199005-199203
LIGHT GRAY,TRIM1#
62412BGARNISH, CENTER PILLAR, UPPER LH
main62412-28150-B0i199203-199801
LIGHT GRAY,TRIM1#
main62412-28150-B1i199801-199912
LT. BLUISH GRAY,TRIM1#
main62412-28150-E0i199203-199608
LIGHT GREIGE,TRIM4#
main62412-28160-B0i199203-199801
LIGHT GRAY,TRIM1#
main62412-28160-B1i199801-199912
CHINA SPEC,LT.GRAY,TRIM1#; LT.GRAY,TRIM1#
main62412-28160-E0i199705-199801
CHINA SPEC,LIGHT GREIGE,TRIM4#
main62412-28180-B0i199308-199801
GRAY,TRIM1#
main62412-28180-B2i199801-199912
LT. BLUISH GRAY,TRIM1#
main62412-28180-E0i199608-199801
GREIGE,TRIM4#
main62412-28190-B0i199308-199801
GRAY,TRIM1#
main62412-28190-B1i199801-199912
LT.GRAY,TRIM1#
main62412-95D00-03i199005-199203
LIGHT GRAY,TRIM1#
main62412-95D00-05i199005-199203
LIGHT GREIGE,TRIM4#
main62412-95D01-03i199005-199203
LIGHT GRAY,TRIM1#
main62412-95D02-03i199005-199308
LIGHT GRAY,TRIM1#
main62412-95D02-05i199005-199308
LIGHT GREIGE,TRIM4#
main62412-95D03-03i199005-199308
LIGHT GRAY,TRIM1#
62414AGARNISH, CENTER PILLAR, LOWER LH
main62414-28070-B0i199608-199912
BLUISH GRAY,TRIM1#
main62414-28070-E0i199608-199801
GREIGE,TRIM4#
main62414-95D00-03i199005-199308
GRAY,TRIM1#
main62414-95D00-05i199005-199308
GREIGE,TRIM4#
main62414-95D00-B0i199308-199608
GRAY,TRIM1#
main62414-95D00-E1i199308-199608
GREIGE,TRIM4#
62416CBOARD, CENTER PILLAR GARNISH, LH
main62416-28060-B0i199308-199408
GRAY,TRIM1#
main62416-28060-E0i199308-199408
GREIGE,TRIM4#
main62416-28070-B0i199608-199912
BLUISH GRAY,TRIM1#
main62416-28070-E0i199608-199801
GREIGE,TRIM4#
main62416-95D00-03i199005-199308
LIGHT GRAY,TRIM1#
main62416-95D00-05i199005-199308
LIGHT GREIGE,TRIM4#
main62416-95D00-B3i199408-199608
BLUISH GRAY,TRIM1#
main62416-95D00-E1i199408-199608
MI. GREIGE,TRIM4#
main62416-95D02-03i199005-199108
LIGHT GRAY,TRIM1#
main62416-95D02-B0i199108-199912
LIGHT GRAY,TRIM1#
62471DGARNISH, REAR PILLAR, UPPER RH
main62471-28130-B0i199605-199607
SPECIAL EDITION(SWITZERLAND),GRAY,TRIM1
main62471-95D00-03i199005-199308
LIGHT GRAY,TRIM1#
main62471-95D00-05i199005-199308
LIGHT GREIGE,TRIM4#
main62471-95D00-10i199308-199801
GRAY,TRIM1#
main62471-95D00-41i199608-199801
GREIGE,TRIM4#
main62471-95D00-B0i199801-199912
LT. BLUISH GRAY,TRIM1#
main62471-95D01-03i199005-199308
DENMARK SPEC & W/O(REAR SEAT),LIGHT GRAY,TRIM1#
main62471-95D01-05i199005-199308
DENMARK SPEC & W/O(REAR SEAT),LIGHT GREIGE,TRIM4#
main62471-95D01-10i199308-199801
W/O(REAR SEAT),GRAY,TRIM1#
main62471-95D01-41i199308-199608
W/O(REAR SEAT),GREIGE,TRIM4#
main62471-95D01-B0i199801-199912
DENMARK SPEC & W/O(REAR SEAT),LT. BLUISH GRAY,TRIM1#
main62471-95D02-03i199005-199308
LIGHT GRAY,TRIM1#
main62471-95D02-05i199005-199308
LIGHT GREIGE,TRIM4#
main62471-95D02-10i199308-199801
GRAY,TRIM1#
main62471-95D02-41i199308-199608
GREIGE,TRIM4#
main62471-95D02-B0i199801-199912
LT. BLUISH GRAY,TRIM1#
main62471-95D03-03i199005-199308
LIGHT GRAY,TRIM1#
main62471-95D03-B1i199801-199912
CHINA SPEC,LT.GRAY,TRIM1#; LT.GRAY,TRIM1#
main62471-95D03-B8i199308-199801
GRAY,TRIM1#
main62471-95D03-E0i199705-199801
CHINA SPEC,LIGHT GREIGE,TRIM4#
main62471-95D05-03i199005-199308
LIGHT GRAY,TRIM1#
main62471-95D05-B1i199801-199912
LT.GRAY,TRIM1#
main62471-95D05-B8i199308-199801
GRAY,TRIM1#
62472DGARNISH, REAR PILLAR, UPPER LH
main62472-28150-B0i199605-199607
SPECIAL EDITION(SWITZERLAND),GRAY,TRIM1
main62472-95D00-03i199005-199308
LIGHT GRAY,TRIM1#
main62472-95D00-05i199005-199308
LIGHT GREIGE,TRIM4#
main62472-95D00-10i199308-199801
GRAY,TRIM1#
main62472-95D00-41i199308-199608
GREIGE,TRIM4#
main62472-95D00-B0i199801-199912
LT. BLUISH GRAY,TRIM1#
main62472-95D01-03i199005-199308
DENMARK SPEC & W/O(REAR SEAT),LIGHT GRAY,TRIM1#
main62472-95D01-05i199005-199308
DENMARK SPEC & W/O(REAR SEAT),LIGHT GREIGE,TRIM4#
main62472-95D01-10i199308-199801
W/O(REAR SEAT),GRAY,TRIM1#
main62472-95D01-41i199308-199608
W/O(REAR SEAT),GREIGE,TRIM4#
main62472-95D01-B0i199801-199912
DENMARK SPEC & W/O(REAR SEAT),LT. BLUISH GRAY,TRIM1#
main62472-95D02-03i199005-199308
LIGHT GRAY,TRIM1#
main62472-95D02-05i199005-199308
LIGHT GREIGE,TRIM4#
main62472-95D02-10i199308-199801
GRAY,TRIM1#
main62472-95D02-41i199308-199608
GREIGE,TRIM4#
main62472-95D02-B0i199801-199912
LT. BLUISH GRAY,TRIM1#
main62472-95D03-03i199005-199308
LIGHT GRAY,TRIM1#
main62472-95D03-B1i199801-199912
LT.GRAY,TRIM1#
main62472-95D03-B8i199308-199801
GRAY,TRIM1#
main62472-95D05-03i199005-199308
LIGHT GRAY,TRIM1#
main62472-95D05-B1i199801-199912
CHINA SPEC,LT.GRAY,TRIM1#; LT.GRAY,TRIM1#
main62472-95D05-B8i199705-199801
CHINA SPEC,GRAY,TRIM1#
main62472-95D05-E0i199705-199801
CHINA SPEC,LIGHT GREIGE,TRIM4#
62594EPOCKET, QUARTER TRIM, RH
main62594-95D01-03i199005-199308
GRAY,TRIM1#
main62594-95D01-05i199005-199308
GREIGE,TRIM4#
main62594-95D01-B0i199308-199912
GRAY,TRIM1#
main62594-95D01-E2i199308-199608
GREIGE,TRIM4#
62597ECLAMP, QUARTER TRIM, RH
main62597-95D02×6i199005-199912
62597FCLAMP, QUARTER TRIM, LH
main62597-95D02×3i199005-199912
62630MCAP(FOR QUARTER TRIM, RH)
main90339-12006-03×2i199005-199308
GRAY,TRIM1#
main90339-12006-05×2i199005-199108
GREIGE,TRIM4#
main90339-12006-B0×2i199308-199912
GRAY,TRIM1#
main90339-12006-E2×2i199108-199608
GREIGE,TRIM4#
62630PPANEL ASSY, QUARTER TRIM, REAR RH
main62630-28140-03i199005-199108
W(TONNEAU COVER) & W/O(SPEAKER),LIGHT GRAY,TRIM1#
main62630-28140-05i199005-199108
W(TONNEAU COVER) & W/O(SPEAKER),LIGHT GREIGE,TRIM4#
main62630-28160-03i199005-199108
W(TONNEAU COVER) & W/O(SPEAKER),LIGHT GRAY,TRIM1#
main62630-28170-03i199005-199108
W(TONNEAU COVER),LIGHT GRAY,TRIM1#
main62630-28170-B1i199108-199308
W(TONNEAU COVER),LIGHT GRAY,TRIM1#
main62630-28171-B2i199308-199912
W(TONNEAU COVER),GRAY,TRIM1#
main62630-28180-03i199005-199308
W(TONNEAU COVER) & W/O(SPEAKER),LIGHT GRAY,TRIM1#
main62630-28180-05i199005-199308
W(TONNEAU COVER) & W/O(SPEAKER),LIGHT GREIGE,TRIM4#
main62630-28181-B0i199308-199408
W(TONNEAU COVER) & W/O(SPEAKER),GRAY,TRIM1#
main62630-28181-E1i199308-199408
W(TONNEAU COVER) & W/O(SPEAKER),GREIGE,TRIM4#
main62630-28182-B1i199408-199608
W(TONNEAU COVER) & W/O(SPEAKER),GRAY,TRIM1#
main62630-28182-E2i199408-199608
W(TONNEAU COVER) & W/O(SPEAKER),GREGE,TRIM4#
main62630-28190-03i199005-199308
W(TONNEAU COVER),LIGHT GRAY,TRIM1#
main62630-28190-05i199005-199308
W(TONNEAU COVER),LIGHT GREIGE,TRIM4#
main62630-28191-B0i199308-199408
W(TONNEAU COVER),GRAY,TRIM1#
main62630-28191-E1i199308-199408
W(TONNEAU COVER),GREIGE,TRIM4#
main62630-28192-B1i199408-199608
GRAY,TRIM1#; W(TONNEAU COVER),GRAY,TRIM1#
main62630-28192-E2i199408-199608
W(TONNEAU COVER),GREGE,TRIM4#
main62630-28193-B3i199608-199912
BLUISH GRAY,TRIM1#; W(TONNEAU COVER),BLUISH GRAY,TRIM1#
main62630-28220-03i199005-199108
W(TONNEAU COVER),LIGHT GRAY,TRIM1#
main62630-28220-05i199005-199108
W(TONNEAU COVER),LIGHT GREIGE,TRIM4#
main62630-28240-03i199005-199108
W(TONNEAU COVER),LIGHT GRAY,TRIM1#
main62630-28451-B2i199308-199408
GRAY,TRIM1#
main62630-28451-E4i199308-199408
GREIGE,TRIM4#
main62630-28452-B3i199408-199608
GRAY,TRIM1#
main62630-28452-E5i199408-199608
GREGE,TRIM4#
main62630-28453-B5i199608-199912
BLUISH GRAY,TRIM1#
main62630-28453-E7i199608-199801
MD.GREIGE,TRIM4#
main62630-28464-B3i199801-199912
UNLEADED FUEL,BLUISH GRAY,TRIM1#
main62630-28472-B3i199408-199608
W(SPEAKER),GRAY,TRIM1#
main62630-28473-B5i199608-199912
W(SPEAKER),BLUISH GRAY,TRIM1#
main62630-28570-B0i199308-199408
GRAY,TRIM1#; W(SPEAKER),GRAY,TRIM1#
main62630-28570-E0i199308-199408
GREIGE,TRIM4#; W(SPEAKER),GREIGE,TRIM4#
main62630-28571-B1i199408-199608
GRAY,TRIM1#; W(SPEAKER),GRAY,TRIM1#
main62630-28571-E1i199408-199608
W(SPEAKER),GREGE,TRIM4#
main62630-28572-B3i199608-199912
BLUISH GRAY,TRIM1#; W(SPEAKER),BLUISH GRAY,TRIM1#
main62630-28572-E3i199608-199801
W(SPEAKER),MD.GREIGE,TRIM4#
main62630-28580-B0i199308-199408
W/O(SPEAKER),GRAY,TRIM1#
main62630-28580-E0i199308-199408
W/O(SPEAKER),GREIGE,TRIM4#
main62630-28581-B2i199408-199608
W/O(SPEAKER),GRAY,TRIM1#
main62630-28581-E2i199408-199608
W/O(SPEAKER),GREGE,TRIM4#
main62630-28590-B0i199308-199408
W/O(REAR SEAT & SPEAKER),GRAY,TRIM1#
main62630-28590-E0i199308-199408
W/O(REAR SEAT & SPEAKER),GREIGE,TRIM4#
main62630-28591-B2i199408-199608
W/O(REAR SEAT),GRAY,TRIM1#
main62630-28591-E2i199408-199608
W/O(REAR SEAT),GREIGE,TRIM4#
main62630-28600-B2i199308-199408
W/O(REAR SEAT),GRAY,TRIM1#
main62630-28600-E2i199308-199408
W/O(REAR SEAT),GREIGE,TRIM4#
main62630-28610-B0i199705-199912
CHINA SPEC,GRAY,TRIM1#
main62630-28610-E0i199608-199801
CHINA SPEC,GREIGE,TRIM4#
main62630-2J040-B1i199108-199308
LIGHT GRAY,TRIM1#
main62630-2J040-E1i199108-199308
LIGHT GREIGE,TRIM4#
main62630-2J041-B3i199308-199408
GRAY,TRIM1#; UNLEADED SPEC,GRAY,TRIM1#
main62630-2J041-E2i199308-199408
GREIGE,TRIM4#
main62630-2J050-B1i199108-199308
LIGHT GRAY,TRIM1#
main62630-2J051-B2i199308-199408
GRAY,TRIM1#
main62630-2J052-B2i199408-199512
MD.GRAY,TRIM1#
main62630-2J053-B2i199512-199912
MD.GRAY,TRIM1#
main62630-2J060-B1i199108-199208
LIGHT GRAY,TRIM1#; W(TONNEAU COVER),LIGHT GRAY,TRIM1#
main62630-2J060-E1i199108-199208
LIGHT GREIGE,TRIM4#; W(TONNEAU COVER),LIGHT GREIGE,TRIM4#
main62630-2J061-B1i199208-199308
GRAY,TRIM1#
main62630-2J061-E1i199208-199308
GREIGE,TRIM4#
main62630-2J062-B2i199308-199408
GRAY,TRIM1#
main62630-2J062-E2i199308-199408
GREIGE,TRIM4#
main62630-2J063-B3i199408-199512
W(SPEAKER),GRAY,TRIM1#
main62630-2J063-E3i199408-199512
W(SPEAKER),GREGE,TRIM4#
main62630-2J064-B3i199512-199608
W(SPEAKER),GRAY,TRIM1#
main62630-2J064-E3i199512-199608
W(SPEAKER),GREGE,TRIM4#
main62630-2J065-B4i199608-199912
W(SPEAKER),BLUISH GRAY,TRIM1#
main62630-2J065-E4i199608-199801
W(SPEAKER),GREIGE,TRIM4#
main62630-2J081-B2i199408-199512
GRAY,TRIM1#; UNLEADED SPEC,GRAY,TRIM1#
main62630-2J081-E0i199408-199512
GREGE,TRIM4#
main62630-2J082-B2i199512-199608
GRAY,TRIM1#; UNLEADED GASOLINE SPEC,GRAY,TRIM1#
main62630-2J082-E0i199512-199608
GREGE,TRIM4#
main62630-2J083-B3i199608-199912
BLUISH GRAY,TRIM1#; UNLEADED GASOLINE SPEC,BLUISH GRAY,TRIM1#
main62630-2J083-E1i199608-199801
UNLEADED GASOLINE SPEC,GREIGE,TRIM4#
main62630-2J220-B1i199801-199912
W(LEATHER SEAT),MD.GRAY,TRIM1#
main62630-2J220-E0i199608-199801
W(LEATHER SEAT),MI. GREIGE,TRIM4#
main62630-2J530-B0i199508-199512
GRAY,TRIM1#
main62630-2J530-E0i199508-199512
GREGE,TRIM4#
main62630-2J531-B0i199512-199608
GRAY,TRIM1#
main62630-2J531-E0i199512-199608
GREGE,TRIM4#
main62630-2J532-B1i199608-199912
BLUISH GRAY,TRIM1#
main62630-2J532-E1i199608-199801
GREIGE,TRIM4#
main62630-2R210-B0i199608-199912
W/O(REAR SEAT),BLUISH GRAY,TRIM1#
main62630-95D01-03i199005-199108
LIGHT GRAY,TRIM1#
main62630-95D02-03i199005-199108
W/O(SPEAKER),LIGHT GRAY,TRIM1#
main62630-95D02-05i199005-199108
W/O(SPEAKER),LIGHT GREIGE,TRIM4#
main62630-95D03-03i199005-199108
LIGHT GRAY,TRIM1#
main62630-95D03-05i199005-199108
LIGHT GREIGE,TRIM4#
main62630-95D10-03i199005-199108
W/O(SPEAKER),LIGHT GRAY,TRIM1#
main62630-95D12-03i199005-199108
LIGHT GRAY,TRIM1#
main62630-95D12-B1i199108-199308
LIGHT GRAY,TRIM1#
main62630-95D14-03i199005-199308
W/O(SPEAKER),LIGHT GRAY,TRIM1#
main62630-95D14-05i199005-199308
W/O(SPEAKER),LIGHT GREIGE,TRIM4#
main62630-95D15-03i199005-199308
W/O(REAR SEAT & SPEAKER),LIGHT GRAY,TRIM1#
main62630-95D15-05i199005-199308
W/O(REAR SEAT & SPEAKER),LIGHT GREIGE,TRIM4#
main62630-95D16-03i199005-199308
LIGHT GRAY,TRIM1#
main62630-95D16-05i199005-199308
LIGHT GREIGE,TRIM4#
main62630-95D17-03i199005-199308
W/O(REAR SEAT),LIGHT GRAY,TRIM1#
main62630-95D17-05i199005-199308
W/O(REAR SEAT),LIGHT GREIGE,TRIM4#
62638AGARNISH, QUARTER PILLAR, RH
main62638-95D00-03i199005-199108
LIGHT GRAY,TRIM1#
main62638-95D00-05i199005-199108
LIGHT GREIGE,TRIM4#
main62638-95D01-03i199005-199308
LIGHT GRAY,TRIM1#; SWITZERLAND SPEC,LIGHT GRAY,TRIM1#
main62638-95D01-05i199005-199308
LIGHT GREIGE,TRIM4#; SWITZERLAND SPEC,LIGHT GREIGE,TRIM4#
main62638-95D01-10i199608-199801
W(SPLIT SEAT),GRAY,TRIM1#
main62638-95D01-41i199308-199608
GREIGE,TRIM4#
main62638-95D01-B0i199801-199912
LT. BLUISH GRAY,TRIM1#; W(SPLIT SEAT),LT. BLUISH GRAY,TRIM1#
main62638-95D02-03i199005-199308
W(CAPTAIN SEAT),LIGHT GRAY,TRIM1#
main62638-95D02-05i199005-199308
W(CAPTAIN SEAT),LIGHT GREIGE,TRIM4#
main62638-95D02-10i199308-199801
W(CAPTAIN SEAT),GRAY,TRIM1#
main62638-95D02-41i199608-199801
W(CAPTAIN SEAT),GREIGE,TRIM4#
main62638-95D02-B0i199801-199912
W(CAPTAIN SEAT),LT. BLUISH GRAY,TRIM1#
main62638-95D03-03i199108-199308
LIGHT GRAY,TRIM1#
main62638-95D03-B1i199801-199912
LT.GRAY,TRIM1#
main62638-95D03-B8i199308-199801
GRAY,TRIM1#
main62638-95D04-03i199005-199108
LIGHT GRAY,TRIM1#
main62638-95D04-B1i199801-199912
CHINA SPEC,LT.GRAY,TRIM1#
main62638-95D04-B8i199705-199801
CHINA SPEC,GRAY,TRIM1#
main62638-95D04-E0i199705-199801
LIGHT GREIGE,TRIM4#
main62638-95D05-03i199005-199308
LIGHT GRAY,TRIM1#
main62638-95D05-05i199005-199308
LIGHT GREIGE,TRIM4#
main62638-95D05-10i199308-199801
W(CAPTAIN SEAT),GRAY,TRIM1#
main62638-95D05-41i199308-199608
GREIGE,TRIM4#
main62638-95D05-B0i199801-199912
LT. BLUISH GRAY,TRIM1#
main62638-95D06-03i199005-199308
LIGHT GRAY,TRIM1#
main62638-95D06-B1i199801-199912
LT.GRAY,TRIM1#
main62638-95D06-B8i199308-199801
GRAY,TRIM1#
62639AGARNISH, QUARTER PILLAR, LH
main62639-95D00-03i199005-199308
LIGHT GRAY,TRIM1#
main62639-95D00-05i199005-199308
LIGHT GREIGE,TRIM4#
main62639-95D00-10i199308-199801
GRAY,TRIM1#
main62639-95D00-41i199608-199801
W(CAPTAIN SEAT),GREIGE,TRIM4#
main62639-95D00-B0i199801-199912
LT. BLUISH GRAY,TRIM1#
main62639-95D01-03i199005-199308
LIGHT GRAY,TRIM1#
main62639-95D01-B1i199801-199912
CHINA SPEC,LT.GRAY,TRIM1#; LT.GRAY,TRIM1#
main62639-95D01-B8i199705-199801
CHINA SPEC,GRAY,TRIM1#
main62639-95D01-E0i199705-199801
LIGHT GREIGE,TRIM4#
main62639-95D02-03i199005-199108
LIGHT GRAY,TRIM1#
main62639-95D02-05i199005-199108
LIGHT GREIGE,TRIM4#
main62639-95D03-03i199005-199308
LIGHT GRAY,TRIM1#
main62639-95D03-05i199005-199308
LIGHT GREIGE,TRIM4#
main62639-95D03-10i199308-199801
GRAY,TRIM1#
main62639-95D03-41i199308-199608
GREIGE,TRIM4#
main62639-95D03-B0i199801-199912
LT. BLUISH GRAY,TRIM1#
main62639-95D04-03i199005-199308
W(CAPTAIN SEAT),LIGHT GRAY,TRIM1#
main62639-95D04-05i199005-199308
W(CAPTAIN SEAT),LIGHT GREIGE,TRIM4#
main62639-95D04-10i199308-199801
LEADED SPEC & W(CAPTAIN SEAT),GRAY,TRIM1#; W(CAPTAIN SEAT),GRAY,TRIM1#
main62639-95D04-41i199308-199408
LEADED SPEC & W(CAPTAIN SEAT),GREIGE,TRIM4#
main62639-95D04-B0i199801-199912
LEADED SPEC & W(CAPTAIN SEAT),LT. BLUISH GRAY,TRIM1#; W(CAPTAIN SEAT),LT. BLUISH GRAY,TRIM1#
main62639-95D05-03i199005-199308
LIGHT GRAY,TRIM1#
main62639-95D05-B1i199801-199912
LT.GRAY,TRIM1#
main62639-95D05-B8i199308-199801
GRAY,TRIM1#
main62639-95D06-03i199005-199108
LIGHT GRAY,TRIM1#
62640PPANEL ASSY, QUARTER TRIM, REAR LH
main62640-28140-03i199005-199108
W(TONNEAU COVER) & W/O(SPEAKER),LIGHT GRAY,TRIM1#
main62640-28140-05i199005-199108
W(TONNEAU COVER) & W/O(SPEAKER),LIGHT GREIGE,TRIM4#
main62640-28150-03i199208-199308
W(TONNEAU COVER),LIGHT GRAY,TRIM1#
main62640-28150-05i199208-199308
W(TONNEAU COVER),LIGHT GREIGE,TRIM4#
main62640-28151-B0i199308-199408
GRAY,TRIM1#
main62640-28151-E2i199308-199408
GREIGE,TRIM4#
main62640-28152-B1i199408-199608
GRAY,TRIM1#
main62640-28152-E3i199408-199608
GREGE,TRIM4#
main62640-28153-B2i199608-199912
W(TONNEAU COVER),BLUISH GRAY,TRIM1#
main62640-28153-E4i199608-199801
W(TONNEAU COVER),MD.GREIGE,TRIM4#
main62640-28170-03i199005-199108
W(TONNEAU COVER & LUGGAGE ROOM LAMP),LIGHT GRAY,TRIM1#
main62640-28170-B1i199108-199308
W(TONNEAU COVER & LUGGAGE ROOM LUMP),LIGHT GRAY,TRIM1#
main62640-28180-03i199005-199108
W(TONNEAU COVER),LIGHT GRAY,TRIM1#
main62640-28180-B1i199108-199308
W(TONNEAU COVER),LIGHT GRAY,TRIM1#
main62640-28181-B1i199308-199512
W(TONNEAU COVER),GRAY,TRIM1#
main62640-28182-B1i199512-199912
W(TONNEAU COVER),MD.GRAY,TRIM1#
main62640-28190-03i199005-199308
W(TONNEAU COVER) & W/O(SPEAKER),LIGHT GRAY,TRIM1#
main62640-28190-05i199005-199308
W(TONNEAU COVER) & W/O(SPEAKER),LIGHT GREIGE,TRIM4#
main62640-28191-B0i199308-199408
W(TONNEAU COVER) & W/O(SPEAKER),GRAY,TRIM1#
main62640-28191-E1i199308-199408
W(TONNEAU COVER) & W/O(SPEAKER),GREIGE,TRIM4#
main62640-28192-B1i199408-199512
W(TONNEAU COVER) & W/O(SPEAKER),GRAY,TRIM1#
main62640-28192-E2i199408-199512
W(TONNEAU COVER) & W/O(SPEAKER),GREGE,TRIM4#
main62640-28193-B1i199512-199608
W(TONNEAU COVER) & W/O(SPEAKER),GRAY,TRIM1#
main62640-28193-E2i199512-199608
W(TONNEAU COVER) & W/O(SPEAKER),GREGE,TRIM4#
main62640-28200-03i199005-199308
W(TONNEAU COVER),LIGHT GRAY,TRIM1#
main62640-28200-05i199005-199308
W(TONNEAU COVER),LIGHT GREIGE,TRIM4#
main62640-28201-B0i199308-199408
W(TONNEAU COVER),GRAY,TRIM1#
main62640-28201-E1i199308-199408
W(TONNEAU COVER),GREIGE,TRIM4#
main62640-28202-B1i199408-199512
GRAY,TRIM1#; W(TONNEAU COVER),GRAY,TRIM1#
main62640-28202-E2i199408-199512
W(TONNEAU COVER),GREGE,TRIM4#
main62640-28203-B1i199512-199608
GRAY,TRIM1#; W(TONNEAU COVER),GRAY,TRIM1#
main62640-28203-E2i199512-199608
W(TONNEAU COVER),GREGE,TRIM4#
main62640-28204-B3i199608-199912
BLUISH GRAY,TRIM1#; W(TONNEAU COVER),BLUISH GRAY,TRIM1#
main62640-28240-03i199005-199108
W(TONNEAU COVER),LIGHT GRAY,TRIM1#
main62640-28330-B0i199308-199408
GRAY,TRIM1#; UNLEADED SPEC,GRAY,TRIM1#
main62640-28330-E0i199308-199408
GREIGE,TRIM4#
main62640-28340-B0i199308-199408
GRAY,TRIM1#
main62640-28340-E0i199308-199408
GREIGE,TRIM4#
main62640-28341-B1i199408-199512
GRAY,TRIM1#
main62640-28341-E1i199408-199512
GREGE,TRIM4#
main62640-28342-B1i199512-199608
GRAY,TRIM1#
main62640-28342-E1i199512-199608
GREGE,TRIM4#
main62640-28343-B3i199808-199912
CORFU PACKAGE (SWITZERLAND),BLUISH GRAY,TRIM11
main62640-28343-E3i199608-199801
GREIGE,TRIM4#
main62640-28350-B0i199308-199512
GRAY,TRIM1#
main62640-28351-B0i199705-199912
W(LEATHER SEAT),MD.GRAY,TRIM1#
main62640-28351-E0i199608-199801
W(LEATHER SEAT),GREIGE,TRIM4#
main62640-28360-B0i199308-199408
W/O(SPEAKER),GRAY,TRIM1#
main62640-28360-E0i199308-199408
W/O(SPEAKER),GREIGE,TRIM4#
main62640-28361-B2i199408-199512
W/O(SPEAKER),GRAY,TRIM1#
main62640-28361-E2i199408-199512
W/O(SPEAKER),GREIGE,TRIM4#
main62640-28362-B2i199512-199608
W/O(SPEAKER),GRAY,TRIM1#
main62640-28362-E2i199512-199608
W/O(SPEAKER),GREGE,TRIM4#
main62640-28370-B0i199308-199408
DENMARK SPEC & W/O(REAR SEAT & SPEAKER),GRAY,TRIM1#
main62640-28370-E0i199308-199408
DENMARK SPEC & W/O(REAR SEAT & SPEAKER),GREIGE,TRIM4#
main62640-28371-B2i199408-199512
DENMARK SPEC & W/O(REAR SEAT),GRAY,TRIM1#
main62640-28371-E2i199408-199512
DENMARK SPEC & W/O(REAR SEAT),GREIGE,TRIM4#
main62640-28372-B2i199512-199608
DENMARK SPEC & W/O(REAR SEAT),GRAY,TRIM1#
main62640-28372-E2i199512-199608
DENMARK SPEC & W/O(REAR SEAT),GREIGE,TRIM4#
main62640-28380-B2i199308-199408
DENMARK SPEC & W/O(REAR SEAT),GRAY,TRIM1#
main62640-28380-E2i199308-199408
DENMARK SPEC & W/O(REAR SEAT),GREIGE,TRIM4#
main62640-28390-B0i199308-199408
GRAY,TRIM1#
main62640-28391-B0i199408-199912
MD.GRAY,TRIM1#
main62640-28401-B4i199408-199608
GRAY,TRIM1#; UNLEADED SPEC,GRAY,TRIM1#
main62640-28401-E1i199408-199608
GREGE,TRIM4#
main62640-28402-B5i199608-199912
BLUISH GRAY,TRIM1#
main62640-28402-E2i199608-199801
MD.GREIGE,TRIM4#
main62640-2J050-B0i199608-199912
W/O(REAR SEAT),BLUISH GRAY,TRIM1#
main62640-95D01-03i199005-199108
LIGHT GRAY,TRIM1#
main62640-95D01-B1i199108-199308
LIGHT GRAY,TRIM1#
main62640-95D02-03i199005-199108
W/O(SPEAKER),LIGHT GRAY,TRIM1#
main62640-95D02-05i199005-199108
W/O(SPEAKER),LIGHT GREIGE,TRIM4#
main62640-95D03-03i199005-199108
LIGHT GRAY,TRIM1#
main62640-95D03-05i199108-199308
LIGHT GREIGE,TRIM4#
main62640-95D06-03i199005-199108
W(LUGGAGE ROOM LAMP),LIGHT GRAY,TRIM1#
main62640-95D06-B1i199108-199308
W(LUGGAGE ROOM LUMP),LIGHT GRAY,TRIM1#
main62640-95D07-03i199005-199108
W/O(REAR SEAT) & W(LUGGAGE ROOM LAMP),LIGHT GRAY,TRIM1#
main62640-95D07-B1i199108-199308
W/O(REAR SEAT) & W(LUGGAGE ROOM LAMP),LIGHT GRAY,TRIM1#
main62640-95D08-03i199005-199108
W(LUGGAGE ROOM LUMP) & W/O(SPEAKER),LIGHT GRAY,TRIM1#
main62640-95D08-B1i199108-199308
W(LUGGAGE ROOM LUMP) & W/O(SPEAKER),LIGHT GRAY,TRIM1#
main62640-95D10-03i199005-199308
W/O(SPEAKER),LIGHT GRAY,TRIM1#
main62640-95D10-05i199005-199308
W/O(SPEAKER),LIGHT GREIGE,TRIM4#
main62640-95D11-03i199005-199308
DENMARK SPEC & W/O(REAR SEAT & SPEAKER),LIGHT GRAY,TRIM1#
main62640-95D11-05i199005-199308
DENMARK SPEC & W/O(REAR SEAT & SPEAKER),LIGHT GREIGE,TRIM4#
main62640-95D12-03i199005-199308
LIGHT GRAY,TRIM1#
main62640-95D12-05i199005-199308
LIGHT GREIGE,TRIM4#
main62640-95D13-03i199005-199308
DENMARK SPEC & W/O(REAR SEAT),LIGHT GRAY,TRIM1#
main62640-95D13-05i199005-199308
DENMARK SPEC & W/O(REAR SEAT),LIGHT GREIGE,TRIM4#
62822GRILLE, ROOM VENTILATION, LH
main62822-95D00-03i199005-199308
LIGHT GRAY,TRIM1#
main62822-95D00-05i199005-199308
LIGHT GREIGE,TRIM4#
main62822-95D00-B0i199308-199912
GRAY,TRIM1#
main62822-95D00-E2i199608-199801
GREIGE,TRIM4#
66991HOLDER, QUARTER TRIM CUP, RH
main66991-28020-B0i199308-199408
GRAY,TRIM1#
main66991-28020-E0i199608-199801
GREIGE,TRIM4#
66991AHOLDER, QUARTER TRIM CUP, LH
main66991-28020-B0i199308-199408
GRAY,TRIM1#
main66991-28020-E0i199308-199408
GREIGE,TRIM4#
main66991-28030-E0i199608-199912
UNLEADED FUEL,GREIGE,TRIM4#
8602SPEAKER
→ Go to FIG 86-02
6777112050WEATHERSTRIP, BACK DOOR TRIM, RH
main67771-12050
6777130070WEATHERSTRIP, BACK DOOR TRIM, RH
main67771-30070
6792195500RETAINER, FRONT DOOR SCUFF PLATE
main67921-95500
6792195501RETAINER, FRONT DOOR SCUFF PLATE
main67921-95501
9015940094
main90159-40094
9015960404
main90159-60404
9016840061
main90168-40061
9018906018
main90189-06018
9046710155
main90467-10155
9046714032
main90467-14032
9046804147
main90468-04147
9046805047
main90468-05047
9351016012
main93510-16012
9356715014
main93567-15014

38 parts on this diagram · 2 diagrams in section

INSIDE TRIM BOARD for Toyota PREVIA

This section contains 42 genuine Toyota parts for the INSIDE TRIM BOARD system of the Toyota PREVIA. Key components include: CARPET, COWL SIDE, RH, CLIP(FOR COWL SIDE CARPET), CARPET, COWL SIDE, LH, GARNISH, FRONT PILLAR, RH, GARNISH, FRONT PILLAR, LH.
