Toyota PREVIA — HORN

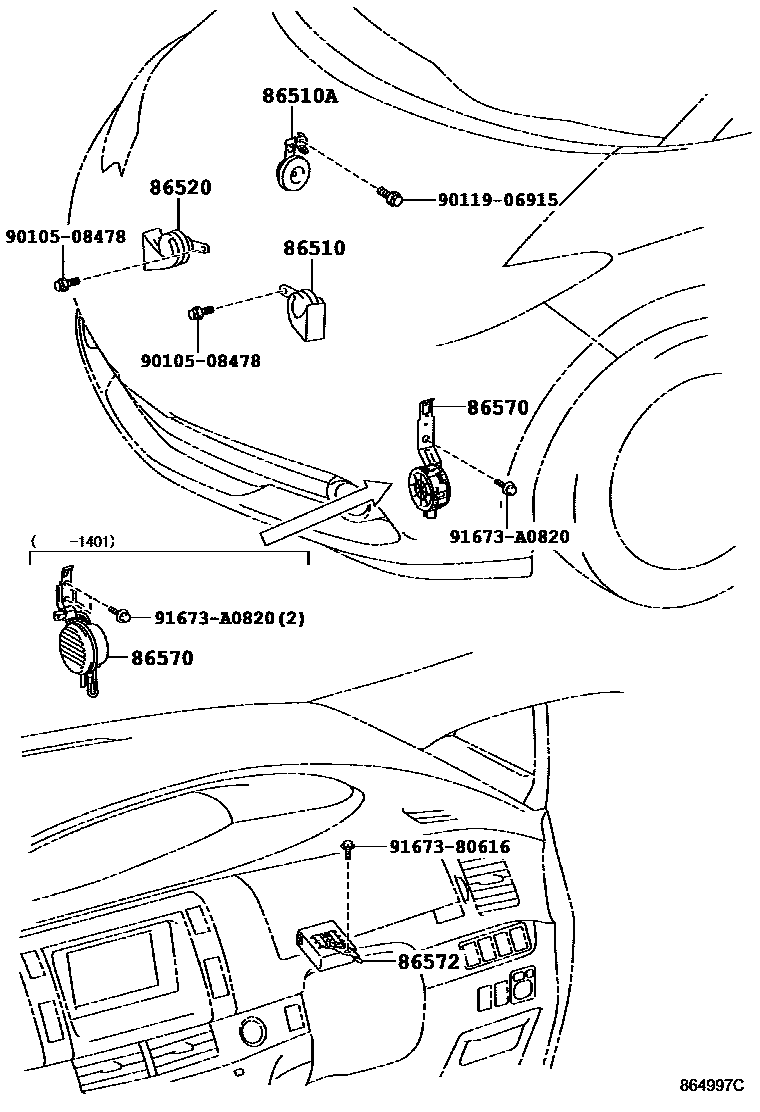

Parts diagram

86510HORN ASSY, HIGH PITCHED

main86510-30700i201304

86510AHORN ASSY, SECURITY

main86560-28010i201304

ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & ALARM)

86520HORN ASSY, LOW PITCHED

main86520-30610i201304

86570SPEAKER ASSY, VEHICLE APPROACHING

main86570-47020i201304-201401

main86570-47030i201401

86572CONTROLLER, VEHICLE APPROACHING SPEAKER

main86572-28020i201304-201401

main86572-28040i201401

9010508478

main90105-08478

9011906915

main90119-06915

9167380616

main91673-80616

91673A0820

main91673-A0820

9 parts on this diagram · 1 diagram in section

HORN for Toyota PREVIA

This section contains 9 genuine Toyota parts for the HORN system of the Toyota PREVIA. Key components include: HORN ASSY, HIGH PITCHED, HORN ASSY, SECURITY, HORN ASSY, LOW PITCHED, SPEAKER ASSY, VEHICLE APPROACHING, CONTROLLER, VEHICLE APPROACHING SPEAKER.
