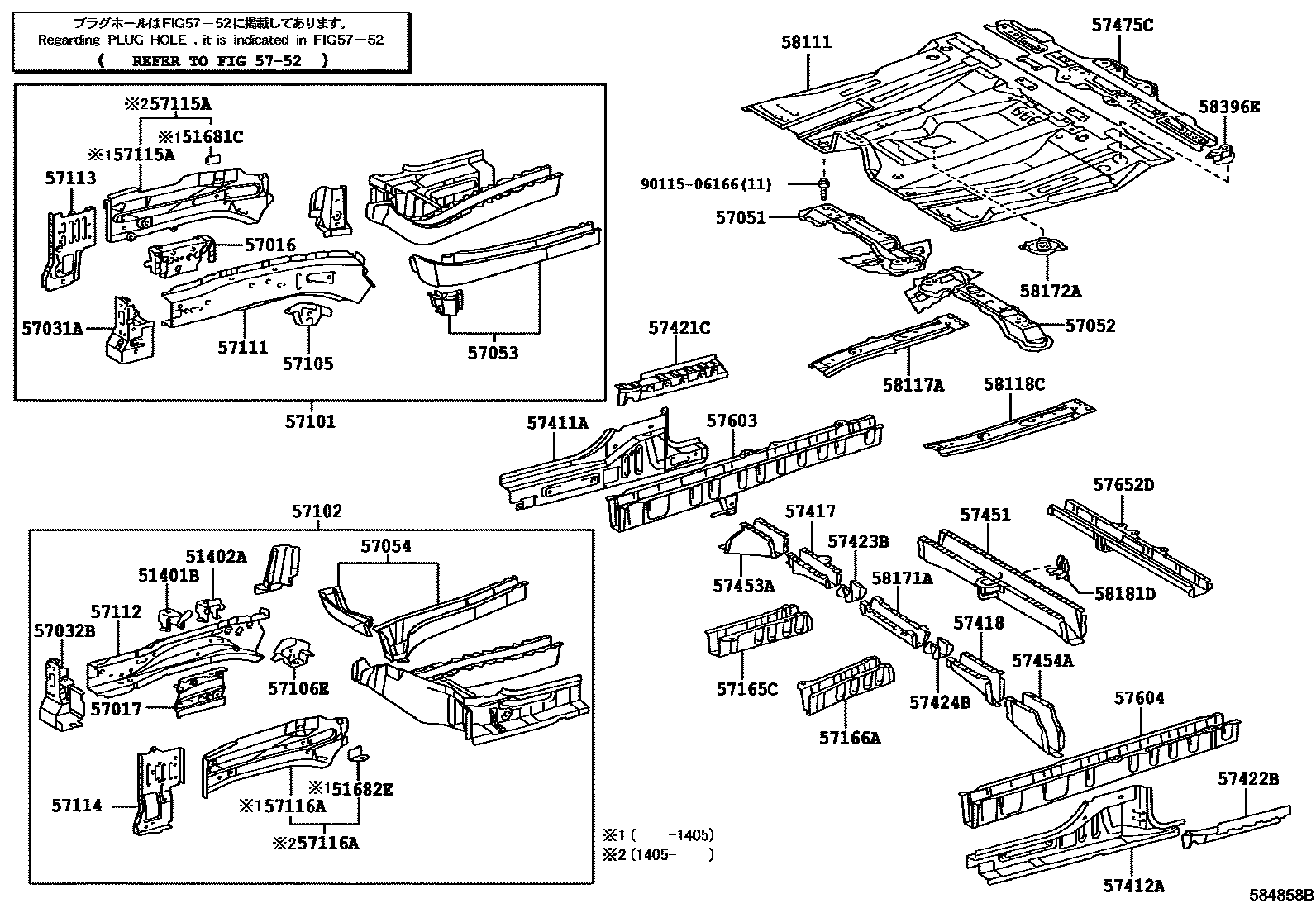

Toyota PREVIA — FRONT FLOOR PANEL & FRONT FLOOR MEMBER

51401BBRACKET SUB-ASSY, ENGINE FRONT MOUNTING

main51401-28070iAHR20201304

51402ABRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH

main51402-28060iAHR20201304

51681CPLATE, FRONT BRAKE FLEXIBLE HOSE SUPPORT, RH

main51681-12080iAHR20201304-201405

51682EPLATE, FRONT BRAKE FLEXIBLE HOSE SUPPORT, LH

main51682-12080iAHR20201304-201405

57016REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, RH

main57016-12110iAHR20201304

57017REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, LH

main57017-12070iAHR20201304

57031AREINFORCE SUB-ASSY, FRONT SIDE MEMBER, NO.2 RH

main57031-12010iAHR20201304

57032BREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, NO.2 LH

main57032-12010iAHR20201304

57051MEMBER SUB-ASSY, FRONT FLOOR CROSS, RH

main57051-28020iAHR20201304

57052MEMBER SUB-ASSY, FRONT FLOOR CROSS, LH

main57052-28010iAHR20201304

57053REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, RH

main57053-28020iAHR20201304

57054REINFORCE SUB-ASSY, FRONT SIDE MEMBER, NO.5

main57054-28010iAHR20201304

57101MEMBER SUB-ASSY, FRONT SIDE, RH

main57101-28882iAHR20201304

57102MEMBER SUB-ASSY, FRONT SIDE, LH

main57102-28762iAHR20201304

57105BRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, FRONT RH

main57105-12160iAHR20201304

57106EBRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, FRONT LH

main57106-12150iAHR20201304

57111MEMBER, FRONT SIDE, RH

main57111-12230iAHR20201304

57112MEMBER, FRONT SIDE, LH

main57112-28270iAHR20201304

57113EXTENSION, FRONT SIDE MEMBER, RH

main57113-12220iAHR20201304

57114EXTENSION, FRONT SIDE MEMBER, LH

main57114-12190iAHR20201304-201406

main57114-12191iAHR20201407

57115APLATE, FRONT SIDE MEMBER, OUTER RH

main57025-12010iAHR20201405

main57115-12090iAHR20201304-201405

57116APLATE, FRONT SIDE MEMBER, OUTER LH

main57026-12020iAHR20201405

main57116-12091iAHR20201401-201405

main57116-42030iAHR20201304-201312

57165CGUSSET, FLOOR MEMBER, RH

main57165-28041iAHR20201304

57166AGUSSET, FLOOR MEMBER, LH

main57166-28031iAHR20201304

57411AMEMBER, FLOOR SIDE, INNER RH

main57411-28031iAHR20201304

57412AMEMBER, FLOOR SIDE, INNER LH

main57412-28031iAHR20201304

57417REINFORCEMENT, FRONT FLOOR UNDER, RH

main57417-28040iAHR20201304

57418REINFORCEMENT, FRONT FLOOR UNDER, LH

main57418-28040iAHR20201304

57421CPLATE, FLOOR SIDE RAIL, RH

main57421-28130iAHR20201304

57422BPLATE, FLOOR SIDE RAIL, LH

main57422-28100iAHR20201304

57423BREINFORCEMENT, FRONT FLOOR UNDER, INNER RH

main57423-28050iAHR20201304

57424BREINFORCEMENT, FRONT FLOOR UNDER, INNER LH

main57424-28040iAHR20201304

57451MEMBER, FRONT FLOOR CROSS

main57408-28120iAHR20201304

57453AREINFORCEMENT, FRONT FLOOR CROSSMEMBER, RH

main57453-28050iAHR20201304

57454AREINFORCEMENT, FRONT FLOOR CROSSMEMBER, LH

main57454-28020iAHR20201304

57475CPLATE, FRONT FLOOR CROSSMEMBER

main57475-28070iAHR20201304

5752

57603MEMBER SUB-ASSY, REAR FLOOR SIDE, FRONT RH

main57603-28090iAHR20201304

57604MEMBER SUB-ASSY, REAR FLOOR SIDE, FRONT LH

main57604-28060iAHR20201304

57652DMEMBER, REAR FLOOR CROSS, NO.1

main57652-28150iAHR20201304

58111PAN, FRONT FLOOR

main58111-28F60iAHR20201304

sub58111-28F70

sub90950-01954

58117AREINFORCEMENT, FRONT FLOOR SIDE, RH

main58117-28040iAHR20201304

58118CREINFORCEMENT, FRONT FLOOR SIDE, LH

main58118-28060iAHR20201304

58171AREINFORCE, PARKING BRAKE BASE

main58171-28050iAHR20201304

58172APLATE, PARKING BRAKE MOUNTING

main58172-28060iAHR20201304

58181DRETAINER, PARKING BRAKE

main58181-28090iAHR20201304

58396EBRACKET, WIRE HARNESS CLAMP

main58396-28060iAHR20201304

9011506166

main90115-06166

48 parts on this diagram · 1 diagram in section
