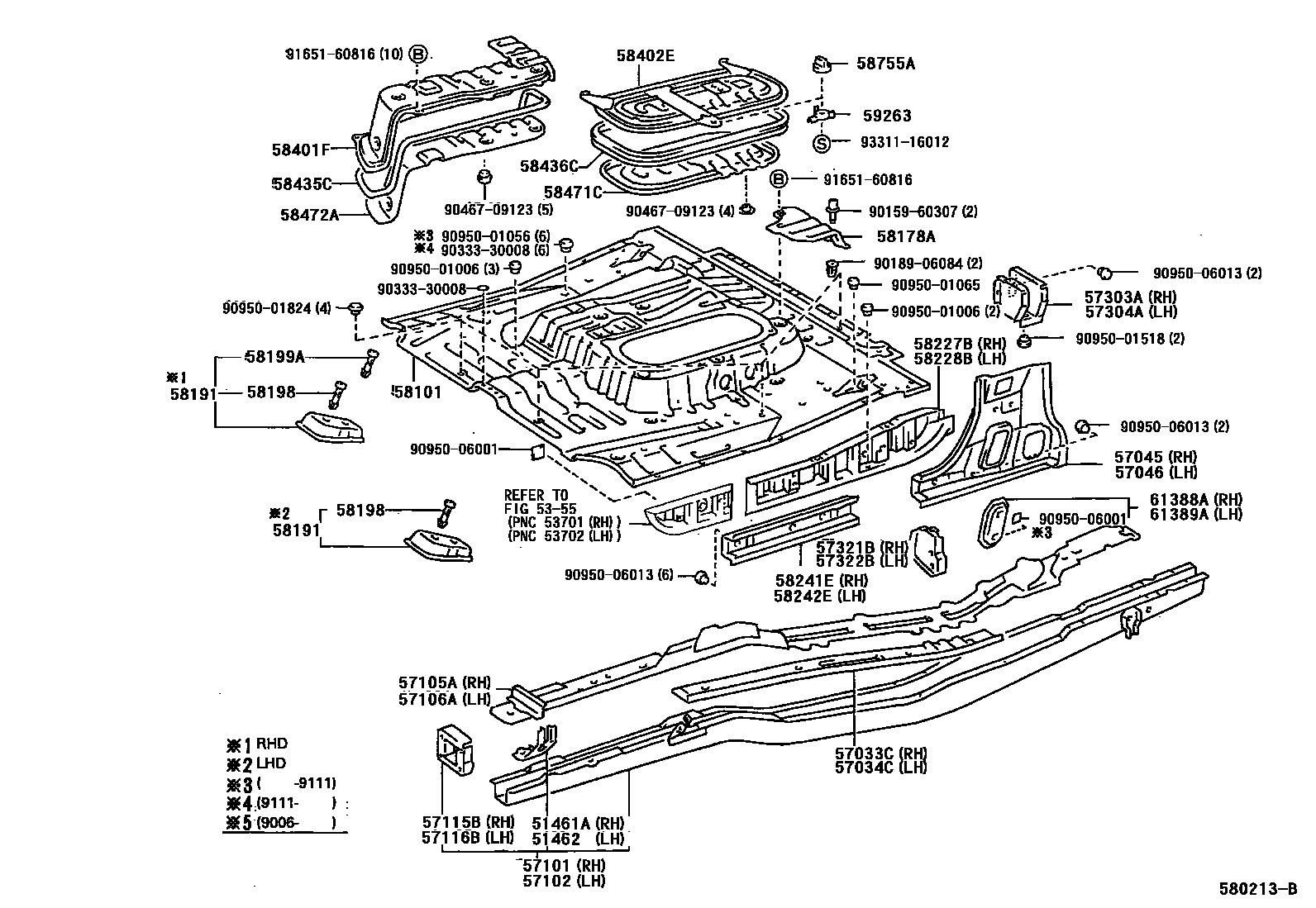

Toyota PREVIA — FRONT FLOOR PANEL & FRONT FLOOR MEMBER

51461ABRACKET, RADIATOR MOUNTING, LOWER RH

main51461-95D00iTCR1#,2#199005-199912

51462BRACKET, RADIATOR MOUNTING, LOWER LH

main51462-95D00iTCR1#,2#199005-199912

5355

57033CREINFORCE SUB-ASSY, FRONT SIDE MEMBER, NO.3 RH

main57033-95D00iTCR1#,2#199005-199912

sub57033-95D01

57034CREINFORCE SUB-ASSY, FRONT SIDE MEMBER, NO.3 LH

main57034-95D00iTCR1#,2#199005-199912

sub57034-95D01

57045PLATE SUB-ASSY, FLOOR SIDE RAIL, RH

main57045-28090iTCR1#,2#..LHD199604-199912

main57045-28100iTCR11..RHD..W199608-199912

W(DUAL *AIC)

main57045-28110iTCR11..RHD..W199604-199912

main57045-95D00iTCR1#,2#..LHD199005-199604

main57045-95D01iTCR1#,2#..ARL199005-199604

main57045-95D02iTCR11..RHD..W199005-199604

57046PLATE SUB-ASSY, FLOOR SIDE RAIL, LH

main57046-28040iTCR1#..LHD..W199608-199912

W(AIR CONDITIONER)

main57046-28130iTCR1#..RHD199604-199912

main57046-28140iTCR1#,2#..LHD..W199604-199912

main57046-95D00iTCR10..LHD..ATM199308-199604

main57046-95D01iTCR1#,2#..RHD199005-199604

main57046-95D02iTCR1#,2#..LHD..W199005-199604

57101MEMBER SUB-ASSY, FRONT SIDE, RH

main57101-28150iTCR1#,2#199108-199308

sub57101-28161

main57101-28151iTCR1#,2#199408-199912

sub57101-28480

main57101-28490iTCR1#,2#..LHD199402-199408

main57101-28500iTCR1#..RHD199402-199408

main57101-95D17iTCR1#,2#199005-199108

sub52021-28110

sub57105-28030

sub91651-40820

57102MEMBER SUB-ASSY, FRONT SIDE, LH

main57102-28120iTCR1#,2#199108-199308

sub57102-28320

main57102-28121iTCR1#,2#199408-199912

sub57102-28310

main57102-28330iTCR1#,2#..LHD199402-199408

main57102-28340iTCR1#..RHD199402-199408

main57102-95D13iTCR1#,2#199005-199108

sub52022-28030

sub91651-40820

57105APLATE SUB-ASSY, FRONT SIDE MEMBER, RH

main57105-28040iTCR1#,21..RHD199108-199912

main57105-28050iTCR1#,2#..LHD199108-199912

sub57105-28030

main57105-95D00iTCR1#,2#..LHD199005-199108

sub57105-28080

main57105-95D02iTCR1#,2#..RHD199005-199108

sub57105-28070

57106APLATE SUB-ASSY, FRONT SIDE MEMBER, LH

main57106-28040iTCR1#,21..RHD199108-199912

main57106-28050iTCR1#,2#..LHD199108-199912

sub57106-28030

main57106-95D00iTCR1#,2#..LHD199005-199108

sub57106-28080

main57106-95D02iTCR1#,2#..RHD199005-199108

sub57106-28070

57115BPLATE, FRONT SIDE MEMBER, NO.1 RH

main57115-28040iTCR1#,2#199108-199308

main57115-28041iTCR1#,2#199308-199912

main57115-95D00iTCR1#,2#199005-199108

57116BPLATE, FRONT SIDE MEMBER, NO.1 LH

main57115-28040iTCR1#,2#199108-199308

main57115-28041iTCR1#,2#199308-199912

main57115-95D00iTCR1#,2#199005-199108

57303AOUTRIGGER SUB-ASSY, NO.2 RH

main57303-28020iTCR1#,2#199809-199912

main57303-95D00iTCR1#,2#199005-199809

sub91651-40816

57304AOUTRIGGER SUB-ASSY, NO.2 LH

main57304-28010iTCR1#,2#199809-199912

main57304-95D00iTCR1#,2#199005-199809

sub91651-40816

57321BOUTRIGGER, NO.5, RH

main57321-95D00iTCR1#,2#199005-199912

57322BOUTRIGGER, NO.5, LH

main57322-95D00iTCR1#,2#199005-199912

58101PAN SUB-ASSY, FRONT FLOOR

main58099-28270iTCR1#..LHD..ATM199608-199912

W(COOL(&HOT)BOX)

main58099-28280iTCR1#..LHD..MTM199608-199912

W(COOL(&HOT)BOX)

main58099-28290iTCR1#..RHD..MTM199608-199912

sub90333-20001

sub90333-40001

main58099-28300iTCR1#..RHD..ATM199608-199912

sub90333-20001

sub90333-40001

main58099-28310iTCR1#,2#..LHD..MTM199608-199912

sub90333-40001

main58099-28320iTCR1#..LHD..ATM199608-199912

sub90333-40001

main58099-28350iTCR11..RHD..MTM199608-199912

W(COOL(&HOT)BOX)

main58099-28360iTCR11..RHD..ATM..W199608-199912

W(COOL(&HOT)BOX)

main58101-28450iTCR11..LHD..ATM199108-199308

sub90333-40001

main58101-28460iTCR1#,2#..LHD..MTM199108-199308

sub90333-40001

main58101-28500iTCR1#..LHD..ATM199108-199508

W(COOL(&HOT)BOX)

main58101-28501iTCR1#..LHD..ATM199508-199608

W(COOL(&HOT)BOX)

main58101-28510iTCR1#..LHD..MTM199108-199408

W(COOL(&HOT)BOX)

main58101-28511iTCR1#..LHD..MTM199508-199608

W(COOL(&HOT)BOX)

main58101-2J160iTCR1#..LHD..ATM199308-199508

sub90333-40001

main58101-2J161iTCR1#..LHD..ATM199508-199608

sub90333-40001

main58101-2J170iTCR1#,2#..LHD..MTM199308-199508

sub90333-40001

main58101-2J171iTCR1#,2#..LHD..MTM199508-199608

sub90333-40001

main58101-2J210iTCR21..ARL;TCR11..RHD..ATM..W199110-199508

W(FRONT CONSOIE BOX)

main58101-2J211iTCR1#..ATM..ARL199508-199608

W(FRONT CONSOIE BOX)

sub90333-40001

main58101-2J220iTCR1#..MTM..ARL199110-199508

W(FRONT CONSOIE BOX)

main58101-2J221iTCR11..RHD..MTM199508-199608

W(FRONT CONSOIE BOX)

sub90333-40001

main58101-2J270iTCR11..RHD..MTM199308-199508

W(COOL(&HOT)BOX)

main58101-2J271iTCR11..RHD..MTM199508-199608

W(COOL(&HOT)BOX)

main58101-2J280iTCR11..RHD..ATM..W199308-199508

W(COOL(&HOT)BOX)

main58101-2J281iTCR11..RHD..ATM..W199508-199608

W(COOL(&HOT)BOX)

main58101-95D07iTCR1#,2#..LHD..MTM199005-199108

sub90950-01269

main58101-95D08iTCR1#,2#..RHD..MTM199005-199108

sub90333-20001

sub90333-40001

main58101-95D09iTCR1#..LHD..MTM199005-199108

W(COOL(&HOT)BOX)

sub58101-2J240

main58101-95D10iTCR11..RHD..MTM..W199005-199108

W(COOL(&HOT)BOX)

main58101-95D11iTCR11..LHD..ATM199005-199108

sub90950-01269

main58101-95D12iTCR1#,2#..RHD..ATM199005-199108

sub90333-20001

sub90333-40001

main58101-95D13iTCR11..LHD..ATM199005-199108

W(COOL(&HOT)BOX)

sub58101-2J230

main58101-95D14iTCR21..ARL;TCR11..RHD..ATM..W199110-199308

W(LARGE COOL & HOT BOX)

58178AEXTENSION, FRONT FLOOR PANEL, LH

main58178-95D00iTCR1#,2#..RHD199005-199912

main58178-95D01iTCR1#,2#..LHD199005-199912

58191FOOTREST, FRONT FLOOR

main58191-95D01iTCR11..RHD..W;TCR11..MTM..ARL199005-199308

main58192-95D00iTCR1#..LHD..ATM199005-199912

58198CLIP, FOOTREST

main58198-95D00iTCR11..RHD199308-199912

main58198-95D01×2iTCR1#..LHD..ATM199005-199912

58199ACLIP, FOOTREST, NO.2

main58199-95D00iTCR11..RHD..W;TCR11..MTM..ARL199005-199308

58227BPLATE, FRONT FLOOR PANEL SIDE, RH

main58227-95D00iTCR1#,2#199005-199912

58228BPLATE, FRONT FLOOR PANEL SIDE, LH

main58228-95D02iTCR1#,2#199005-199912

58241EPANEL, FLOOR SIDE, FRONT RH

main58241-95D00iTCR1#,2#199005-199912

58242EPANEL, FLOOR SIDE, FRONT LH

main58242-95D00iTCR1#,2#199005-199912

58401FCOVER SUB-ASSY, ENGINE SERVICE HOLE, RH

main58401-95D00iTCR1#,2#..LHD199005-199912

main58401-95D01iTCR1#,2#..RHD199005-199912

58402ECOVER SUB-ASSY, ENGINE SERVICE HOLE, LH

main58402-95D00iTCR1#,2#..LHD199005-199912

main58402-95D01iTCR1#,2#..RHD199005-199912

58435CPACKING, ENGINE SERVICE HOLE COVER, RH

main58435-28030iTCR1#,2#199108-199112

main58435-95D00iTCR1#,2#199005-199108

main58444-28020iTCR1#,2#199112-199912

sub58444-28010

58436CPACKING, ENGINE SERVICE HOLE COVER, LH

main58436-95D00iTCR1#,2#199005-199912

58471CSILENCER, ENGINE MAIN COVER

main58471-95D02iTCR1#,2#199005-199912

58472ASILENCER, ENGINE SUB COVER

main58472-95D00iTCR1#,2#199005-199912

58755AHANDLE, ENGINE SERVICE COVER CATCH

main58755-95D00iTCR1#,2#199005-199912

59263HOOK, ENGINE COVER LOCK

main59263-95D00iTCR1#,2#199005-199912

61388APLATE, CENTER BODY PILLAR END, RH

main61305-28010iTCR1#,2#199006-199912

main61388-95D00iTCR1#,2#199005-199006

61389APLATE, CENTER BODY PILLAR END, LH

main61306-28010iTCR1#,2#199006-199912

main61389-95D00iTCR1#,2#199005-199006

9015960307

main90159-60307

9018906084

main90189-06084

9033330008

main90333-30008

9046709123

main90467-09123

9095001006

main90950-01006

9095001056

main90950-01056

9095001065

main90950-01065

9095001518

main90950-01518

9095001824

main90950-01824

9095006001

main90950-06001

9095006013

main90950-06013

9165160816

main91651-60816

9331116012

main93311-16012

49 parts on this diagram · 1 diagram in section
