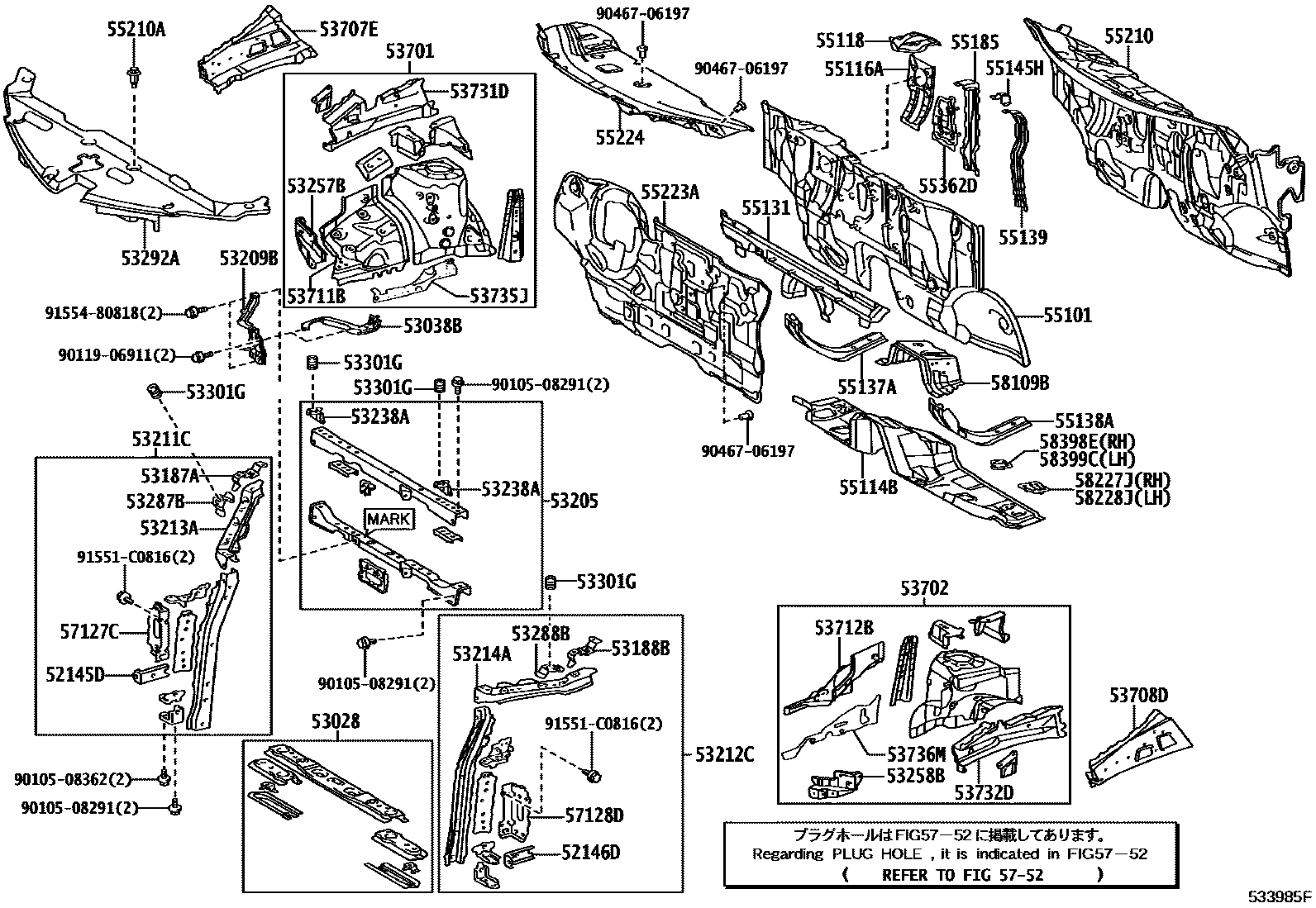

Toyota PREVIA — FRONT FENDER APRON & DASH PANEL

52145DBRACKET, FRONT BUMPER SIDE MOUNTING, RH

main52145-28100iAHR20201304-201605

52146DBRACKET, FRONT BUMPER SIDE MOUNTING, LH

main52145-28120iAHR20201304-201605

53028SUPPORT SUB-ASSY, RADIATOR, LOWER

main53028-28050iAHR20201304-201605

53038BSEAL SUB-ASSY, RADIATOR, LH

main53038-28010iAHR20201304

53187ASTAY, RADIATOR SUPPORT, RH

main53187-28030iAHR20201304-201605

53188BSTAY, RADIATOR SUPPORT, LH

main53188-28030iAHR20201304-201605

53205SUPPORT SUB-ASSY, RADIATOR, UPPER

main53205-28170iAHR20201304-201605

NO MARK

main53205-28210iAHR20201604-201605

MARK=94

53209BBRACE SUB-ASSY, HOOD LOCK SUPPORT

main53209-28080iAHR20201304

53211CSUPPORT, RADIATOR, RH

main53202-28140iAHR20201304-201605

53212CSUPPORT, RADIATOR, LH

main53203-28140iAHR20201304-201605

53213ASUPPORT, RADIATOR, UPPER RH

main53213-28050iAHR20201304-201605

53214ASUPPORT, RADIATOR, UPPER LH

main53214-28040iAHR20201304-201605

53238ABRACKET, HOOD BUMPER MOUNTING

main53238-28010iAHR20201304-201605

RH

main53239-28010iAHR20201304-201605

LH

53257BBRACKET, RADIATOR SUPPORT TO FRONT FENDER

main53257-28030iAHR20201304

53258BBRACKET, RADIATOR SUPPORT TO FRONT FENDER, LH

main53258-28020iAHR20201304

53287BEXTENSION, RADIATOR SUPPORT, RH

main53287-28010iAHR20201304-201605

53288BEXTENSION, RADIATOR SUPPORT, LH

main53288-28010iAHR20201304-201605

53292ASEAL, RADIATOR SUPPORT, UPPER

main53292-28071iAHR20201304

53301GCUSHION, HOOD BUMPER

main90541-15024iAHR20201304-201605

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-28850iAHR20201304

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-28750iAHR20201304

53707EAPRON SUB-ASSY, FENDER SIDE, RH

main53707-28100iAHR20201304

53708DAPRON SUB-ASSY, FENDER SIDE, LH

main53708-28090iAHR20201304

53711BAPRON, FRONT FENDER, FRONT RH

main53711-28100iAHR20201304

53712BAPRON, FRONT FENDER, FRONT LH

main53712-28080iAHR20201304

53731DMEMBER, FRONT APRON TO COWL SIDE, UPPER RH

main53731-28050iAHR20201304

53732DMEMBER, FRONT APRON TO COWL SIDE, UPPER LH

main53732-28040iAHR20201304

53735JPATCH, FRONT FENDER APRON, NO.5

main53735-28020iAHR20201304-201605

53736MPATCH, FRONT FENDER APRON, NO.6

main53736-28030iAHR20201304-201605

55101PANEL SUB-ASSY, DASH

main55111-2J500iAHR20201304

55114BPANEL, DASH, LOWER

main55114-28180iAHR20201304

55116APLATE, BRAKE PEDAL SUPPORT MOUNTING

main55116-28040iAHR20201304

55118EXTENSION, DASH PANEL, RH

main55118-28020iAHR20201304

55131REINFORCEMENT, DASH PANEL

main55103-28010iAHR20201304

55137ABRACE, DASH TO FRAME, RH

main55108-28080iAHR20201304

55138ABRACE, DASH TO FRAME, LH

main55109-28010iAHR20201304

55139REINFORCEMENT, DASH TO FRAME BRACE

main55139-28040iAHR20201304

55145HBASE, INSTRUMENT PANEL REINFORCEMENT MOUNTING

main55145-28010iAHR20201304

55185BRACE, DASH PANEL TO COWL

main55185-28130iAHR20201304

55210INSULATOR ASSY, DASH PANEL

main55210-28210iAHR20201304

55210ACLIP

main55346-47010iAHR20201304-201605

55223AINSULATOR, DASH PANEL, OUTER

main55223-28091iAHR20201304

55224INSULATOR, DASH PANEL, OUTER LH

main55224-28010iAHR20201304

55362DBRACKET, PARKING BRAKE MOUNTING

main55362-28030iAHR20201304

57127CREINFORCEMENT, FRONT SIDE MEMBER, REAR RH

main57127-28110iAHR20201304-201605

57128DREINFORCEMENT, FRONT SIDE MEMBER, REAR LH

main57128-28080iAHR20201304-201605

5752HOLE PLUG

→ Go to FIG 57-52

58109BBRACKET SUB-ASSY, INSTRUMENT PANEL BRACE MOUNTING

main58109-28020iAHR20201304

58227JPLATE, FLOOR PANEL SIDE, RH

main58227-28070iAHR20201304

58228JPLATE, FLOOR PANEL SIDE, LH

main58228-28040iAHR20201304

58398ECOVER, FLOOR UNDER, NO.1

main58398-28070iAHR20201304

58399CCOVER, FLOOR UNDER, NO.2

main58399-28010iAHR20201304

9010508291

main90105-08291

9010508362

main90105-08362

9011906911

main90119-06911

9046706197

main90467-06197

91551C0816

main91551-C0816

9155480818

main91554-80818

58 parts on this diagram · 1 diagram in section
