Toyota PREVIA — CRANKSHAFT & PISTON

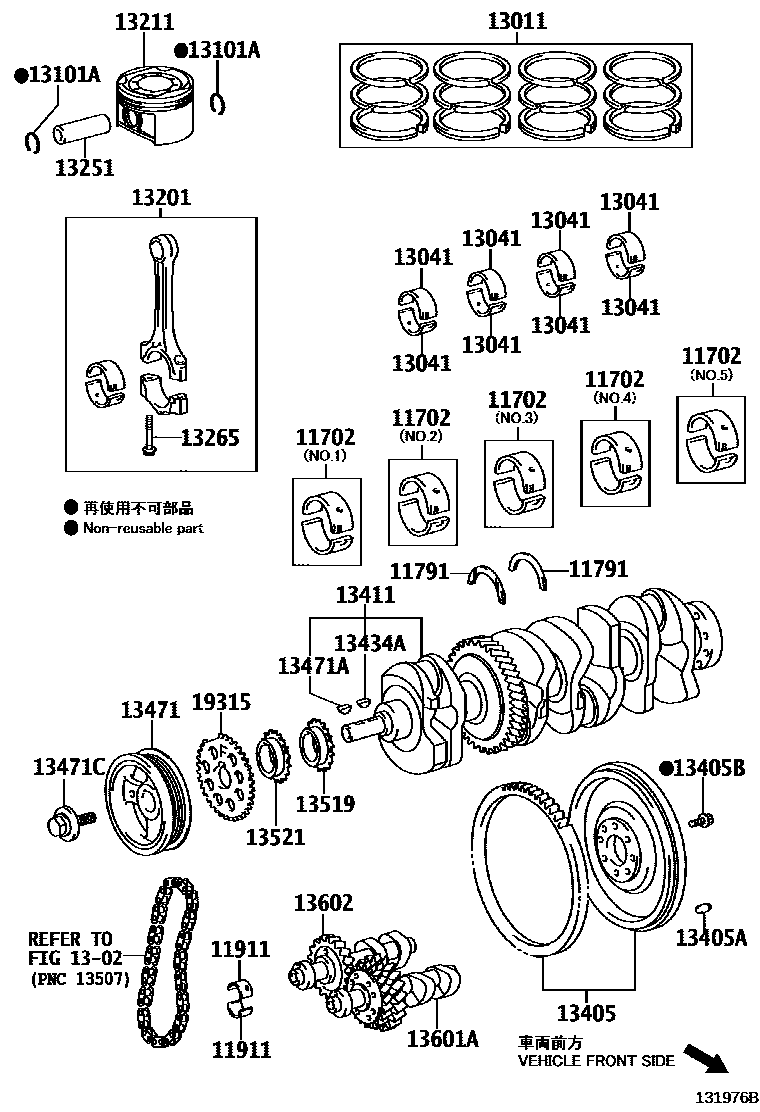

Parts diagram
11702BEARING SET, CRANKSHAFT
main11701-28010-01×4i201304
MARK 1,NO.2,3,4,5 REFER R/M
main11701-28010-02×4i201304
MARK 2,NO.2,3,4,5 REFER R/M
main11701-28010-03×4i201304
MARK 3,NO.2,3,4,5 REFER R/M
main11701-28010-04×4i201304
MARK 4,NO.2,3,4,5 REFER R/M
main11701-28020-01i201304
MARK 1,NO.1,REFER R/M
main11701-28020-02i201304
MARK 2,NO.1,REFER R/M
main11701-28020-03i201304
MARK 3,NO.1,REFER R/M
main11701-28020-04i201304
MARK 4,NO.1,REFER R/M
11791WASHER, CRANKSHAFT THRUST, UPPER
main11791-28020×2i201304
STD
11911BEARING, BALANCESHAFT, NO.1
main11911-28011-01×8i201304
MARK 1,REFER REPAIR MANUAL
main11911-28011-02×8i201304
MARK 2,REFER REPAIR MANUAL
main11911-28011-03×8i201304
MARK 3,REFER REPAIR MANUAL
13011RING SET, PISTON
main13011-28161i201304-201409
STD
main13011-28260i201409-201605
STD
1302CAMSHAFT & VALVE
→ Go to FIG 13-02
13041BEARING, CONNECTING ROD
main13281-28011-01×8i201304
MARK 1,REFER REPAIR MANUAL
main13281-28011-02×8i201304
MARK 2,REFER REPAIR MANUAL
main13281-28011-03×8i201304
MARK 3,REFER REPAIR MANUAL
13101ARING, HOLE SNAP(FOR PISTON PIN)
main90520-22025×8i201304
13201ROD SUB-ASSY, CONNECTING
main13201-29686-A0×4i201304
MARK A,REFER REPAIR MANUAL
main13201-29686-B0×4i201304
MARK B,REFER REPAIR MANUAL
main13201-29686-C0×4i201304
MARK C,REFER REPAIR MANUAL
13211PISTON
main13211-28121-A0×4i201304-201409
MARK A,REFER REPAIR MANUAL
main13211-28121-B0×4i201304-201409
MARK B,REFER REPAIR MANUAL
main13211-28121-C0×4i201304-201409
MARK C,REFER REPAIR MANUAL
main13211-28150-A0×4i201409
MARK A,REFER REPAIR MANUAL
main13211-28150-B0×4i201409
MARK B,REFER REPAIR MANUAL
main13211-28150-C0×4i201409
MARK C,REFER REPAIR MANUAL
13251PIN, PISTON
main13251-28020-A0×4i201304
MARK A,REFER REPAIR MANUAL
main13251-28020-B0×4i201304
MARK B,REFER REPAIR MANUAL
main13251-28020-C0×4i201304
MARK C,REFER REPAIR MANUAL
13265BOLT, CONNECTING ROD
main13265-28010×8i201304
13405FLYWHEEL SUB-ASSY
main13405-28050i201304
13405APIN, STRAIGHT(FOR FLYWHEEL)
main90250-08054×3i201304
L=23,OD=8
13405BBOLT, FLYWHEEL SETTING
main90105-12184×8i201304
13411CRANKSHAFT
main13401-28010i201304
13434AKEY(FOR OIL PUMP DRIVE SPLINE)
main95161-30416i201304
13471PULLEY, CRANKSHAFT
main13470-28040i201304
13471AKEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)
main95161-30416i201304
13471CBOLT(FOR CRANKSHAFT PULLEY SET)
main90119-14106i201304-201504
main90119-14175i201505
13519GEAR, OIL PUMP DRIVE
main13519-28010i201304
13521GEAR OR SPROCKET, CRANKSHAFT TIMING
main13521-28030i201304
13601ABALANCESHAFT SUB-ASSY, NO.1
main13601-28020i201304-201402
main13601-28021i201402
13602BALANCESHAFT SUB-ASSY, NO.2
main13602-28020i201304
19315PLATE, CRANK ANGLE SENSOR, NO.1
main19315-28010i201304

24 parts on this diagram · 1 diagram in section

CRANKSHAFT & PISTON for Toyota PREVIA

This section contains 24 genuine Toyota parts for the CRANKSHAFT & PISTON system of the Toyota PREVIA. Key components include: BEARING SET, CRANKSHAFT, WASHER, CRANKSHAFT THRUST, UPPER, BEARING, BALANCESHAFT, NO.1, RING SET, PISTON, CAMSHAFT & VALVE.
