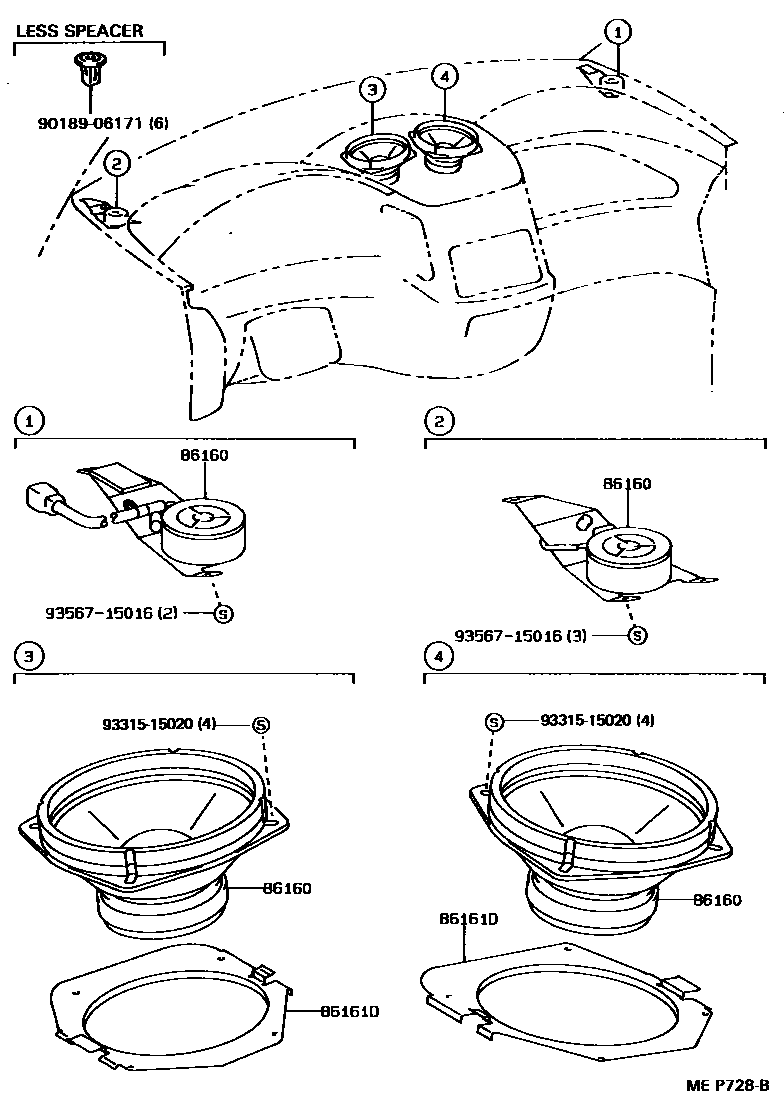

Toyota PREVIA — SPEAKER

86160SPEAKER ASSY, FRONT NO.1

main86160-28140i199108-199308

FRONT DOOR,RH

main86160-28150i199308-199608

FR DOOR,LH

main86160-28270i199308-199707

TWEETER RH

main86160-28280i199108-199308

main86160-28440i199608-199707

FR DOOR,RH

main86160-28450i199608-199707

FR DOOR,LH

main86160-95D01×2i199001-199108

CENTER

main86160-95D02i199001-199108

main86160-95D03i199001-199108

86161DBRACKET, SPEAKER MOUNTING, NO.1

main86161-95D00i199001-199108

main86161-95D01i199001-199108

9018906171

main90189-06171

9331515020

main93315-15020

9356715016

main93567-15016

5 parts on this diagram · 4 diagrams in section

SPEAKER for Toyota PREVIA

This section contains 20 genuine Toyota parts for the SPEAKER system of the Toyota PREVIA. Key components include: SPEAKER ASSY, FRONT NO.1, SPEAKER ASSY, REAR, BRACKET, SPEAKER MOUNTING, NO.1, GRILLE, SPEAKER.
