Toyota PREVIA — DISTRIBUTOR

19100DISTRIBUTOR ASSY

main19100-76010i199005-199401

main19100-76030i199401-199608

main19100-76040i199608-199912

19101CAP SUB-ASSY, DISTRIBUTOR

main19101-76010i199005-199912

19102ROTOR SUB-ASSY, DISTRIBUTOR

main19102-74040i199005-199912

19107ARING, O, DISTRIBUTOR HOUSING

main90099-14091i199005-199912

19115PIECE, DISTRIBUTOR CAP, CENTER

main19115-88280i199005-199912

19121COVER, DUST PROOF

main19121-76010i199005-199401

main19121-76020i199401-199912

19127PACKING, DUST PROOF

main19127-76010i199005-199912

19235HOUSING, DISTRIBUTOR

main19235-76010i199005-199608

main19235-76040i199608-199912

9009900200

main90099-00200

9009900215

main90099-00215

9009904103

main90099-04103

9014880020

main90148-80020

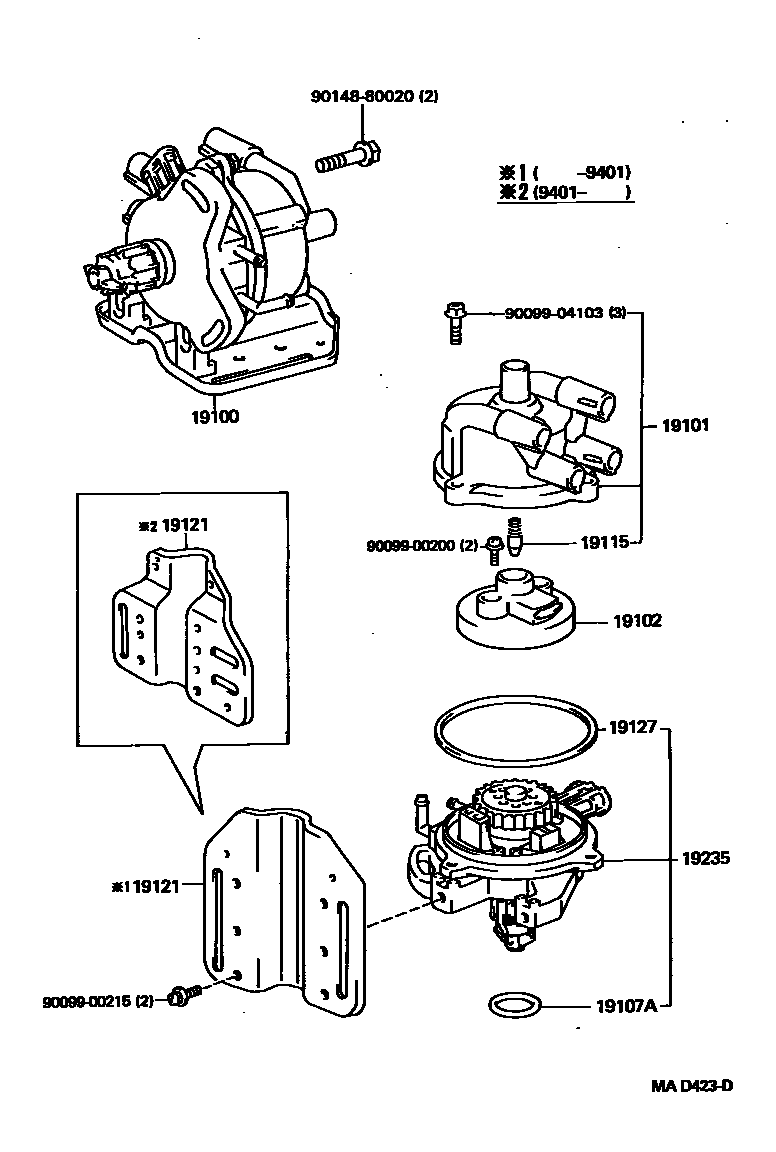

12 parts on this diagram · 1 diagram in section

DISTRIBUTOR for Toyota PREVIA

This section contains 12 genuine Toyota parts for the DISTRIBUTOR system of the Toyota PREVIA. Key components include: DISTRIBUTOR ASSY, CAP SUB-ASSY, DISTRIBUTOR, ROTOR SUB-ASSY, DISTRIBUTOR, RING, O, DISTRIBUTOR HOUSING, PIECE, DISTRIBUTOR CAP, CENTER.
