Toyota PREVIA/TARAGO — WINDSHIELD WIPER

0001 1 0002 1 0003 1 0004 1

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-28180iCLR30..LHD..08S200002-200404

main85110-28190iACR30,CLR30..RHD..EUR200002-200404

main85110-28200iACR30..ARL200002-200304

85160LINK ASSY, WINDSHIELD WIPER

main85150-28140iACR30,CLR30..RHD..EUR200002-200404

main85150-28150iACR30..LHD;CLR30..LHD..(06S,07S)200002-200404

main85150-28160iACR30..ARL200002-200304

85178NUT (FOR FRONT WIPER ARM SETTING)

main90179-10223iACR30,CLR30..EUR,GCC,GEN200002-200404

85192COVER, WINDSHIELD WIPER ARM

main85292-13010iACR30..ARL200002-200404

85211BARM, FRONT WIPER, RH

main85211-28140iACR30..LHD;CLR30..LHD..(06S,07S)200002-200404

main85211-28150iACR30..ARL200002-200304

main85211-28160iACR30..08S..ATM..EUR;ACR30,CLR30..RHD..07S..EUR200002-200404

85212ABLADE, FR WIPER, RH

main85212-20420iACR30,CLR30..LHD200002-200511

sub85212-47020

main85212-28130iACR30..ARL200002-200304

sub85212-28150

main85212-28140iACR30,CLR30..RHD..EUR200002-200304

main85212-47020iACR30,CLR30..LHD200511

sub85212-47021

85214ARUBBER, WIPER, RH

main85214-22420iACR30,CLR30..LHD200304-200511

sub85214-46011

main85214-28030iACR30,CLR30..RHD200511

main85214-28040iACR30..ARL200002-200511

main85214-28070iACR30,CLR30..RHD..EUR200002-200511

sub85214-28040

main85214-35030iACR30,CLR30..LHD200002-200304

sub85214-22420

main85214-46010iACR30,CLR30..LHD200511

sub85214-46011

85214BRUBBER, WIPER, LH

main85214-22420iACR30,CLR30..RHD..EUR200304-200511

sub85214-46011

main85214-28030iACR30,CLR30..LHD200511

main85214-28070iACR30,CLR30..LHD200002-200511

sub85214-28040

main85214-35030iACR30,CLR30..RHD..EUR200002-200304

sub85214-22420

main85214-35040iACR30..ARL200002-200304

sub85214-48020

main85214-46010iACR30,CLR30..RHD..EUR200511

sub85214-46011

main85214-48020iACR30..ARL200304

sub85214-53041

85221BARM, FRONT WIPER, LH

main85221-28100iACR30..08S..ATM..EUR;ACR30,CLR30..RHD..07S..EUR200002-200404

main85221-28110iACR30..LHD;CLR30..LHD..(06S,07S)200002-200404

main85221-28120iACR30..ARL200002-200304

85222ABLADE, FR WIPER, LH

main85222-22780iACR30,CLR30..RHD..EUR200304-200511

sub85222-20391

main85222-28120iACR30,CLR30..LHD200002-200304

main85222-28150iACR30,CLR30..RHD..EUR200511

sub85222-46011

main85222-35080iACR30..ARL200002-200207

sub85222-48030

main85222-48030iACR30..ARL200207-200304

sub85222-48111

main85222-60150iACR30,CLR30..RHD..EUR200002-200304

sub85222-22780

85224APLATE, WIPER RUBBER BACKING, NO.1

main85224-28040iACR30,CLR30..RHD200002-200304

main85224-60100iACR30,CLR30..LHD200002-200304

85224BPLATE, WIPER RUBBER BACKING, NO.2

main85224-28050iACR30,CLR30..RHD200002-200304

main85224-60100iACR30,CLR30..LHD200002-200304

85224CPLATE, WIPER RUBBER BACKING, NO.3

main85224-28040iACR30,CLR30..LHD200002-200304

main85224-35040iACR30..ARL200002-200304

main85224-60100iACR30,CLR30..RHD..EUR200002-200304

85224DPLATE, WIPER RUBBER BACKING, NO.4

main85224-28050iACR30,CLR30..LHD200002-200304

main85224-35040iACR30..ARL200002-200304

main85224-60100iACR30,CLR30..RHD..EUR200002-200304

9011906913

main90119-06913

9338516014

main93385-16014

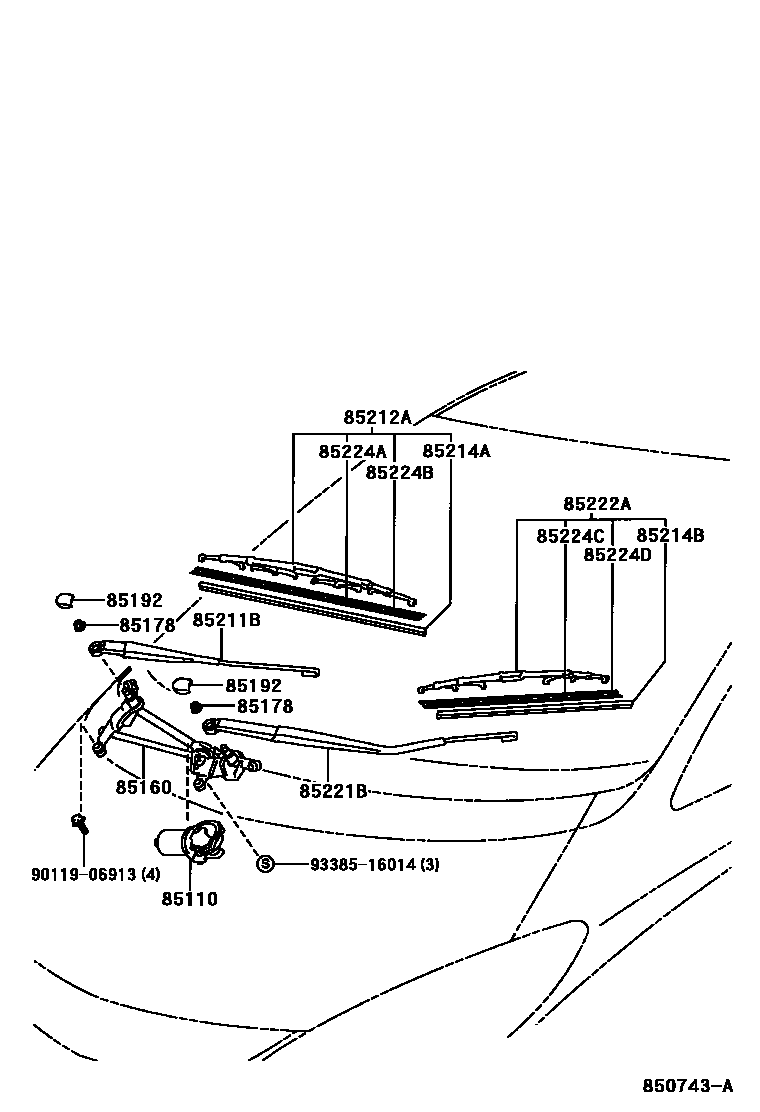

16 parts on this diagram · 4 diagrams in section
