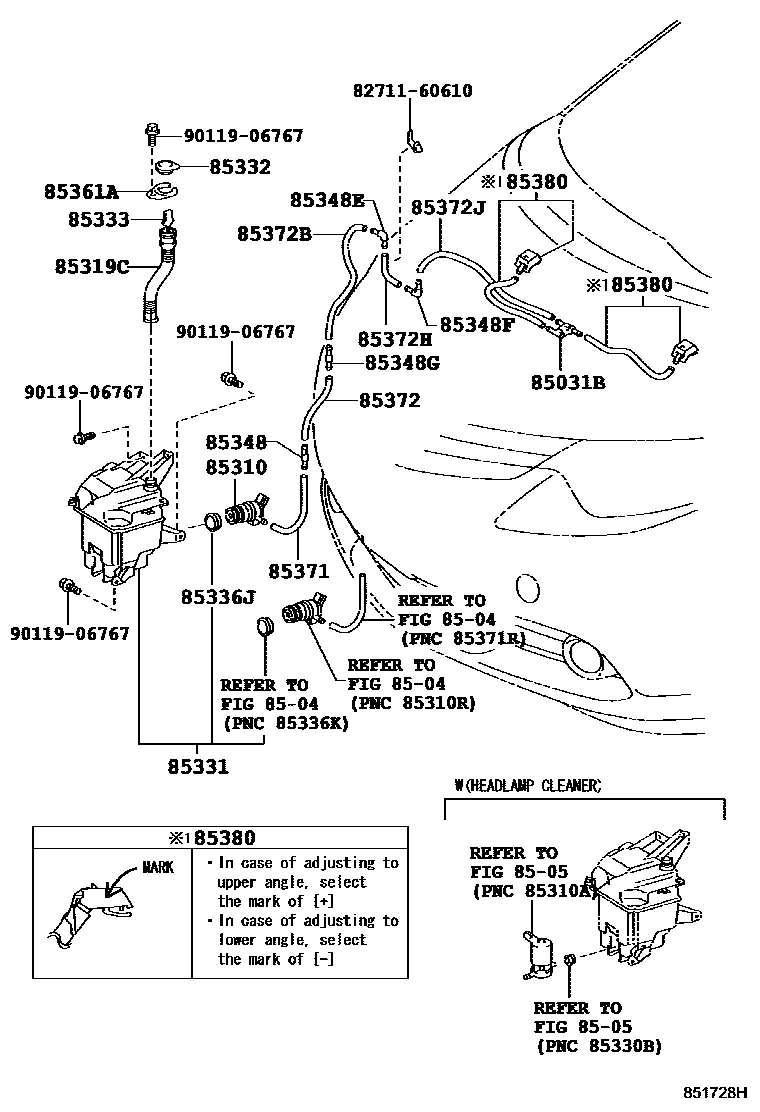

Toyota PREVIA/TARAGO — WINDSHIELD WASHER

85031BVALVE SUB-ASSY, WASHER

main85321-28020i200812-201204

8504REAR WASHER

→ Go to FIG 85-04

8505HEADLAMP CLEANER

→ Go to FIG 85-05

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-21010i200601-200812

85319CHOSE, WASHER

main85319-28230i200601-200812

85331JAR SUB-ASSY, WINDSHIELD WASHER

main85315-28240i201204-201605

main85355-28040i200601-200812

HEAD LAMP-DISCHARGE + AFS

main85355-28041i201605

HEADLAMP-DISCHARGE & AFS

85332CAP, WINDSHIELD WASHER JAR

main85316-48060i200812-201204

85333FILTER, WINDSHIELD WASHER JAR

main85312-21020i200601-200812

85336JPROTECTOR, WASHER JAR

main85336-60300i200601-200812

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85349-89122i200601-200812

85348EJOINT, WINDSHIELD WASHER ELBOW, NO.2

main85355-20200i200601-200812

85348FJOINT, WINDSHIELD WASHER ELBOW, NO.3

main85355-20200i200601-200812

85348GJOINT, WINDSHIELD WASHER HOSE, NO.2

main85349-89122i200601-200812

85361ABRACKET, WINDSHIELD WASHER, NO.1

main85337-30380i200812-201205

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90099-33080i200601-200812

L=1450(*H,L=210); L=1450(*H,L=210),HEAD LAMP-DISCHARGE + AFS

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90099-33080i201204-201409

L=1450(*H,L=50)

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90446-07001i200601-200812

L=1800(*H,L=720)

85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3

main90099-33080i200601-200812

L=1450(*H,L=150)

85372JHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.4

main90099-33080i200601-200812

L=1450(*H,L=740)

85380NOZZLE & HOSE ASSY, FR WASHER

main85380-28100×2i200601-200609

NO MARK

main85380-28130×2i200601-200609

MARK +2

main85380-28140×2i200601-200609

MARK -2

main85380-28160×2i201605

MARK +1

main85380-28170×2i201204-201605

MARK +3

main85380-28180×2i201605

MARK -1

8271160610WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-60610

9011906767

main90119-06767

22 parts on this diagram · 1 diagram in section

WINDSHIELD WASHER for Toyota PREVIA/TARAGO

This section contains 22 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota PREVIA/TARAGO. Key components include: VALVE SUB-ASSY, WASHER, REAR WASHER, HEADLAMP CLEANER, MOTOR AND PUMP ASSY, WINDSHIELD WASHER, HOSE, WASHER.
