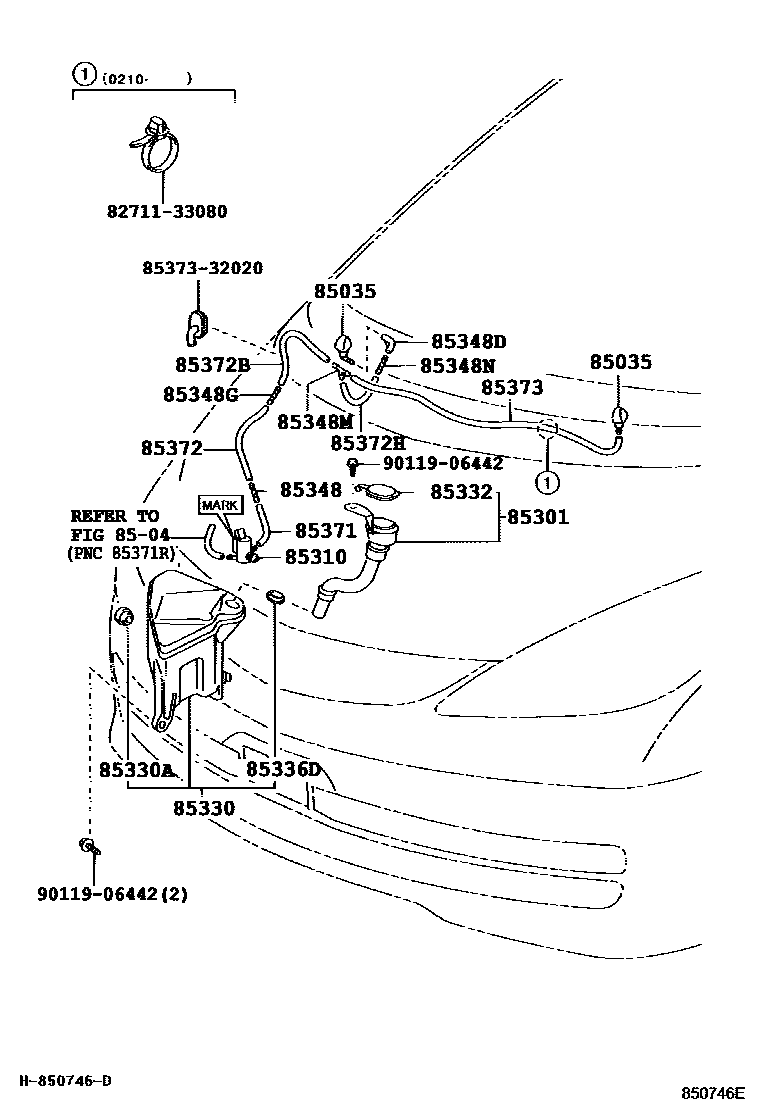

Toyota PREVIA/TARAGO — WINDSHIELD WASHER

Parts diagram
85035NOZZLE SUB-ASSY, WASHER
main85381-28130i200002-200304
LH
main85381-28140i200002-200304
LH
main85381-28150i200304
RH
main85381-28160i200002-200304
RH
main85381-28180i200304
RH
8504REAR WASHER
→ Go to FIG 85-04
85301INLET SUB-ASSY, WASHER
main85301-28020i200002-200304
main85301-28030i200002-200304
W(HEADLAMP CLEANER)
main85301-28070i200304
main85301-28080i200304
W(HEADLAMP CLEANER)
85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER
main85330-14490i200002-200004
MARK=85330-14490
main85330-20470i200004-200304
MARK=85330-20470
main85330-60190i200304
85330JAR ASSY, WINDSHIELD WASHER
main85315-28110i200002-200304
main85315-28200i200304
main85355-28020i200002-200304
W(HEADLAMP CLEANER)
main85355-28030i200304
W(HEADLAMP CLEANER)
85330ABUSH, WINDSHIELD WASHER JAR
main90099-32089i200002-200304
85332CAP, WINDSHIELD WASHER JAR
main85316-26060i200002-200304
main85316-28060i200304
85336DPACKING, WINDSHIELD WASHER JAR
main85336-30160i200002-200304
85348JOINT, WINDSHIELD WASHER HOSE, NO.1
main85334-22470i200002-200304
main85349-89122i200304-200601
85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1
main85336-12230i200002-200304
85348GJOINT, WINDSHIELD WASHER HOSE, NO.2
main85349-89122i200002-200304
85348MJOINT, WINDSHIELD WASHER HOSE, NO.3
main85348-14390i200304
85348NJOINT, WINDSHIELD WASHER HOSE, NO.4
main85349-89122i200002-200304
85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
main90099-33075i200002-200304
L=1100(*H,L=30)
main90099-33082i200304-200601
L=1450(*H,L=310)
85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
main90099-33080i200002-200007
L=1450(*H,L=530)
85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2
main90099-33080i200007-200304
L=1450(*H,L=180); L=1450(*H,L=520); L=1450(*H,L=580)
85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3
main90099-33080i200002-200003
L=1450(*H,L=160)
85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
main90099-33080i200002-200007
L=1450(*H,L=1100); L=1450(*H,L=690)
8271133080WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-33080
8537332020HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
main85373-32020
9011906442
main90119-06442

21 parts on this diagram · 4 diagrams in section

WINDSHIELD WASHER for Toyota PREVIA/TARAGO

This section contains 25 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota PREVIA/TARAGO. Key components include: NOZZLE SUB-ASSY, WASHER, REAR WASHER, HEADLAMP CLEANER, INLET SUB-ASSY, WASHER, MOTOR AND PUMP ASSY, WINDSHIELD WASHER.
