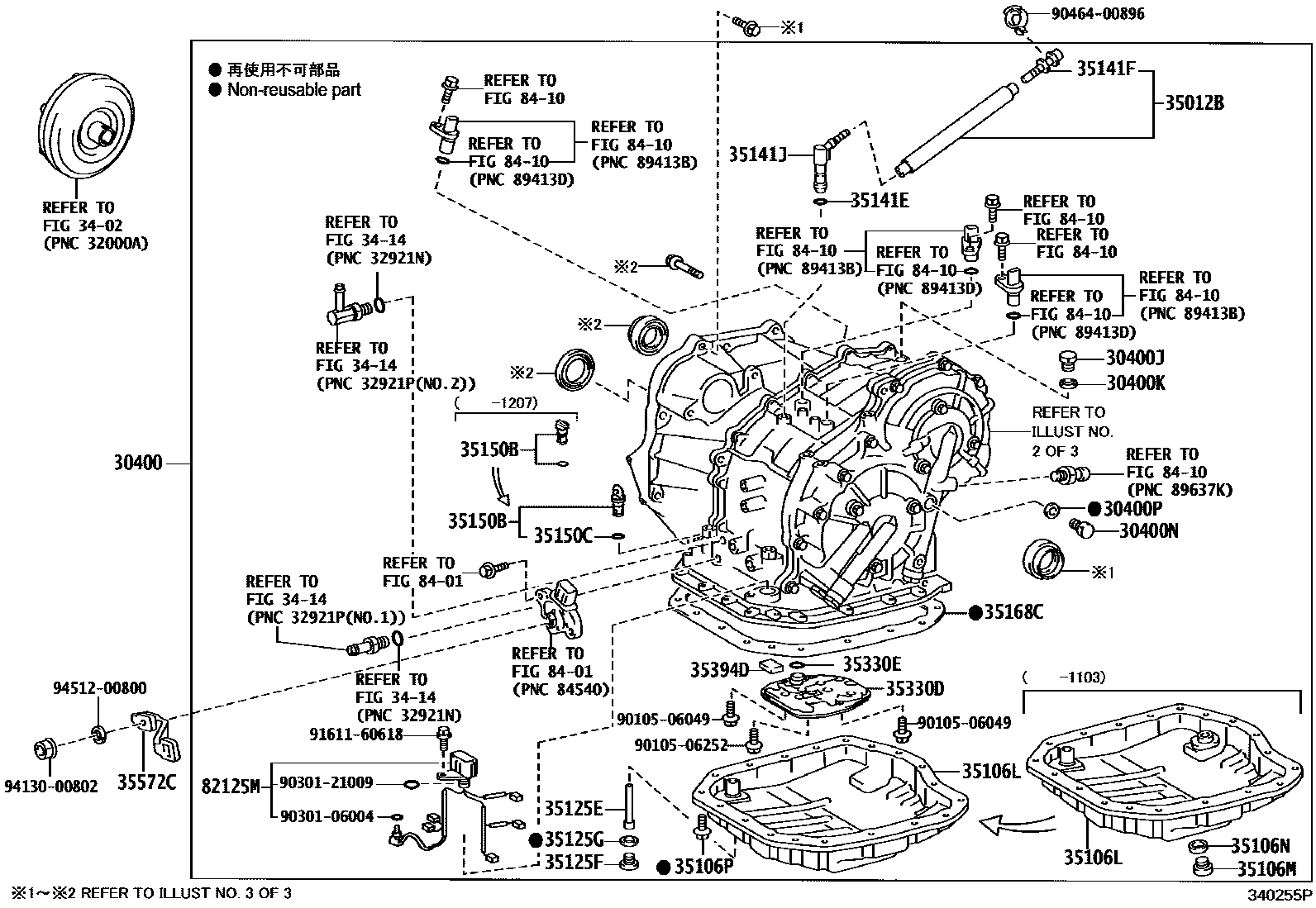

Toyota PREVIA/TARAGO — TRANSAXLE ASSY(CVT)
30400TRANSAXLE ASSY, CONTINUOUSLY VARIABLE
K112
K112
K112
30400JPLUG, TRANSAXLE HOLE
30400KGASKET, TRANSAXLE HOLE PLUG
30400NPLUG, REFILL(CVT)
30400PGASKET, REFILL PLUG(CVT)
3402TORQUE CONVERTER, FRONT OIL PUMP(CVT)
3414OIL COOLER & TUBE(CVT)
35012BHOSE SUB-ASSY, TRANSMISSION BREATHER
35106LPAN SUB-ASSY, TRANSAXLE OIL(CVT)
SINGAPORE SPEC
35106MPLUG SUB-ASSY, DRAIN(CVT)
35106NGASKET, DRAIN PLUG(CVT)
35106PBOLT(FOR TRANSAXLE OIL PAN)
35125ETUBE, OVERFLOW(CVT)
35125FPLUG, OVERFLOW(CVT)
35125GGASKET, OVERFLOW PLUG(CVT)
35141ERING, O(FOR BREATHER PLUG)
35141FPLUG, BREATHER, NO.1(CVT)
35141JPLUG, BREATHER, NO.2(CVT)
35150BPLUG ASSY, TRANSMISSION CASE
35150CRING, O (FOR TRANSMISSION CASE PLUG)
35168CGASKET, TRANSAXLE OIL PAN(CVT)
35330DSTRAINER ASSY, OIL
SINGAPORE SPEC
35330ERING, O (FOR OIL STRAINER)
35394DMAGNET, OIL CLEANER(CVT)
35572CLEVER, TRANSMISSION CONTROL SHAFT
82125MWIRE, TRANSMISSION
8401SWITCH & RELAY & COMPUTER
8410OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION
9010506049
main90105-06049
9010506252
main90105-06252
9030106004
main90301-06004
9030121009
main90301-21009
9046400896
main90464-00896
9161160618
main91611-60618
9413000802
main94130-00802
9451200800
main94512-00800
36 parts on this diagram · 6 diagrams in section
TRANSAXLE ASSY(CVT) for Toyota PREVIA/TARAGO
This section contains 102 genuine Toyota parts for the TRANSAXLE ASSY(CVT) system of the Toyota PREVIA/TARAGO. Key components include: CYLINDER BLOCK, TRANSAXLE ASSY, CONTINUOUSLY VARIABLE, SEAL, TYPE T OIL(FOR CVT OIL PUMP), PLUG, TRANSAXLE HOLE, GASKET, TRANSAXLE HOLE PLUG.
