Toyota PREVIA/TARAGO — STANDARD TOOL

09110JACK ASSY

main09110-28120iACR30,CLR30..EUR,GCC200002-200501

main09110-28121iACR30..GEN200501-200601

W/O(DESTINATION PACKAGE)

main09110-28130iACR30..ARL200002-200501

main09110-28131iACR30..ARL200501-200601

main09110-28140iACR30..GEN200411-200601

09114EXTENSION SUB-ASSY, JACK HANDLE

main09114-60070iACR30,CLR30200002-200304

09115ROD SUB-ASSY, JACK HANDLE

main09115-28030iACR30,CLR30200002-200304

09116LEVER, JACK HANDLE

main09116-60010iACR30,CLR30200002-200304

09120BAG, TOOL

main09120-12011iACR30,CLR30200002-200304

09135DRIVER, SCREW

main99915-10700iACR30..LHD..06S..ATM;ACR30,CLR30..LHD..MTM;ACR30..(07S,08S)..ATM..(EUR,GCC,GEN)200002-200304

09141SPANNER

main99914-10810iACR30,CLR30..LHD..MTM;ACR30..ATM..(EUR,GCC,GEN)200002-200304

8 X 10

main99914-11214iACR30..LHD..06S..ATM;ACR30,CLR30..LHD..MTM;ACR30..(07S,08S)..ATM..(EUR,GCC,GEN)200002-200304

12 X 14

09150WRENCH, HUB NUT BOX

main09150-40010iACR30,CLR30200002-200601

51960HOOK ASSY, FRONT

main51960-28010iACR30,CLR30200002-200304

main51960-28020iACR30,CLR30200304

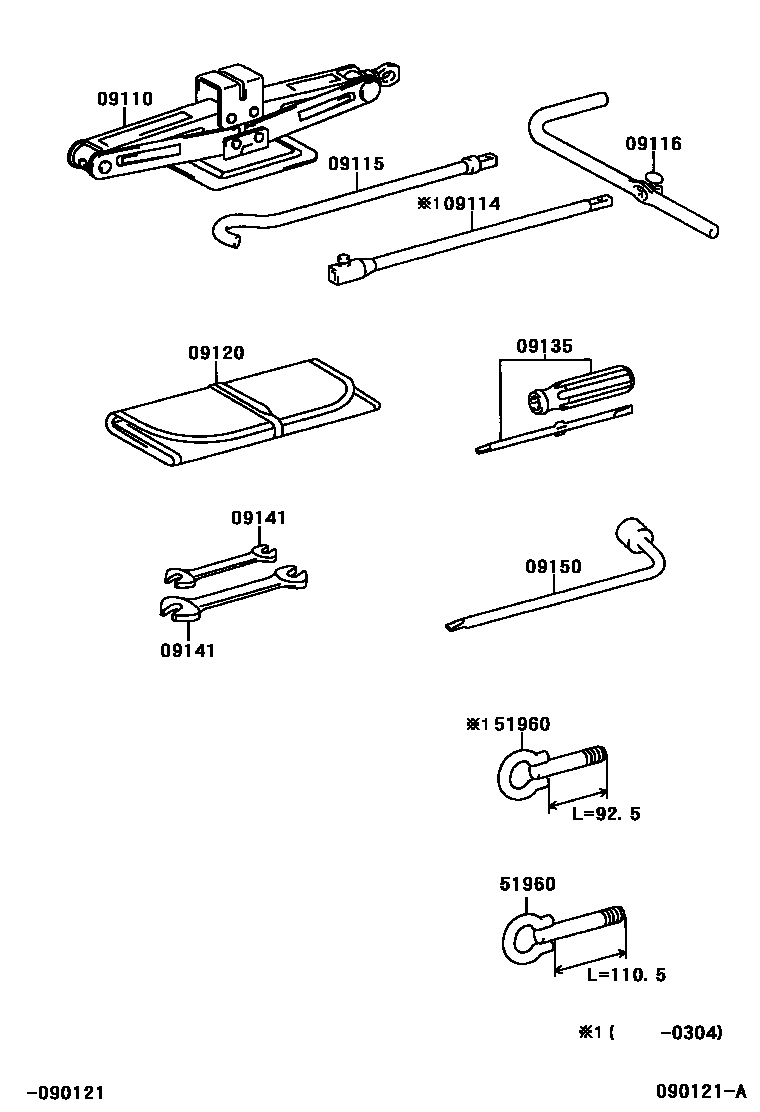

9 parts on this diagram · 1 diagram in section
