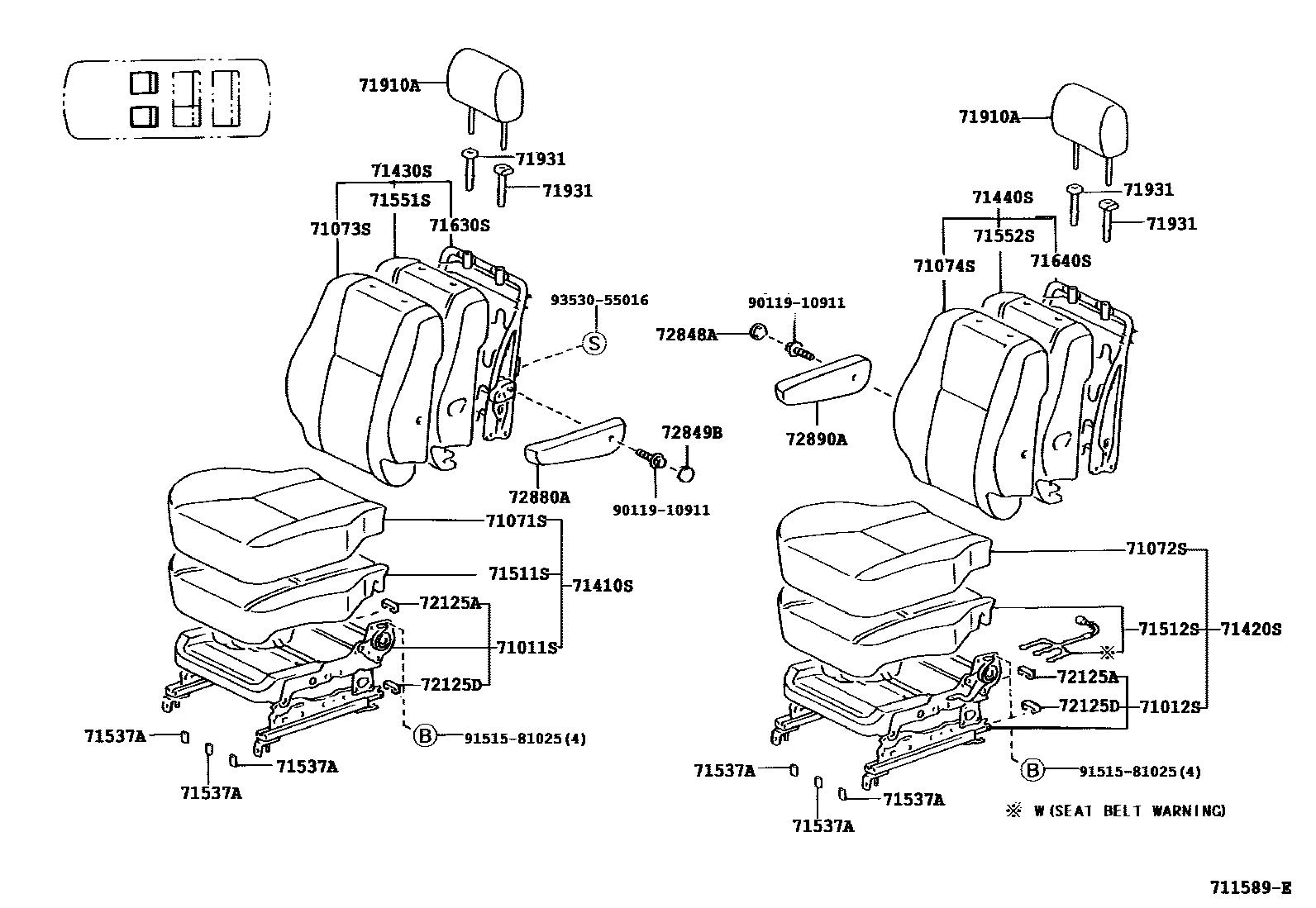

Toyota PREVIA/TARAGO — SEAT & SEAT TRACK

0001 1 0002 1 0003 1W(SRS SIDE AIR BAG) 0004 1FRONT SEAT ADJUSTER 0005 1DTACHBL SEAT 0006 1DTACHBL SEAT 0007 1 0008 1ADJUSTER 0009 1 0010 1ADJUSTER 0011 1ADJUSTER 0012 1 0013 1ADJUSTER 0014 1 0015 1DTACHBL SEAT-RH & LH SEAT 0016 1DTACHBL SEAT-CENTER SEAT 0017 1REAR NO.1 SEAT(RH) 0018 1REAR NO.1 SEAT(LH) 0019 1DTACHBL SEAT 0020 1 0021 1

71011SFRAME SUB-ASSY, FRONT SEAT CUSHION, RH

main71110-28010iACR30,CLR30..RHD200002-200202

sub71110-28011

main71110-28011iACR30,CLR30..RHD200202-200304

sub71110-28060

main71110-28020iACR30,CLR30..LHD200002-200202

sub71110-28021

main71110-28021iACR30,CLR30..LHD200202-200304

sub71110-28070

main71110-28060iACR30,CLR30..RHD200304-200601

main71110-28070iACR30,CLR30..LHD200304-200601

71012SFRAME SUB-ASSY, FRONT SEAT CUSHION, LH

main71120-28010iACR30,CLR30..RHD200002-200202

sub71120-28011

main71120-28011iACR30,CLR30..RHD200202-200304

sub71120-28060

main71120-28020iACR30,CLR30..LHD200002-200202

sub71120-28021

main71120-28021iACR30,CLR30..LHD200202-200304

sub71120-28070

main71120-28060iACR30,CLR30..RHD200304-200601

main71120-28070iACR30,CLR30..LHD200304-200601

71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71071-28A40-B1iACR30..LHD..07S..ATM..EUR200304-200601

SEAT = TYPE D-*104,GRAY,TRIM1#

main71071-2J480-B0iACR30..GL..GEN;ACR30..DX..GCC200002-200304

SEAT = TYPE B-*104,LT. GRAY,TRIM11

main71071-2J480-B1iACR30..GL..GEN;ACR30..DX..GCC200002-200304

SEAT = TYPE B-*104,MEDIUM CHARCOAL,TRIM12

main71071-2J490-B0iACR30..RHD..07S..ATM200002-200304

SEAT = TYPE B-*104 & W(ARMREST),LT. GRAY,TRIM11

main71071-2J490-B1iACR30..RHD..07S..ATM200002-200304

SEAT = TYPE B-*104 & W(ARMREST),MEDIUM CHARCOAL,TRIM12

main71071-2J500-B0iACR30..LHD..07S..ATM..(EUR,GCC)200105-200302

LT. GRAY,TRIM11

sub71071-2J501

main71071-2J500-B1iACR30..LHD..07S..ATM..(EUR,GCC)200105-200208

MEDIUM CHARCOAL,TRIM12

sub71071-2J501

main71071-2J501-B0iACR30..LHD..07S..ATM..(EUR,GCC)200302-200304

SEAT = TYPE C-*104,LT. GRAY,TRIM11

main71071-2J501-B1iACR30..LHD..07S..ATM..(EUR,GCC)200208-200304

SEAT = TYPE C-*104,MEDIUM CHARCOAL,TRIM12

main71071-2J540-B0iACR30..LHD..EUR200002-200102

SEAT = TYPE A-*104 & W(SEAT HEATER),LT. GRAY,TRIM11

main71071-2J540-B1iACR30,CLR30..LHD..EUR200002-200304

SEAT = TYPE A-*104 & W(SEAT HEATER),MEDIUM CHARCOAL,TRIM12

main71071-2J540-B4iACR30,CLR30..LHD..EUR200102-200304

SEAT = TYPE A-*104 & W(SEAT HEATER),BLUISH GRAY,TRIM11

main71071-2J560-B0iACR30..LHD..DX200002-200102

SEAT = TYPE A-*104,LT. GRAY,TRIM11

main71071-2J560-B1iACR30,CLR30..LHD..DX..(EUR,GEN)200002-200304

SEAT = TYPE A-*104,MEDIUM CHARCOAL,TRIM12

main71071-2J560-B4iACR30,CLR30..LHD..DX..(EUR,GEN)200102-200304

SEAT = TYPE A-*104,BLUISH GRAY,TRIM11

main71071-2J570-B0iACR30..RHD..DX200002-200102

SEAT = TYPE A-*104,LT. GRAY,TRIM11

main71071-2J570-B1iACR30,CLR30..RHD..DX200002-200304

SEAT = TYPE A-*104,MEDIUM CHARCOAL,TRIM12

main71071-2J570-B4iACR30,CLR30..RHD..DX200102-200304

SEAT = TYPE A-*104,BLUISH GRAY,TRIM11

main71071-2J650-B0iACR30,CLR30..RHD..(06S,07S)..EUR200102-200304

SEAT = TYPE G-*104,BLUISH GRAY,TRIM1#

main71071-2J660-B0iACR30,CLR30..LHD..(06S,07S)..EUR200102-200304

SEAT = TYPE G-*104 & W(SEAT HEATER),BLUISH GRAY,TRIM1#

main71071-2J670-B0iACR30,CLR30..LHD..(06S,07S)..EUR200102-200304

SEAT = TYPE G-*104,BLUISH GRAY,TRIM1#

main71071-2R070-B0iACR30..GL..ARL;ACR30..RHD..ATM..EUR200304-200601

SEAT = TYPE B-*104,GRAY,TRIM1#

main71071-2R090-B0iACR30..DX..ARL200304-200601

SEAT = TYPE A-*104,GRAY,TRIM1#

main71071-2R100-B0iACR30,CLR30..RHD..EUR200304-200601

SEAT = TYPE A-*104 & W(SRS SIDE AIR BAG),GRAY,TRIM1#

sub71071-2R101

main71071-2R100-B0iCLR30..RHD;ACR30..08S..MTM;ACR30..RHD..07S..EUR200311-200601

SEAT = TYPE A-*104,GRAY,TRIM1#

sub71071-2R101

main71071-2R110-B1iACR30,CLR30..RHD..07S..EUR200311-200601

SEAT = TYPE D-*104,GRAY,TRIM1#

main71071-2R110-B1iACR30,CLR30..RHD..07S..EUR200304-200311

SEAT = TYPE D-*104 & W(SRS SIDE AIR BAG),GRAY,TRIM1#

main71071-2R130-B0iACR30..GL..ARL;ACR30..RHD..ATM..EUR200304-200601

SEAT = TYPE B-*104 & W(SRS SIDE AIR BAG),GRAY,TRIM1#

main71071-2R140-B1iACR30..GL..ARL200304-200601

SEAT = TYPE D-*104 & W(SEAT HEATER & SRS SIDE AIR BAG),GRAY,TRIM1#

main71071-2R150-B0iACR30,CLR30..LHD..EUR200304-200311

SEAT = TYPE A-*104,GRAY,TRIM1#

main71071-2R160-B0iACR30,CLR30..LHD..EUR200304-200601

SEAT = TYPE A-*104 & W(SRS SIDE AIR BAG),GRAY,TRIM1#

main71071-2R170-B0iACR30,CLR30..LHD..EUR200304-200311

SEAT = TYPE A-*104 & W(SEAT HEATER),GRAY,TRIM1#

main71071-2R180-B0iACR30,CLR30..LHD..EUR200304-200601

SEAT = TYPE A-*104 & W(SEAT HEATER & SRS SIDE AIR BAG),GRAY,TRIM1#

sub71071-2R181

main71071-2R190-B1iACR30,CLR30..LHD..(06S,07S)..EUR200304-200601

SEAT = TYPE D-*104 & W(SRS SIDE AIR BAG),GRAY,TRIM1#

main71071-2R200-B1iACR30,CLR30..LHD..(06S,07S)..(EUR,GEN)200304-200601

SEAT = TYPE D-*104 & W(SEAT HEATER & SRS SIDE AIR BAG),GRAY,TRIM1#

main71071-2R210-B0iACR30..GL..GCC200304-200601

SEAT = TYPE C-*104,GRAY,TRIM1#

main71071-2R220-B0iACR30..DX..GCC200304-200601

SEAT = TYPE B-*104,GRAY,TRIM1#

main71071-2R230-B0iACR30..GEN200304-200601

SEAT = TYPE B-*104 & W(SRS SIDE AIR BAG),GRAY,TRIM1#

71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

main71071-2J480-B0iACR30..RHD..07S..ATM200002-200304

SEAT = TYPE B-*104 & W(ARMREST),LT. GRAY,TRIM11

main71071-2J480-B1iACR30..RHD..07S..ATM200002-200304

SEAT = TYPE B-*104 & W(ARMREST),MEDIUM CHARCOAL,TRIM12

main71071-2J550-B0iACR30..LHD..EUR200003-200102

SEAT = TYPE A-*104 & W(SEAT HEATER),LT. GRAY,TRIM11

main71071-2J550-B1iACR30,CLR30..LHD..EUR200003-200304

SEAT = TYPE A-*104 & W(SEAT HEATER),MEDIUM CHARCOAL,TRIM12

main71071-2J550-B1iACR30..LHD..EUR200002-200003

SEAT = TYPE A-*104 & W(SEAT HEATER),MEDIUM CHARCOAL,TRIM1#

main71071-2J550-B4iACR30,CLR30..LHD..EUR200102-200304

SEAT = TYPE A-*104 & W(SEAT HEATER),BLUISH GRAY,TRIM11

main71071-2J560-B0iACR30..RHD..DX200002-200102

SEAT = TYPE A-*104,LT. GRAY,TRIM11

main71071-2J560-B1iACR30,CLR30..RHD..DX200002-200304

SEAT = TYPE A-*104,MEDIUM CHARCOAL,TRIM12

main71071-2J560-B4iACR30,CLR30..RHD..DX200102-200304

SEAT = TYPE A-*104,BLUISH GRAY,TRIM11

main71071-2J580-B0iACR30..LHD..DX200002-200102

SEAT = TYPE A-*104,LT. GRAY,TRIM11

main71071-2J580-B1iACR30,CLR30..LHD..DX..(EUR,GEN)200002-200304

SEAT = TYPE A-*104,MEDIUM CHARCOAL,TRIM12

main71071-2J580-B4iACR30,CLR30..LHD..DX..(EUR,GEN)200102-200304

SEAT = TYPE A-*104,BLUISH GRAY,TRIM11

main71071-2J590-B0iACR30..GL..GEN;ACR30..DX..GCC200002-200304

SEAT = TYPE B-*104,LT. GRAY,TRIM11

main71071-2J590-B1iACR30..GL..GEN;ACR30..DX..GCC200002-200304

SEAT = TYPE B-*104,MEDIUM CHARCOAL,TRIM12

main71071-2J670-B0iACR30,CLR30..RHD..(06S,07S)..EUR200102-200304

SEAT = TYPE G-*104,BLUISH GRAY,TRIM1#

main71071-2J690-B0iACR30,CLR30..LHD..(06S,07S)..EUR200102-200304

SEAT = TYPE G-*104 & W(SEAT HEATER),BLUISH GRAY,TRIM1#

main71071-2J700-B0iACR30,CLR30..LHD..(06S,07S)..EUR200102-200304

SEAT = TYPE G-*104,BLUISH GRAY,TRIM1#

main71071-2J760-B0iACR30..GL..GCC200105-200302

LT. GRAY,TRIM11

sub71071-2J761

main71071-2J760-B1iACR30..GL..GCC200105-200208

MEDIUM CHARCOAL,TRIM12

sub71071-2J761

main71071-2J761-B0iACR30..LHD..07S..ATM..(EUR,GCC)200302-200304

SEAT = TYPE C-*104,LT. GRAY,TRIM11

main71071-2J761-B1iACR30..LHD..07S..ATM..(EUR,GCC)200208-200304

SEAT = TYPE C-*104,MEDIUM CHARCOAL,TRIM12

main71071-2R150-B0iACR30,CLR30..RHD..EUR200304-200601

SEAT = TYPE A-*104,GRAY,TRIM1#

main71071-2R220-B0iACR30..GL..ARL;ACR30..RHD..ATM..EUR200304-200601

SEAT = TYPE B-*104,GRAY,TRIM1#

main71072-28A50-B1iACR30..LHD..07S..ATM..EUR200304-200601

TAIWAN SPEC;SEAT = TYPE D-*104,GRAY,TRIM1#

main71072-2J580-B0iCLR30..RHD;ACR30..DX..ARL;ACR30..08S..MTM;ACR30..RHD..07S..EUR200304-200601

SEAT = TYPE A-*104 & W(SRS SIDE AIR BAG),GRAY,TRIM1#

sub71072-2J581

main71072-2J590-B1iACR30,CLR30..RHD..07S..EUR200304-200601

SEAT = TYPE D-*104 & W(SRS SIDE AIR BAG),GRAY,TRIM1#

main71072-2J610-B0iACR30..GL..ARL;ACR30..RHD..ATM..EUR200304-200601

SEAT = TYPE B-*104 & W(SRS SIDE AIR BAG),GRAY,TRIM1#

main71072-2J620-B1iACR30..GL..ARL200304-200601

SEAT = TYPE D-*104 & W(SEAT HEATER & SRS SIDE AIR BAG),GRAY,TRIM1#

main71072-2J630-B0iACR30,CLR30..LHD..EUR200304-200311

SEAT = TYPE A-*104,GRAY,TRIM1#

main71072-2J640-B0iACR30,CLR30..LHD..EUR200311-200601

SEAT = TYPE A-*104,GRAY,TRIM1#

sub71072-2J641

main71072-2J640-B0iACR30,CLR30..LHD..EUR200304-200311

SEAT = TYPE A-*104 & W(SRS SIDE AIR BAG),GRAY,TRIM1#

sub71072-2J641

main71072-2J650-B0iACR30,CLR30..LHD..EUR200304-200311

SEAT = TYPE A-*104 & W(SEAT HEATER),GRAY,TRIM1#

main71072-2J660-B0iACR30,CLR30..LHD..EUR200311-200601

SEAT = TYPE A-*104 & W(SEAT HEATER),GRAY,TRIM1#

sub71072-2J661

main71072-2J660-B0iACR30,CLR30..LHD..EUR200304-200311

SEAT = TYPE A-*104 & W(SEAT HEATER & SRS SIDE AIR BAG),GRAY,TRIM1#

sub71072-2J661

main71072-2J670-B1iACR30,CLR30..LHD..(06S,07S)..EUR200304-200311

SEAT = TYPE D-*104 & W(SRS SIDE AIR BAG),GRAY,TRIM1#

main71072-2J670-B1iACR30,CLR30..LHD..(06S,07S)..EUR200311-200601

SEAT = TYPE D-*104,GRAY,TRIM1#

main71072-2J680-B1iACR30..06S..ATM;ACR30,CLR30..LHD..(06S,07S)..MTM200304-200601

SEAT = TYPE D-*104 & W(SEAT HEATER & SRS SIDE AIR BAG),GRAY,TRIM1#

main71072-2J680-B1iACR30,CLR30..LHD..(06S,07S)..EUR200311-200601

SEAT = TYPE D-*104 & W(SEAT HEATER),GRAY,TRIM1#

main71072-2J690-B0iACR30..GL..GCC200304-200601

SEAT = TYPE C-*104,GRAY,TRIM1#

main71072-2J700-B0iACR30..DX..GCC200304-200601

SEAT = TYPE B-*104,GRAY,TRIM1#

main71072-2J710-B0iACR30..GEN200304-200601

SEAT = TYPE B-*104 & W(SRS SIDE AIR BAG),GRAY,TRIM1#

71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71073-28A00-B1iACR30..LHD..07S..ATM..EUR200304-200601

TAIWAN SPEC;SEAT = TYPE D-*104,GRAY,TRIM1#

main71073-2J570-B0iACR30..08S..EUR200002-200304

SEAT = TYPE A-*104 & DTACHBL SEAT,LT. GRAY,TRIM11

main71073-2J570-B1iCLR30..08S200102-200304

SEAT = TYPE A-*104,MEDIUM CHARCOAL,TRIM12

main71073-2J570-B1iCLR30..07S;ACR30..(07S,08S)..EUR200002-200304

SEAT = TYPE A-*104 & DTACHBL SEAT,MEDIUM CHARCOAL,TRIM12

main71073-2J570-B4iACR30,CLR30..08S..EUR200102-200304

SEAT = TYPE A-*104 & DTACHBL SEAT,BLUISH GRAY,TRIM11

main71073-2J570-B4iACR30,CLR30..08S..EUR200102-200304

SEAT = TYPE A-*104,BLUISH GRAY,TRIM11

main71073-2J580-B0iACR30..DX200002-200102

SEAT = TYPE A-*104 & W(ARMREST),LT. GRAY,TRIM11

main71073-2J580-B1iACR30,CLR30..DX..(ARL,EUR,GEN)200002-200304

SEAT = TYPE A-*104 & W(ARMREST),MEDIUM CHARCOAL,TRIM12

main71073-2J580-B4iACR30,CLR30..DX..(ARL,EUR,GEN)200102-200304

SEAT = TYPE A-*104 & W(ARMREST),BLUISH GRAY,TRIM11

main71073-2J620-B0iACR30..LHD..EUR200002-200102

SEAT = TYPE A-*104 & W(SEAT HEATER & ARMREST),LT. GRAY,TRIM11

main71073-2J620-B1iACR30,CLR30..LHD..EUR200002-200304

SEAT = TYPE A-*104 & W(SEAT HEATER & ARMREST),MEDIUM CHARCOAL,TRIM12

main71073-2J620-B4iACR30,CLR30..LHD..EUR200102-200304

SEAT = TYPE A-*104 & W(SEAT HEATER & ARMREST),BLUISH GRAY,TRIM11

main71073-2J680-B0iACR30..LHD..(07S,08S)..EUR200002-200102

SEAT = TYPE A-*104 & W(SEAT HEATER),LT. GRAY,TRIM11

main71073-2J680-B1iACR30,CLR30..LHD..(07S,08S)..EUR200002-200304

SEAT = TYPE A-*104 & W(SEAT HEATER),MEDIUM CHARCOAL,TRIM12

main71073-2J680-B4iACR30,CLR30..LHD..(07S,08S)..EUR200102-200304

SEAT = TYPE A-*104 & W(SEAT HEATER),BLUISH GRAY,TRIM11

main71073-2J750-B0iACR30..GL..GEN;ACR30..DX..GCC;ACR30..RHD..07S..ATM200002-200304

SEAT = TYPE B-*104,LT. GRAY,TRIM11

main71073-2J750-B1iACR30..GL..GEN;ACR30..DX..GCC;ACR30..RHD..07S..ATM200002-200304

SEAT = TYPE B-*104,MEDIUM CHARCOAL,TRIM12

main71073-2J870-B0iACR30,CLR30..(06S,07S)..EUR200102-200304

SEAT = TYPE G-*104 & W(ARMREST),BLUISH GRAY,TRIM1#

main71073-2J890-B0iACR30,CLR30..LHD..(06S,07S)..EUR200102-200304

SEAT = TYPE G-*104 & W(SEAT HEATER & ARMREST),BLUISH GRAY,TRIM1#

main71073-2R110-B0iACR30..GL..GCC200105-200302

LT. GRAY,TRIM11

sub71073-2R111

main71073-2R110-B1iACR30..LHD..07S..ATM..(EUR,GCC)200105-200208

MEDIUM CHARCOAL,TRIM12

sub71073-2R111

main71073-2R111-B0iACR30..LHD..07S..ATM..(EUR,GCC)200302-200304

SEAT = TYPE C-*104,LT. GRAY,TRIM11

main71073-2R111-B1iACR30..LHD..07S..ATM..(EUR,GCC)200208-200304

SEAT = TYPE C-*104,MEDIUM CHARCOAL,TRIM12

main71073-2R400-B0iACR30,CLR30..EUR200304-200601

SEAT = TYPE A-*104,GRAY,TRIM1#

main71073-2R410-B0iACR30,CLR30..RHD..08S..EUR200304-200311

SEAT = TYPE A-*104;W(SRS SIDE AIR BAG),GRAY,TRIM1#

sub71073-2R411

main71073-2R410-B0iCLR30..LHD..08S;ACR30,CLR30..(06S,07S)..EUR200304-200601

SEAT = TYPE A-*104 & W(SRS SIDE AIR BAG),GRAY,TRIM1#

sub71073-2R411

main71073-2R410-B0iACR30..08S..ATM..EUR200311-200601

SEAT = TYPE A-*104,GRAY,TRIM1#

sub71073-2R411

main71073-2R440-B1iACR30,CLR30..(06S,07S)..EUR200304-200311

SEAT = TYPE D-*104 & W(SRS SIDE AIR BAG),GRAY,TRIM1#

main71073-2R440-B1iACR30,CLR30..(06S,07S)..EUR200311-200601

SEAT = TYPE D-*104,GRAY,TRIM1#

main71073-2R450-B0iACR30..GL..ARL;ACR30..DX..GCC;ACR30..RHD..ATM..EUR200304-200601

SEAT = TYPE B-*104,GRAY,TRIM1#

main71073-2R460-B0iACR30..RHD..ATM..EUR;ACR30..GL..(ARL,GEN)200304-200601

SEAT = TYPE B-*104 & W(SRS SIDE AIR BAG),GRAY,TRIM1#

main71073-2R470-B1iACR30..GL..ARL;ACR30..LHD..07S..ATM..EUR200304-200601

SEAT = TYPE D-*104 & W(SEAT HEATER & SRS SIDE AIR BAG),GRAY,TRIM1#

main71073-2R470-B1iACR30..GEN200304-200601

SEAT = TYPE D-*104,GRAY,TRIM1#

main71073-2R470-B1iACR30,CLR30..LHD..(06S,07S)..EUR200311-200601

SEAT = TYPE D-*104 & W(SEAT HEATER),GRAY,TRIM1#

main71073-2R480-B0iACR30,CLR30..LHD..EUR200304-200311

SEAT = TYPE A-*104 & W(SEAT HEATER),GRAY,TRIM1#

main71073-2R490-B0iACR30,CLR30..LHD..EUR200311-200601

SEAT = TYPE A-*104 & W(SEAT HEATER),GRAY,TRIM1#

sub71073-2R491

main71073-2R490-B0iACR30,CLR30..LHD..EUR200304-200311

SEAT = TYPE A-*104 & W(SEAT HEATER & SRS SIDE AIR BAG),GRAY,TRIM1#

sub71073-2R491

main71073-2R500-B0iACR30..GL..GCC200304-200601

SEAT = TYPE C-*104,GRAY,TRIM1#

71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71073-2J570-B0iACR30..08S..EUR;ACR30..LHD..07S..EUR200002-200102

SEAT = TYPE A-*104,LT. GRAY,TRIM11

main71073-2J570-B1iACR30,CLR30..08S..EUR;ACR30,CLR30..LHD..07S..EUR200002-200304

SEAT = TYPE A-*104,MEDIUM CHARCOAL,TRIM12

main71073-2J570-B4iACR30,CLR30..08S..EUR;ACR30,CLR30..LHD..07S..EUR200102-200304

SEAT = TYPE A-*104,BLUISH GRAY,TRIM11

main71073-2J590-B0iACR30..08S;ACR30..LHD..07S..EUR200002-200102

SEAT = TYPE A-*104 & W(ARMREST),LT. GRAY,TRIM11

main71073-2J590-B1iACR30,CLR30..LHD..07S..EUR;ACR30,CLR30..08S..(ARL,EUR,GEN)200002-200304

SEAT = TYPE A-*104 & W(ARMREST),MEDIUM CHARCOAL,TRIM12

main71073-2J590-B3iACR30,CLR30..LHD..07S..EUR;ACR30,CLR30..08S..(ARL,EUR,GEN)200102-200304

SEAT = TYPE A-*104 & W(ARMREST),BLUISH GRAY,TRIM11

main71073-2J630-B0iACR30..LHD..(07S,08S)..EUR200002-200102

SEAT = TYPE A-*104 & W(SEAT HEATER & ARMREST),LT. GRAY,TRIM11

main71073-2J630-B1iACR30,CLR30..LHD..(07S,08S)..EUR200002-200304

SEAT = TYPE A-*104 & W(SEAT HEATER & ARMREST),MEDIUM CHARCOAL,TRIM12

main71073-2J630-B3iACR30,CLR30..LHD..(07S,08S)..EUR200102-200304

SEAT = TYPE A-*104 & W(SEAT HEATER & ARMREST),BLUISH GRAY,TRIM11

main71073-2J640-B0iACR30..GL..(ARL,GEN)200002-200304

SEAT = TYPE B-*104,LT. GRAY,TRIM11

main71073-2J640-B1iACR30..GL..(ARL,GEN)200002-200304

SEAT = TYPE B-*104,MEDIUM CHARCOAL,TRIM12

main71073-2J690-B0iACR30..LHD..(07S,08S)..EUR200002-200102

SEAT = TYPE A-*104 & W(SEAT HEATER),LT. GRAY,TRIM11

main71073-2J690-B1iACR30,CLR30..LHD..(07S,08S)..EUR200002-200304

SEAT = TYPE A-*104 & W(SEAT HEATER),MEDIUM CHARCOAL,TRIM12

main71073-2J690-B3iACR30,CLR30..LHD..(07S,08S)..EUR200102-200304

SEAT = TYPE A-*104 & W(SEAT HEATER),BLUISH GRAY,TRIM11

main71073-2J800-B2iACR30..RHD..07S..ATM..EUR200002-200304

SEAT = TYPE B-*104,LT. GRAY,TRIM11

main71073-2J800-B3iACR30..RHD..07S..ATM..EUR200002-200304

SEAT = TYPE B-*104,MEDIUM CHARCOAL,TRIM12

main71073-2J810-B4iACR30..(06S,07S)..EUR200002-200102

SEAT = TYPE A-*104 & DTACHBL SEAT & W(ARMREST),LT. GRAY,TRIM11

main71073-2J810-B5iACR30,CLR30..(06S,07S)..EUR200002-200304

SEAT = TYPE A-*104 & DTACHBL SEAT & W(ARMREST),MEDIUM CHARCOAL,TRIM12

main71073-2J810-B9iACR30,CLR30..(06S,07S)..EUR200102-200304

SEAT = TYPE A-*104 & DTACHBL SEAT & W(ARMREST),BLUISH GRAY,TRIM11

main71073-2J820-B4iACR30..LHD..(06S,07S)..EUR200002-200102

SEAT = TYPE A-*104 & W(SEAT HEATER & ARMREST) & DTACHBL,LT. GRAY,TRIM11

main71073-2J820-B5iACR30,CLR30..LHD..(06S,07S)..EUR200002-200304

SEAT = TYPE A-*104 & W(SEAT HEATER & ARMREST) & DTACHBL,MEDIUM CHARCOAL,TRIM12

main71073-2J820-B9iACR30,CLR30..LHD..(06S,07S)..EUR200102-200304

SEAT = TYPE A-*104 & W(SEAT HEATER & ARMREST) & DTACHBL,BLUISH GRAY,TRIM11

main71073-2J840-B4iACR30..07S..EUR200002-200102

SEAT = TYPE A-*104 & DTACHBL SEAT,LT. GRAY,TRIM11

main71073-2J840-B5iACR30,CLR30..07S..EUR200002-200304

SEAT = TYPE A-*104 & DTACHBL SEAT,MEDIUM CHARCOAL,TRIM12

main71073-2J840-B9iACR30,CLR30..07S..EUR200102-200304

SEAT = TYPE A-*104 & DTACHBL SEAT,BLUISH GRAY,TRIM11

main71073-2J850-B4iACR30..LHD..07S..EUR200002-200102

SEAT = TYPE A-*104 & W(SEAT HEATER) & DTACHBL,LT. GRAY,TRIM11

main71073-2J850-B5iACR30,CLR30..LHD..07S..EUR200002-200304

SEAT = TYPE A-*104 & W(SEAT HEATER) & DTACHBL,MEDIUM CHARCOAL,TRIM12

main71073-2J850-B9iACR30,CLR30..LHD..07S..EUR200102-200304

SEAT = TYPE A-*104 & W(SEAT HEATER) & DTACHBL,BLUISH GRAY,TRIM11

main71073-2R030-B0iACR30,CLR30..(06S,07S)..EUR200102-200304

SEAT = TYPE G-*104 & W(ARMREST),BLUISH GRAY,TRIM1#

main71073-2R040-B0iACR30,CLR30..LHD..(06S,07S)..EUR200102-200304

SEAT = TYPE G-*104 & W(SEAT HEATER & ARMREST),BLUISH GRAY,TRIM1#

main71073-2R090-B0iACR30..GL..GCC200105-200302

LT. GRAY,TRIM11

sub71073-2R091

main71073-2R090-B1iACR30..GL..GCC200105-200208

MEDIUM CHARCOAL,TRIM12

sub71073-2R091

main71073-2R091-B0iACR30..LHD..07S..ATM..(EUR,GCC)200302-200304

SEAT = TYPE C-*104,LT. GRAY,TRIM11

main71073-2R091-B1iACR30..LHD..07S..ATM..(EUR,GCC)200208-200304

SEAT = TYPE C-*104,MEDIUM CHARCOAL,TRIM12

main71073-2R100-B0iACR30..DX..GCC200105-200304

SEAT = TYPE B-*104,LT. GRAY,TRIM11

main71073-2R100-B1iACR30..DX..GCC200105-200304

SEAT = TYPE B-*104,MEDIUM CHARCOAL,TRIM12

main71074-28A00-B0iACR30..08S..ATM..(EUR,GCC)200304-200601

SEAT = TYPE B-*104,GRAY,TRIM1#

main71074-28A30-B1iACR30..LHD..07S..ATM..EUR200304-200311

EUROPE N1 SPEC;SEAT = TYPE D-*104 & W(SRS SIDE AIR BAG),GRAY,TRIM1#

main71074-28A30-B1iACR30..LHD..07S..ATM..EUR200311-200601

EUROPE N1 SPEC;SEAT = TYPE D-*104,GRAY,TRIM1#

main71074-28A40-B1iACR30..LHD..07S..ATM..EUR200304-200601

TAIWAN SPEC;SEAT = TYPE D-*104,GRAY,TRIM1#

main71074-28B00-B0iACR30..GL..GCC200304-200601

SEAT = TYPE C-*104,GRAY,TRIM1#

main71074-28B10-B0iACR30..08S..ATM..EUR200304-200601

SEAT = TYPE B-*104 & W(SRS SIDE AIR BAG),GRAY,TRIM1#

main71074-2J760-B0iACR30,CLR30..08S..EUR200304-200311

SLOVAKIA SPEC & SEAT = TYPE A-*104,GRAY,TRIM1#

main71074-2J760-B0iACR30,CLR30..LHD..07S..EUR200304-200601

SEAT = TYPE A-*104,GRAY,TRIM1#

main71074-2J770-B0iACR30,CLR30..LHD..07S..EUR200304-200601

SEAT = TYPE A-*104 & W(SRS SIDE AIR BAG),GRAY,TRIM1#

sub71074-2J771

main71074-2J770-B0iACR30,CLR30..LHD..07S..EUR200304-200311

EUROPE N1 SPEC;SEAT = TYPE A-*104 & W(SRS SIDE AIR BAG),GRAY,TRIM1#

sub71074-2J771

main71074-2J770-B0iACR30..08S..ATM..EUR200311-200405

SEAT = TYPE A-*104,GRAY,TRIM1#

sub71074-2J771

main71074-2J770-B0iACR30,CLR30..08S..MTM;ACR30,CLR30..LHD..07S..EUR200311-200601

EUROPE N1 SPEC;SEAT = TYPE A-*104,GRAY,TRIM1#

sub71074-2J771

main71074-2J780-B0iACR30,CLR30..(06S,07S)..EUR200304-200311

SEAT = TYPE A-*104,GRAY,TRIM1#

main71074-2J790-B0iACR30,CLR30..(06S,07S)..EUR200311-200601

SEAT = TYPE A-*104,GRAY,TRIM1#

sub71074-2J791

main71074-2J790-B0iACR30,CLR30..(06S,07S)..EUR200304-200311

SEAT = TYPE A-*104 & W(SRS SIDE AIR BAG),GRAY,TRIM1#

sub71074-2J791

main71074-2J800-B1iACR30,CLR30..(06S,07S)..EUR200304-200311

SEAT = TYPE D-*104 & W(SRS SIDE AIR BAG),GRAY,TRIM1#

main71074-2J800-B1iACR30,CLR30..(06S,07S)..EUR200311-200601

SEAT = TYPE D-*104,GRAY,TRIM1#

main71074-2J830-B0iACR30..RHD..07S..ATM..EUR200304-200601

SEAT = TYPE B-*104,GRAY,TRIM1#

main71074-2J840-B0iACR30..RHD..07S..ATM..EUR200304-200601

SEAT = TYPE B-*104 & W(SRS SIDE AIR BAG),GRAY,TRIM1#

main71074-2J850-B1iACR30..GL..(ARL,GEN)200304-200601

BELGIUM SPEC & SEAT = TYPE D-*104 & W(SEAT HEATER & SRS SIDE AIR BAG),GRAY,TRIM1#

main71074-2J850-B1iACR30..GL..(ARL,GEN)200304-200601

SEAT = TYPE D-*104 & W(SEAT HEATER & SRS SIDE AIR BAG),GRAY,TRIM1#

main71074-2J860-B0iACR30..GL..ARL200304-200601

SEAT = TYPE B-*104,GRAY,TRIM1#

main71074-2J870-B0iACR30..GL..(ARL,GEN)200304-200601

SEAT = TYPE B-*104 & W(SRS SIDE AIR BAG),GRAY,TRIM1#

main71074-2J880-B0iACR30,CLR30..LHD..07S..EUR200304-200311

DENMARK SPEC & SEAT = TYPE A-*104 & W(SEAT HEATER),GRAY,TRIM1#

main71074-2J880-B0iACR30,CLR30..LHD..07S..EUR200304-200311

SEAT = TYPE A-*104 & W(SEAT HEATER),GRAY,TRIM1#

main71074-2J890-B0iACR30,CLR30..LHD..(07S,08S)..EUR200304-200311

EUROPE N1 SPEC;SEAT = TYPE A-*104 & W(SEAT HEATER & SRS SIDE AIR BAG),GRAY,TRIM1#

sub71074-2J891

main71074-2J890-B0iACR30,CLR30..LHD..(07S,08S)..EUR200311-200601

EUROPE N1 SPEC;SEAT = TYPE A-*104 & W(SEAT HEATER),GRAY,TRIM1#

sub71074-2J891

main71074-2R010-B0iACR30,CLR30..LHD..(06S,07S)..EUR200304-200311

SEAT = TYPE A-*104 & W(SEAT HEATER),GRAY,TRIM1#

main71074-2R020-B0iACR30,CLR30..LHD..(06S,07S)..EUR200311-200601

SEAT = TYPE A-*104 & W(SEAT HEATER),GRAY,TRIM1#

sub71074-2R021

main71074-2R020-B0iACR30,CLR30..LHD..(06S,07S)..EUR200304-200311

SEAT = TYPE A-*104 & W(SEAT HEATER & SRS SIDE AIR BAG),GRAY,TRIM1#

sub71074-2R021

main71074-2R040-B1iACR30,CLR30..LHD..(06S,07S)..EUR200304-200311

SEAT = TYPE D-*104 & W(SEAT HEATER & SRS SIDE AIR BAG),GRAY,TRIM1#

main71074-2R040-B1iACR30,CLR30..LHD..(06S,07S)..EUR200311-200601

SEAT = TYPE D-*104 & W(SEAT HEATER),GRAY,TRIM1#

71410SCUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

main71410-2J400-B0iACR30..RHD..DX200002-200102

SEAT = TYPE A-*104 & W(ARMREST),LT.BLUISH GRAY,TRIM11

sub71410-2J401

main71410-2J400-B1iACR30,CLR30..RHD..DX200002-200202

SEAT = TYPE A-*104 & W(ARMREST),MD.CHARCOAL,TRIM12

sub71410-2J401

main71410-2J400-B4iACR30,CLR30..RHD..DX200102-200202

SEAT = TYPE A-*104 & W(ARMREST),LT.BLUISH GRAY,TRIM11

sub71410-2J401

main71410-2J401-B0iACR30,CLR30..RHD..DX200202-200304

SEAT = TYPE A-*104 & W(ARMREST),LT.BLUISH GRAY,TRIM11

main71410-2J401-B1iACR30,CLR30..RHD..DX200202-200304

SEAT = TYPE A-*104 & W(ARMREST),CHARCOAL,TRIM12

main71410-2J420-B0iACR30..LHD..DX200002-200102

SEAT = TYPE A-*104,LT.BLUISH GRAY,TRIM11

sub71410-2J421

main71410-2J420-B1iACR30,CLR30..LHD..DX..(EUR,GEN)200002-200202

SEAT = TYPE A-*104,MD.CHARCOAL,TRIM12

sub71410-2J421

main71410-2J420-B4iACR30,CLR30..LHD..DX..(EUR,GEN)200102-200202

SEAT = TYPE A-*104,LT.BLUISH GRAY,TRIM11

sub71410-2J421

main71410-2J421-B0iACR30,CLR30..LHD..DX..(EUR,GEN)200202-200304

SEAT = TYPE A-*104,LT.BLUISH GRAY,TRIM11

main71410-2J421-B1iACR30,CLR30..LHD..DX..(EUR,GEN)200202-200304

SEAT = TYPE A-*104,CHARCOAL,TRIM12

main71410-2J430-B0iACR30..LHD..EUR200002-200102

SEAT = TYPE A-*104 & W(SEAT HEATER),LT.BLUISH GRAY,TRIM11

sub71410-2J431

main71410-2J430-B1iACR30,CLR30..LHD..EUR200002-200202

SEAT = TYPE A-*104 & W(SEAT HEATER),MD.CHARCOAL,TRIM12

sub71410-2J431

main71410-2J430-B4iACR30,CLR30..LHD..EUR200102-200202

SEAT = TYPE A-*104 & W(SEAT HEATER),LT.BLUISH GRAY,TRIM11

sub71410-2J431

main71410-2J431-B0iACR30,CLR30..LHD..EUR200202-200304

SEAT = TYPE A-*104 & W(SEAT HEATER),LT.BLUISH GRAY,TRIM11

main71410-2J431-B1iACR30,CLR30..LHD..EUR200202-200304

SEAT = TYPE A-*104 & W(SEAT HEATER),CHARCOAL,TRIM12

main71410-2J440-B0iACR30..GL..GEN200002-200202

SEAT = TYPE B-*104,LT.BLUISH GRAY,TRIM11

sub71410-2J441

main71410-2J440-B1iACR30..GL..GEN200002-200202

SEAT = TYPE B-*104,MD.CHRCOAL,TRIM12

sub71410-2J441

main71410-2J441-B0iACR30..GL..GEN;ACR30..DX..GCC200202-200304

SEAT = TYPE B-*104,LT.BLUISH GRAY,TRIM11

main71410-2J441-B1iACR30..GL..GEN;ACR30..DX..GCC200202-200304

SEAT = TYPE B-*104,CHARCOAL,TRIM12

main71410-2J460-B1iACR30..RHD..07S..ATM..EUR200002-200202

SEAT = TYPE B-*104,LT.BLUISH GRAY,TRIM11

sub71410-2J461

main71410-2J460-B1iACR30..RHD..07S..ATM..EUR200002-200202

HONG KONG, BRUNEI OR SINGAPOLE SPEC, SEAT = TYPE B-*104,LT.BLUISH GRAY,TRIM11

sub71410-2J461

main71410-2J460-B2iACR30..GL..ARL200002-200202

HONG KONG, BRUNEI OR SINGAPOLE SPEC, SEAT = TYPE B-*104,MD.CHARCOAL,TRIM12

sub71410-2J461

main71410-2J460-B2iACR30..GL..ARL200002-200202

SEAT = TYPE B-*104,MD.CHARCOAL,TRIM12

sub71410-2J461

main71410-2J461-B0iACR30..RHD..07S..ATM..EUR200202-200304

SEAT = TYPE B-*104,LT.BLUISH GRAY,TRIM11

main71410-2J461-B0iACR30..RHD..07S..ATM..EUR200202-200304

HONG KONG, BRUNEI OR SINGAPOLE SPEC, SEAT = TYPE B-*104,LT.BLUISH GRAY,TRIM11

main71410-2J461-B1iACR30..GL..ARL200202-200304

SEAT = TYPE B-*104,CHARCOAL,TRIM12

main71410-2J461-B1iACR30..RHD..07S..ATM..EUR200202-200304

HONG KONG, BRUNEI OR SINGAPOLE SPEC, SEAT = TYPE B-*104,CHARCOAL,TRIM12

main71410-2J490-B0iACR30,CLR30..RHD..(06S,07S)..EUR200102-200202

SEAT = TYPE G-*104,LT. BLUISH GRAY,TRIM1#

sub71410-2J491

main71410-2J520-B0iACR30,CLR30..LHD..(06S,07S)..EUR200102-200202

SEAT = TYPE G-*104 & W(SEAT HEATER),LT. BLUISH GRAY,TRIM1#

sub71410-2J521

main71410-2J530-B0iACR30,CLR30..LHD..(06S,07S)..EUR200102-200202

SEAT = TYPE G-*104,LT. BLUISH GRAY,TRIM1#

sub71410-2J531

main71410-2J550-B0iACR30..GL..GCC200105-200202

SEAT = TYPE C-*104,LT.GRAY,TRIM11

sub71410-2J551

main71410-2J550-B1iACR30..GL..GCC200105-200202

SEAT = TYPE C-*104,MEDIUM CHARCOAL,TRIM12

sub71410-2J551

main71410-2J551-B0iACR30..LHD..07S..ATM..(EUR,GCC)200202-200208

LT.BLUISH GRAY,TRIM11

sub71410-2J552

main71410-2J551-B0iACR30..LHD..07S..ATM..(EUR,GCC)200208-200302

LT.BLUISH GRAY,TRIM1#

sub71410-2J552

main71410-2J551-B1iACR30..LHD..07S..ATM..(EUR,GCC)200202-200208

CHARCOAL,TRIM12

sub71410-2J552

71420SCUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)

main71420-2J380-B0iACR30..RHD..DX200002-200102

SEAT = TYPE A-*104 & W(ARMREST),LT.BLUISH GRAY,TRIM11

sub71420-2J381

main71420-2J380-B1iACR30,CLR30..RHD..DX200002-200202

SEAT = TYPE A-*104 & W(ARMREST),MD.CHARCOAL,TRIM12

sub71420-2J381

main71420-2J380-B4iACR30,CLR30..RHD..DX200102-200202

SEAT = TYPE A-*104 & W(ARMREST),LT.BLUISH GRAY,TRIM11

sub71420-2J381

main71420-2J400-B0iACR30..LHD..DX200002-200102

SEAT = TYPE A-*104,LT.BLUISH GRAY,TRIM11

sub71420-2J401

main71420-2J400-B1iACR30,CLR30..LHD..DX..(EUR,GEN)200002-200202

SEAT = TYPE A-*104,MD.CHARCOAL,TRIM12

sub71420-2J401

main71420-2J400-B4iACR30,CLR30..LHD..DX..(EUR,GEN)200102-200202

SEAT = TYPE A-*104,LT.BLUISH GRAY,TRIM11

sub71420-2J401

main71420-2J401-B1iACR30,CLR30..LHD..DX..(EUR,GEN)200302-200304

SEAT = TYPE A-*104,CHARCOAL,TRIM12

main71420-2J410-B0iACR30..LHD..EUR200002-200102

SEAT = TYPE A-*104 & W(SEAT HEATER),LT.BLUISH GRAY,TRIM11

sub71420-2J411

main71420-2J410-B1iACR30,CLR30..LHD..EUR200002-200202

SEAT = TYPE A-*104 & W(SEAT HEATER),MD.CHARCOAL,TRIM12

sub71420-2J411

main71420-2J410-B4iACR30,CLR30..LHD..EUR200102-200202

SEAT = TYPE A-*104 & W(SEAT HEATER),LT.BLUISH GRAY,TRIM11

sub71420-2J411

main71420-2J420-B0iACR30..GL..GEN200002-200202

SEAT = TYPE B-*104,LT.BLUISH GRAY,TRIM11

sub71420-2J421

main71420-2J420-B1iACR30..GL..GEN200002-200202

SEAT = TYPE B-*104,MD.CHARCOAL,TRIM12

sub71420-2J421

main71420-2J450-B1iACR30..RHD..07S..ATM..EUR200002-200202

SEAT = TYPE B-*104 & W(ARMREST),LT.BLUISH GRAY,TRIM11

sub71420-2J451

main71420-2J450-B1iACR30..RHD..07S..ATM..EUR200002-200202

HONG KONG, BRUNEI OR SINGAPOLE SPEC, SEAT = TYPE B-*104,LT.BLUISH GRAY,TRIM11

sub71420-2J451

main71420-2J450-B2iACR30..GL..ARL200002-200202

SEAT = TYPE B-*104 & W(ARMREST),MD.CHARCOAL,TRIM12

sub71420-2J451

main71420-2J450-B2iACR30..GL..ARL200002-200202

HONG KONG, BRUNEI OR SINGAPOLE SPEC, SEAT = TYPE B-*104,MD.CHARCOAL,TRIM12

sub71420-2J451

main71420-2J460-B0iACR30,CLR30..RHD..(06S,07S)..EUR200102-200202

SEAT = TYPE G-*104,LT. BLUISH GRAY,TRIM1#

sub71420-2J461

main71420-2J480-B0iACR30,CLR30..LHD..(06S,07S)..EUR200102-200202

SEAT = TYPE G-*104 & W(SEAT HEATER),LT. BLUISH GRAY,TRIM1#

sub71420-2J481

main71420-2J490-B0iACR30,CLR30..LHD..(06S,07S)..EUR200102-200202

SEAT = TYPE G-*104,LT. BLUISH GRAY,TRIM1#

sub71420-2J491

main71420-2J530-B0iACR30..GL..GCC200105-200202

SEAT = TYPE C-*104,LT.GRAY,TRIM11

sub71420-2J531

main71420-2J530-B1iACR30..GL..GCC200105-200202

SEAT = TYPE C-*104,MEDIUM CHARCOAL,TRIM12

sub71420-2J531

main71420-2J531-B0iACR30..LHD..07S..ATM..(EUR,GCC)200208-200302

LT.BLUISH GRAY,TRIM1#

sub71420-2J532

main71420-2J531-B0iACR30..LHD..07S..ATM..(EUR,GCC)200202-200208

LT.BLUISH GRAY,TRIM11

sub71420-2J532

main71420-2J531-B1iACR30..LHD..07S..ATM..(EUR,GCC)200202-200208

CHARCOAL,TRIM12

sub71420-2J532

main71420-2J532-B1iACR30..LHD..07S..ATM..(EUR,GCC)200302-200304

SEAT = TYPE C-*104,CHARCOAL,TRIM12

71430SBACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

main71430-2J690-B0iACR30..GL..GCC200105-200208

LT.BLUISH GRAY,TRIM11

sub71430-2J691

main71430-2J690-B0iACR30..LHD..07S..ATM..(EUR,GCC)200208-200302

LT.BLUISH GRAY,TRIM1#

sub71430-2J691

main71430-2J690-B1iACR30..GL..GCC200105-200208

MD.CHARCOAL,TRIM12

sub71430-2J691

main71430-2R100-B0iACR30..08S..ATM..EUR200304-200601

SEAT = TYPE A-*104 & W(SRS SIDE AIR BAG),DARK GRAY,TRIM1#

sub71430-2R101

main71430-2R130-B1iACR30,CLR30..(06S,07S)..EUR200304-200601

SEAT = TYPE D-*104 & W(SRS SIDE AIR BAG),DARK GRAY,TRIM1#

main71430-2R150-B0iACR30..RHD..ATM..EUR;ACR30..GL..(ARL,GEN)200304-200601

SEAT = TYPE B-*104 & W(SRS SIDE AIR BAG),DARK GRAY,TRIM1#

main71430-2R160-B1iACR30..GL..(ARL,GEN);ACR30,CLR30..LHD..(06S,07S)..EUR200304-200601

SEAT = TYPE D-*104 & W(SEAT HEATER & SRS SIDE AIR BAG),DARK GRAY,TRIM1#

main71430-2R180-B0iACR30,CLR30..LHD..EUR200304-200601

SEAT = TYPE B-*104 & W(SEAT HEATER & SRS SIDE AIR BAG),DARK GRAY,TRIM1#

sub71430-2R181

71440SBACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)

main71440-28A30-B1iACR30..LHD..07S..ATM..EUR200304-200601

SEAT = TYPE D-*104 & W(SEAT HEATER & SRS SIDE AIR BAG),DARK GRAY,TRIM1#

main71440-28A30-B1iACR30..GEN200304-200601

NORWAY SPEC & SEAT = TYPE D-*104 & W(SEAT HEATER & SRS SIDE AIR BAG),DARK GRAY,TRIM1#

main71440-28A40-B1iACR30..LHD..07S..ATM..EUR200304-200601

SLOVAKIA SPEC & SEAT = TYPE D-*104 & W(SRS SIDE AIR BAG),DARK GRAY,TRIM1#

main71440-28B10-B0iACR30..08S..ATM..EUR200304-200601

SEAT = TYPE B-*104,DARK GRAY,TRIM1#

main71440-2J610-B0iACR30..(06S,07S)..EUR200002-200102

SEAT = TYPE A-*104 & DTACHBL SEAT & W(ARMREST),LT.BLUISH GRAY,TRIM11

main71440-2J610-B1iACR30,CLR30..(06S,07S)..EUR200002-200304

SEAT = TYPE A-*104 & DTACHBL SEAT & W(ARMREST),MD.CHARCOAL,TRIM12

main71440-2J610-B4iACR30,CLR30..(06S,07S)..EUR200102-200304

SEAT = TYPE A-*104 & DTACHBL SEAT & W(ARMREST),LT.BLUISH GRAY,TRIM11

main71440-2J620-B0iACR30..LHD..(06S,07S)..EUR200002-200102

SEAT = TYPE A-*104 & DTACHBL SEAT & W(ARMREST & SEAT HEATER),LT.BLUISH GRAY,TRIM11

main71440-2J620-B1iACR30,CLR30..LHD..(06S,07S)..EUR200002-200304

SEAT = TYPE A-*104 & DTACHBL SEAT & W(ARMREST & SEAT HEATER),MD.CHARCOAL,TRIM12

main71440-2J620-B4iACR30,CLR30..LHD..(06S,07S)..EUR200102-200304

SEAT = TYPE A-*104 & DTACHBL SEAT & W(ARMREST & SEAT HEATER),LT.BLUISH GRAY,TRIM11

main71440-2J640-B0iACR30..LHD..07S..ATM..(EUR,GCC)200105-200302

LT.GRAY,TRIM11

sub71440-2J641

main71440-2J640-B1iACR30..LHD..07S..ATM..(EUR,GCC)200105-200208

MEDIUM CHARCOAL,TRIM12

sub71440-2J641

main71440-2J641-B0iACR30..LHD..07S..ATM..(EUR,GCC)200302-200304

SEAT = TYPE C-*104,LT.BLUISH GRAY,TRIM11

main71440-2J641-B1iACR30..LHD..07S..ATM..(EUR,GCC)200208-200304

SEAT = TYPE C-*104,CHARCOAL,TRIM12

main71440-2R070-B0iACR30..08S..ATM..EUR200304-200601

SEAT = TYPE A-*104 & W(SRS SIDE AIR BAG),DARK GRAY,TRIM1#

sub71440-2R071

main71440-2R070-B0iACR30..DX..ARL;ACR30,CLR30..08S..MTM200304-200601

EUROPE N1 SPEC;SEAT = TYPE A-*104 & W(SRS SIDE AIR BAG),DARK GRAY,TRIM1#

sub71440-2R071

main71440-2R090-B0iACR30,CLR30..(06S,07S)..EUR200304-200601

SEAT = TYPE A-*104 & W(SRS SIDE AIR BAG),DARK GRAY,TRIM1#

sub71440-2R091

main71440-2R100-B1iACR30,CLR30..RHD..07S..EUR200304-200601

SEAT = TYPE D-*104 & W(SRS SIDE AIR BAG),DARK GRAY,TRIM1#

main71440-2R140-B0iACR30..RHD..07S..ATM..EUR200304-200601

SEAT = TYPE B-*104 & W(SRS SIDE AIR BAG),DARK GRAY,TRIM1#

main71440-2R170-B0iACR30..GL..(ARL,GEN)200304-200601

SEAT = TYPE B-*104 & W(SRS SIDE AIR BAG),DARK GRAY,TRIM1#

main71440-2R190-B0iCLR30..LHD..08S200304-200404

SEAT = TYPE A-*104 & W(SEAT HEATER & SRS SIDE AIR BAG),DARK GRAY,TRIM1#

sub71440-2R191

main71440-2R190-B0iACR30,CLR30..LHD..07S..EUR200304-200601

EUROPE N1 SPEC;SEAT = TYPE A-*104 & W(SEAT HEATER & SRS SIDE AIR BAG),DARK GRAY,TRIM1#

sub71440-2R191

main71440-2R210-B0iACR30,CLR30..LHD..(06S,07S)..EUR200304-200601

SEAT = TYPE A-*104 & W(SEAT HEATER & SRS SIDE AIR BAG),DARK GRAY,TRIM1#

sub71440-2R211

main71440-2R220-B1iACR30,CLR30..LHD..(06S,07S)..EUR200304-200601

SEAT = TYPE D-*104 & W(SRS SIDE AIR BAG),DARK GRAY,TRIM1#

main71440-2R230-B1iACR30,CLR30..LHD..(06S,07S)..EUR200304-200601

SEAT = TYPE D-*104 & W(SEAT HEATER & SRS SIDE AIR BAG),DARK GRAY,TRIM1#

71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71052-28030iACR30,CLR30..LHD..EUR200311-200601

W(PASSENGER SEAT BELT WARNING)

main71052-28050iACR30,CLR30..LHD..(06S,07S)..EUR200311-200601

LEATHER SEAT & W(PASSENGER SEAT BELT WARNING)

main71511-28220iACR30,CLR30200002-200601

main71511-28230iACR30,CLR30..(06S,07S)..EUR200102-200304

LEATHER SEAT

main71511-28280iACR30,CLR30..RHD..07S..EUR200304-200601

LEATHER SEAT

71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

main71052-28030iCLR30..RHD;ACR30..08S..MTM;ACR30..RHD..07S..EUR200311-200601

W(PASSENGER SEAT BELT WARNING)

main71052-28050iACR30,CLR30..RHD..07S..EUR200311-200601

LEATHER SEAT & W(PASSENGER SEAT BELT WARNING)

main71511-28220iACR30,CLR30..RHD..MTM200002-200311

main71511-28220iACR30..ATM;ACR30,CLR30..LHD..MTM200304-200601

FABRIC SEAT

main71511-28230iACR30,CLR30..(06S,07S)..EUR200102-200304

LEATHER SEAT

main71511-28280iACR30..GL..(ARL,GEN);ACR30..LHD..07S..ATM..EUR200304-200601

LEATHER SEAT

main71511-28280iACR30,CLR30..LHD..(06S,07S)..(EUR,GEN)200311-200601

71537APROTECTOR, FRONT SEAT CUSHION

main71537-26010iACR30,CLR30200002-200304

main71537-26010iACR30,CLR30200304-200601

NO.1

main71537-28060iACR30,CLR30200304-200601

NO.2

71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71551-28270iACR30,CLR30..LHD..(06S,07S)..EUR200002-200601

W(ARMREST)

sub71551-28310

main71551-28280iACR30,CLR30..(07S,08S)..EUR200002-200304

sub71551-28310

main71551-28320iACR30..LHD..07S..ATM..EUR200110-200304

TAIWAN SPEC

sub71551-28350

main71551-28320iACR30..GL..GCC200105-200304

sub71551-28350

main71551-28330iACR30,CLR30..(06S,07S)..EUR200102-200601

W(ARMREST) & LEATHER SEAT

sub79175-28280

main71551-28450iACR30..DX..ARL;ACR30..RHD..07S..ATM200304-200601

W(SRS SIDE AIR BAG)

main71551-28450iACR30,CLR30..EUR200311-200601

main71551-28480iACR30..GEN200304-200601

LEATHER SEAT

main71551-28480iCLR30..06S,07S;ACR30..LHD..MTM;ACR30..06S..ATM;ACR30..RHD..07S..EUR200304-200601

LEATHER SEAT & W(SRS SIDE AIR BAG)

71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71551-28280iACR30,CLR30..(07S,08S)..EUR200002-200304

sub71551-28310

main71551-28290iACR30..RHD..ATM..EUR200304-200601

EXCEPT EUROPE

sub71551-28310

main71551-28290iACR30,CLR30..ARL,EUR,GEN200002-200304

W(ARMREST)

sub71551-28310

main71551-28290iACR30..DX..GCC200105-200311

sub71551-28310

main71551-28340iACR30..GL..GCC200105-200304

sub71551-28350

main71551-28340iACR30..LHD..07S..ATM..EUR200110-200304

TAIWAN SPEC

sub71551-28350

main71551-28360iACR30..LHD..07S..ATM..EUR200304-200601

TAIWAN SPEC;LEATHER SEAT

sub79175-28280

main71551-28360iACR30,CLR30..(06S,07S)..EUR200102-200304

W(ARMREST) & LEATHER SEAT

sub79175-28280

main71551-28460iACR30..GEN;ACR30..DX..ARL;ACR30..RHD..07S..ATM200304-200601

W(SRS SIDE AIR BAG)

main71551-28460iACR30,CLR30..EUR200311-200601

main71551-28490iACR30..GL..ARL;ACR30..LHD..07S..ATM..EUR200304-200601

LEATHER SEAT

main71551-28490iCLR30..06S,07S;ACR30..LHD..MTM;ACR30..06S..ATM;ACR30..RHD..07S..EUR200304-200601

LEATHER SEAT & W(SRS SIDE AIR BAG)

71630SSPRING ASSY, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71013-28330iACR30..GL..(ARL,GEN)200002-200601

W(ARMREST)

main71013-28330iACR30..GCC200105-200304

main71013-28350iACR30,CLR30..(07S,08S)..EUR200002-200304

71640SSPRING ASSY, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71013-28340iACR30..GCC200105-200304

main71013-28340iACR30,CLR30..ARL,EUR,GEN200002-200601

W(ARMREST)

main71013-28350iACR30,CLR30..(07S,08S)..EUR200002-200304

71910AHEADREST ASSY, FRONT SEAT

main71910-2J070-B2iACR30..DX..GEN;ACR30..RHD..08S..ATM;ACR30..(06S,07S)..EUR200002-200102

SEAT = TYPE A-*104,LT. GRAY,TRIM11

sub71910-2J071

main71910-2J070-B3iACR30..DX..GEN;ACR30..RHD..08S..ATM;ACR30,CLR30..(06S,07S)..EUR200002-200203

SEAT = TYPE A-*104,MEDIUM CHARCOAL,TRIM12

sub71910-2J071

main71910-2J070-B6iACR30..RHD..07S..ATM..EUR200102-200203

SEAT = TYPE B-*104,LT. GRAY,TRIM11

sub71910-2J071

main71910-2J070-B7iACR30..RHD..07S..ATM..EUR200102-200203

SEAT = TYPE B-*104,MEDIUM CHARCOAL,TRIM12

sub71910-2J071

main71910-2J070-B8iACR30..DX..GEN;ACR30..RHD..08S..ATM;ACR30,CLR30..(06S,07S)..EUR200102-200203

SEAT = TYPE A-*104,BLUISH GRAY,TRIM11

sub71910-2J071

main71910-2J071-B3iACR30..DX..GEN;ACR30..RHD..08S..ATM;ACR30,CLR30..(06S,07S)..EUR200203-200304

SEAT = TYPE A-*104,MEDIUM CHARCOAL,TRIM12

main71910-2J071-B8iACR30..DX..GEN;ACR30..RHD..08S..ATM;ACR30,CLR30..(06S,07S)..EUR200203-200304

SEAT = TYPE A-*104,BLUISH GRAY,TRIM11

main71910-2J090-B0iACR30..RHD..07S..ATM..EUR200002-200203

SEAT = TYPE B-*104,LT. GRAY,TRIM11

sub71910-2J091

main71910-2J090-B0iACR30..RHD..07S..ATM..EUR200002-200203

HONG KONG, BRUNEI OR SINGAPOLE SPEC, SEAT = TYPE B-*104,LT. GRAY,TRIM11

sub71910-2J091

main71910-2J090-B0iACR30..DX..GCC200105-200203

LT. GRAY,TRIM11

sub71910-2J091

main71910-2J090-B1iACR30..RHD..07S..ATM..EUR200002-200203

HONG KONG, BRUNEI OR SINGAPOLE SPEC, SEAT = TYPE B-*104,MEDIUM CHARCOAL,TRIM12

sub71910-2J091

main71910-2J090-B1iACR30..GL..(ARL,GEN)200002-200203

SEAT = TYPE B-*104,MEDIUM CHARCOAL,TRIM12

sub71910-2J091

main71910-2J090-B1iACR30..DX..GCC200105-200203

MEDIUM CHARCOAL,TRIM12

sub71910-2J091

main71910-2J091-B0iACR30..GL..GEN;ACR30..DX..GCC;ACR30..RHD..07S..ATM200203-200304

SEAT = TYPE B-*104,LT. GRAY,TRIM11

main71910-2J091-B1iACR30..GL..GEN;ACR30..DX..GCC;ACR30..RHD..07S..ATM200203-200304

SEAT = TYPE B-*104,MEDIUM CHARCOAL,TRIM12

main71910-2J100-B0iACR30..LHD..07S..ATM..(EUR,GCC)200105-200302

LT. GRAY,TRIM11

sub71910-2J101

main71910-2J100-B1iACR30..LHD..07S..ATM..(EUR,GCC)200105-200208

MEDIUM CHARCOAL,TRIM12

sub71910-2J101

main71910-2J101-B0iACR30..LHD..07S..ATM..(EUR,GCC)200302-200304

SEAT = TYPE C-*104,LT. GRAY,TRIM11

main71910-2J101-B1iACR30..LHD..07S..ATM..(EUR,GCC)200208-200304

SEAT = TYPE C-*104,MEDIUM CHARCOAL,TRIM12

main71910-2J190-B0iACR30,CLR30..(06S,07S)..EUR200102-200304

SEAT = TYPE G-*104,BLUISH GRAY,TRIM1#

main71910-2J270-B0iACR30..GL..(ARL,GEN)200304-200601

SEAT = TYPE D-*104,GRAY,TRIM1#

main71910-2J270-B0iACR30,CLR30..(06S,07S)..EUR200311-200601

GRAY,TRIM1#

main71910-2J290-B0iACR30..DX..GCC;ACR30..GL..(ARL,GEN);ACR30..RHD..ATM..EUR200307-200601

SEAT = TYPE B-*104,GRAY,TRIM1#

main71910-2J300-B0iACR30..GL..GCC200307-200601

SEAT = TYPE C-*104,GRAY,TRIM1#

main71910-2J310-B0iACR30,CLR30..(06S,07S)..EUR200304-200601

SEAT = TYPE A-*104,GRAY,TRIM1#

main71940-2J130-B2iACR30..08S..EUR200002-200102

SEAT = TYPE A-*104 & W(ARMREST FRONT SEAT INSIDE),LT. GRAY,TRIM11

main71940-2J130-B3iACR30,CLR30..08S..EUR200002-200203

SEAT = TYPE A-*104 & W(ARMREST FRONT SEAT INSIDE),MEDIUM CHARCOAL,TRIM12

main71940-2J130-B5iACR30,CLR30..08S..EUR200102-200203

SEAT = TYPE A-*104 & W(ARMREST FRONT SEAT INSIDE),BLUISH GRAY,TRIM11

main71940-2J131-B3iACR30,CLR30..08S..EUR200203-200304

SEAT = TYPE A-*104 & W(ARMREST FRONT SEAT INSIDE),MEDIUM CHARCOAL,TRIM12

sub71940-2J131

main71940-2J131-B5iACR30,CLR30..08S..EUR200203-200304

SEAT = TYPE A-*104 & W(ARMREST FRONT SEAT INSIDE),BLUISH GRAY,TRIM11

sub71940-2J131

main71940-2J131-B6iACR30,CLR30..08S..EUR200304-200405

SEAT = TYPE D-*104,GRAY,TRIM1#

sub71940-2J131

71931SUPPORT, FRONT SEAT HEADREST

main71930-30110-B1iACR30,CLR30200002-200304

W(LOCK),MD.CHARCOAL,TRIM12

sub71930-30110

main71930-30110-B2iACR30,CLR30200002-200304

W(LOCK),BLUE GRAY,TRIM11

sub71930-30110

main71930-30110-B9iACR30..GL;ACR30..DX..GCC200304-200601

W(LOCK),MD.GRAY,TRIM1#

sub71930-30110

main71931-30030-B1iACR30,CLR30200002-200304

W/O(LOCK),MD.CHARCOAL,TRIM12

sub71931-30030

main71931-30030-B2iACR30,CLR30200002-200304

W/O(LOCK),BLUE GRAY,TRIM11

sub71931-30030

main71931-30030-B8iACR30..DX..ARL200304-200601

W/O(LOCK),MD.GRAY,TRIM1#

sub71931-30030

72125ACOVER, SEAT TRACK, UPPER REAR

main72125-28030iACR30,CLR30200002-200304

72125DCOVER, SEAT TRACK, UPPER REAR NO.2

main72125-28030iACR30,CLR30200002-200304

72848CAP, NO.3 SEAT ARMREST

main72848-28030-B2iACR30..RHD..07S..ATM..EUR200102-200304

SEAT = TYPE G-*104,BLUISH GRAY,TRIM11

sub72848-28030

sub72848-0E020

main72848-28030-B3iACR30..GL..GCC200105-200304

SEAT = TYPE C-*104,LT. BLUISH GRAY,TRIM11

sub72848-28030

sub72848-0E020

main72848-28030-B3iACR30..GL..GEN;ACR30..RHD..07S..ATM200002-200304

SEAT = TYPE A OR TYPE B-*104,LT. BLUISH GRAY,TRIM11

sub72848-28030

sub72848-0E020

main72848-28030-B4iACR30..GL..GCC200105-200304

SEAT = TYPE C-*104,MD.CHARCOAL,TRIM12

sub72848-28030

sub72848-0E020

main72848-28030-B4iACR30..GL..GEN;ACR30..RHD..07S..ATM200002-200304

SEAT = TYPE A OR TYPE B-*104,MD.CHARCOAL,TRIM12

sub72848-28030

sub72848-0E020

72848ACAP, SEAT ARMREST, NO.1

main72848-28030-B2iCLR30;ACR30..08S..(ARL,EUR,GEN)200102-200304

SEAT = TYPE A-*104,BLUISH GRAY,TRIM11

sub72848-28030

sub72848-0E020

main72848-28030-B2iACR30..(06S,07S)..EUR200102-200304

SEAT = TYPE A OR TYPE B-*104,BLUISH GRAY,TRIM11

sub72848-28030

sub72848-0E020

main72848-28030-B3iACR30200002-200304

SEAT = TYPE A OR TYPE B-*104,LT. BLUISH GRAY,TRIM11

sub72848-28030

sub72848-0E020

main72848-28030-B3iACR30..GCC200105-200304

SEAT = TYPE C-*104,LT. BLUISH GRAY,TRIM11

sub72848-28030

sub72848-0E020

main72848-28030-B4iACR30,CLR30..ARL,EUR,GEN200002-200304

SEAT = TYPE A OR TYPE B-*104,MD.CHARCOAL,TRIM12

sub72848-28030

sub72848-0E020

main72848-28030-B4iACR30..DX..GCC;ACR30..LHD..07S..ATM..(EUR,GCC)200105-200304

SEAT = TYPE C-*104,MD.CHARCOAL,TRIM12

sub72848-28030

sub72848-0E020

main72848-28030-B6iACR30..GL;ACR30..DX..GCC200304-200601

MD.GRAY,TRIM1#

sub72848-28030

sub72848-0E020

72849CAP, SEAT ARMREST, NO.2

main72848-28030-B2iACR30..RHD..07S..ATM..EUR200102-200304

SEAT = TYPE G-*104,BLUISH GRAY,TRIM11

sub72848-28030

sub72848-0E020

main72848-28030-B3iACR30..GL..GEN;ACR30..RHD..07S..ATM200002-200304

SEAT = TYPE A OR TYPE B-*104,LT. BLUISH GRAY,TRIM11

sub72848-28030

sub72848-0E020

main72848-28030-B3iACR30..GL..GCC200105-200304

SEAT = TYPE C-*104,LT. BLUISH GRAY,TRIM11

sub72848-28030

sub72848-0E020

main72848-28030-B4iACR30..GL..GEN;ACR30..RHD..07S..ATM200002-200304

SEAT = TYPE A OR TYPE B-*104,MD.CHARCOAL,TRIM12

sub72848-28030

sub72848-0E020

main72848-28030-B4iACR30..GL..GCC200105-200304

SEAT = TYPE C-*104,MD.CHARCOAL,TRIM12

sub72848-28030

sub72848-0E020

main72848-28030-B6iACR30..LHD..GL;ACR30..RHD..07S..ATM200307-200601

MD.GRAY,TRIM1#

sub72848-28030

sub72848-0E020

72849BCAP, SEAT ARMREST, NO.1

main72848-28030-B2iACR30..RHD..07S..ATM..EUR200102-200304

REAR SEAT = TYPE H-*104,BLUISH GRAY,TRIM11

sub72848-28030

sub72848-0E020

main72848-28030-B2iACR30..(06S,07S)..EUR200102-200304

SEAT = TYPE A OR TYPE B-*104,BLUISH GRAY,TRIM11

sub72848-28030

sub72848-0E020

main72848-28030-B2iCLR30;ACR30..08S..(ARL,EUR,GEN)200102-200304

SEAT = TYPE A-*104,BLUISH GRAY,TRIM11

sub72848-28030

sub72848-0E020

main72848-28030-B3iACR30..DX..GCC;ACR30..LHD..07S..ATM..(EUR,GCC)200105-200304

SEAT = TYPE C-*104,LT. BLUISH GRAY,TRIM11

sub72848-28030

sub72848-0E020

main72848-28030-B3iACR30..GL..GEN;ACR30..RHD..07S..ATM200002-200304

SEAT = TYPE A OR TYPE B-*104,LT. BLUISH GRAY,TRIM11

sub72848-28030

sub72848-0E020

main72848-28030-B3iACR30..GL..GEN;ACR30..RHD..07S..ATM..EUR200002-200304

REAR SEAT = TYPE E-*104,LT. BLUISH GRAY,TRIM11

sub72848-28030

sub72848-0E020

main72848-28030-B4iACR30..GL..GEN;ACR30..RHD..07S..ATM..EUR200002-200304

REAR SEAT = TYPE E-*104,MD.CHARCOAL,TRIM12

sub72848-28030

sub72848-0E020

main72848-28030-B4iACR30,CLR30..ARL,EUR,GEN200002-200304

SEAT = TYPE A OR TYPE B-*104,MD.CHARCOAL,TRIM12

sub72848-28030

sub72848-0E020

main72848-28030-B4iACR30..GCC200105-200304

SEAT = TYPE C-*104,MD.CHARCOAL,TRIM12

sub72848-28030

sub72848-0E020

main72848-28030-B6iACR30..DX..ARL200304-200601

MD.GRAY,TRIM1#

sub72848-28030

sub72848-0E020

72880AARMREST ASSY, FRONT SEAT, INNER RH

main72890-28680-B0iACR30..DX..GCC;ACR30..GL..(ARL,GEN)200002-200209

SEAT = TYPE B-*104,LT. GRAY,TRIM11

sub72890-28681

main72890-28680-B0iACR30..DX..GCC;ACR30..GL..(ARL,GEN)200002-200209

HONG KONG, BRUNEI OR SINGAPOLE SPEC, SEAT = TYPE B-*104,LT. GRAY,TRIM11

sub72890-28681

main72890-28680-B1iACR30..DX..GCC;ACR30..GL..(ARL,GEN)200002-200209

SEAT = TYPE B-*104,MEDIUM CHARCOAL,TRIM12

sub72890-28681

main72890-28680-B1iACR30..RHD..07S..ATM..EUR200002-200209

HONG KONG, BRUNEI OR SINGAPOLE SPEC, SEAT = TYPE B-*104,MEDIUM CHARCOAL,TRIM12

sub72890-28681

main72890-28681-B0iACR30..GL..GEN;ACR30..DX..GCC;ACR30..RHD..07S..ATM200209-200304

SEAT = TYPE B-*104,LT. GRAY,TRIM11

main72890-28681-B1iACR30..GL..GEN;ACR30..DX..GCC;ACR30..RHD..07S..ATM200209-200304

SEAT = TYPE B-*104,MEDIUM CHARCOAL,TRIM12

main72890-28692-B2iACR30..GL..GCC200307-200601

SEAT = TYPE C-*104,GRAY,TRIM1#

main72890-28700-B0iACR30..DX200002-200102

SEAT = TYPE A-*104,LT. GRAY,TRIM11

sub72890-28701

main72890-28700-B1iACR30,CLR30..DX..(ARL,EUR,GEN)200002-200209

SEAT = TYPE A-*104,MEDIUM CHARCOAL,TRIM12

sub72890-28701

main72890-28700-B4iACR30..RHD..07S..ATM..EUR200102-200105

SEAT = TYPE B-*104,LT. GRAY,TRIM11

sub72890-28701

main72890-28700-B5iACR30..RHD..07S..ATM..EUR200102-200105

SEAT = TYPE B-*104,MEDIUM CHARCOAL,TRIM12

sub72890-28701

main72890-28700-B6iACR30,CLR30..DX..(ARL,EUR,GEN)200102-200209

SEAT = TYPE A-*104,BLUISH GRAY,TRIM11

sub72890-28701

main72890-28701-B1iACR30,CLR30..DX..(ARL,EUR,GEN)200209-200304

SEAT = TYPE A-*104,MEDIUM CHARCOAL,TRIM12

sub72890-28702

main72890-28701-B6iACR30,CLR30..DX..(ARL,EUR,GEN)200209-200304

SEAT = TYPE A-*104,BLUISH GRAY,TRIM11

sub72890-28702

main72890-28701-B9iACR30..DX..ARL200304-200601

SEAT = TYPE A-*104,GRAY,TRIM1#

sub72890-28702

main72890-28710-B0iACR30..LHD..07S..ATM..EUR200110-200302

SEAT = TYPE C-*104,LT. GRAY,TRIM11

sub72890-28712

sub72890-28711

main72890-28710-B0iACR30..GL..GCC200105-200208

LT. GRAY,TRIM11

sub72890-28712

sub72890-28711

main72890-28710-B1iACR30..GL..GCC200105-200208

MEDIUM CHARCOAL,TRIM12

sub72890-28712

sub72890-28711

main72890-28711-B1iACR30..LHD..07S..ATM..(EUR,GCC)200208-200209

SEAT = TYPE C-*104,MEDIUM CHARCOAL,TRIM12

sub72890-28712

main72890-28712-B0iACR30..LHD..07S..ATM..(EUR,GCC)200302-200304

SEAT = TYPE C-*104,LT. GRAY,TRIM11

main72890-28712-B1iACR30..LHD..07S..ATM..(EUR,GCC)200209-200304

SEAT = TYPE C-*104,MEDIUM CHARCOAL,TRIM12

main72890-28740-B0iACR30..LHD..07S..ATM..EUR200102-200209

SEAT = TYPE G-*104,BLUISH GRAY,TRIM11

sub72890-28741

main72890-28740-B0iCLR30..06S,07S;ACR30..LHD..06S..ATM;ACR30..LHD..(06S,07S)..MTM;ACR30..RHD..(06S,07S)..EUR200102-200209

SEAT = TYPE G-*104,BLUISH GRAY,TRIM1#

sub72890-28741

main72890-28741-B0iACR30,CLR30..(06S,07S)..EUR200209-200304

SEAT = TYPE G-*104,BLUISH GRAY,TRIM1#

main72890-28741-B2iACR30..LHD..07S..ATM..EUR200304-200601

SEAT = TYPE D-*104,GRAY,TRIM1#

main72890-28741-B2iACR30,CLR30..(06S,07S)..EUR200311-200601

GRAY,TRIM1#

main72890-28831-B2iACR30..DX..GCC;ACR30..GL..(ARL,GEN);ACR30..RHD..ATM..EUR200307-200601

SEAT = TYPE B-*104,GRAY,TRIM1#

sub72890-28692

sub72890-28712

72890AARMREST ASSY, FRONT SEAT, INNER LH

main72880-28820-B0iACR30..RHD..07S..ATM..EUR200002-200209

SEAT = TYPE B-*104,LT. GRAY,TRIM11

sub72880-28821

main72880-28820-B0iACR30..RHD..07S..ATM..EUR200002-200209

HONG KONG, BRUNEI OR SINGAPOLE SPEC, SEAT = TYPE B-*104,LT. GRAY,TRIM11

sub72880-28821

main72880-28820-B1iACR30..DX..GCC;ACR30..GL..(ARL,GEN)200002-200209

HONG KONG, BRUNEI OR SINGAPOLE SPEC, SEAT = TYPE B-*104,MEDIUM CHARCOAL,TRIM12

sub72880-28821

main72880-28820-B1iACR30..RHD..07S..ATM..EUR200002-200209

SEAT = TYPE B-*104,MEDIUM CHARCOAL,TRIM12

sub72880-28821

main72880-28821-B0iACR30..GL..GEN;ACR30..DX..GCC;ACR30..RHD..07S..ATM200209-200304

SEAT = TYPE B-*104,LT. GRAY,TRIM11

main72880-28821-B1iACR30..GL..GEN;ACR30..DX..GCC;ACR30..RHD..07S..ATM200209-200304

SEAT = TYPE B-*104,MEDIUM CHARCOAL,TRIM12

main72880-28832-B2iACR30..GL..GCC200307-200601

SEAT = TYPE C-*104,GRAY,TRIM1#

main72880-28840-B0iACR30..DX200002-200102

SEAT = TYPE A-*104,LT. GRAY,TRIM11

sub72880-28841

main72880-28840-B1iACR30,CLR30..DX..(ARL,EUR,GEN)200002-200209

SEAT = TYPE A-*104,MEDIUM CHARCOAL,TRIM12

sub72880-28841

main72880-28840-B4iACR30,CLR30..DX..(ARL,EUR,GEN)200102-200209

SEAT = TYPE A-*104,BLUISH GRAY,TRIM11

sub72880-28841

main72880-28841-B1iACR30,CLR30..DX..(ARL,EUR,GEN)200209-200304

SEAT = TYPE A-*104,MEDIUM CHARCOAL,TRIM12

main72880-28841-B4iACR30,CLR30..DX..(ARL,EUR,GEN)200209-200304

SEAT = TYPE A-*104,BLUISH GRAY,TRIM11

main72880-28841-P0iACR30..DX..ARL200304-200601

SEAT = TYPE A-*104,GRAY,TRIM1#

main72880-28850-B0iACR30..LHD..07S..ATM..(EUR,GCC)200110-200302

SEAT = TYPE C-*104,LT. GRAY,TRIM11

sub72880-28852

sub72880-28851

main72880-28850-B0iACR30..GL..GCC200105-200208

LT. GRAY,TRIM11

sub72880-28852

sub72880-28851

main72880-28850-B1iACR30..LHD..07S..ATM..(EUR,GCC)200105-200208

MEDIUM CHARCOAL,TRIM12

sub72880-28852

sub72880-28851

main72880-28851-B1iACR30..LHD..07S..ATM..(EUR,GCC)200208-200209

MEDIUM CHARCOAL,TRIM12

sub72880-28852

main72880-28852-B0iACR30..LHD..07S..ATM..(EUR,GCC)200302-200304

SEAT = TYPE C-*104,LT. GRAY,TRIM11

main72880-28852-B1iACR30..LHD..07S..ATM..(EUR,GCC)200209-200304

SEAT = TYPE C-*104,MEDIUM CHARCOAL,TRIM12

main72880-28870-B0iACR30,CLR30..(06S,07S)..EUR200102-200209

SEAT = TYPE G-*104,BLUISH GRAY,TRIM1#

sub72880-28871

main72880-28871-B0iACR30,CLR30..(06S,07S)..EUR200209-200304

SEAT = TYPE G-*104,BLUISH GRAY,TRIM1#

main72880-28871-B2iACR30..LHD..07S..ATM..EUR200304-200601

SEAT = TYPE D-*104,GRAY,TRIM1#

main72880-28871-B2iACR30,CLR30..(06S,07S)..EUR200311-200601

GRAY,TRIM1#

main72880-2J071-B2iACR30..DX..GCC;ACR30..GL..(ARL,GEN);ACR30..RHD..ATM..EUR200307-200601

SEAT = TYPE B-*104,GRAY,TRIM1#

sub72880-28852

9011910911

main90119-10911

9151581025

main91515-81025

9353055016

main93530-55016

30 parts on this diagram · 21 diagrams in section
