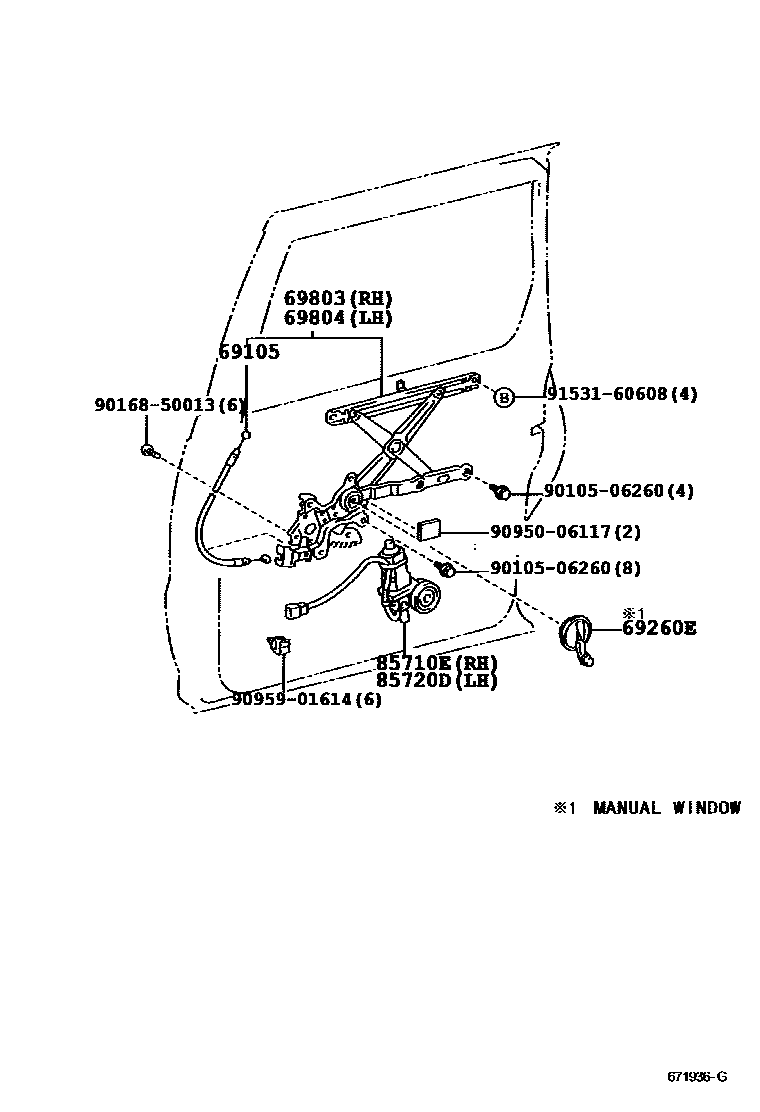

Toyota PREVIA/TARAGO — REAR DOOR WINDOW REGULATOR & HINGE

69105CABLE SUB-ASSY, SLIDE DOOR HALF STOP CONTROL

main69105-28010iACR30,CLR30200002-200304

W(POWER WINDOW)

main69105-28020iACR30,CLR30..(07S,08S)..DX200002-200304

69260EHANDLE ASSY, REAR DOOR WINDOW REGULATOR

main69260-28030-B0iACR30..(07S,08S)..DX200002-200102

LT. BLUISH GRAY,TRIM11

sub69260-28030

main69260-28030-B1iACR30,CLR30..(07S,08S)..DX200002-200304

MD.CHARCOAL,TRIM12

sub69260-28030

main69260-28030-B2iACR30,CLR30..(07S,08S)..DX200102-200304

BLUISH GRAY,TRIM11

sub69260-28030

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69803-28010iACR30,CLR30200002-200304

W(POWER WINDOW)

main69830-28020iACR30,CLR30..(07S,08S)..DX200002-200304

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69804-28060iACR30,CLR30200002-200304

W(POWER WINDOW)

main69840-28080iACR30,CLR30..(07S,08S)..DX200002-200304

85710EMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-28050iACR30,CLR30200002-200304

85720DMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-28070iACR30,CLR30200002-200304

9010506260

main90105-06260

9016850013

main90168-50013

9095006117

main90950-06117

9095901614

main90959-01614

9153160608

main91531-60608

11 parts on this diagram · 1 diagram in section
