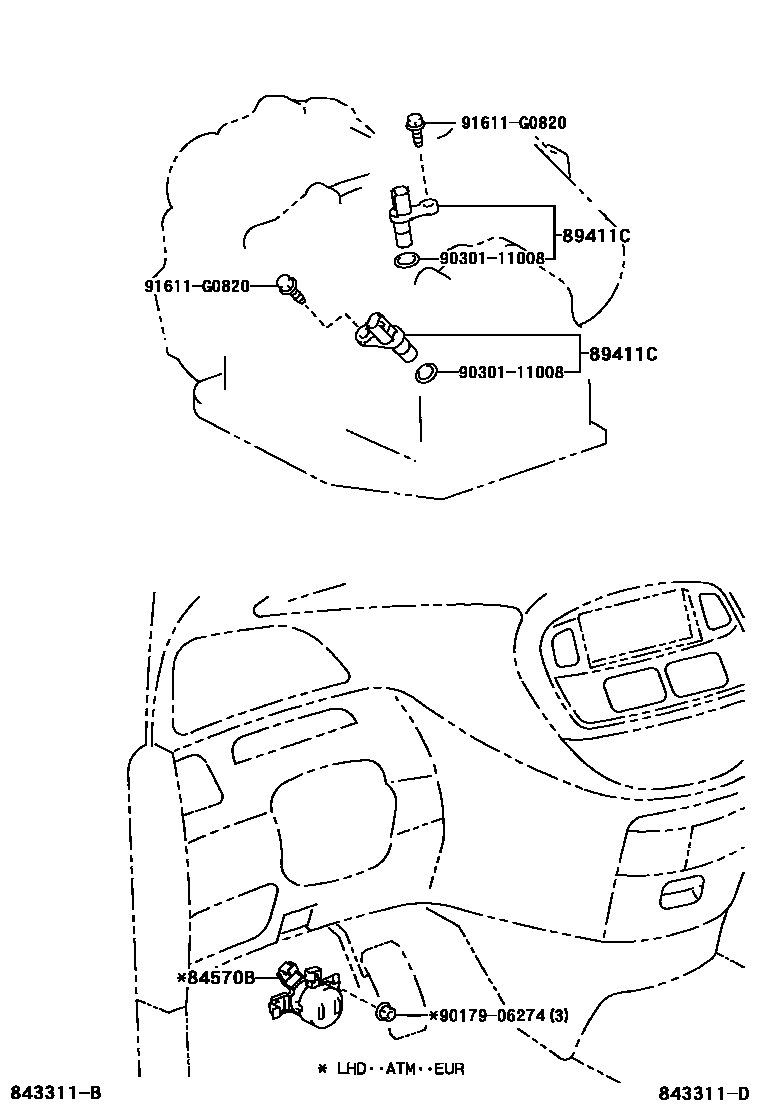

Toyota PREVIA/TARAGO — OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

84570BSWITCH ASSY, KICK DOWN

main84570-28010iACR30..LHD..ATM..EUR200002-200304

main84570-28020iACR30..LHD..ATM..EUR200304

sub84570-28010

89411CSENSOR, SPEED

main89411-33010iACR30..ATM200002-200308

TOYOTA

sub89413-24010

main89413-24010iACR30..ATM200002-200601

AISIN

9017906274

main90179-06274

9030111008

main90301-11008

91611G0820

main91611-G0820

5 parts on this diagram · 1 diagram in section
