Toyota PREVIA/TARAGO — MIRROR
8106SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP
87088ARM SUB-ASSY, OUTER UNDER REAR VIEW MIRROR
REAR UNDER MIRROR-WITH
REAR UNDER MIRROR-WITH
87810MIRROR ASSY, INNER REAR VIEW
87820AMIRROR ASSY, INNER REAR CONVERSATION
SHELL,TRIM0#
LT.GRAY,TRIM1#
BLACK,TRIM2#
GREGE,TRIM4#
87901BMIRROR SUB-ASSY, OUTER REAR VIEW, RH
HONG KONG SPEC
87906BMIRROR SUB-ASSY, OUTER REAR VIEW, LH
HONG KONG SPEC
87907MIRROR SUB-ASSY, OUTER UNDER VIEW
REAR UNDER MIRROR-WITH
REAR UNDER MIRROR-WITH
87910MIRROR ASSY, OUTER REAR VIEW, RH
NO PAINT REQ.
NO PAINT REQ.; NO PAINT REQ.,HONG KONG SPEC
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
87915COVER, OUTER MIRROR, RH
SUPER WHITE 2,040
WHITE PEARL CS.,070
SILVER ME.,1F7
MEDIUM SILVER ME.,1F8
ICE TITANIUM M.M.,1H4
BLACK,202
SPARKLING BLACK PEARL CS.,220
DK. RED M.M.,3Q3
RED M.M.,3R3
DEEP RED M.M.,3R9
DARK SHERRY M.M.,4W4
SILKY GOLD M.M.,5A4
DK.BLUE MC.,8S6
LT.BLUE M.M.,8S7
GRAYISH BLUE M.M.,8V5
LT.PURPLE M.M.,9AE
87939ACOVER, OUTER MIRROR HOLE, RH
87940MIRROR ASSY, OUTER REAR VIEW, LH
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.; NO PAINT REQ.,HONG KONG SPEC
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
87945BCOVER, OUTER MIRROR, LH
SUPER WHITE 2,040
WHITE PEARL CS.,070
SILVER ME.,1F7
MEDIUM SILVER ME.,1F8
ICE TITANIUM M.M.,1H4
BLACK,202
SPARKLING BLACK PEARL CS.,220
DK. RED M.M.,3Q3
RED M.M.,3R3
DEEP RED M.M.,3R9
DARK SHERRY M.M.,4W4
SILKY GOLD M.M.,5A4
DK.BLUE MC.,8S6
LT.BLUE M.M.,8S7
GRAYISH BLUE M.M.,8V5
LT.PURPLE M.M.,9AE
87946RETRACTOR, OUTER MIRROR, RH
87948ACOVER, OUTER MIRROR HOLE, LH
87950MIRROR ASSY, OUTER UNDER REAR VIEW
REAR UNDER MIRROR-WITH
REAR UNDER MIRROR-WITH
87966RETRACTOR, OUTER MIRROR, LH
87973COVER, OUTER UNDER RR VIEW MIRROR
REAR UNDER MIRROR-WITH
REAR UNDER MIRROR-WITH
8792928010RETAINER, OUTER REAR VIEW MIRROR, LH
main87929-28010
9015960275
main90159-60275
9415180600
main94151-80600

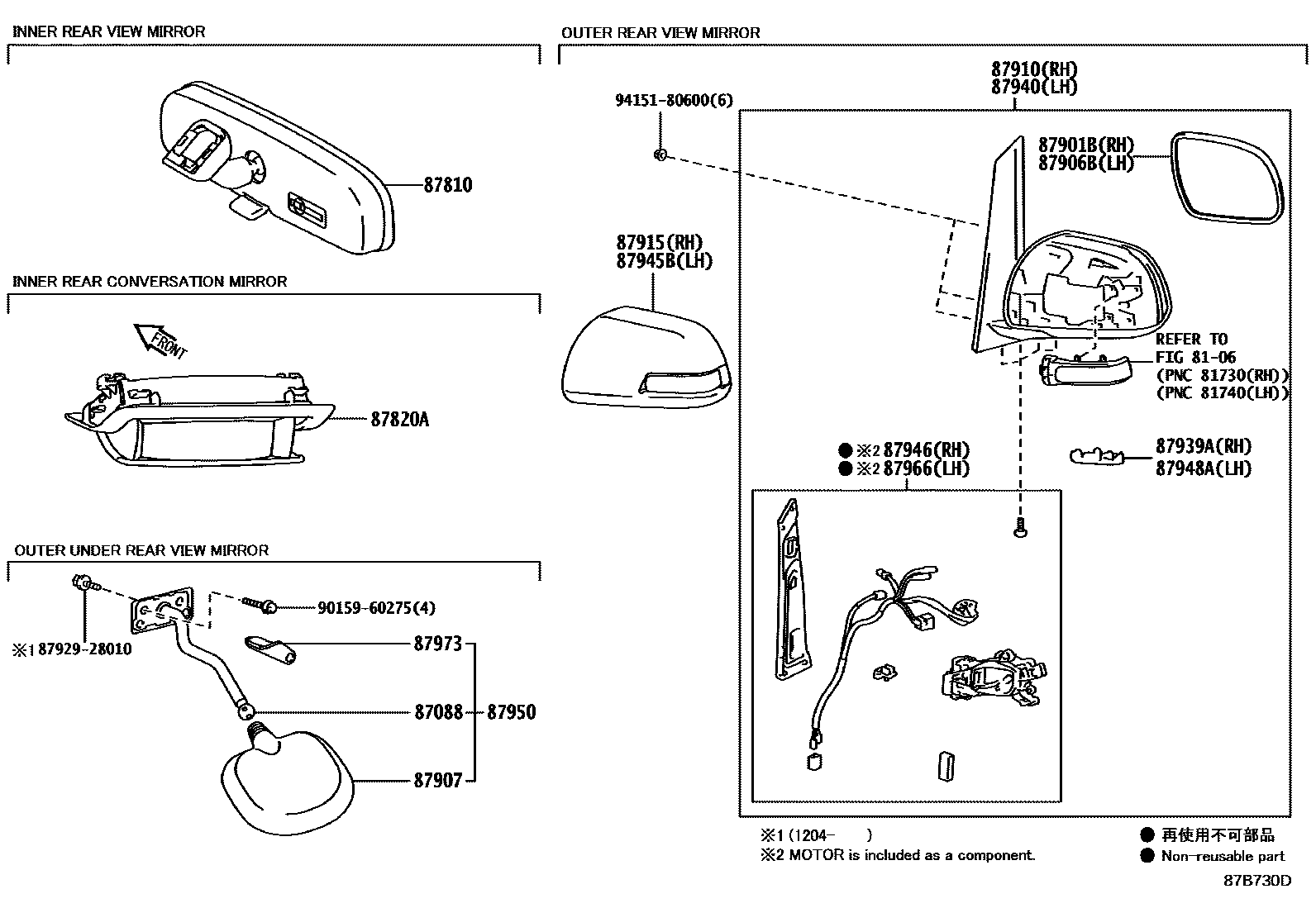

20 parts on this diagram · 2 diagrams in section
MIRROR for Toyota PREVIA/TARAGO
This section contains 23 genuine Toyota parts for the MIRROR system of the Toyota PREVIA/TARAGO. Key components include: SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP, ARM SUB-ASSY, OUTER UNDER REAR VIEW MIRROR, STAY SUB-ASSY, OUTER REAR VIEW MIRROR, RH, STAY SUB-ASSY, OUTER REAR VIEW MIRROR, LH, MIRROR ASSY, INNER REAR VIEW.
