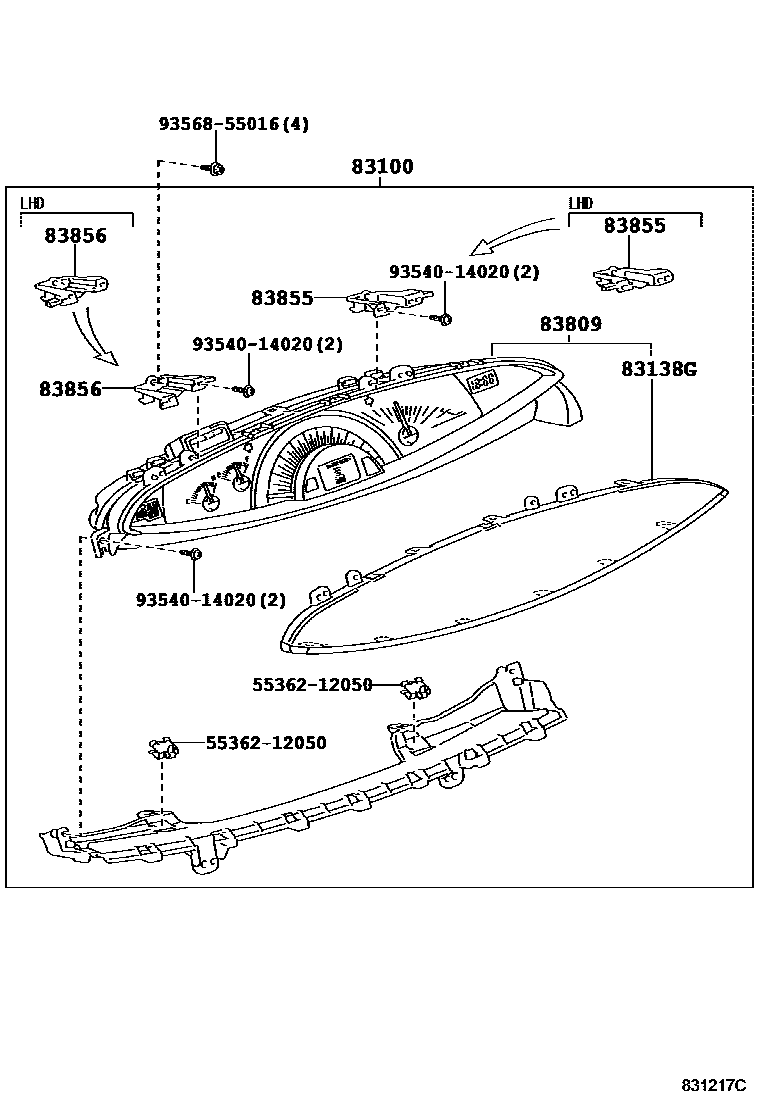

Toyota PREVIA/TARAGO — METER

83100METER ASSY, COMBINATION

main83800-28C30-B0i200601-200706

DK.GRAY,TRIM1#

main83800-28C30-E0i200611-200706

ASH BROWN,TRIM4#

main83800-28C40-B0i200601-200611

DK.GRAY,TRIM1#

main83800-28C41-B0i200611-200706

DK.GRAY,TRIM1#

main83800-28C50-E0i200601-200611

ASH BROWN,TRIM4#

main83800-28C51-E0i200611-200706

ASH BROWN,TRIM4#

main83800-28C60-E0i200601-200706

ASH BROWN,TRIM4#

main83800-28C80-E0i200601-200706

ASH BROWN,TRIM4#

main83800-28C90-E0i200611-200706

ASH BROWN,TRIM4#

main83800-28F90-B0i200706-200712

DK.GRAY,TRIM1#

main83800-28F90-E0i200706-200712

ASH BROWN,TRIM4#

main83800-28G00-B0i200706-200812

DK.GRAY,TRIM1#

main83800-28G01-C0i200812-200908

BLACK,TRIM1#

main83800-28G10-E0i200706-200812

ASH BROWN,TRIM4#

main83800-28G11-E0i200812-200908

ASH BROWN,TRIM4#

main83800-28G20-E0i200706-200812

GUATEMALA SPEC,ASH BROWN,TRIM4#

main83800-28G20-E0i200706-200812

HONDURAS SPEC,ASH BROWN,TRIM4#

main83800-28G20-E0i200706-200812

EL SALVADOR SPEC,ASH BROWN,TRIM4#

main83800-28G20-E0i200706-200812

VENEZUELA SPEC,ASH BROWN,TRIM4#

main83800-28G20-E0i200706-200812

ASH BROWN,TRIM4#

main83800-28G20-E0i200706-200812

TAIWAN SPEC,ASH BROWN,TRIM4#

main83800-28G20-E0i200706-200812

PHILIPPINES SPEC,ASH BROWN,TRIM4#

main83800-28G20-E0i200706-200812

JORDAN SPEC,ASH BROWN,TRIM4#

main83800-28G21-E0i200812-200908

EL SALVADOR SPEC&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH)&HEADLAMP-HALOGEN,ASH BROWN,TRIM4#

main83800-28G21-E0i200812-200908

JORDAN SPEC&HEADLAMP-HALOGEN,ASH BROWN,TRIM4#

main83800-28G21-E0i200812-200908

GUATEMALA SPEC&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH)&HEADLAMP-HALOGEN,ASH BROWN,TRIM4#

main83800-28G21-E0i200812-200908

GUATEMALA SPEC&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH)&HEADLAMP-HALOGEN,ASH BROWN,TRIM4#

main83800-28G21-E0i200812-200908

HONDURAS SPEC&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH)&HEADLAMP-HALOGEN,ASH BROWN,TRIM4#

main83800-28G21-E0i200812-200908

HONDURAS SPEC&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH)&HEADLAMP-HALOGEN,ASH BROWN,TRIM4#

main83800-28G21-E0i200812-200908

EL SALVADOR SPEC&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH)&HEADLAMP-HALOGEN,ASH BROWN,TRIM4#

main83800-28G21-E0i200812-200908

VENEZUELA SPEC,ASH BROWN,TRIM4#

main83800-28G21-E0i200812-200908

ASH BROWN,TRIM4#

main83800-28G21-E0i200812-200908

TAIWAN SPEC,ASH BROWN,TRIM4#

main83800-28G21-E0i200812-200908

SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH)&HEADLAMP-HALOGEN,ASH BROWN,TRIM4#

main83800-28G21-E0i200812-200908

SLIDE DOOR-*ECS(RH,LH) & *POSD(RH)&HEADLAMP-HALOGEN,ASH BROWN,TRIM4#

main83800-28G21-E0i200812-200908

PHILIPPINES SPEC,ASH BROWN,TRIM4#

main83800-28G21-E0i200812-200908

JORDAN SPEC&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH)&HEADLAMP-HALOGEN,ASH BROWN,TRIM4#

main83800-28G21-E0i200812-200908

JORDAN SPEC&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH)&HEADLAMP-HALOGEN,ASH BROWN,TRIM4#

main83800-28G30-E0i200706-200812

ASH BROWN,TRIM4#

main83800-28G31-E0i200812-200908

ASH BROWN,TRIM4#

main83800-28G40-E0i200706-200712

ASH BROWN,TRIM4#

main83800-28G50-E0i200706-200812

ASH BROWN,TRIM4#

main83800-28G51-E0i200812-200908

ASH BROWN,TRIM4#

main83800-28G90-B0i200801-200812

DK.GRAY,TRIM1#

main83800-28G90-E0i200801-200812

ASH BROWN,TRIM4#

main83800-28G91-C0i200812-200908

BLACK,TRIM1#

main83800-28G91-E0i200812-200908

ASH BROWN,TRIM4#

main83800-28J00-E0i200801-200812

ASH BROWN,TRIM4#

main83800-28J01-E0i200812-200908

ASH BROWN,TRIM4#

main83800-28K10i200909-201005

main83800-28K11i201006-201205

main83800-28K20i200909-201005

main83800-28K21i201006-201204

main83800-28K30i200909-201005

main83800-28K31i201006-201304

main83800-28K32i201304-201605

main83800-28K40i200909-201005

EL SALVADOR SPEC&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH)&HEADLAMP-HALOGEN

main83800-28K40i200909-201005

EL SALVADOR SPEC&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH)&HEADLAMP-HALOGEN

main83800-28K40i200909-201005

VENEZUELA SPEC

main83800-28K40i200909-201005

TAIWAN SPEC

main83800-28K40i200909-201005

SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH)&HEADLAMP-HALOGEN

main83800-28K40i200909-201005

SLIDE DOOR-*ECS(RH,LH) & *POSD(RH)&HEADLAMP-HALOGEN

main83800-28K40i200909-201005

PHILIPPINES SPEC

main83800-28K40i200909-201005

JORDAN SPEC&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH)&HEADLAMP-HALOGEN

main83800-28K40i200909-201005

JORDAN SPEC&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH)&HEADLAMP-HALOGEN

main83800-28K40i200909-201005

GUATEMALA SPEC&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH)&HEADLAMP-HALOGEN

main83800-28K40i200909-201005

GUATEMALA SPEC&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH)&HEADLAMP-HALOGEN

main83800-28K40i200909-201005

HONDURAS SPEC&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH)&HEADLAMP-HALOGEN

main83800-28K40i200909-201005

HONDURAS SPEC&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH)&HEADLAMP-HALOGEN

main83800-28K41i201006-201204

PHILIPPINES SPEC

main83800-28K41i201006-201204

TAIWAN SPEC

main83800-28K41i201006-201204

SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH)&HEADLAMP-HALOGEN

main83800-28K41i201006-201204

SLIDE DOOR-*ECS(RH,LH) & *POSD(RH)&HEADLAMP-HALOGEN

main83800-28K41i201006-201204

JORDAN SPEC&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH)&HEADLAMP-HALOGEN

main83800-28K41i201006-201204

JORDAN SPEC&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH)&HEADLAMP-HALOGEN

main83800-28K41i201006-201204

GUATEMALA SPEC&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH)&HEADLAMP-HALOGEN

main83800-28K41i201006-201204

GUATEMALA SPEC&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH)&HEADLAMP-HALOGEN

main83800-28K41i201006-201204

HONDURAS SPEC&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH)&HEADLAMP-HALOGEN

main83800-28K41i201006-201204

HONDURAS SPEC&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH)&HEADLAMP-HALOGEN

main83800-28K41i201006-201204

EL SALVADOR SPEC&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH)&HEADLAMP-HALOGEN

main83800-28K41i201006-201204

EL SALVADOR SPEC&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH)&HEADLAMP-HALOGEN

main83800-28K41i201006-201204

VENEZUELA SPEC

main83800-28K42i201204-201304

main83800-28K43i201304-201409

main83800-28K44i201409-201603

main83800-28K45i201604-201605

main83800-28K50i200909-201005

main83800-28K51i201006-201304

main83800-28K52i201304-201605

main83800-28K60i200909-201005

main83800-28K61i201006-201304

main83800-28K62i201304-201605

main83800-28K70i200909-201005

main83800-28K71i201006-201204

main83800-28L00i201003-201005

main83800-28L01i201006-201204

main83800-28L10i201003-201005

main83800-28L11i201006-201304

main83800-28L12i201304-201605

main83800-28L40i201204-201304

main83800-28L41i201304-201409

main83800-28L42i201409-201603

main83800-28L43i201604-201605

main83800-28L80i201205-201304

main83800-28L81i201304-201605

main83800-28M50i201605

main83800-28M60i201605

main83800-28M80i201605

main83800-28N10i201605-201906

main83800-28N20i201605

main83800-28N30i201605

83138GGLASS, COMBINATION METER

main83852-28B80i200601-200909

main83852-28B90i200601-200909

main83852-28C60i200601-200909

main83852-28F11i200909-201205

main83852-28F21i200909-201605

main83852-28G21i200909-201605

main83852-28M90i201605-201906

83809METER SUB-ASSY, COMBINATION

main83809-28090i200601-200706

main83809-28100i200601-200611

main83809-28101i200611-200706

main83809-28110i200601-200611

main83809-28111i200611-200706

main83809-28120i200601-200706

main83809-28140i200601-200706

main83809-28150i200611-200706

main83809-28290i200706-200712

main83809-28300i200706-200812

main83809-28301i200812-201005

main83809-28302i201006-201204

main83809-28310i200706-200812

main83809-28311i200812-201005

main83809-28312i201006-201304

main83809-28313i201304-201605

main83809-28320i200706-200812

EL SALVADOR SPEC

main83809-28320i200706-200812

VENEZUELA SPEC

main83809-28320i200706-200812

TAIWAN SPEC

main83809-28320i200706-200812

PHILIPPINES SPEC

main83809-28320i200706-200812

JORDAN SPEC

main83809-28320i200706-200812

GUATEMALA SPEC

main83809-28320i200706-200812

HONDURAS SPEC

main83809-28321i200812-201005

JORDAN SPEC&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH)&HEADLAMP-HALOGEN

main83809-28321i200812-201005

JORDAN SPEC&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH)&HEADLAMP-HALOGEN

main83809-28321i200812-201005

GUATEMALA SPEC&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH)&HEADLAMP-HALOGEN

main83809-28321i200812-201005

GUATEMALA SPEC&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH)&HEADLAMP-HALOGEN

main83809-28321i200812-201005

HONDURAS SPEC&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH)&HEADLAMP-HALOGEN

main83809-28321i200812-201005

HONDURAS SPEC&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH)&HEADLAMP-HALOGEN

main83809-28321i200812-201005

EL SALVADOR SPEC&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH)&HEADLAMP-HALOGEN

main83809-28321i200812-201005

EL SALVADOR SPEC&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH)&HEADLAMP-HALOGEN

main83809-28321i200812-201005

VENEZUELA SPEC

main83809-28321i200812-201005

TAIWAN SPEC

main83809-28321i200812-201005

SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH)&HEADLAMP-HALOGEN

main83809-28321i200812-201005

SLIDE DOOR-*ECS(RH,LH) & *POSD(RH)&HEADLAMP-HALOGEN

main83809-28321i200812-201005

PHILIPPINES SPEC

main83809-28322i201006-201204

TAIWAN SPEC

main83809-28322i201006-201204

JORDAN SPEC&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH)&HEADLAMP-HALOGEN

main83809-28322i201006-201204

GUATEMALA SPEC&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH)&HEADLAMP-HALOGEN

main83809-28322i201006-201204

GUATEMALA SPEC&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH)&HEADLAMP-HALOGEN

main83809-28322i201006-201204

HONDURAS SPEC&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH)&HEADLAMP-HALOGEN

main83809-28322i201006-201204

HONDURAS SPEC&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH)&HEADLAMP-HALOGEN

main83809-28322i201006-201204

EL SALVADOR SPEC&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH)&HEADLAMP-HALOGEN

main83809-28322i201006-201204

EL SALVADOR SPEC&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH)&HEADLAMP-HALOGEN

main83809-28322i201006-201204

VENEZUELA SPEC

main83809-28322i201006-201204

SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH)&HEADLAMP-HALOGEN

main83809-28322i201006-201204

SLIDE DOOR-*ECS(RH,LH) & *POSD(RH)&HEADLAMP-HALOGEN

main83809-28322i201006-201204

PHILIPPINES SPEC

main83809-28322i201006-201204

JORDAN SPEC&SLIDE DOOR-*ECS(RH,LH) & *POSD(RH,LH)&HEADLAMP-HALOGEN

main83809-28323i201204-201304

main83809-28324i201304-201409

main83809-28325i201409-201603

main83809-28326i201604-201605

main83809-28330i200706-200812

main83809-28331i200812-201005

main83809-28332i201006-201304

main83809-28333i201304-201605

main83809-28340i200706-200712

main83809-28350i200706-200812

main83809-28351i200812-201005

main83809-28352i201006-201204

main83809-28390i200801-200812

main83809-28391i200812-201005

main83809-28392i201006-201304

main83809-28393i201304-201605

main83809-28400i200801-200812

main83809-28401i200812-201005

main83809-28402i201006-201205

main83809-28410i201003-201005

main83809-28411i201006-201204

main83809-28420i201003-201005

main83809-28421i201006-201304

main83809-28422i201304-201605

main83809-28450i201204-201304

main83809-28451i201304-201409

main83809-28452i201409-201603

main83809-28453i201604-201605

main83809-28490i201205-201304

main83809-28491i201304-201605

main83809-28510i201605

main83809-28520i201605

main83809-28530i201605

main83809-28560i201605-201906

main83809-28570i201605

main83809-28580i201605

83855BRACKET, COMBINATION METER, NO.1

main83855-28B80i200601-201906

main83855-28C60i200601-201605

83856BRACKET, COMBINATION METER, NO.2

main83856-28B80i200601-201906

main83856-28C60i200601-201605

5536212050BRACKET, INSTRUMENT PANEL LOWER REGISTER MOUNTING

main55362-12050

9354014020

main93540-14020

9356855016

main93568-55016

8 parts on this diagram · 1 diagram in section
