Toyota PREVIA/TARAGO — METER
83100METER ASSY, COMBINATION
83100BBULB, COMBINATION METER, NO.1
12V 1.4W,GREEN CAP,TYPE B:REFER TO ILLUSTRATION
12V1.4W W(GREEN CAP),TYPE C:REFER TO ILLUSTRATION
12V 2.0W,W/GREEN CAP,TYPE C:REFER TO ILLUSTRATION
12V 1.2W W/O SOCKET; 12V 1.2W W/O SOCKET,TYPE A:REFER TO ILLUSTRATION
83101SOCKET SUB-ASSY, COMBINATION METER BULB
83129WIRE, METER
83133PLATE, COMBINATION METER, NO.1
83133BPLATE, COMBINATION METER, NO.3
83134COVER, COMBINATION METER, NO.1
83138GGLASS, COMBINATION METER
83291COMPUTER, COMBINATION METER
BERMUDA OR BRUNEI OR HONG KONG OR SINGAPORE SPEC
TAIWAN SPEC
89820SENSOR ASSY, INCLINATION
9009900262
main90099-00262
9009900298
main90099-00298
9009900929
main90099-00929
9354014020
main93540-14020
9356855016
main93568-55016

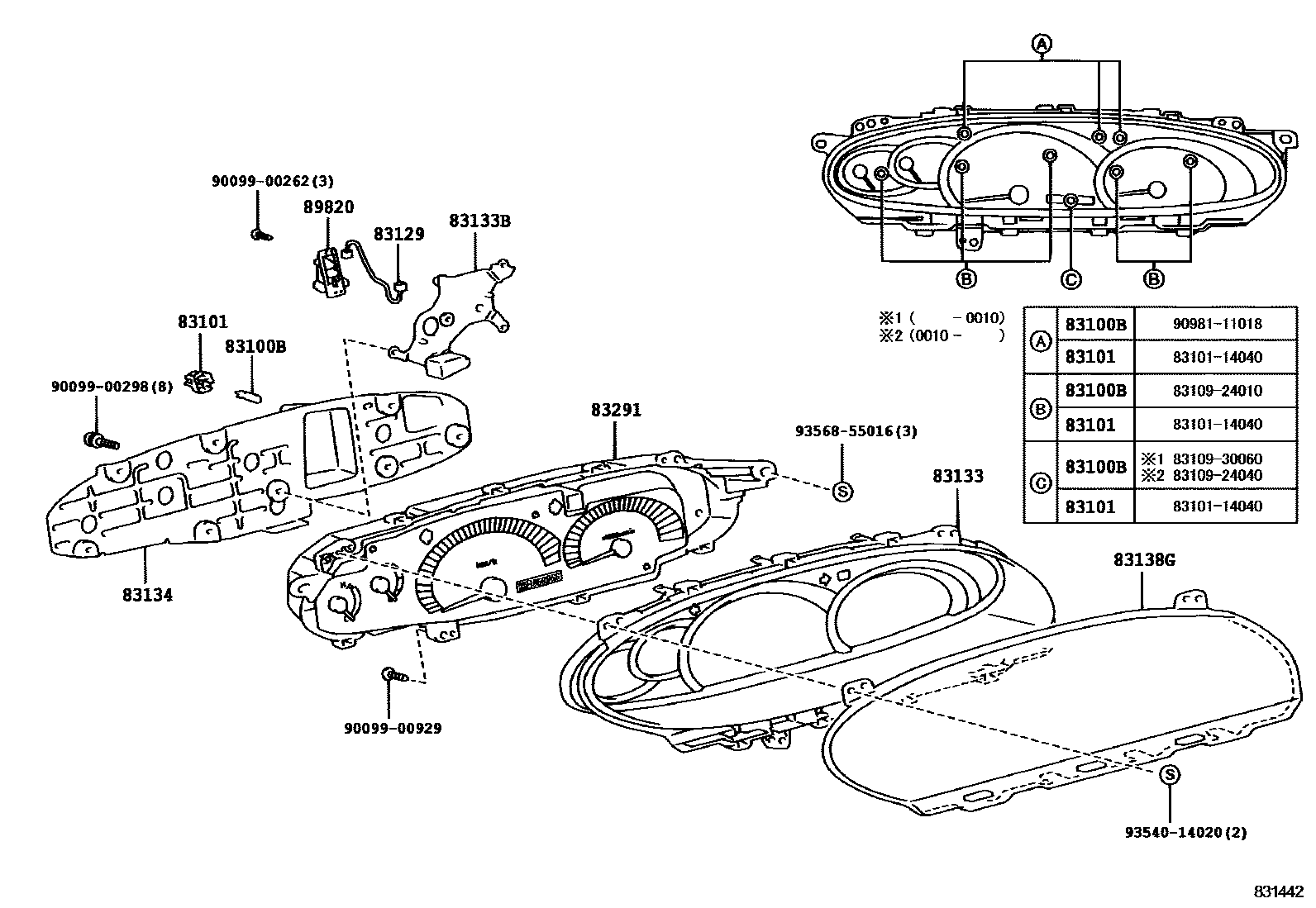

15 parts on this diagram · 6 diagrams in section
METER for Toyota PREVIA/TARAGO
This section contains 25 genuine Toyota parts for the METER system of the Toyota PREVIA/TARAGO. Key components include: METER ASSY, COMBINATION, BULB, COMBINATION METER, NO.1, SOCKET SUB-ASSY, COMBINATION METER BULB, PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1, WIRE, METER.
