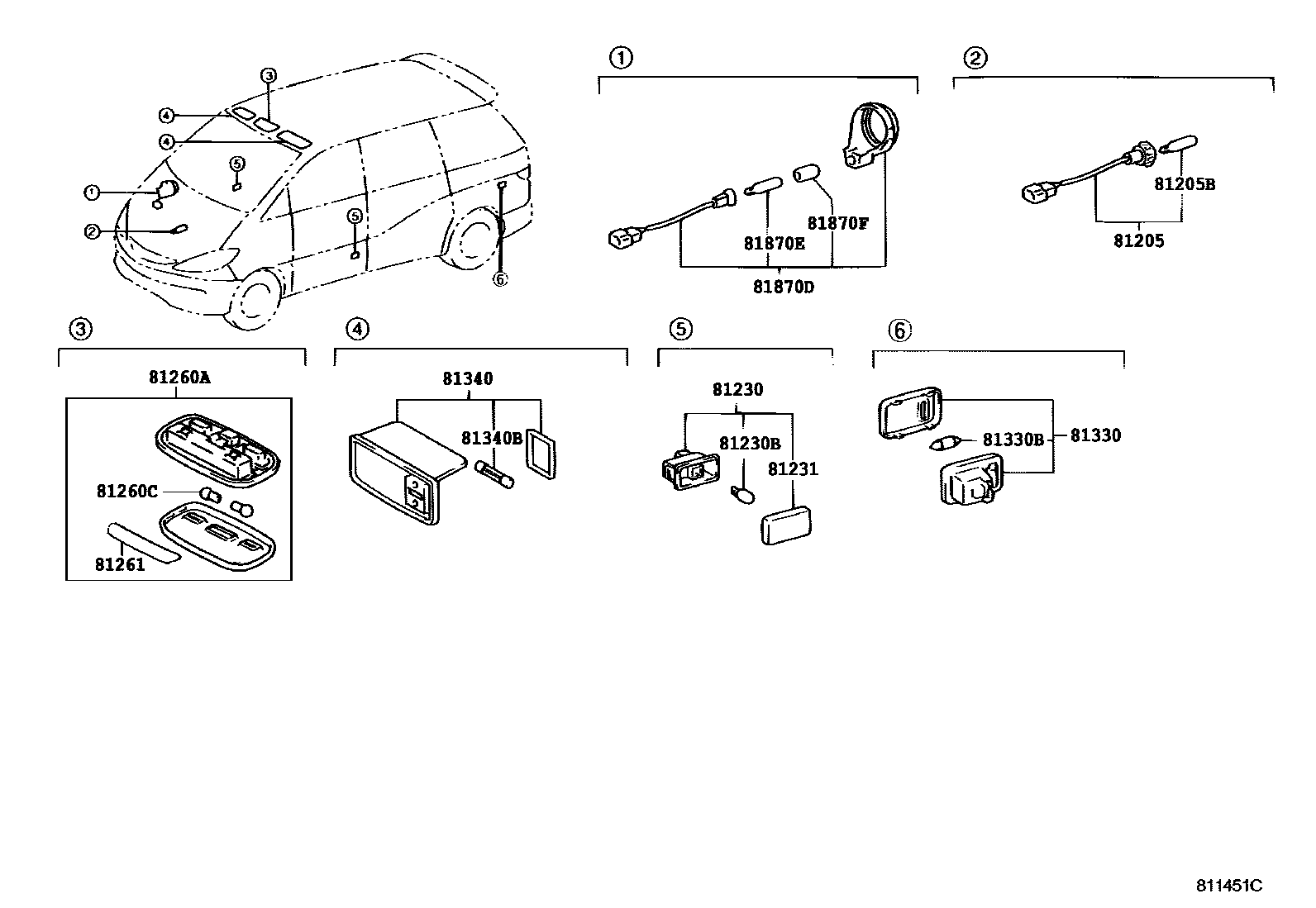

Toyota PREVIA/TARAGO — INTERIOR LAMP
81205LAMP SUB-ASSY, ASH RECEPTACLE
81205BBULB, ASH RECEPTACLE LAMP
14V 1.4W
81230LAMP ASSY, COURTESY
81230BBULB(FOR COURTESY LAMP)
12V 3.8W
81231LENS, COURTESY LAMP
81260ALAMP ASSY, MAP
81260CBULB(FOR MAP LAMP)
12V 8W
81261LENS AND COVER, MAP LAMP
81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1
81330BBULB, LUGGAGE COMPARTMENT LAMP
12V 5W
81340LAMP ASSY, VANITY
MD.CHARCOAL,TRIM12,RH
LT.BLUISH GRAY,TRIM11,RH
LT.GRAY,TRIM1#,LH
LT.GRAY,TRIM15,LH
MD.CHARCOAL,TRIM12,LH
LT.BLUISH GRAY,TRIM11,LH
LT.GRAY,TRIM1#,RH
LT.GRAY,TRIM15,RH
81340BBULB (FOR VANITY LAMP)
12V 1.5W
81870DLAMP ASSY, KEY CYLINDER
81870EBULB, KEY CYLINDER LAMP
14V 1.4W
81870FCAP, KEY CYLINDER LAMP BULB
15 parts on this diagram · 3 diagrams in section
