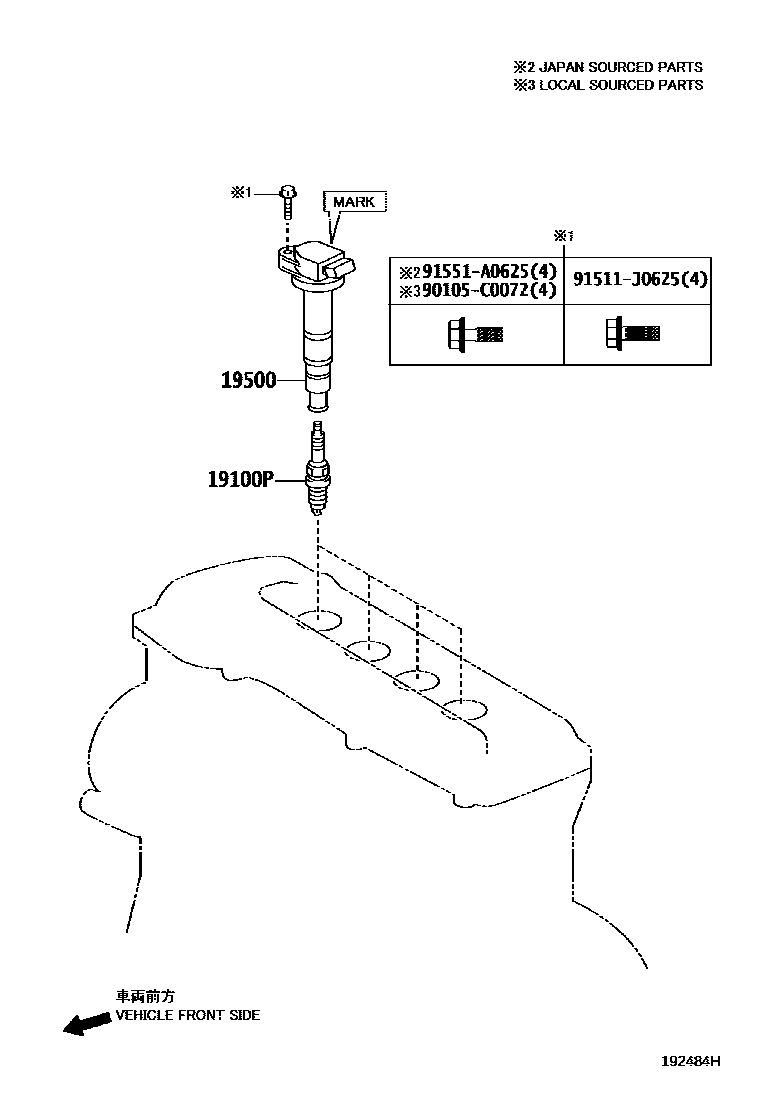

Toyota PREVIA/TARAGO — IGNITION COIL & SPARK PLUG / GLOW PLUG

19100PPLUG, SPARK

main90919-01237×4i200601-200812

SK20R11,*195

main90919-01240×4i201204-201205

SK16R11,*195

main90919-01247×6i200812-201204

FK20HR11

main90919-C1002×4i201204-201605

SK16R11,2AZ-FE,(L),*194

main90919-T1007×4i201003-201204

SK20R11,2AZ-FE,(L),*194

19500COIL ASSY, IGNITION

main90919-02244×4i200601-200812

*195

main90919-02251×6i200611-200812

main90919-02255×6i201605

main90919-02266×4i201605-201906

main90919-02260×4i201012-201204

2AZ-FE,*194,MARK 02260

main90919-C2002×4i201003-201012

2AZ-FE,*194,MARK C2002

main90919-C2006×4i201012-201204

2AZ-FE,*194,MARK -C2 OR -T2

90105C0072

main90105-C0072

91511J0625

main91511-J0625

91551A0625

main91551-A0625

5 parts on this diagram · 2 diagrams in section

IGNITION COIL & SPARK PLUG / GLOW PLUG for Toyota PREVIA/TARAGO

This section contains 6 genuine Toyota parts for the IGNITION COIL & SPARK PLUG / GLOW PLUG system of the Toyota PREVIA/TARAGO. Key components include: PLUG, SPARK, COIL ASSY, IGNITION.
