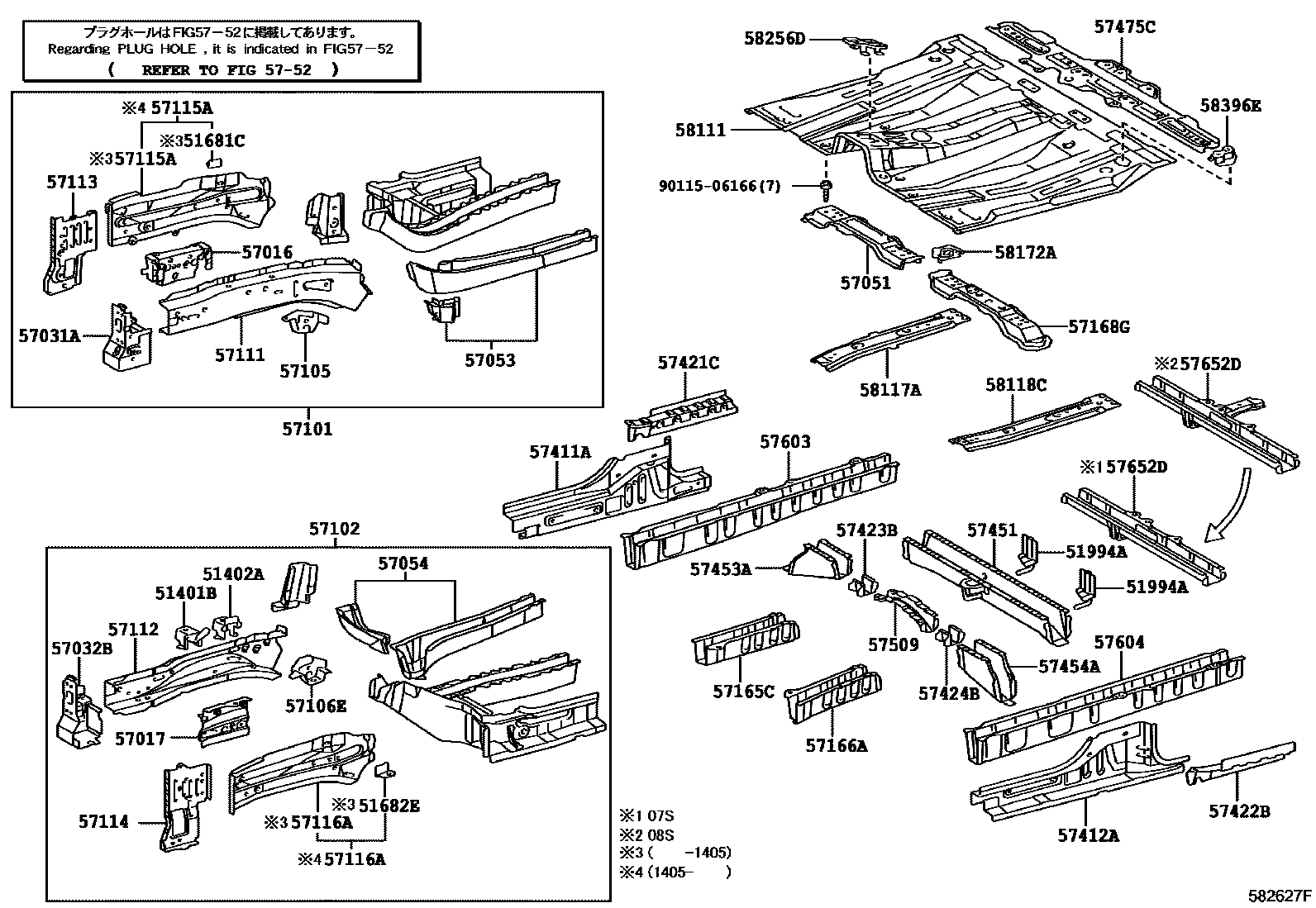

Toyota PREVIA/TARAGO — FRONT FLOOR PANEL & FRONT FLOOR MEMBER

51401BBRACKET SUB-ASSY, ENGINE FRONT MOUNTING

main51401-28070iACR50,GSR50..DLX,GL201605

51402ABRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH

main51402-28060iACR50,GSR50200601-200812

51681CPLATE, FRONT BRAKE FLEXIBLE HOSE SUPPORT, RH

main51681-12080iACR50..ARL;GSR50..RHD200812-201205

51682EPLATE, FRONT BRAKE FLEXIBLE HOSE SUPPORT, LH

main51682-12080iACR50..ARL;GSR50..RHD200812-201205

51994AHANGER, EXHAUST PIPE, SUPPORT, NO.4

main51999-28030×2iACR50..CVT;GSR50..ARL,GCC;GSR50..LHD..GEN;ACR50..4FC..(GCC,GEN)201204-201605

57016REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, RH

main57016-12110iACR50..CVT;GSR50..ARL,GCC;GSR50..LHD..GEN;ACR50..4FC..(GCC,GEN)201204-201605

57017REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, LH

main57017-12070iACR50,GSR50..DLX,GL201605

57031AREINFORCE SUB-ASSY, FRONT SIDE MEMBER, NO.2 RH

main57031-12010iACR50..CVT;GSR50..ARL,GCC;GSR50..LHD..GEN;ACR50..4FC..(GCC,GEN)201204-201605

57032BREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, NO.2 LH

main57032-12010iACR50..AERAS201605-201906

57051MEMBER SUB-ASSY, FRONT FLOOR CROSS, RH

main57051-28010iACR50..ARL;GSR50..RHD200812-201205

57053REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, RH

main57053-28010iACR50,GSR50200601-200802

57054REINFORCE SUB-ASSY, FRONT SIDE MEMBER, NO.5

main57054-28010iACR50,GSR50200601-200802

57101MEMBER SUB-ASSY, FRONT SIDE, RH

main57101-28870iACR50,GSR50200601-200803

main57101-28871iACR50,GSR50200812-201109

main57101-28872iACR50..CVT;GSR50..ARL,GCC;GSR50..LHD..GEN;ACR50..4FC..(GCC,GEN)201204-201605

57102MEMBER SUB-ASSY, FRONT SIDE, LH

main57102-28760iACR50,GSR50200601-200803

main57102-28761iACR50,GSR50200803-200812

main57102-28762iACR50..ARL;GSR50..RHD201110-201205

57105BRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, FRONT RH

main57105-12160iACR50,GSR50..DLX,GL201605

57106EBRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, FRONT LH

main57106-12150iGSR50..LHD;ACR50..GCC,GEN200812-201204

57111MEMBER, FRONT SIDE, RH

main57111-12230iACR50..AERAS201605-201906

main57111-42060iACR50,GSR50200601-200812

57112MEMBER, FRONT SIDE, LH

main57112-28270iACR50,GSR50..DLX,GL201605

57113EXTENSION, FRONT SIDE MEMBER, RH

main57113-12220iGSR50..RHD..GEN201204-201409

57114EXTENSION, FRONT SIDE MEMBER, LH

main57114-12190iGSR50..LHD;ACR50..GCC,GEN200812-201204

main57114-12191iACR50,GSR50..DLX,GL201605

57115APLATE, FRONT SIDE MEMBER, OUTER RH

main57025-12010iACR50,GSR50..DLX,GL201605

main57115-12090iGSR50..LHD;ACR50..GCC,GEN200812-201204

57116APLATE, FRONT SIDE MEMBER, OUTER LH

main57026-12020iACR50;GSR50..ARL,GCC;GSR50..LHD..GEN201405-201605

main57116-12091iACR50,GSR50201401-201405

main57116-42030iGSR50;ACR50..CVT;ACR50..4FC..(GCC,GEN)201204-201312

57165CGUSSET, FLOOR MEMBER, RH

main57165-28030iACR50,GSR50200601-200708

main57165-28031iACR50,GSR50..DLX,GL201605

57166AGUSSET, FLOOR MEMBER, LH

main57166-28020iACR50,GSR50200601-200708

main57166-28021iGSR50..RHD..GEN201204-201409

57168GMEMBER, FRONT FLOOR, LH

main57168-28040iACR50,GSR50..DLX,GL201605

57411AMEMBER, FLOOR SIDE, INNER RH

main57411-28030iACR50,GSR50200601-200803

main57411-28031iACR50,GSR50..DLX,GL201605

57412AMEMBER, FLOOR SIDE, INNER LH

main57412-28030iACR50,GSR50200601-200803

main57412-28031iGSR50..LHD;ACR50..GCC,GEN200812-201204

57421CPLATE, FLOOR SIDE RAIL, RH

main57421-28130iACR50,GSR50..DLX,GL201605

57422BPLATE, FLOOR SIDE RAIL, LH

main57422-28100iACR50..AERAS201605-201906

57423BREINFORCEMENT, FRONT FLOOR UNDER, INNER RH

main57423-28050iACR50,GSR50..DLX,GL201605

57424BREINFORCEMENT, FRONT FLOOR UNDER, INNER LH

main57424-28040iGSR50..LHD;ACR50..GCC,GEN200812-201204

57451MEMBER, FRONT FLOOR CROSS

main57408-28120iACR50,GSR50..DLX,GL201605

57453AREINFORCEMENT, FRONT FLOOR CROSSMEMBER, RH

main57453-28050iACR50..AERAS201605-201906

57454AREINFORCEMENT, FRONT FLOOR CROSSMEMBER, LH

main57454-28020iACR50..AERAS201605-201906

57475CPLATE, FRONT FLOOR CROSSMEMBER

main57475-28070iACR50..ARL;GSR50..RHD200812-201205

57509REINFORCEMENT SUB-ASSY, FRONT FLOOR, CENTER

main57509-28040iACR50,GSR50..DLX,GL201605

5752

57603MEMBER SUB-ASSY, REAR FLOOR SIDE, FRONT RH

main57603-28080iACR50..AERAS201605-201906

57604MEMBER SUB-ASSY, REAR FLOOR SIDE, FRONT LH

main57604-28060iACR50..CVT;GSR50..ARL,GCC;GSR50..LHD..GEN;ACR50..4FC..(GCC,GEN)201204-201605

57652DMEMBER, REAR FLOOR CROSS, NO.1

main57605-28390supersedes 57652-28150iACR50..CVT..GL201003-201204

main57605-28410iACR50..DLX..(GCC,GEN)200812-201204

main57652-28150iACR50..LHD..CVT201204-201605

BEIJING SPEC&SPARE TIRE-GROUND TIRE&HEADLAMP-DISCHARGE & AFS&REAR NO.2 SEAT-WITH(TUMBLE ONLY)

58111PAN, FRONT FLOOR

main58111-28D30supersedes 58111-28D20iACR50..CVT..DLX201204-201605

sub58111-28E70

sub90950-01348

sub90950-01398

sub90950-01954

main58111-28D50supersedes 58111-28D50iACR50..AERAS201605-201906

sub58111-28E70

sub90950-01348

sub90950-01954

main58111-28E30supersedes 58111-28E20iGSR50..GL..ARL201605

sub58111-28E70

sub90950-01954

main58111-28E80iACR50..DLX..GCC201204-201605

sub58111-28F30

sub90467-09077

sub90950-01348

sub90950-01398

sub90950-01849

sub90950-01954

main58111-28F00supersedes 58111-28F10iACR50..LHD..GL201204-201605

sub58111-28F30

sub90467-09077

sub90950-01348

sub90950-01849

main58111-28E90supersedes 58111-28F10iACR50..GL..GCC200812-201204

SIDE LIFT-UP SEAT

main58111-28F80supersedes 58111-28F20iGSR50..LHD..GEN200812-201204

SIDE LIFT-UP SEAT

main58111-28F90supersedes 58111-28F30iGSR50..LHD200611-200812

SIDE LIFT-UP SEAT (OVERSEAS)&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE

58117AREINFORCEMENT, FRONT FLOOR SIDE, RH

main58117-28040iACR50,GSR50200601-200812

58118CREINFORCEMENT, FRONT FLOOR SIDE, LH

main58118-28060iACR50,GSR50..DLX,GL201605

58172APLATE, PARKING BRAKE MOUNTING

main58172-28050iACR50,GSR50200601-200812

58256DBRACKET, FRONT FLOOR HARNESS

main58256-28040iACR50,GSR50..DLX,GL201605

58396EBRACKET, WIRE HARNESS CLAMP

main58396-28060iGSR50..RHD..GEN201204-201409

9011506166

main90115-06166

47 parts on this diagram · 1 diagram in section
