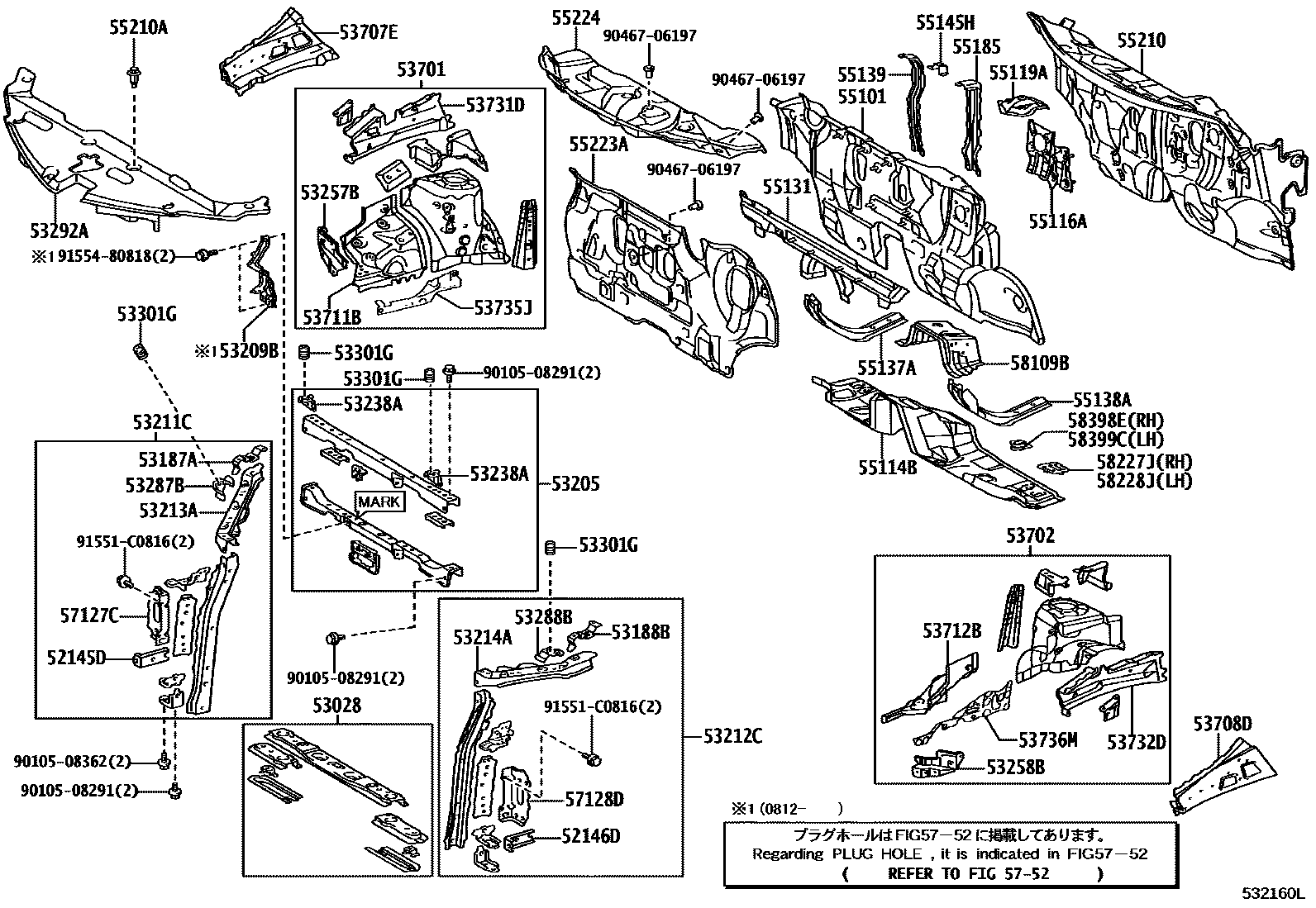

Toyota PREVIA/TARAGO — FRONT FENDER APRON & DASH PANEL

0001 1 0002 1

52145DBRACKET, FRONT BUMPER SIDE MOUNTING, RH

main52145-28090iACR50,GSR50200601-200812

main52145-28100iACR50..ARL;GSR50..RHD200812-201205

52146DBRACKET, FRONT BUMPER SIDE MOUNTING, LH

main52145-28090iACR50,GSR50200601-200812

main52145-28120iGSR50;ACR50..CVT;ACR50..4FC..(GCC,GEN)201204-201605

53028SUPPORT SUB-ASSY, RADIATOR, LOWER

main53028-28050iACR50,GSR50200601-200812

53187ASTAY, RADIATOR SUPPORT, RH

main53187-28030iACR50..AERAS201605-201906

53188BSTAY, RADIATOR SUPPORT, LH

main53188-28030iACR50,GSR50200601-200812

53205SUPPORT SUB-ASSY, RADIATOR, UPPER

main53205-28170iACR50,GSR50200601-200812

main53205-28210iACR50,GSR50201604-201605

MARK=94

53209BBRACE SUB-ASSY, HOOD LOCK SUPPORT

main53209-28060iACR50..AERAS201205-201605

main53209-28070iACR50..ARL;GSR50..RHD200812-201205

main53209-28080iACR50..AERAS201605-201906

53211CSUPPORT, RADIATOR, RH

main53202-28110iACR50,GSR50200601-200812

main53202-28140iACR50..AERAS201605-201906

53212CSUPPORT, RADIATOR, LH

main53203-28110iACR50,GSR50200601-200812

main53203-28140iGSR50..LHD;ACR50..GCC,GEN200812-201204

53213ASUPPORT, RADIATOR, UPPER RH

main53213-28050iACR50,GSR50200601-200812

53214ASUPPORT, RADIATOR, UPPER LH

main53214-28040iACR50,GSR50200601-200812

53238ABRACKET, HOOD BUMPER MOUNTING

main53238-28010iACR50,GSR50200601-200812

RH

main53239-28010iACR50..AERAS201605-201906

LH

53257BBRACKET, RADIATOR SUPPORT TO FRONT FENDER

main53257-28030iACR50..AERAS201605-201906

53258BBRACKET, RADIATOR SUPPORT TO FRONT FENDER, LH

main53258-28020iACR50200601-200812

53287BEXTENSION, RADIATOR SUPPORT, RH

main53287-28010iGSR50;ACR50..CVT;ACR50..4FC..(GCC,GEN)201204-201605

53288BEXTENSION, RADIATOR SUPPORT, LH

main53288-28010iACR50..ARL;GSR50..RHD200812-201205

53292ASEAL, RADIATOR SUPPORT, UPPER

main53292-28070iACR50,GSR50200601-200812

main53292-28071iACR50..ARL;GSR50..RHD200812-201205

main53292-28100iACR50..AERAS201605-201906

53301GCUSHION, HOOD BUMPER

main90541-15024×4iACR50,GSR50201605-201910

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-28850iACR50,GSR50200601-200812

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-28750iACR50,GSR50200601-200812

53707EAPRON SUB-ASSY, FENDER SIDE, RH

main53707-28100iACR50,GSR50200601-200812

53708DAPRON SUB-ASSY, FENDER SIDE, LH

main53708-28090iACR50,GSR50200601-200812

53711BAPRON, FRONT FENDER, FRONT RH

main53711-28100iACR50..ARL;GSR50..RHD200812-201205

53712BAPRON, FRONT FENDER, FRONT LH

main53712-28080iACR50200601-200812

53731DMEMBER, FRONT APRON TO COWL SIDE, UPPER RH

main53731-28050iACR50200601-200812

53732DMEMBER, FRONT APRON TO COWL SIDE, UPPER LH

main53732-28040iACR50200601-200812

53735JPATCH, FRONT FENDER APRON, NO.5

main53735-28020iACR50,GSR50200601-200812

53736MPATCH, FRONT FENDER APRON, NO.6

main53736-28030iACR50,GSR50200601-200812

55101PANEL SUB-ASSY, DASH

main55111-2J480iACR50,GSR50..RHD200601-200812

main55111-2J490iACR50,GSR50..LHD201204-201605

55114BPANEL, DASH, LOWER

main55114-28160iACR50,GSR50..RHD200601-200812

main55114-28170iACR50,GSR50..LHD200812-201204

55116APLATE, BRAKE PEDAL SUPPORT MOUNTING

main55116-28040iACR50,GSR50..RHD200601-200812

main55116-28050iACR50,GSR50..LHD200601-200812

55119AEXTENSION, DASH PANEL, LH

main55119-28010iACR50,GSR50..LHD201605

55131REINFORCEMENT, DASH PANEL

main55103-28010iACR50,GSR50..RHD200601-200812

main55103-28020iACR50,GSR50..LHD201605

55137ABRACE, DASH TO FRAME, RH

main55108-28080iACR50,GSR50..DLX,GL201605

55138ABRACE, DASH TO FRAME, LH

main55109-28010iACR50..ARL;GSR50..RHD200812-201205

55139REINFORCEMENT, DASH TO FRAME BRACE

main55139-28040iACR50..AERAS201605-201906

55145HBASE, INSTRUMENT PANEL REINFORCEMENT MOUNTING

main55145-28010iACR50,GSR50..RHD200601-200812

main55145-28020iACR50,GSR50..LHD200601-200812

55185BRACE, DASH PANEL TO COWL

main55185-28130iACR50,GSR50..RHD200601-200812

main55185-28140iACR50,GSR50..LHD201204-201605

55210INSULATOR ASSY, DASH PANEL

main55210-28210iACR50,GSR50..RHD200601-200812

main55210-28220iACR50,GSR50..LHD200812-201204

main55210-28221iACR50,GSR50..LHD201605

55210ACLIP

main55346-47010×5iACR50,GSR50200601-200812

55223AINSULATOR, DASH PANEL, OUTER

main55223-28070iACR50,GSR50..RHD200601-200705

main55223-28071iACR50..RHD..GEN200812-201204

main55223-28080iACR50,GSR50..LHD200601-200812

main55223-28081iACR50,GSR50..LHD201605

55224INSULATOR, DASH PANEL, OUTER LH

main55224-28010iGSR50..ARL;ACR50..RHD..CVT;ACR50..RHD..4FC..GEN201204-201605

main55224-28020iACR50,GSR50..LHD200601-200812

main55224-28021iACR50,GSR50..LHD201605

57127CREINFORCEMENT, FRONT SIDE MEMBER, REAR RH

main57127-28110iACR50..AERAS201605-201906

57128DREINFORCEMENT, FRONT SIDE MEMBER, REAR LH

main57128-28080iACR50,GSR50200601-200812

5752

58109BBRACKET SUB-ASSY, INSTRUMENT PANEL BRACE MOUNTING

main58109-28020iACR50..RHD..GEN200812-201204

main58109-28030iACR50,GSR50..LHD200601-200812

58227JPLATE, FLOOR PANEL SIDE, RH

main58227-28070iACR50,GSR50200601-200812

58228JPLATE, FLOOR PANEL SIDE, LH

main58228-28040iGSR50..LHD;ACR50..GCC,GEN200812-201204

58398ECOVER, FLOOR UNDER, NO.1

main58398-28070iACR50,GSR50200601-200812

58399CCOVER, FLOOR UNDER, NO.2

main58399-28010iACR50,GSR50200601-200812

9010508291

main90105-08291

9010508362

main90105-08362

9046706197

main90467-06197

91551C0816

main91551-C0816

9155480818

main91554-80818

55 parts on this diagram · 2 diagrams in section
