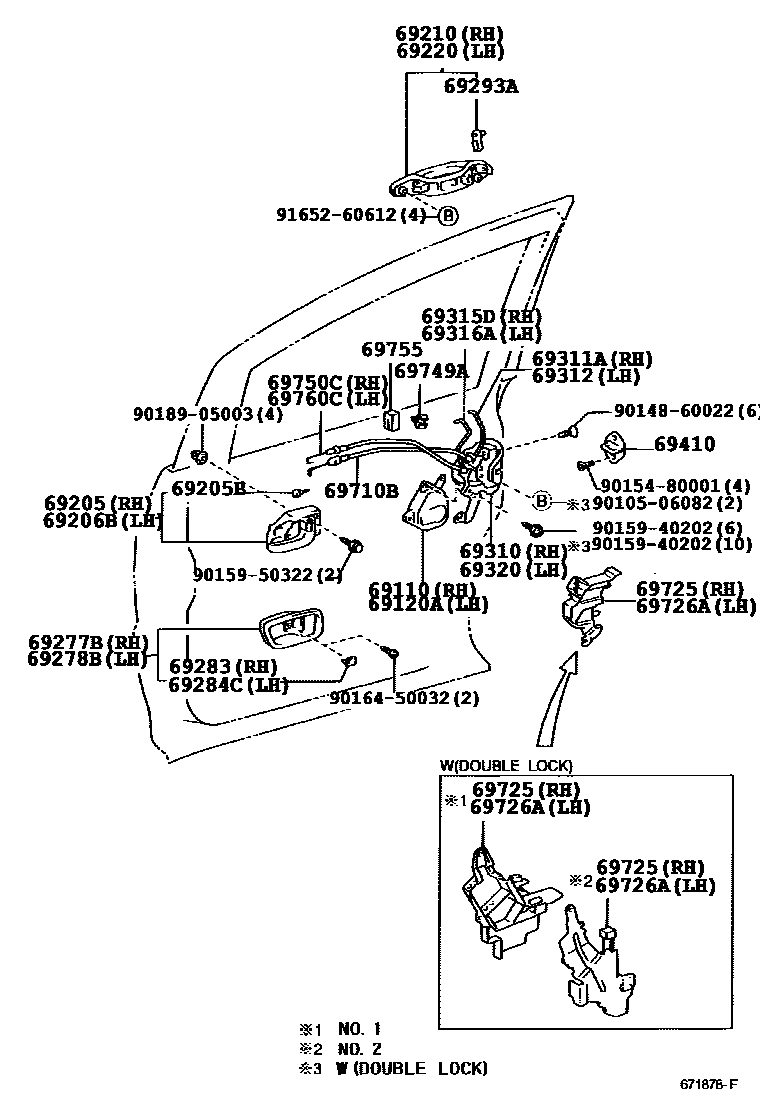

Toyota PREVIA/TARAGO — FRONT DOOR LOCK & HANDLE

69110ACTUATOR ASSY, FRONT DOOR LOCK, RH

main69110-28040iACR30,CLR30..LHD200002-200304

main69110-28050iACR30..RHD..EUR200002-200304

W(DOUBLE-LOCK)

main69110-28050iCLR30..RHD200102-200304

main69110-53010iACR30..RHD..(07S,08S)..ATM200104-200105

main69110-53020iACR30..RHD..ATM200002-200304

69120AACTUATOR ASSY, FRONT DOOR LOCK, LH

main69120-28040iACR30..RHD..EUR200002-200304

W(DOUBLE-LOCK)

main69120-28040iCLR30..RHD200102-200304

main69120-53010iACR30..RHD..(07S,08S)..ATM200002-200304

main69120-53020iACR30,CLR30..LHD200002-200304

69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69205-28090-B0iACR30,CLR30..EUR,GCC,GEN200002-200304

BLUE GRAY,TRIM11

main69205-28090-B1iACR30,CLR30..EUR,GCC,GEN200002-200304

MD.CHARCOAL,TRIM12

main69205-28090-B3iACR30,CLR30..EUR,GCC,GEN200304-200601

MD.GRAY,TRIM1#

main69205-44010-B2iACR30..ARL200002-200304

BLUE GRAY,TRIM11

sub69205-44010

main69205-44010-B3iACR30..ARL200002-200304

MD.CHARCOAL,TRIM12

sub69205-44010

main69205-44010-B4iACR30..ARL200304-200601

MD.GRAY,TRIM1#

sub69205-44010

69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)

main90541-04014iACR30,CLR30200002-200304

69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69206-28060-B0iACR30,CLR30..EUR,GCC,GEN200002-200304

BLUE GRAY,TRIM11

main69206-28060-B1iACR30,CLR30..EUR,GCC,GEN200002-200304

MD.CHARCOAL,TRIM12

main69206-28060-B3iACR30,CLR30..EUR,GCC,GEN200304-200601

MD.GRAY,TRIM1#

main69206-44010-B2iACR30..ARL200002-200304

BLUE GRAY,TRIM11

main69206-44010-B3iACR30..ARL200002-200304

MD.CHARCOAL,TRIM12

main69206-44010-B4iACR30..ARL200304-200601

MD.GRAY,TRIM1#

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-28110-A0iACR30..GL..GCC200503

GCC PACKAGE 1,WHITE PM.,042

main69210-28110-A1iACR30,CLR30200002-200601

WHITE,056

main69210-28110-B0iACR30,CLR30200002-200601

SILVER ME.,1C0

main69210-28110-B2iACR30,CLR30200304-200601

GRAY ME.,1D2

main69210-28110-C0iACR30,CLR30200002-200304

BLACK MC.CC.,210

main69210-28110-C1iACR30,CLR30200304-200601

BLACK,202

main69210-28110-D0iACR30,CLR30200002-200601

RED MC.,3J7

main69210-28110-E0iACR30,CLR30200304-200601

BEIGE ME.,4R4

main69210-28110-F0iACR30,CLR30200002-200304

CHAMPAGNE ME.,583

main69210-28110-G0iACR30,CLR30200002-200601

DK.GREEN MC.,6Q7

main69210-28110-J0iACR30,CLR30200002-200601

DK.BLUE MC.,8P4

main69210-28110-J1iACR30,CLR30200002-200304

GRAYISH BLUE ME.,8P6

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69220-28110-A0iACR30..GL..GCC200503

GCC PACKAGE 1,WHITE PM.,042

main69220-28110-A1iACR30,CLR30200002-200601

WHITE,056

main69220-28110-B0iACR30,CLR30200002-200601

SILVER ME.,1C0

main69220-28110-B2iACR30,CLR30200304-200601

GRAY ME.,1D2

main69220-28110-C0iACR30,CLR30200002-200304

BLACK MC.CC.,210

main69220-28110-C1iACR30,CLR30200304-200601

BLACK,202

main69220-28110-D0iACR30,CLR30200002-200601

RED MC.,3J7

main69220-28110-E0iACR30,CLR30200304-200601

BEIGE ME.,4R4

main69220-28110-F0iACR30,CLR30200002-200304

CHAMPAGNE ME.,583

main69220-28110-G0iACR30,CLR30200002-200601

DK.GREEN MC.,6Q7

main69220-28110-J0iACR30,CLR30200002-200601

DK.BLUE MC.,8P4

main69220-28110-J1iACR30,CLR30200002-200304

GRAYISH BLUE ME.,8P6

69277BBEZEL, FRONT DOOR INSIDE HANDLE, RH

main69277-22090-B3iACR30,CLR30..EUR,GCC,GEN200002-200304

MD.CHARCOAL,TRIM12

sub69277-22090

main69277-22090-B4iACR30,CLR30..EUR,GCC,GEN200002-200304

BLUE GRAY,TRIM11

sub69277-22090

main69277-22090-B7iACR30,CLR30..EUR,GCC,GEN200304-200601

MD.GRAY,TRIM1#

sub69277-22090

main69277-30150-B3iACR30..ARL200002-200304

MD.CHARCOAL,TRIM12

sub69277-30150

main69277-30150-B6iACR30..ARL200002-200304

BLUE GRAY,TRIM11

sub69277-30150

main69277-30150-B8iACR30..ARL200304-200601

MD.GRAY,TRIM1#

sub69277-30150

69278BBEZEL, FRONT DOOR INSIDE HANDLE, LH

main69278-22050-B3iACR30,CLR30..EUR,GCC,GEN200002-200304

MD.CHARCOAL,TRIM12

sub69278-22050

main69278-22050-B4iACR30,CLR30..EUR,GCC,GEN200002-200304

BLUE GRAY,TRIM11

sub69278-22050

main69278-22050-B7iACR30,CLR30..EUR,GCC,GEN200304-200601

MD.GRAY,TRIM1#

sub69278-22050

main69278-30080-B3iACR30..ARL200002-200304

MD.CHARCOAL,TRIM12

sub69278-30080

main69278-30080-B6iACR30..ARL200002-200304

BLUE GRAY,TRIM11

sub69278-30080

main69278-30080-B8iACR30..ARL200304-200601

MD.GRAY,TRIM1#

sub69278-30080

69283PLUG, FRONT DOOR INSIDE HANDLE BEZEL, RH

main69283-30040-B3iACR30,CLR30200002-200304

MD. MOON MIST,TRIM11

sub69283-30040

main69283-30040-B4iACR30,CLR30200002-200304

MD.CHARCOAL,TRIM12

sub69283-30040

main69283-30040-P1iACR30,CLR30200304-200601

MD.GRAY,TRIM1#

sub69283-30040

69284CPLUG, FRONT DOOR INSIDE HANDLE BEZEL, LH

main69284-30040-B3iACR30,CLR30200002-200304

MD.MOON MIST,TRIM11

sub69284-30040

main69284-30040-B4iACR30,CLR30200002-200304

MD.CHARCOAL,TRIM12

sub69284-30040

main69284-30040-P1iACR30,CLR30200304-200601

MD.GRAY,TRIM1#

sub69284-30040

69293ASNAP, FRONT DOOR OUTSIDE HANDLE

main69293-12050iACR30,CLR30200002-200304

RH

main69293-12060iACR30,CLR30200002-200304

LH

69310LOCK ASSY, FRONT DOOR, RH

main69310-28090iACR30..RHD..(07S,08S)..ATM200002-200304

main69310-28100iACR30,CLR30..LHD200002-200304

main69310-28110iCLR30..RHD200002-200304

W(DOUBLE-LOCK)

main69310-28110iCLR30..RHD200102-200304

main69310-28120iACR30..RHD..(07S,08S)..ATM200104-200105

sub69310-28090

69311AROD, FRONT DOOR LOCK OPEN, RH

main69311-28030iACR30..LHD..06S..ATM;ACR30..(07S,08S)..ATM;ACR30,CLR30..LHD..MTM200002-200304

69312ROD, FRONT DOOR LOCK OPEN, LH

main69312-28030iACR30..ATM;ACR30,CLR30..LHD..MTM200002-200304

69315DLINK, FRONT DOOR OUTSIDE LOCKING, RH

main69315-28020iACR30..LHD..06S..ATM;ACR30..(07S,08S)..ATM;ACR30,CLR30..LHD..MTM200002-200109

main69315-28030iACR30..RHD..EUR200002-200304

W(DOUBLE-LOCK)

main69315-28030iCLR30..RHD200102-200304

main69315-28040iACR30..RHD..(07S,08S)..ATM200104-200304

69316ALINK, FRONT DOOR OUTSIDE LOCKING, LH

main69316-28020iACR30..ATM;ACR30,CLR30..LHD..MTM200002-200304

main69316-28030iCLR30..RHD200102-200304

main69316-28030iCLR30..RHD200002-200304

W(DOUBLE-LOCK)

69320LOCK ASSY, FRONT DOOR, LH

main69320-28090iACR30..RHD..(07S,08S)..ATM200002-200304

main69320-28100iACR30,CLR30..LHD200002-200304

main69320-28110iACR30..RHD..EUR200002-200304

W(DOUBLE-LOCK)

main69320-28110iCLR30..RHD200102-200304

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-20110iACR30,CLR30200002-200304

69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH

main69710-28010iACR30..LHD..06S..ATM;ACR30..(07S,08S)..ATM;ACR30,CLR30..LHD..MTM200002-200304

main69710-28020iCLR30..RHD200002-200304

W(DOUBLE-LOCK)

main69710-28020iCLR30..RHD200102-200304

69725PROTECTOR, FRONT DOOR INSIDE LOCKING LINK, RH

main69725-28030iACR30..LHD..06S..ATM;ACR30..(07S,08S)..ATM;ACR30,CLR30..LHD..MTM200002-200304

main69725-28040iACR30,CLR30..RHD..EUR200002-200304

NO.1:REFER TO ILLUSTRATION

main69725-28050iACR30,CLR30..RHD..EUR200002-200304

NO.2:REFER TO ILLUSTRATION

69726APROTECTER, FRONT DOOR INSIDE LOCKING LINK, LH

main69726-28020iACR30..LHD..06S..ATM;ACR30..(07S,08S)..ATM;ACR30,CLR30..LHD..MTM200002-200304

main69726-28030iACR30,CLR30..RHD..EUR200002-200304

NO.1:REFER TO ILLUSTRATION

main69726-28040iACR30,CLR30..RHD..EUR200002-200304

NO.2:REFER TO ILLUSTRATION

69749ACLAMP, FRONT DOOR LOCK LINK, NO.1

main69749-30050iACR30,CLR30200002-200304

69750CCABLE ASSY, FRONT DOOR INSIDE LOCKING, RH

main69750-28010iACR30..LHD..06S..ATM;ACR30..(07S,08S)..ATM;ACR30,CLR30..LHD..MTM200002-200304

main69750-28020iCLR30..RHD200002-200304

W(DOUBLE-LOCK)

main69750-28020iCLR30..RHD200102-200304

69755SILENCER, FRONT DOOR LOCK LINK

main69759-44030iACR30..08S..ATM;ACR30,CLR30..06S,07S200002-200410

main90950-06117iACR30,CLR30200410

69760CCABLE ASSY, FRONT DOOR INSIDE LOCKING LH

main69760-28010iACR30..LHD..06S..ATM;ACR30..(07S,08S)..ATM;ACR30,CLR30..LHD..MTM200002-200304

main69760-28020iCLR30..RHD200102-200304

main69760-28020iACR30..RHD..EUR200002-200304

W(DOUBLE-LOCK)

9010506082

main90105-06082

9014860022

main90148-60022

9015480001

main90154-80001

9015940202

main90159-40202

9015950322

main90159-50322

9016450032

main90164-50032

9018905003

main90189-05003

9165260612

main91652-60612

34 parts on this diagram · 1 diagram in section
