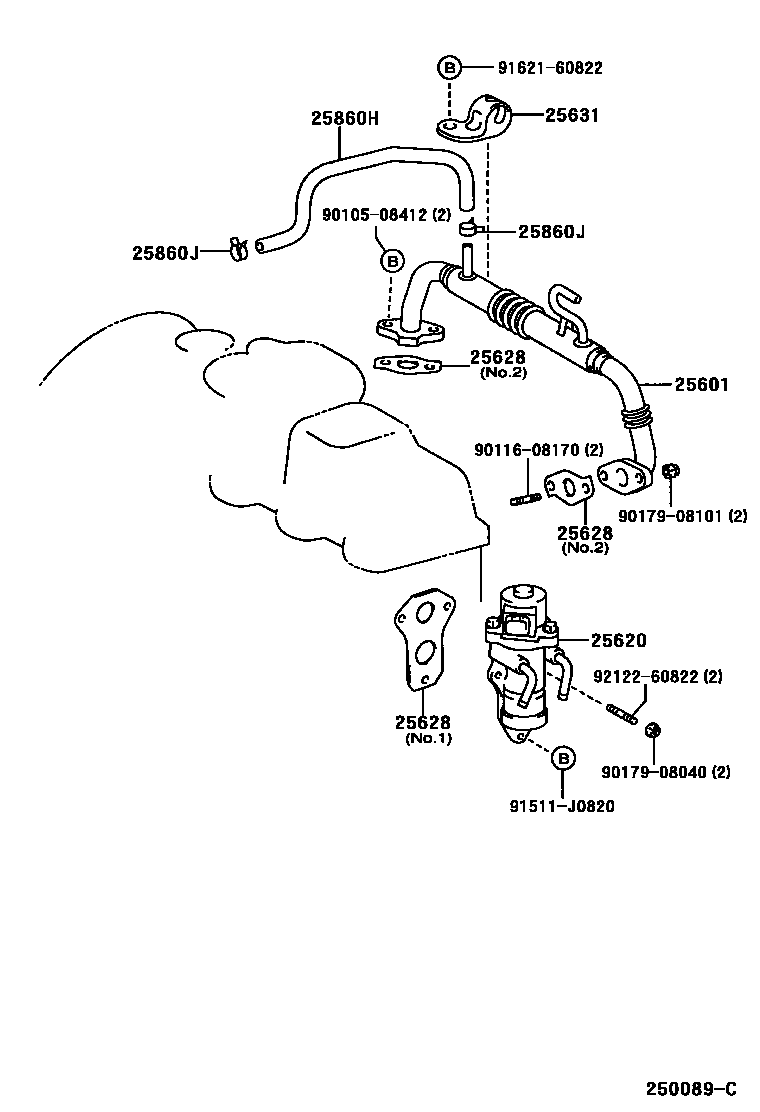

Toyota PREVIA/TARAGO — EXHAUST GAS RECIRCULATION SYSTEM

25601PIPE SUB-ASSY, EGR, NO.1

main25601-27010i200304-200404

25620VALVE ASSY, EGR

main25620-27080i200102-200304

25628GASKET, EGR INLET

main25628-27010i200304

NO.1

main25628-64030×2i200304-200404

NO.2

25631STAY, EGR PIPE, NO.1

main25631-27010i200102-200304

25860HHOSE, WATER BY-PASS HOSE NO.2(FOR EGR COOLER)

main16267-27010i200102-200304

25860JHOSE, CLIP NO.1(FOR EGR COOLER)

main90467-15022×2i200102-200304

9010508412

main90105-08412

9011608170

main90116-08170

9017908040

main90179-08040

9017908101

main90179-08101

91511J0820

main91511-J0820

9162160822

main91621-60822

9212260822

main92122-60822

13 parts on this diagram · 1 diagram in section

EXHAUST GAS RECIRCULATION SYSTEM for Toyota PREVIA/TARAGO

This section contains 13 genuine Toyota parts for the EXHAUST GAS RECIRCULATION SYSTEM system of the Toyota PREVIA/TARAGO. Key components include: PIPE SUB-ASSY, EGR, NO.1, VALVE ASSY, EGR, GASKET, EGR INLET, STAY, EGR PIPE, NO.1, HOSE, WATER BY-PASS HOSE NO.2(FOR EGR COOLER).
