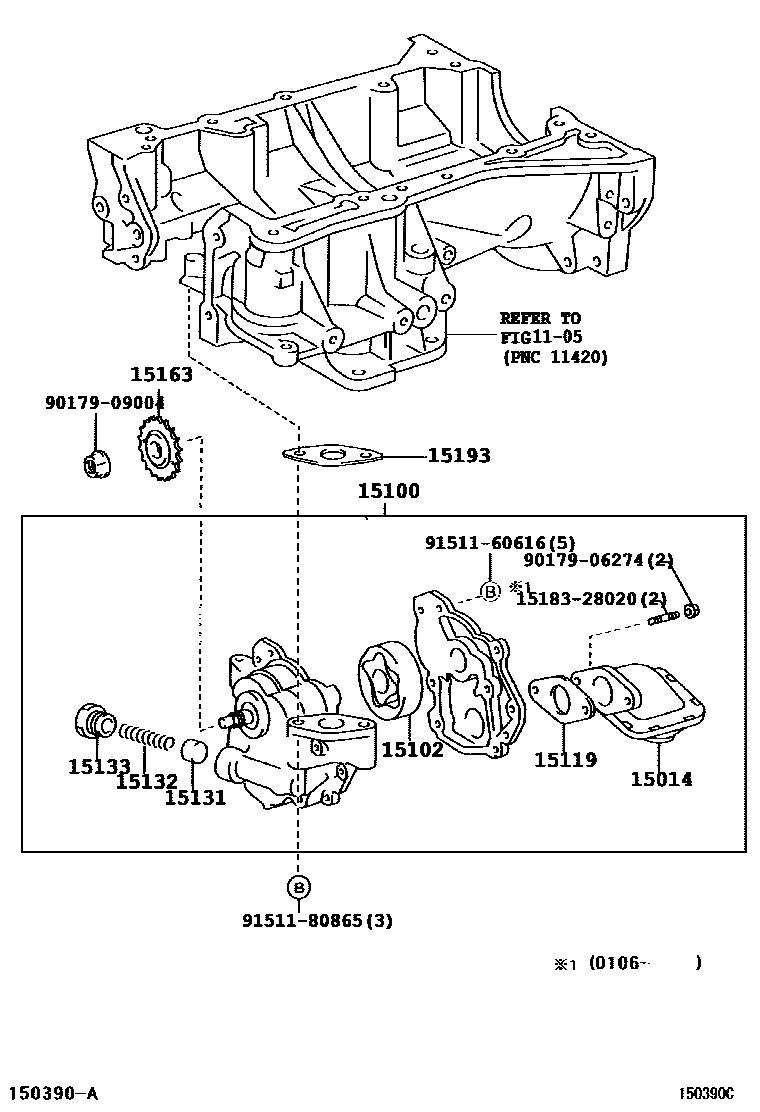

Toyota PREVIA/TARAGO — ENGINE OIL PUMP

0001 1 0002 1 0003 1

1105

15014STRAINER SET, OIL PUMP

main15014-28020i2AZFE..ACR30200002-200404

15100PUMP ASSY, OIL

main15100-27020i1CDFTV..CLR30..06S,07S200102-200404

main15100-28020i2AZFE..ACR30..08S..MTM200002-200404

15102ROTOR SET, OIL PUMP

main15102-28020i2AZFE..ACR30200002-200304

15119GASKET, OIL PUMP COVER

main15119-28020i2AZFE..ACR30..08S..MTM200002-200404

15131VALVE, OIL PUMP RELIEF

main15131-46040i2AZFE..ACR30200002-200404

15132SPRING, OIL PUMP RELIEF VALVE

main15132-28020i2AZFE..ACR30200002-200502

main15132-46020i2AZFE..ACR30200502

15133PLUG, OIL PUMP RELIEF VALVE

main15133-28020i2AZFE..ACR30..08S..MTM200002-200404

15163GEAR, OIL PUMP DRIVE SHAFT

main15163-28010i2AZFE..ACR30200002-200404

15193GASKET, OIL PUMP

main15193-27010i1CDFTV..CLR30200102-200404

main15193-28010i2AZFE..ACR30..08S..MTM200002-200404

1518328020BOLT, UNION(FOR OIL PUMP)

main15183-28020

9017906274

main90179-06274

9017909004

main90179-09004

9151160616

main91511-60616

9151180865

main91511-80865

15 parts on this diagram · 3 diagrams in section
