Toyota PREVIA/TARAGO — ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1

2211

8401

85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)

main90987-02012iACR30200002-200306

main90987-02027iACR30200306-200601

85910FRELAY, COMPUTER (FOR EFI)

main90987-02009iACR30200002-200601

85915SRELAY, HEATER (FOR AIR FUEL RATIO SENSOR)

main90987-02009iACR30..EUR200002-200304

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-33030iACR30200304-200601

main89422-35010iACR30200002-200304

89452SENSOR, THROTTLE POSITION (FOR E.F.I.)

main89452-33030iACR30200002-200304

89661COMPUTER, ENGINE CONTROL

main89661-28A20iACR30..MTM200304-200407

PART NUMBER LABEL=89661-28A20

sub89661-28A21

main89661-28A21iACR30..MTM200408-200601

PART NUMBER LABEL=89661-28A21

main89661-28A30iACR30..LHD..ATM..EUR200304-200407

PART NUMBER LABEL=89661-28A30

sub89661-28A31

main89661-28A31iACR30..LHD..ATM..EUR200408-200601

PART NUMBER LABEL=89661-28A31

main89661-28A40iACR30..RHD..ATM..EUR200304-200407

PART NUMBER LABEL=89661-28A40

sub89661-28A41

main89661-28A41iACR30..RHD..ATM..EUR200408-200601

PART NUMBER LABEL=89661-28A41

main89661-28A50iACR30..LHD..MTM200304-200601

PART NUMBER LABEL=89661-28A50

main89661-28A60iACR30..GEN200304-200601

PART NUMBER LABEL=89661-28A60

main89661-28A70iACR30..LHD..ATM..EUR200304-200601

PART NUMBER LABEL=89661-28A70

main89661-28A80iACR30..ARL,GCC200304-200601

PART NUMBER LABEL=89661-28A80

main89661-28A90iACR30..LHD..07S..ATM..EUR200304-200601

PART NUMBER LABEL=89661-28A90

main89666-28030iACR30..MTM200002-200006

sub89666-28031

main89666-28031iACR30..MTM200006-200107

PART NUMBER LABEL=89666-28031

sub89666-28032

main89666-28032iACR30..MTM200107-200203

PART NUMBER LABEL=89666-28032

sub89666-28033

main89666-28033iACR30..MTM200203-200304

PART NUMBER LABEL=89666-28033

main89666-28040iACR30..LHD..ATM..EUR200002-200006

sub89666-28041

main89666-28041iACR30..LHD..ATM..EUR200006-200107

PART NUMBER LABEL=89666-28041

sub89666-28042

main89666-28042iACR30..LHD..ATM..EUR200107-200203

PART NUMBER LABEL=89666-28042

sub89666-28043

main89666-28043iACR30..LHD..ATM..EUR200203-200304

PART NUMBER LABEL=89666-28043

main89666-28050iACR30..RHD..ATM..EUR200002-200006

sub89666-28051

main89666-28051iACR30..RHD..ATM..EUR200006-200108

PART NUMBER LABEL=89666-28051

sub89666-28052

main89666-28052iACR30..RHD..(07S,08S)..ATM..EUR200107-200203

PART NUMBER LABEL=89666-28052

sub89666-28053

main89666-28053iACR30..RHD..ATM..EUR200203-200304

PART NUMBER LABEL=89666-28053

main89666-28060iACR30..ARL200002-200006

sub89666-28061

main89666-28061iACR30..ARL200006-200105

PART NUMBER LABEL=89666-28061

sub89666-28062

main89666-28062iACR30..ARL200105-200304

main89666-28070iACR30..LHD..ATM..EUR200002-200006

PART NUMBER LABEL=89666-28070

sub89666-28071

main89666-28071iACR30..LHD..ATM..EUR200006-200304

PART NUMBER LABEL=89666-28071

main89666-28080iACR30..LHD..MTM200002-200006

PART NUMBER LABEL=89666-28080

sub89666-28081

main89666-28081iACR30..LHD..MTM200006-200304

PART NUMBER LABEL=89666-28081

main89666-28100iACR30..GEN200002-200006

PART NUMBER LABEL=89666-28100

sub89666-28101

main89666-28101iACR30..GEN;ACR30..RHD..(07S,08S)..ATM..EUR200006-200304

PART NUMBER LABEL=89666-28101

main89666-28120iACR30..GCC200105-200304

main89666-28160iACR30..LHD..(06S,07S)..ATM..EUR200110-200304

PART NUMBER LABEL=89666-28160

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-28060iACR30..RHD200002-200601

main89667-28080iACR30..LHD200002-200601

89667EBRACKET, ENGINE CONTROL COMPUTER, NO.1

main89667-28070iACR30..RHD200002-200601

main89667-28090iACR30..LHD200002-200601

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-28060iACR30..RHD200002-200601

main89668-28080iACR30..LHD200002-200601

89669BRACKET, ENGINE CONTROL COMPUTER, NO.3

main89669-28070iACR30..RHD..EUR200002-200601

89669EBRACKET, ENGINE CONTROL COMPUTER, NO.4

main89669-28080iACR30..RHD..EUR200002-200601

9014950069

main90149-50069

9043012005

main90430-12005

91631J0612

main91631-J0612

9165140612

main91651-40612

9331915010

main93319-15010

9415080600

main94150-80600

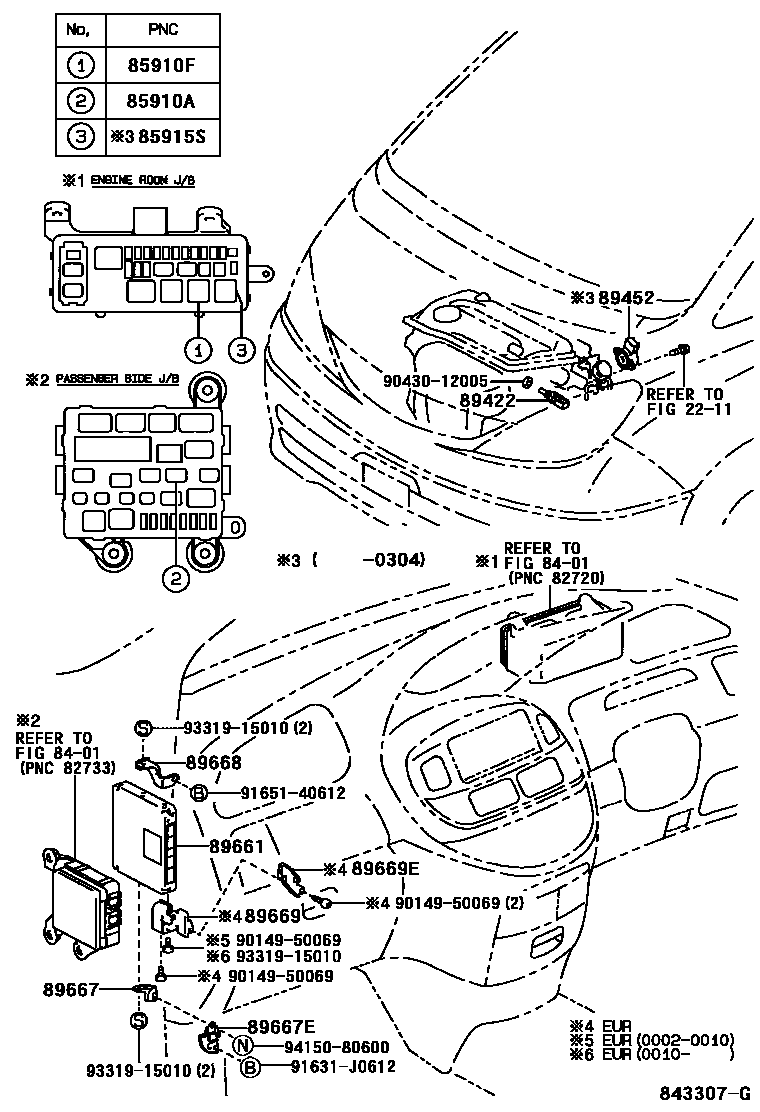

19 parts on this diagram · 2 diagrams in section
