Toyota PREVIA/TARAGO — DISC WHEEL & WHEEL CAP

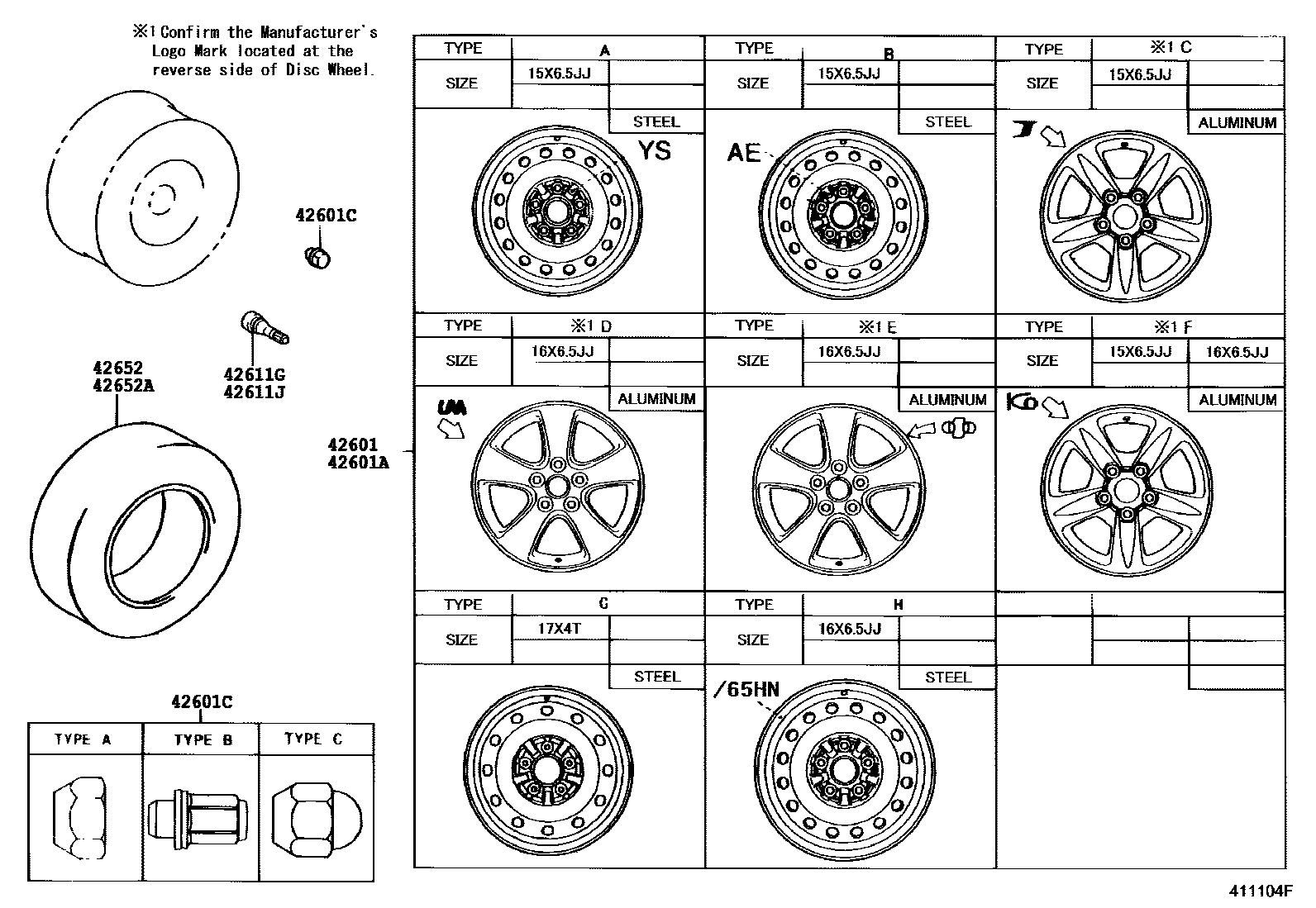

Parts diagram
42601WHEEL, DISC
main42611-28420i200002-200304
15X6.5JJ,#,TYPE A:REFER TO ILLUSTRATION
main42611-28430i200002-200304
15X6.5JJ,#,TYPE B:REFER TO ILLUSTRATION
sub42611-28420
main42611-28440i200002-200304
15X6.5JJ,TYPE C:REFER TO ILLUSTRATION
main42611-28450i200002-200304
16X6.5JJ,TYPE D:REFER TO ILLUSTRATION
sub42611-28620
main42611-28460i200105-200304
16X6.5JJ,TYPE E:REFER TO ILLUSTRATION
main42611-28470i200009-200212
15X6.5JJ,TYPE F:REFER TO ILLUSTRATION
sub42611-28471
main42611-28471i200212-200304
15X6.5JJ,TYPE F:REFER TO ILLUSTRATION
main42611-28540i200304-200601
16X6.5JJ,TYPE F:REFER ILLUST.
main42611-33310i200406-200601
16X6.5JJ,#,TYPE J:REFER ILLUST.
sub42611-33311
main42611-33320i200406-200601
16X6.5JJ,#,TYPE H:REFER ILLUST.
sub42611-33310
42601AWHEEL, DISC (FOR SPARE)
main42611-28420i200002-200304
15X6.5JJ,#,TYPE A:REFER TO ILLUSTRATION
main42611-28430i200002-200304
15X6.5JJ,#,TYPE B:REFER TO ILLUSTRATION
sub42611-28420
main42611-28440i200002-200304
15X6.5JJ,TYPE C:REFER TO ILLUSTRATION
main42611-28450i200002-200304
16X6.5JJ,TYPE D:REFER TO ILLUSTRATION
sub42611-28620
main42611-28460i200105-200304
16X6.5JJ,TYPE E:REFER TO ILLUSTRATION
main42611-28470i200009-200212
15X6.5JJ,TYPE F:REFER TO ILLUSTRATION
sub42611-28471
main42611-28471i200212-200304
15X6.5JJ,TYPE F:REFER TO ILLUSTRATION
main42611-28540i200304-200601
16X6.5JJ,TYPE F:REFER ILLUST.
main42611-33310i200304-200601
16X6.5JJ,#,TYPE J:REFER ILLUST.
sub42611-33311
main42611-33320i200304-200601
16X6.5JJ,#,TYPE H:REFER ILLUST.
sub42611-33310
42601CNUT, HUB (FOR AXLE)
main90942-01007i200002-200304
TYPE A:REFER TO ILLUSTRATION
main90942-01021i200304
TYPE C:REFER ILLUST.
main90942-01058i200002-200304
TYPE B:REFER TO ILLUSTRATION
main90942-01058i200304
TYPE B:REFER ILLUST.
42611GVALVE (FOR TUBELESS TIRE)
main90942-05009i200002-200601
42611JVALVE (FOR TUBELESS TIRE SPARE)
main90942-05009i200002-200304
42652TIRE
main42652-28530i200002-200304
205/65R15,MICHELIN
sub42652-28531
main42652-28540i200002-200304
215/60R16
sub42652-28541
main42652-28541i200407-200601
215/60R16 95H,*B/S,TYPE A:REFER TO ILLUSTRATION, FIG.47-05
main42652-28541i200406-200601
215/60R16 95H,*B/S
main42652-28550i200002-200304
205/65R15,MICHELIN
sub42652-28551
main42652-28560i200002-200304
215/60R16
sub42652-28561
main42652-28561i200407-200601
215/60R16 95H,*B/S
main42652-28640i200210-200304
205/65R15,*Y/H
main42652-28650i200210-200304
205/65R15,*Y/H
main42652-28660i200210-200304
205/65R15,*Y/H
main42652-28A20i200508-200601
215/60R16,*Y/H
main42652-28A20i200508-200601
215/60R16,*Y/H,TYPE A:REFER TO ILLUSTRATION, FIG.47-05
main42652-28A30i200508-200601
215/60R16,*Y/H
42652ATIRE (FOR SPARE)
main42652-28530i200002-200304
205/65R15,MICHELIN
sub42652-28531
main42652-28540i200002-200403
215/60R16
sub42652-28541
main42652-28541i200404-200601
215/60R16 95H,*B/S
main42652-28541i200404-200601
215/60R16 95H,*B/S,TYPE A:REFER TO ILLUSTRATION, FIG.47-05
main42652-28550i200002-200304
205/65R15,MICHELIN
sub42652-28551
main42652-28560i200002-200403
215/60R16
sub42652-28561
main42652-28561i200404-200601
215/60R16 95H,*B/S
main42652-28611i200304-200601
215/60R16,*B/S,TYPE B:REFER TO ILLUSTRATION, FIG.47-05
main42652-28640i200210-200304
205/65R15,*Y/H
main42652-28650i200210-200304
205/65R15,*Y/H
main42652-28660i200210-200304
205/65R15,*Y/H
main42652-28A20i200508-200601
215/60R16,*Y/H
main42652-28A20i200508-200601
215/60R16,*Y/H,TYPE A:REFER TO ILLUSTRATION, FIG.47-05
main42652-28A30i200508-200601
215/60R16,*Y/H

7 parts on this diagram · 5 diagrams in section
