Toyota PREVIA/TARAGO — CRANKSHAFT & PISTON

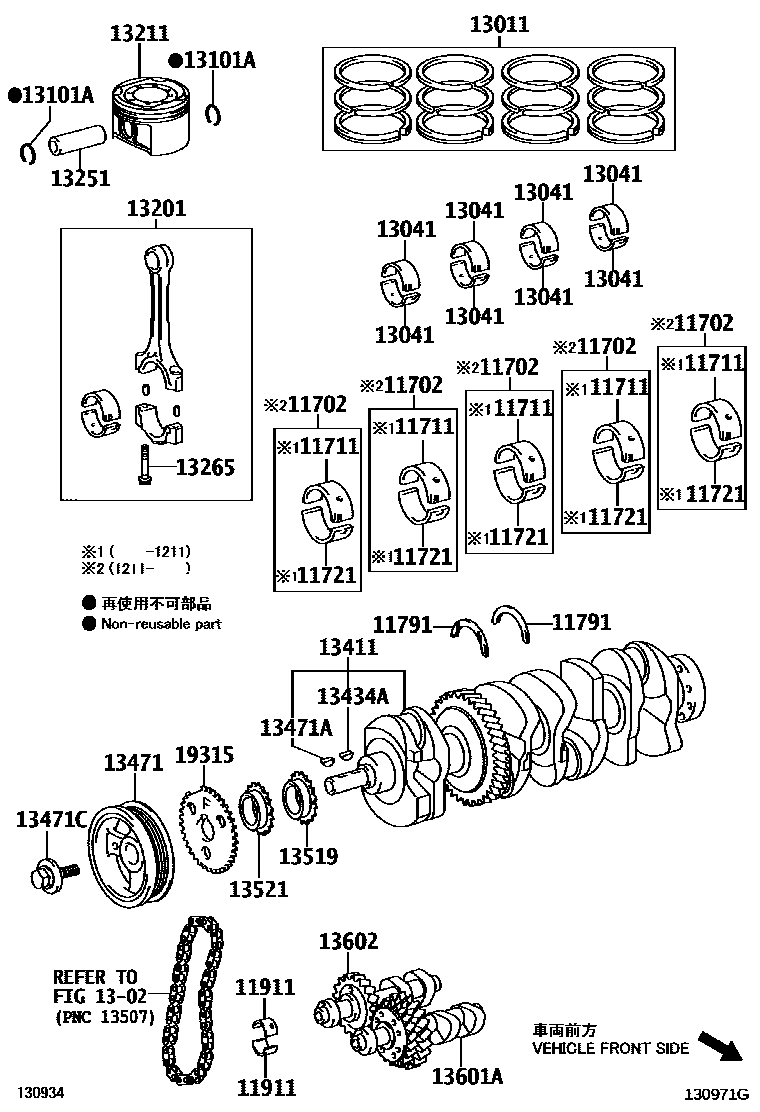

Parts diagram
11702BEARING SET, CRANKSHAFT
main11701-28010-01×5i201211-201605
2AZ-FE,MARK 1,*195:REFER R/M; MARK 1,*195:REFER R/M
main11701-28010-02×5i201605
MARK 2,REFER REPAIR MANUAL
main11701-28010-03×5i201605-201906
MARK 3,REFER REPAIR MANUAL
main11701-28010-04×5i201211-201605
2AZ-FE,MARK 4,*195:REFER R/M; MARK 4,*195:REFER R/M
main11701-0H040-01×5i201211-201605
2AZ-FE,MARK 1,*194:REFER R/M
main11701-0H040-02×5i201211-201605
2AZ-FE,MARK 2,*194:REFER R/M
main11701-0H040-03×5i201211-201605
2AZ-FE,MARK 3,*194:REFER R/M
main11701-0H040-04×5i201211-201605
2AZ-FE,MARK 4,*194:REFER R/M
11711BEARING, CRANKSHAFT
main11071-0P030-01×2i200611-200812
MARK1,NO.2,(L):REFER R/M
main11071-0P030-02×2i200812-200906
MARK2,NO.2,(L):REFER R/M
main11071-0P030-03×2i200812-200906
MARK3,NO.2,(L):REFER R/M
main11071-0P030-04×2i200611-200812
MARK4,NO.2,(L):REFER R/M
main11071-0P030-05×2i200812-200906
MARK5,NO.2,(L):REFER R/M
main11071-31031-01×2i200906-201204
MARK1,NO.2,REFER R/M
main11071-31031-02×2i200906-201205
MARK2,NO.2,REFER R/M
main11071-31031-03×2i200906-201204
MARK3,NO.2,REFER R/M
main11071-31031-04×2i200611-200812
MARK4,NO.2,(J):REFER R/M
main11071-31031-05×2i200906-201205
MARK5,NO.2,REFER R/M
main11071-31060-01×2i201503-201605
MARK 1,NO.2,REFER R/M
main11071-31060-02×2i201503-201605
MARK 2,NO.2,REFER R/M
main11071-31060-03×2i201503-201605
MARK 3,NO.2,REFER R/M
main11071-31060-04×2i201503-201605
MARK 4,NO.2,REFER R/M
main11071-31060-05×2i201503-201605
MARK 5,NO.2,REFER R/M
main11071-31060-A1×2i201605
MARK UPPER 1 LOWER 1,NO.2,REFER R/M
main11071-31060-B2×2i201605
MARK UPPER 2 LOWER 2,NO.2,REFER R/M
main11071-31060-C3×2i201605
MARK UPPER 3 LOWER 3,NO.2,REFER R/M
main11071-31060-D4×2i201605
MARK UPPER 4 LOWER 4,NO.2,REFER R/M
main11071-31060-E5×2i201605
MARK UPPER 5 LOWER 5,NO.2,REFER R/M
main11701-0P030-01×2i200611-200812
MARK1,NO.1,(L):REFER R/M
main11701-0P030-02×2i200812-200906
MARK2,NO.1,(L):REFER R/M
main11701-0P030-03×2i200611-200812
MARK3,NO.1,(L):REFER R/M
main11701-0P030-04×2i200611-200812
MARK4,NO.1,(L):REFER R/M
main11701-0P030-05×2i200812-200906
MARK5,NO.1,(L):REFER R/M
main11701-31061-01×2i200611-200812
MARK1,NO.1,(J):REFER R/M
main11701-31061-02×2i200611-200812
MARK2,NO.1,(J):REFER R/M
main11701-31061-03×2i200812-200902
MARK3,NO.1,(J):REFER R/M
main11701-31061-04×2i200611-200812
MARK4,NO.1,(J):REFER R/M
main11701-31061-05×2i200812-200902
MARK5,NO.1,(J):REFER R/M
main11701-31090-01×2i200902-200906
MARK 1,NO.1,(J):REFER R/M
main11701-31090-02×2i201204-201409
MARK 2,NO.1,REFER R/M
main11701-31090-03×2i201204-201409
MARK 3,NO.1,REFER R/M
main11701-31090-04×2i200906-201204
MARK 4,NO.1,REFER R/M
main11701-31090-05×2i201204-201502
MARK 5,NO.1,REFER R/M
main11701-31100-01×2i201503-201605
MARK 1,NO.1,REFER R/M
main11701-31100-02×2i201503-201605
MARK 2,NO.1,REFER R/M
main11701-31100-03×2i201503-201605
MARK 3,NO.1,REFER R/M
main11701-31100-04×2i201503-201605
MARK 4,NO.1,REFER R/M
main11701-31100-05×2i201503-201605
MARK 5,NO.1,REFER R/M
main11701-31100-A1×2i201605
MARK UPPER 1 LOWER 1,NO.1,REFER R/M
main11701-31100-B2×2i201605
MARK UPPER 2 LOWER 2,NO.1,REFER R/M
main11701-31100-C3×2i201605
MARK UPPER 3 LOWER 3,NO.1,REFER R/M
main11701-31100-D4×2i201605
MARK UPPER 4 LOWER 4,NO.1,REFER R/M
main11701-31100-E5×2i201605
MARK UPPER 5 LOWER 5,NO.1,REFER R/M
main11711-28020-01×5i200601-200811
MARK1,*195:REFER R/M
main11711-28020-02×5i200601-200811
MARK2,*195:REFER R/M
main11711-28020-03×5i200601-200811
MARK3,*195:REFER R/M
main11711-28020-04×5i200601-200811
MARK4,*195:REFER R/M
main11711-28021-01×5i201204-201211
2AZ-FE,MARK 1,*195:REFER R/M; MARK 1,*195:REFER R/M
main11711-28021-02×5i200812-201204
MARK 2,*195:REFER R/M
main11711-28021-03×5i200812-201205
MARK 3,*195:REFER R/M
main11711-28021-04×5i200811-200812
MARK 4,*195:REFER R/M
main11711-0H041-01×5i201204-201211
2AZ-FE,MARK 1,*194:REFER R/M
main11711-0H041-02×5i201204-201211
2AZ-FE,MARK 2,*194:REFER R/M
main11711-0H041-03×5i201003-201204
2AZ-FE,MARK 3,*194:REFER R/M
main11711-0H041-04×5i201204-201211
2AZ-FE,MARK 4,*194:REFER R/M
11721BEARING, CRANKSHAFT, NO.2
main11721-28020-01×5i200601-200811
MARK1,*195:REFER R/M
main11721-28020-02×5i200601-200811
MARK2,*195:REFER R/M
main11721-28020-03×5i200601-200811
MARK3,*195:REFER R/M
main11721-28020-04×5i200601-200811
MARK4,*195:REFER R/M
main11721-28021-01×5i201204-201211
2AZ-FE,MARK 1,*195:REFER R/M; MARK 1,*195:REFER R/M
main11721-28021-02×5i201204-201211
2AZ-FE,MARK 2,*195:REFER R/M; MARK 2,*195:REFER R/M
main11721-28021-03×5i200811-200812
MARK 3,*195:REFER R/M
main11721-28021-04×5i201204-201211
2AZ-FE,MARK 4,*195:REFER R/M; MARK 4,*195:REFER R/M
main11721-0H041-01×5i201003-201204
2AZ-FE,MARK 1,*194:REFER R/M
main11721-0H041-02×5i201003-201204
2AZ-FE,MARK 2,*194:REFER R/M
main11721-0H041-03×5i201204-201211
2AZ-FE,MARK 3,*194:REFER R/M
main11721-0H041-04×5i201003-201204
2AZ-FE,MARK 4,*194:REFER R/M
11791WASHER, CRANKSHAFT THRUST, UPPER
main11791-28020×2i200812-201205
STD,*195
main11791-0H030×2i201003-201204
STD,2AZ-FE,*194
11911BEARING, BALANCESHAFT, NO.1
main11911-28010-01×8i200601-200811
MARK 1,*195:REFER R/M
main11911-28010-02×8i200601-200811
MARK 2,*195:REFER R/M
main11911-28010-03×8i200601-200811
MARK 3,*195:REFER R/M
main11911-28011-01×8i200811-200812
MARK 1,*195:REFER R/M
main11911-28011-02×8i201204-201605
2AZ-FE,MARK 2,*194:REFER R/M; 2AZ-FE,MARK 2,*195:REFER R/M; MARK 2,*195:REFER R/M
main11911-28011-03×8i200811-200812
MARK 3,*195:REFER R/M
13011RING SET, PISTON
main13011-28160i200812-200912
STD,*195
main13011-28161supersedes 13011-28260i200912-201204
STD,*195
main13011-28240i201304-201308
STD,*195; STD,2AZ-FE,*195
main13011-28260i201605-201906
STD
main13011-31130i200611-200812
STD
main13011-31150i201204-201411
STD
main13011-31151i201412-201605
STD
main13011-28250supersedes 13011-28260i201308-201407
STD,*195; STD,2AZ-FE,*194; STD,2AZ-FE,*195
1302CAMSHAFT & VALVE
→ Go to FIG 13-02
13041BEARING, CONNECTING ROD
main13041-0P040-01×6i200812-200906
MARK1,(L):REFER R/M
main13041-0P040-02×6i200611-200812
MARK2,(L):REFER R/M
main13041-0P040-03×6i200812-200906
MARK3,(L):REFER R/M
main13041-0P040-04×6i200611-200812
MARK4,(L):REFER R/M
main13041-31070-01×6i201204-201409
MARK 1,REFER R/M
main13041-31070-02×6i200812-200906
MARK 2,(J):REFER R/M
main13041-31070-03×6i200906-201205
MARK 3,REFER R/M
main13041-31070-04×6i200812-200906
MARK 4,(J):REFER R/M
main13041-31100-01×6i201503-201506
MARK 1,REFER R/M
main13041-31100-02×6i201503-201506
MARK 2,REFER R/M
main13041-31100-03×6i201503-201506
MARK 3,REFER R/M
main13041-31100-04×6i201503-201506
MARK 4,REFER R/M
main13041-31110-01×6i201507-201605
MARK 1,REFER R/M
main13041-31110-02×6i201507-201605
MARK 2,REFER R/M
main13041-31110-03×6i201507-201605
MARK 3,REFER R/M
main13041-31110-04×6i201507-201605
MARK 4,REFER R/M
main13281-28010-01×8i200601-200811
MARK 1,*195:REFER R/M
main13281-28010-02×8i200601-200811
MARK 2,*195:REFER R/M
main13281-28010-03×8i200601-200811
MARK 3,*195:REFER R/M
main13281-28011-01×8i200811-200812
MARK 1,*195:REFER R/M
main13281-28011-02×8i200812-201205
MARK 2,*195:REFER R/M
main13281-28011-03×8i201204-201605
2AZ-FE,MARK 3,*195:REFER R/M; MARK 3,*195:REFER R/M
main13281-0H041-01×8i201204-201605
2AZ-FE,MARK 1,*194:REFER R/M
main13281-0H041-02×8i201204-201605
2AZ-FE,MARK 2,*194:REFER R/M
main13281-0H041-03×8i201003-201204
2AZ-FE,MARK 3,*194:REFER R/M
13101PISTON SUB-ASSY, W/PIN
main13101-31090×6i200611-200703
STD
main13101-31091×6i200703-200812
STD
main13101-31092-A0×6i200906-201204
STD,MARK A,REFER REPAIR MANUAL
main13101-31092-B0×6i201605
STD,MARK B,REFER REPAIR MANUAL
main13101-31092-C0×6i200906-201205
STD,MARK C,REFER REPAIR MANUAL
13101ARING, HOLE SNAP(FOR PISTON PIN)
main90520-22025×8i200601-200812
*195
13201ROD SUB-ASSY, CONNECTING
main13201-09790-A0×4i200601-200812
MARK A,*195:REFER R/M
main13201-09790-B0×4i200812-200908
MARK B,*195,(L):REFER R/M
main13201-09790-C0×4i200812-200908
MARK C,*195,(L):REFER R/M
main13201-09791-A0×4i200908-201204
MARK A,*195,(L):REFER R/M
main13201-09791-B0×4i200908-201204
MARK B,*195,(L):REFER R/M
main13201-09791-C0×4i200908-201204
MARK C,*195,(L):REFER R/M
main13201-29686-A0×4i200811-200812
MARK A,*195,(J):REFER R/M
main13201-29686-B0×4i200811-200812
MARK B,*195,(J):REFER R/M
main13201-29686-C0×4i201204-201205
MARK C,*195:REFER R/M
main13201-39135×6i200812-201005
main13201-39135-A0×6i201204-201503
MARK A,REFER REPAIR MANUAL
main13201-39135-B0×6i201005-201205
MARK B,REFER REPAIR MANUAL
main13201-39135-C0×6i201204-201503
MARK C,REFER REPAIR MANUAL
main13201-39137-A0×6i201503-201507
MARK A,REFER REPAIR MANUAL
main13201-39137-B0×6i201503-201507
MARK B,REFER REPAIR MANUAL
main13201-39137-C0×6i201503-201507
MARK C,REFER REPAIR MANUAL
main13201-39305-A0×6i201605
MARK A,REFER REPAIR MANUAL
main13201-39305-B0×6i201605
MARK B,REFER REPAIR MANUAL
main13201-39305-C0×6i201507-201605
MARK C,REFER REPAIR MANUAL
main13201-09781-A0×4i201204-201605
2AZ-FE,MARK A,*194,(L):REFER R/M
main13201-09781-B0×4i201003-201204
2AZ-FE,MARK B,*194,(L):REFER R/M
main13201-09781-C0×4i201003-201204
2AZ-FE,MARK C,*194,(L):REFER R/M
13211PISTON
main13211-28110-A0×4i200601-200806
MARKA,*195:REFER R/M
main13211-28110-B0×4i200601-200806
MARKB,*195:REFER R/M
main13211-28110-C0×4i200601-200806
MARKC,*195:REFER R/M
main13211-28111-A0×4i200806-200812
MARK A,*195:REFER R/M
main13211-28111-B0×4i200812-200911
MARK B,*195:REFER R/M
main13211-28111-C0×4i200812-200911
MARK C,*195:REFER R/M
main13211-28112-A0×4supersedes 13211-28141-C0i200911-201204
MARK A,*195:REFER R/M
main13211-28112-B0×4i201204-201501
MARK B,*195:REFER R/M
main13211-28112-C0×4i201204-201501
MARK C,*195:REFER R/M
main13211-28140-A0×4i201304-201406
2AZ-FE,MARK A,*195:REFER R/M; MARK A,*195:REFER R/M
main13211-28140-B0×4i201304-201406
2AZ-FE,MARK B,*195:REFER R/M; MARK B,*195:REFER R/M
main13211-28140-C0×4i201304-201406
2AZ-FE,MARK C,*195:REFER R/M; MARK C,*195:REFER R/M
main13211-28141-A0×4i201501-201605
MARK A,*195:REFER R/M
main13211-28141-B0×4i201605
MARK B,REFER REPAIR MANUAL
main13211-28141-C0×4i201501-201605
MARK C,*195:REFER R/M
main13211-0H052-A0×4i201003-201204
2AZ-FE,MARK A,*194:REFER R/M
main13211-0H052-B0×4i201003-201204
2AZ-FE,MARK B,*194:REFER R/M
main13211-0H052-C0×4i201003-201204
2AZ-FE,MARK C,*194:REFER R/M
13251PIN, PISTON
main13251-28020-A0×4i200812-201204
MARK A,*195:REFER R/M
main13251-28020-B0×4i200601-200812
MARKB,*195:REFER R/M
main13251-28020-C0×4i200601-200812
MARKC,*195:REFER R/M
main13251-0H040-A0×4i201204-201605
2AZ-FE,MARK A,*194,(L):REFER R/M
main13251-0H040-B0×4i201204-201605
2AZ-FE,MARK B,*194,(L):REFER R/M
main13251-0H040-C0×4i201003-201204
2AZ-FE,MARK C,*194,(L):REFER R/M
13265BOLT, CONNECTING ROD
main13265-28010×12i201204-201605
*195; 2AZ-FE,*194; 2AZ-FE,*195
main13265-28020×12i201901
13411CRANKSHAFT
main13401-0H010i200601-200812
(L),*195
main13401-28010i201204-201605
*195; 2AZ-FE,*195
main13401-31040i200812-201204
main13401-31041i201410-201605
main13401-0H020i201003-201204
2AZ-FE,(L),*194
13434AKEY(FOR OIL PUMP DRIVE SPLINE)
main95161-30416i200601-200812
*195
13471PULLEY, CRANKSHAFT
main13470-28020i200812-201205
*195
main13470-31030i201605
main13470-0H030i201003-201204
2AZ-FE,(L),*194
13471AKEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)
main95161-30416i200601-200812
*195
13471CBOLT(FOR CRANKSHAFT PULLEY SET)
main90119-14106i200601-200812
*195
main90119-14175i201505-201605
*195; 2AZ-FE,*195
main90119-16004i200812-201204
main90119-16020i201605
main90119-C0124i201003-201204
2AZ-FE,*194
main90119-C0499i201505-201605
2AZ-FE,*194
13519GEAR, OIL PUMP DRIVE
main13519-28010i201605
main13519-0H050i201003-201204
2AZ-FE,(L),*194
13521GEAR OR SPROCKET, CRANKSHAFT TIMING
main13521-28030i201204-201605
*195; 2AZ-FE,*195
main13521-31041i201204-201605
main13521-0H050i201204-201605
2AZ-FE,*194
13601ABALANCESHAFT SUB-ASSY, NO.1
main13601-28020i201204-201402
*195; 2AZ-FE,*195
main13601-28021i201402-201605
*195; 2AZ-FE,*195
main13601-0H030i201003-201204
2AZ-FE,(L),*194
main13601-0H031i201403-201605
2AZ-FE,*194
13602BALANCESHAFT SUB-ASSY, NO.2
main13602-28020i201204-201605
*195; 2AZ-FE,*195
main13602-0H030i201204-201605
2AZ-FE,*194
19315PLATE, CRANK ANGLE SENSOR, NO.1
main19315-28010i201605-201906

24 parts on this diagram · 2 diagrams in section

CRANKSHAFT & PISTON for Toyota PREVIA/TARAGO

This section contains 29 genuine Toyota parts for the CRANKSHAFT & PISTON system of the Toyota PREVIA/TARAGO. Key components include: WASHER SET, CRANKSHAFT THRUST, BEARING SET, CRANKSHAFT, BEARING, CRANKSHAFT, BEARING, CRANKSHAFT, NO.2, WASHER, CRANKSHAFT THRUST, UPPER.

Toyota PREVIA/TARAGO CRANKSHAFT & PISTON — Parts Diagram | EPC Data
