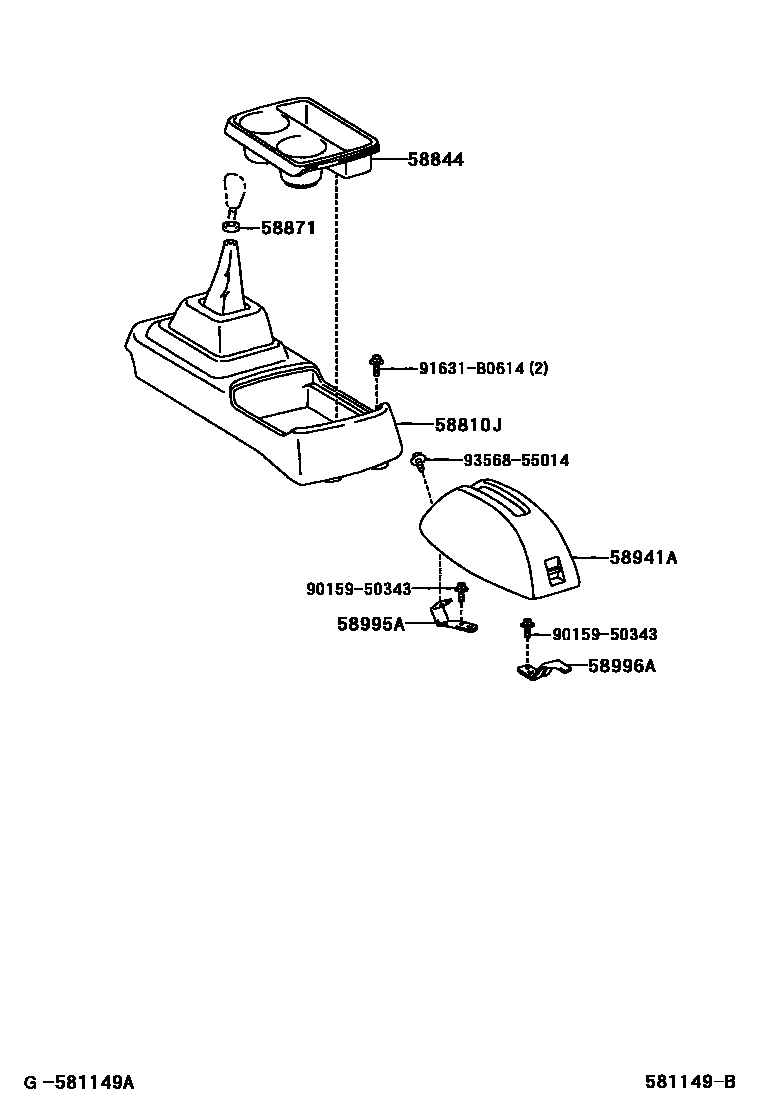

Toyota PREVIA/TARAGO — CONSOLE BOX & BRACKET

58810JBOX ASSY, CONSOLE

main58810-28300-B0iACR30,CLR30..MTM200002-200304

BLUISH GRAY,TRIM11

main58810-28300-B1iACR30,CLR30..MTM200002-200304

DK.CHARCOAL,TRIM12

main58810-28350-B0iACR30,CLR30..08S..MTM200304-200401

DK.GRAY,TRIM1#

58844BEZEL, CONSOLE BOX

main58844-28020-B2iACR30,CLR30..MTM200002-200304

LT. BLUISH GRAY,TRIM11

main58844-28020-B3iACR30,CLR30..MTM200002-200304

MD.CHARCOAL,TRIM12

main58844-28020-B4iACR30,CLR30..08S..MTM200304-200401

MD.GRAY,TRIM1#

58871CUSHION, CONSOLE BOX

main58871-20060iACR30,CLR30..MTM200304

58941ACOVER, PARKING BRAKE HOLE

main58941-28060-B0iACR30,CLR30..EUR,GCC,GEN200002-200304

LT. BLUISH GRAY,TRIM11

main58941-28060-B1iACR30,CLR30..EUR,GCC,GEN200002-200304

MD.CHARCOAL,TRIM12

main58941-28060-B2iACR30,CLR30..08S..MTM200304-200401

MD.GRAY,TRIM1#

58995ABRACKET, CONSOLE BOX MOUNTING, NO.1

main58995-28010iACR30,CLR30..EUR,GCC,GEN200002-200304

58996ABRACKET, CONSOLE BOX MOUNTING, NO.2

main58996-28010iACR30,CLR30..EUR,GCC,GEN200002-200304

9015950343

main90159-50343

91631B0614

main91631-B0614

9356855014

main93568-55014

9 parts on this diagram · 1 diagram in section
