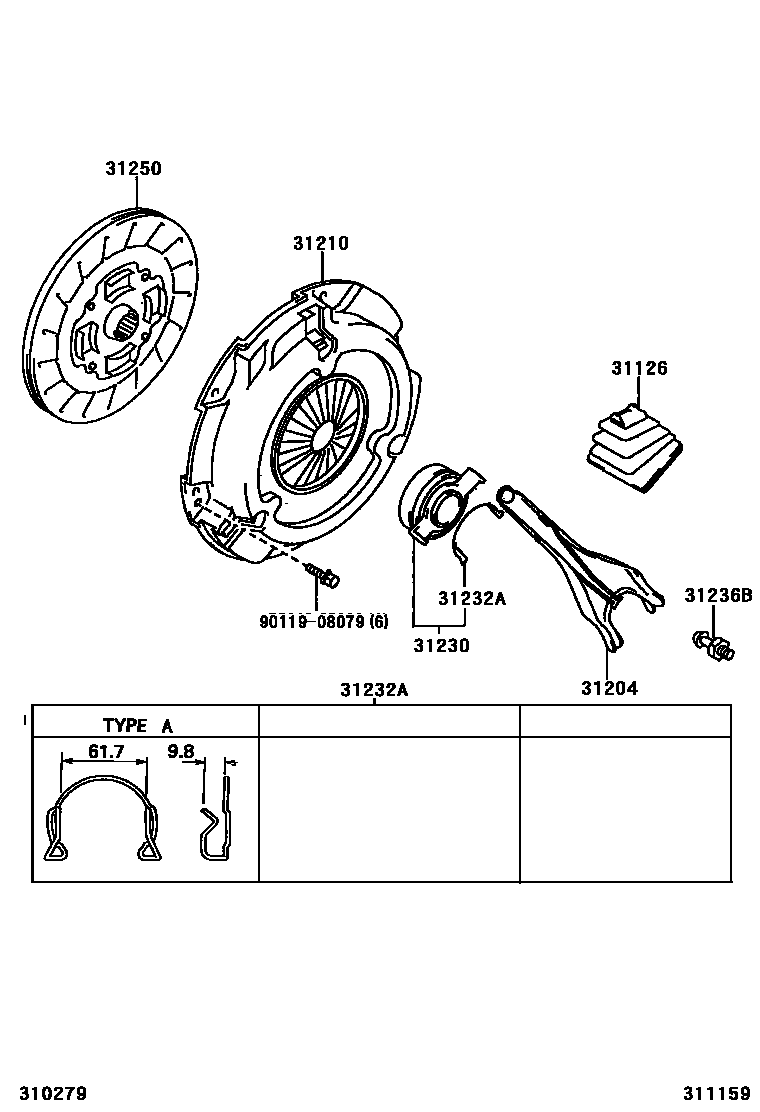

Toyota PREVIA/TARAGO — CLUTCH & RELEASE FORK

0001 1 0002 1

31126BOOT, CLUTCH RELEASE FORK

main31126-20080iCLR30200102-200404

main31126-32010iACR30..MTM200002-200404

31204FORK SUB-ASSY, CLUTCH RELEASE

main31204-20100iACR30..(06S,07S)..MTM200002-200404

main31204-20130iCLR30200102-200301

sub31204-20131

main31204-20131iCLR30200301-200404

31210COVER ASSY, CLUTCH

main31210-28060iACR30..MTM200002-200508

sub31210-33040

main31210-28070iCLR30200102-200408

sub31210-28071

main31210-28071iCLR30200409

sub31210-28072

main31210-33040iACR30..MTM200509

sub31210-33041

31230BEARING ASSY, CLUTCH RELEASE

main31230-20170iACR30..MTM200002-200404

main31230-20191iCLR30..08S200102-200404

31232ACLIP, RELEASE BEARING HUB

main31232-20020iACR30..MTM200002-200404

TYPE A:REFER TO ILLUSTRATION

main31232-20031iCLR30..08S200102-200404

31236BSUPPORT, RELEASE FORK

main31236-20060iACR30..08S..MTM200002-200404

main31236-20080iCLR30..08S200102-200404

31250DISC ASSY, CLUTCH

main31250-12410iCLR30200102-200510

sub31250-12411

main31250-12411iCLR30200511

sub31250-12412

main31250-28180iACR30..MTM200002-200510

sub31250-28181

main31250-28181iACR30..MTM200511

sub31250-33060

9011908079

main90119-08079

8 parts on this diagram · 2 diagrams in section
