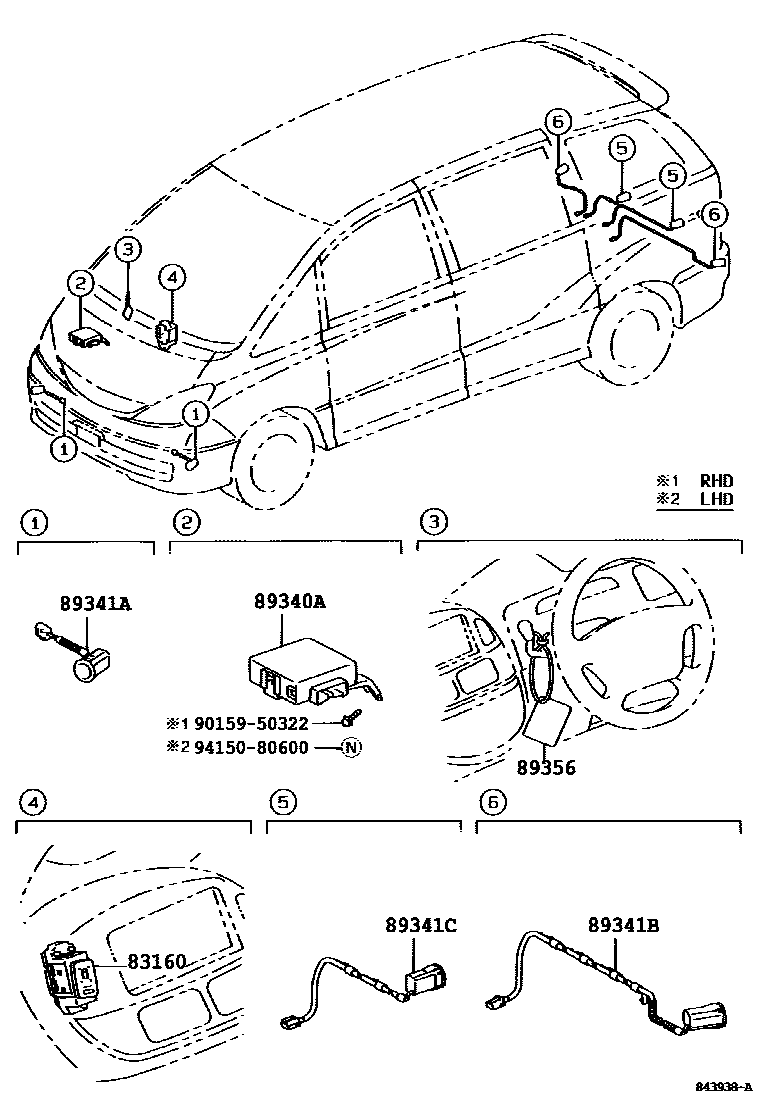

Toyota PREVIA/TARAGO — CLEARANCE & BACK SONAR

0001 1 0002 1 0003 1

83160INDICATOR ASSY, CLEARANCE WARNING

main83160-28020iACR30,CLR30..RHD..08S..MTM200102-200404

main83160-28030iACR30..LHD;CLR30..LHD..(06S,07S)200102-200404

89340ACOMPUTER ASSY, CLEARANCE WARNING

main89340-28110iACR30,CLR30..RHD200102-200304

main89340-28120iACR30,CLR30..LHD200102-200304

main89340-28140iACR30,CLR30..RHD200304-200601

main89340-28150iACR30,CLR30..LHD200304-200601

89341ASENSOR, ULTRASONIC, NO.1

main89341-28300iACR30,CLR30200102-200206

sub89341-28301

main89341-28301iACR30,CLR30200206-200304

89341BSENSOR, ULTRASONIC, NO.2

main89341-28310iACR30,CLR30200102-200206

RH

sub89341-28311

main89341-28311iACR30,CLR30200206-200304

RH

main89341-28320iACR30,CLR30200102-200206

LH

sub89341-28321

main89341-28321iACR30,CLR30200206-200304

LH

main89341-28390-A0iACR30..GL..GCC200503

GCC PACKAGE 2;GCC PACKAGE 1,WHITE PM.,042

sub89341-28390

main89341-28390-A1iACR30,CLR30200304-200601

WHITE,056

sub89341-28390

main89341-28390-B0iACR30,CLR30200304-200601

SILVER ME.,1C0

sub89341-28390

main89341-28390-B1iACR30,CLR30200304-200601

GRAY ME.,1D2

sub89341-28390

main89341-28390-C0iACR30,CLR30200304-200601

BLACK,202

sub89341-28390

main89341-28390-D0iACR30,CLR30200304-200601

SUPER RED MC.,3J7

sub89341-28390

main89341-28390-E0iACR30,CLR30200304-200601

BEIGE ME.,4R4

sub89341-28390

main89341-28390-G0iACR30,CLR30200304-200601

DK.GREEN MC.,6Q7

sub89341-28390

main89341-28390-J0iACR30,CLR30200304-200601

DK.BLUE M.M.,8P4

sub89341-28390

89341CSENSOR, ULTRASONIC, NO.3

main89341-28330iACR30,CLR30200102-200304

RH

main89341-28340iACR30,CLR30200102-200304

LH

main89341-28410-A0iACR30..GL..GCC200503

GCC PACKAGE 2;GCC PACKAGE 1,WHITE PM.,042

sub89341-28410

main89341-28410-A1iACR30,CLR30200304-200601

WHITE,056

sub89341-28410

main89341-28410-B0iACR30,CLR30200304-200601

SILVER ME.,1C0

sub89341-28410

main89341-28410-B1iACR30,CLR30200304-200601

GRAY ME.,1D2

sub89341-28410

main89341-28410-C0iACR30,CLR30200304-200601

BLACK,202

sub89341-28410

main89341-28410-D0iACR30,CLR30200304-200601

SUPER RED MC.,3J7

sub89341-28410

main89341-28410-E0iACR30,CLR30200304-200601

BEIGE ME.,4R4

sub89341-28410

main89341-28410-G0iACR30,CLR30200304-200601

DK.GREEN MC.,6Q7

sub89341-28410

main89341-28410-J0iACR30,CLR30200304-200601

DK.BLUE M.M.,8P4

sub89341-28410

89356LABEL, CLEARANCE WARNING INFORMATION

main89356-28040iACR30,CLR30200102-200304

9015950322

main90159-50322

9415080600

main94150-80600

8 parts on this diagram · 3 diagrams in section
