Toyota PREVIA/TARAGO — ACCELERATOR LINK

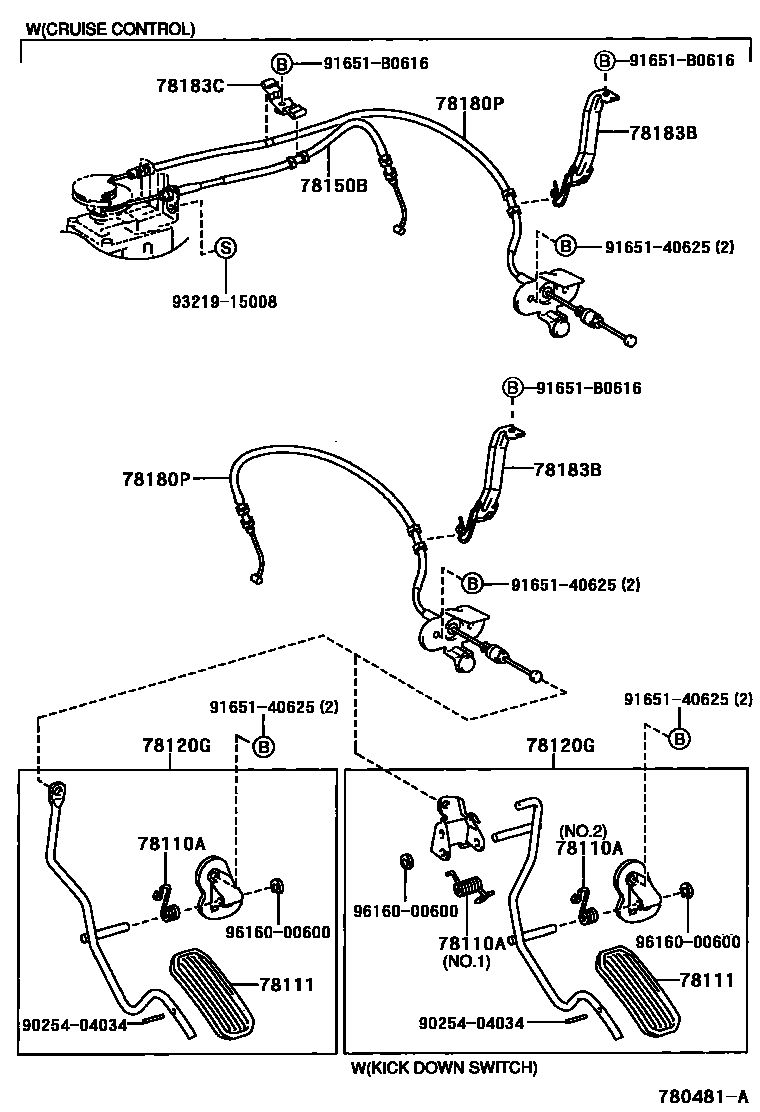

Parts diagram
78110ASPRING (FOR ACCELERATOR PEDAL ROD)
main90508-29021i200002-200304
NO.1:REFER TO ILLUSTRATION
main90959-03098i200002-200304
NO.2:REFER TO ILLUSTRATION
main90959-03271i200002-200304
main90959-03285i200002-200304
W(CRUISE CONTROL)
main90959-03286i200002-200304
W(CRUISE CONTROL); W(CRUISE CONTROL);NO.2:REFER TO ILLUSTRATION
78111PEDAL, ACCELERATOR
main78111-33010i200002-200304
78120GROD ASSY, ACCELERATOR PEDAL
main78010-28200i200102-200304
main78010-28210i200304
main78010-28230i200304
main78120-28070i200002-200304
W(CRUISE CONTROL)
main78120-28080i200002-200304
W(CRUISE CONTROL)
main78120-28150i200002-200304
main78120-28160i200002-200007
main78120-28170i200002-200304
W(KICK DOWN SWITCH)
main78120-28180i200002-200304
W(CRUISE CONTROL & KICK DOWN SWITCH)
78150BCABLE ASSY, ACCELERATOR AUTO DRIVE
main78150-28090i200002-200304
78180PCABLE ASSY, ACCELERATOR CONTROL
main78180-28320i200002-200304
main78180-28330i200002-200304
W(CRUISE CONTROL)
main78180-28340i200002-200304
main78180-28350i200002-200304
W(CRUISE CONTROL)
78183BCLAMP, ACCELERATOR CONTROL CABLE
main78183-28280i200002-200304
NO.1:REFER TO ILLUSTRATION
main78183-28300i200002-200304
NO.2:REFER TO ILLUSTRATION
main78183-28320i200002-200304
78183CCLAMP, ACCELERATOR CONTROL CABLE
main78183-28330i200002-200304
9025404034
main90254-04034
9165140625
main91651-40625
91651B0616
main91651-B0616
9321915008
main93219-15008
9616000600
main96160-00600

12 parts on this diagram · 4 diagrams in section

ACCELERATOR LINK for Toyota PREVIA/TARAGO

This section contains 14 genuine Toyota parts for the ACCELERATOR LINK system of the Toyota PREVIA/TARAGO. Key components include: SPRING (FOR ACCELERATOR PEDAL ROD), PEDAL, ACCELERATOR, ROD ASSY, ACCELERATOR PEDAL, CABLE ASSY, ACCELERATOR AUTO DRIVE, CABLE ASSY, ACCELERATOR CONTROL.
