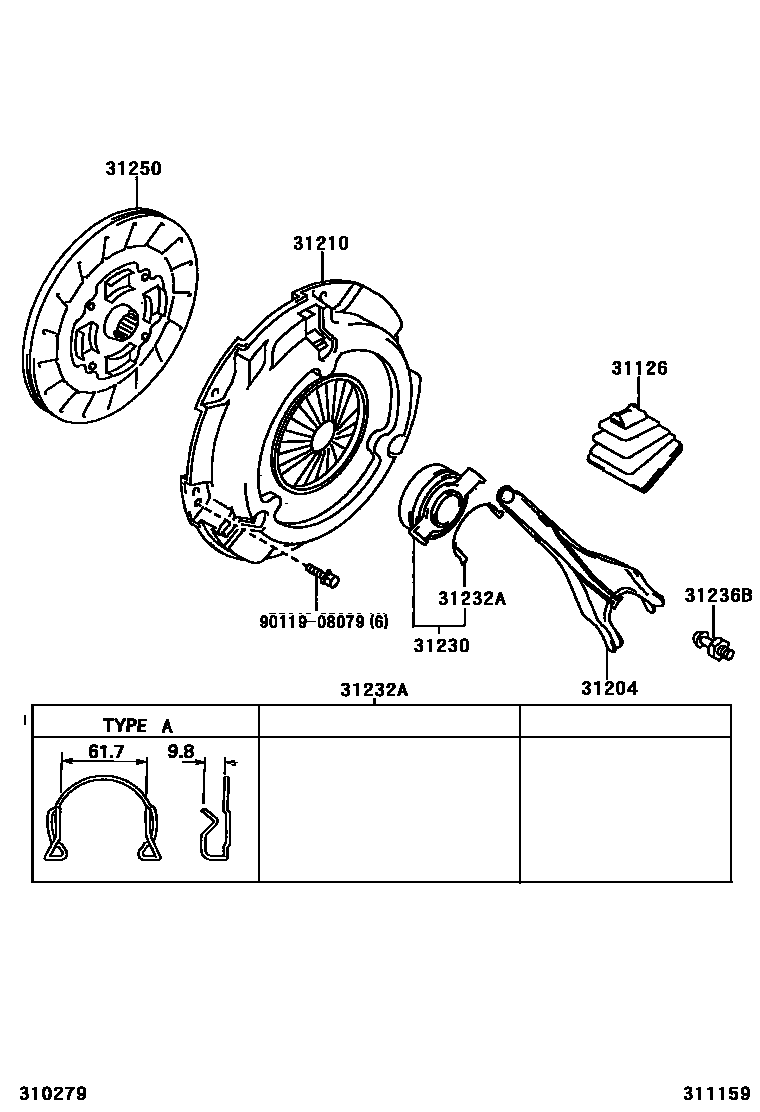

Toyota PREVIA/TARAGO — CLUTCH & RELEASE FORK
31126BOOT, CLUTCH RELEASE FORK
31204FORK SUB-ASSY, CLUTCH RELEASE
31210COVER ASSY, CLUTCH
31230BEARING ASSY, CLUTCH RELEASE
31232ACLIP, RELEASE BEARING HUB
TYPE A:REFER TO ILLUSTRATION
31236BSUPPORT, RELEASE FORK
31250DISC ASSY, CLUTCH
9011908079
main90119-08079
8 parts on this diagram · 2 diagrams in section
CLUTCH & RELEASE FORK for Toyota PREVIA/TARAGO
This section contains 9 genuine Toyota parts for the CLUTCH & RELEASE FORK system of the Toyota PREVIA/TARAGO. Key components include: BOOT, CLUTCH RELEASE FORK, FORK SUB-ASSY, CLUTCH RELEASE, COVER ASSY, CLUTCH, BEARING ASSY, CLUTCH RELEASE, CLIP, RELEASE BEARING HUB.
