Toyota PREMIO/ALLION — WIRING & CLAMP

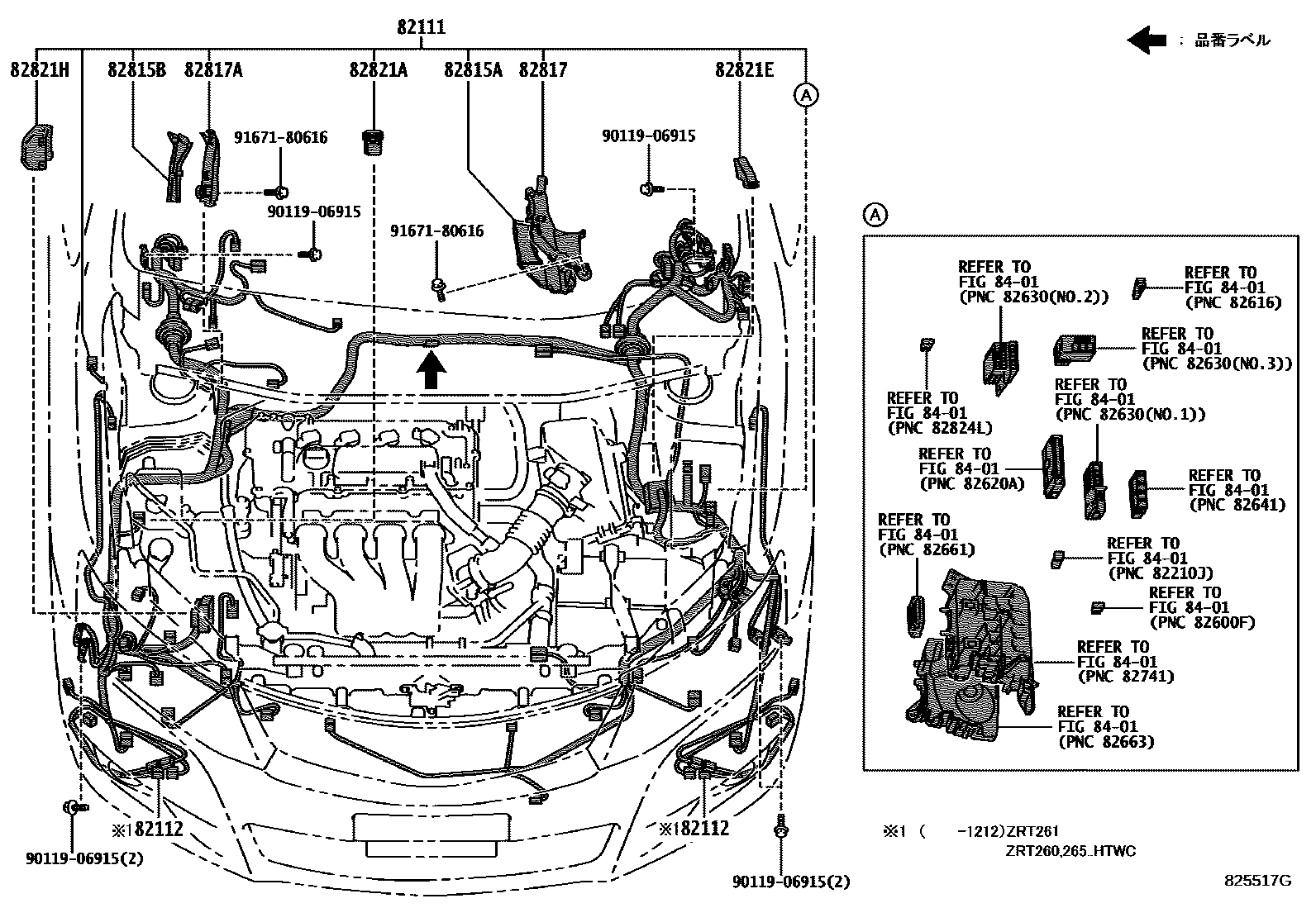

82111WIRE, ENGINE ROOM MAIN
main82111-20C21supersedes 82111-20C31iZRT260,265..ALN..CBU; ZRT260,265..CBU; ZRT260,265..PRM..CBU; ZRT261..CBU; ZRT261..PRM..CBU201004-201212
main82111-20C31supersedes 82111-20C61iZRT260,265..ALN..CBU; ZRT260,265..CBU; ZRT260,265..PRM..CBU; ZRT261..CBU; ZRT261..PRM..CBU201004-201212
82112WIRE, ENGINE ROOM, NO.2
82815ACOVER, WIRING HARNESS PROTECTOR
82815BCOVER, WIRING HARNESS PROTECTOR
82817PROTECTOR, WIRING HARNESS, NO.1
82817APROTECTOR, WIRING HARNESS, NO.2
82821ACOVER, CONNECTOR
82821ECOVER, CONNECTOR
82821HCOVER, CONNECTOR
8401SWITCH & RELAY & COMPUTER
9011906915
main90119-06915
9167180616
main91671-80616
12 parts on this diagram · 14 diagrams in section
WIRING & CLAMP for Toyota PREMIO/ALLION
This section contains 154 genuine Toyota parts for the WIRING & CLAMP system of the Toyota PREMIO/ALLION. Key components include: FUEL INJECTION SYSTEM, SLOPE & POWER LIFT, INTERIOR LAMP, WIRE, ENGINE ROOM MAIN, WIRE, ENGINE ROOM, NO.2.
