Toyota PREMIO/ALLION — WINDSHIELD WIPER

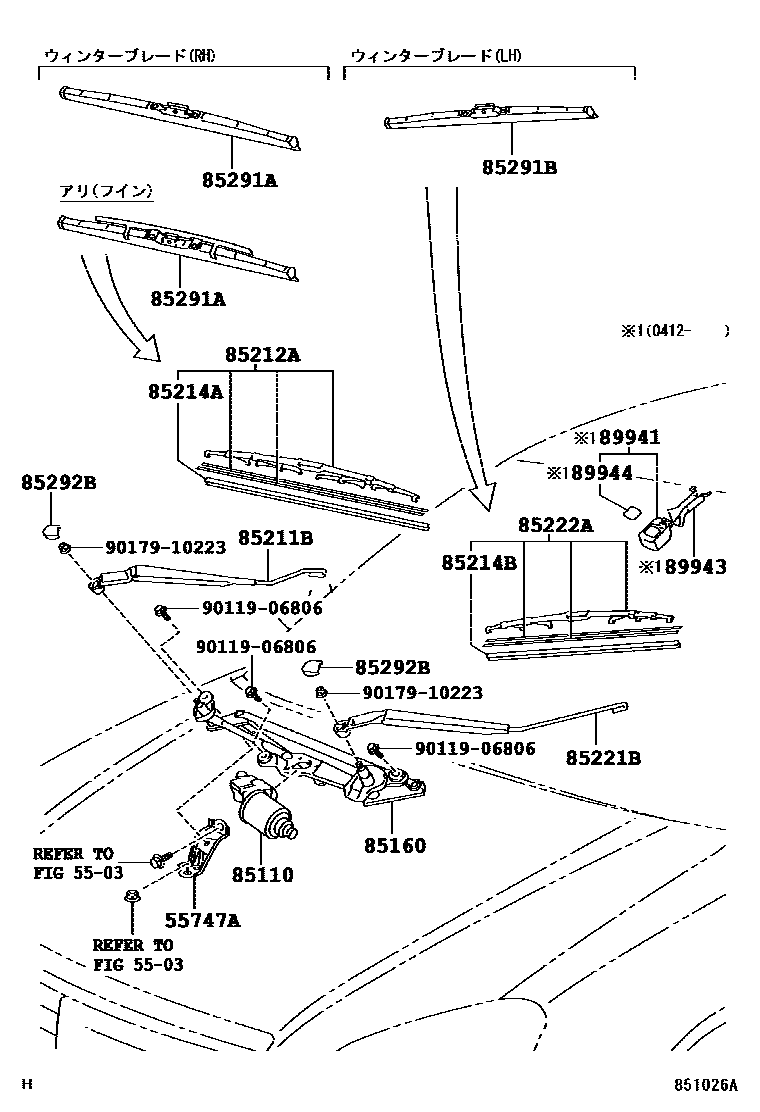

Parts diagram

5503COWL PANEL & WINDSHIELD GLASS

→ Go to FIG 55-03

55747ABRACKET, WIPER MOTOR MOUNTING, NO,1

main55747-20130i200412

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-2B070i200412

main85110-2B080i200112-200412

85160LINK ASSY, WINDSHIELD WIPER

main85150-2B050i200112-200412

85211BARM, FRONT WIPER, RH

main85211-20470i200112-200412

85212ABLADE, FR WIPER, RH

main85212-24100i200112-200403

main85212-30370i200404-200412

85214ARUBBER, WIPER, RH

main85214-50100i200404-200412

main85214-50120i200112-200404

85214BRUBBER, WIPER, LH

main85214-50060i200412-200607

main85214-50061i200608

main85214-50130i200112-200404

85221BARM, FRONT WIPER, LH

main85221-20470i200412

85222ABLADE, FR WIPER, LH

main85222-13040i200404-200412

main85222-13041i200608

main85222-50070i200112-200404

85291ABLADE, FRONT WIPER, WINTER, RH

main85291-13030i200112-200412

main85291-13040i200112-200412

main85291-24090i200412

main85291-24100i200412

85291BBLADE, FRONT WIPER, WINTER, LH

main85291-41020i200112-200412

main85291-44080i200412

85292BCAP, FRONT WIPER ARM HEAD

main85292-13010×2i200112-200412

89941SENSOR, RAIN

main89941-33010i200412

89943COVER, RAIN SENSOR

main89943-12010i200412

89944TAPE, RAIN SENSOR

main89944-33010i200412

9011906806

main90119-06806

9017910223

main90179-10223

18 parts on this diagram · 1 diagram in section

WINDSHIELD WIPER for Toyota PREMIO/ALLION

This section contains 18 genuine Toyota parts for the WINDSHIELD WIPER system of the Toyota PREMIO/ALLION. Key components include: COWL PANEL & WINDSHIELD GLASS, BRACKET, WIPER MOTOR MOUNTING, NO,1, MOTOR ASSY, WINDSHIELD WIPER, LINK ASSY, WINDSHIELD WIPER, ARM, FRONT WIPER, RH.
