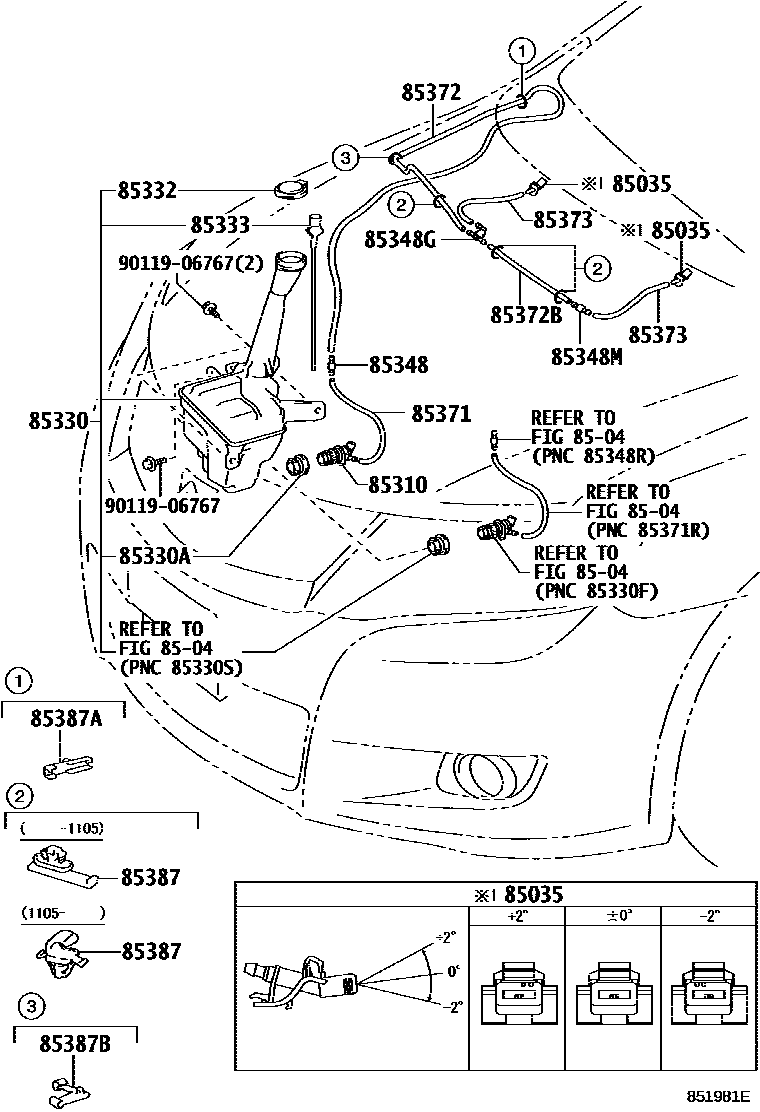

Toyota PREMIO/ALLION — WINDSHIELD WASHER

85035NOZZLE SUB-ASSY, WASHER

main85381-12300×2i201606

main85381-12310×2i200705-201004

main85381-12320×2i201004-201606

8504REAR WASHER

→ Go to FIG 85-04

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-21010i200705-201004

85330JAR ASSY, WINDSHIELD WASHER

main85315-20680supersedes 85315-20690i200705-201004

85330ABUSH, WINDSHIELD WASHER JAR

main85336-60300i200705-201004

85332CAP, WINDSHIELD WASHER JAR

main85332-12740i200705-201004

85333FILTER, WINDSHIELD WASHER JAR

main85312-30080i200705-201004

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85349-89122i200705-201004

85348GJOINT, WINDSHIELD WASHER HOSE, NO.2

main85321-28020i200705-201004

85348MJOINT, WINDSHIELD WASHER HOSE, NO.3

main85349-89122i200705-201004

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90099-33080i200705-201004

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90446-07001i200705-201004

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90446-07001i200705-201004

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90099-33080×2i200705-201004

85387CLAMP NO.1 (FOR WINDSEIELD WASHER)

main82711-52090×2i200705-201004

main85371-12040×2i201105-201606

85387ACLAMP, WASHER, NO.2

main85387-12840i200705-201004

85387BCLAMP, WASHER, NO.3

main85387-22410i200705-201004

9011906767

main90119-06767

18 parts on this diagram · 2 diagrams in section

WINDSHIELD WASHER for Toyota PREMIO/ALLION

This section contains 18 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota PREMIO/ALLION. Key components include: NOZZLE SUB-ASSY, WASHER, REAR WASHER, MOTOR AND PUMP ASSY, WINDSHIELD WASHER, JAR ASSY, WINDSHIELD WASHER, BUSH, WINDSHIELD WASHER JAR.
