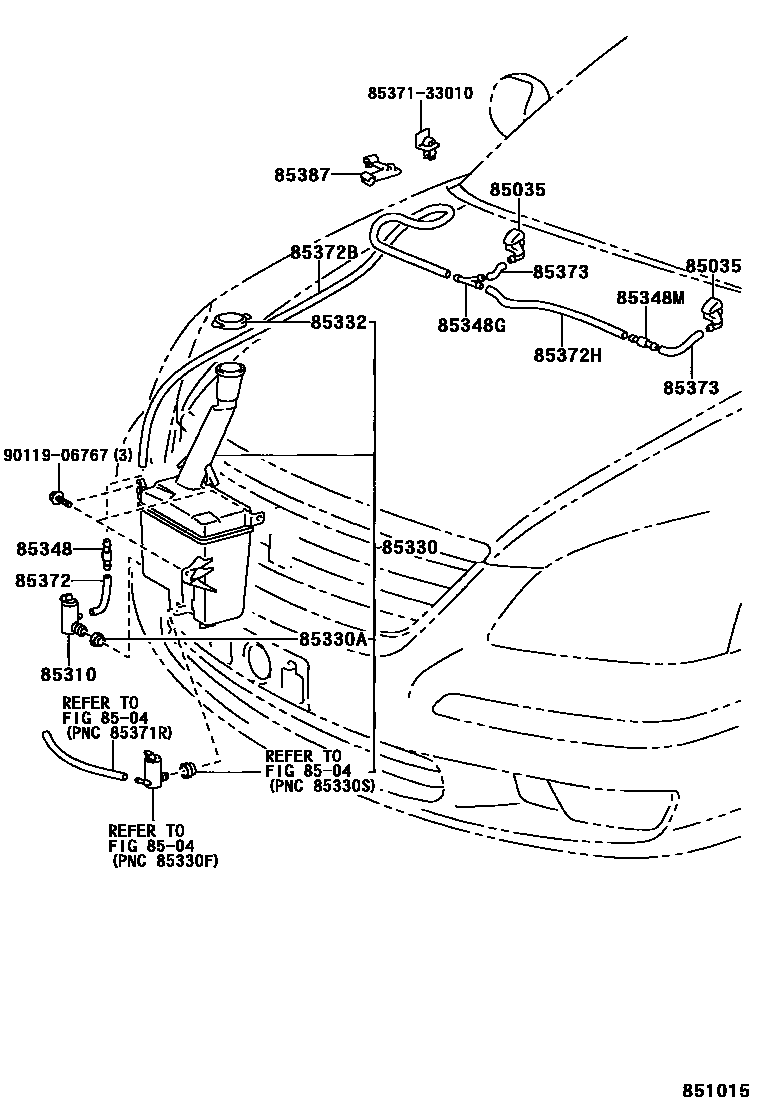

Toyota PREMIO/ALLION — WINDSHIELD WASHER

85035NOZZLE SUB-ASSY, WASHER

main85381-44010×2i200112-200412

8504REAR WASHER

→ Go to FIG 85-04

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-10280i200112-200412

85330JAR ASSY, WINDSHIELD WASHER

main85315-20650i200112-200412

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32089i200112-200412

85332CAP, WINDSHIELD WASHER JAR

main85316-33120i200112-200412

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85349-89122i200112-200412

85348GJOINT, WINDSHIELD WASHER HOSE, NO.2

main85348-12250i200112-200412

85348MJOINT, WINDSHIELD WASHER HOSE, NO.3

main85349-89122i200112-200412

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90099-33080i200112-200412

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90446-07001i200112-200412

85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3

main90446-07001i200112-200412

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90099-33080×2i200112-200412

85387CLAMP NO.1 (FOR WINDSEIELD WASHER)

main85387-22410i200112-200412

8537133010HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main85371-33010

9011906767

main90119-06767

16 parts on this diagram · 1 diagram in section

WINDSHIELD WASHER for Toyota PREMIO/ALLION

This section contains 16 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota PREMIO/ALLION. Key components include: NOZZLE SUB-ASSY, WASHER, REAR WASHER, MOTOR AND PUMP ASSY, WINDSHIELD WASHER, JAR ASSY, WINDSHIELD WASHER, BUSH, WINDSHIELD WASHER JAR.
