Toyota PREMIO/ALLION — TRANSAXLE ASSY(CVT)

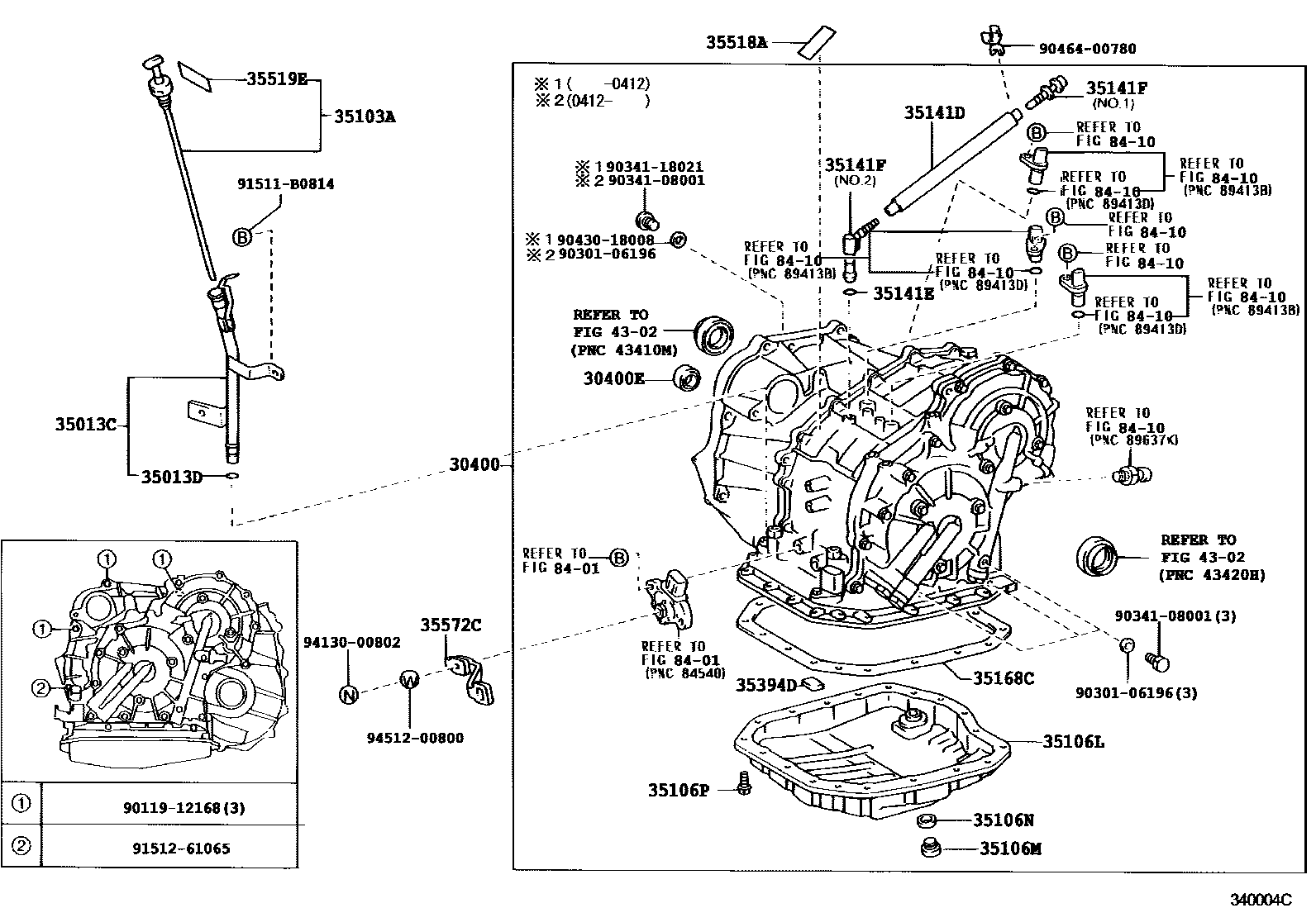

Parts diagram

30400TRANSAXLE ASSY, CONTINUOUSLY VARIABLE

main30400-63011i200112-200412

30400ESEAL, TYPE T OIL(FOR CVT OIL PUMP)

main90311-47014i200112-200412

35013CTUBE SUB-ASSY, TRANSMISSION OIL FILLER

main35013-20830i200112-200412

35013DRING, O(FOR TRANSMISSION OIL FILLER TUBE)

main90301-09173i200112-200412

35103AGAGE SUB-ASSY, TRANSMISSION OIL LEVEL

main35103-63010i200112-200412

35106LPAN SUB-ASSY, TRANSAXLE OIL(CVT)

main35106-63010i200112-200412

35106MPLUG SUB-ASSY, DRAIN(CVT)

main90341-18016i200112-200412

35106NGASKET, DRAIN PLUG(CVT)

main90430-18008i200112-200412

35106PBOLT(FOR TRANSAXLE OIL PAN)

main90119-06173×19i200112-200412

35141DHOSE(FOR BREATHER PLUG)

main35121-63010i200112-200412

35141ERING, O(FOR BREATHER PLUG)

main90301-06005i200412-200705

35141FPLUG, BREATHER, NO.1(CVT)

main90930-03149i200412-200705

main90930-03164i200112-200412

35168CGASKET, TRANSAXLE OIL PAN(CVT)

main35168-63010i200112-200412

35394DMAGNET, OIL CLEANER(CVT)

main35394-30011×3i200112-200412

35518ALABEL, AUTOMATIC TRANSAXLE INFORMATION, NO.2

main35518-63010i200112-200412

35519ELABEL, AUTOMATIC TRANS INFORMATION

main35519-63010i200112-200412

35572CLEVER, TRANSMISSION CONTROL SHAFT

main35572-63010i200112-200412

4302FRONT DRIVE SHAFT

→ Go to FIG 43-02

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8410OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

→ Go to FIG 84-10

9011912168

main90119-12168

9030106196

main90301-06196

9034108001

main90341-08001

9034118021

main90341-18021

9043018008

main90430-18008

9046400780

main90464-00780

91511B0814

main91511-B0814

9151261065

main91512-61065

9413000802

main94130-00802

9451200800

main94512-00800

30 parts on this diagram · 1 diagram in section

TRANSAXLE ASSY(CVT) for Toyota PREMIO/ALLION

This section contains 30 genuine Toyota parts for the TRANSAXLE ASSY(CVT) system of the Toyota PREMIO/ALLION. Key components include: TRANSAXLE ASSY, CONTINUOUSLY VARIABLE, SEAL, TYPE T OIL(FOR CVT OIL PUMP), TUBE SUB-ASSY, TRANSMISSION OIL FILLER, RING, O(FOR TRANSMISSION OIL FILLER TUBE), GAGE SUB-ASSY, TRANSMISSION OIL LEVEL.
