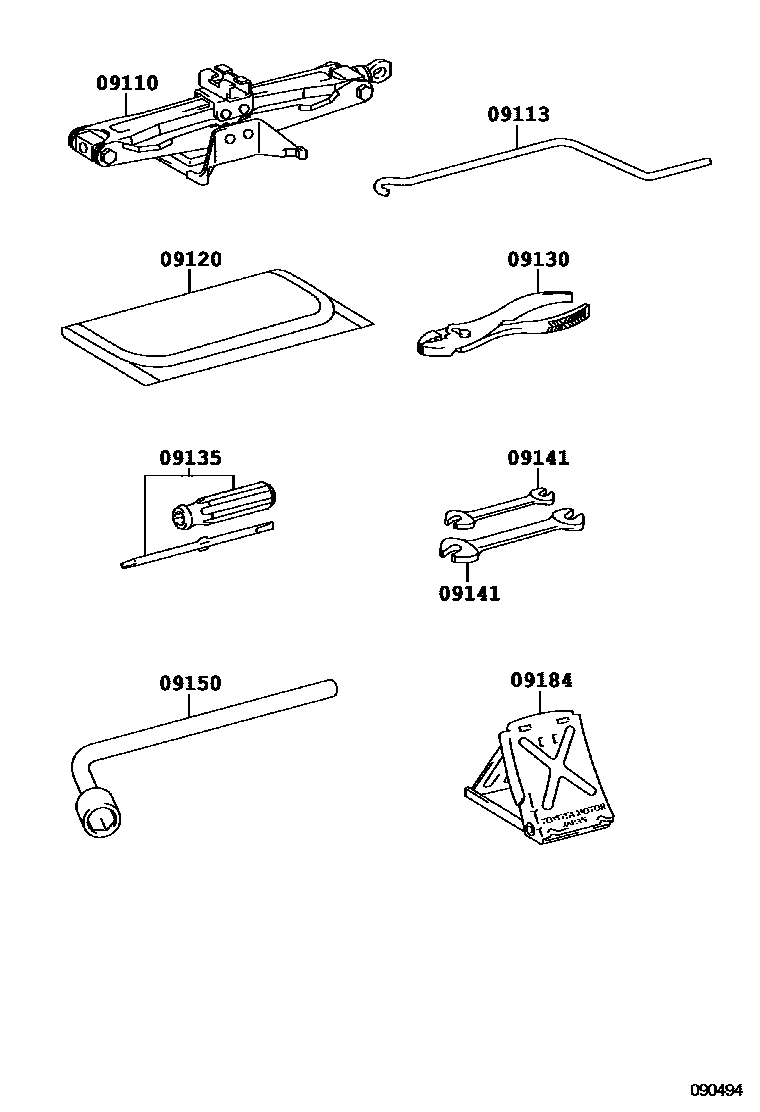

Toyota PREMIO/ALLION — STANDARD TOOL

09110JACK ASSY

main09111-0W041i200412-200705

09113HANDLE, JACK

main09113-20030i200112-200412

09120BAG, TOOL

main09120-16030i200112-200412

09130PLIERS

main99913-11500i200112-200412

09135DRIVER, SCREW

main99915-10700i200412

09141SPANNER

main99914-10810i200112-200412

main99914-11214i200112-200412

09150WRENCH, HUB NUT BOX

main09150-40010i200112-200412

09184STOPPER, WHEEL

main09184-00010i200112-200412

8 parts on this diagram · 1 diagram in section

STANDARD TOOL for Toyota PREMIO/ALLION

This section contains 8 genuine Toyota parts for the STANDARD TOOL system of the Toyota PREMIO/ALLION. Key components include: JACK ASSY, HANDLE, JACK, BAG, TOOL, PLIERS, DRIVER, SCREW.
